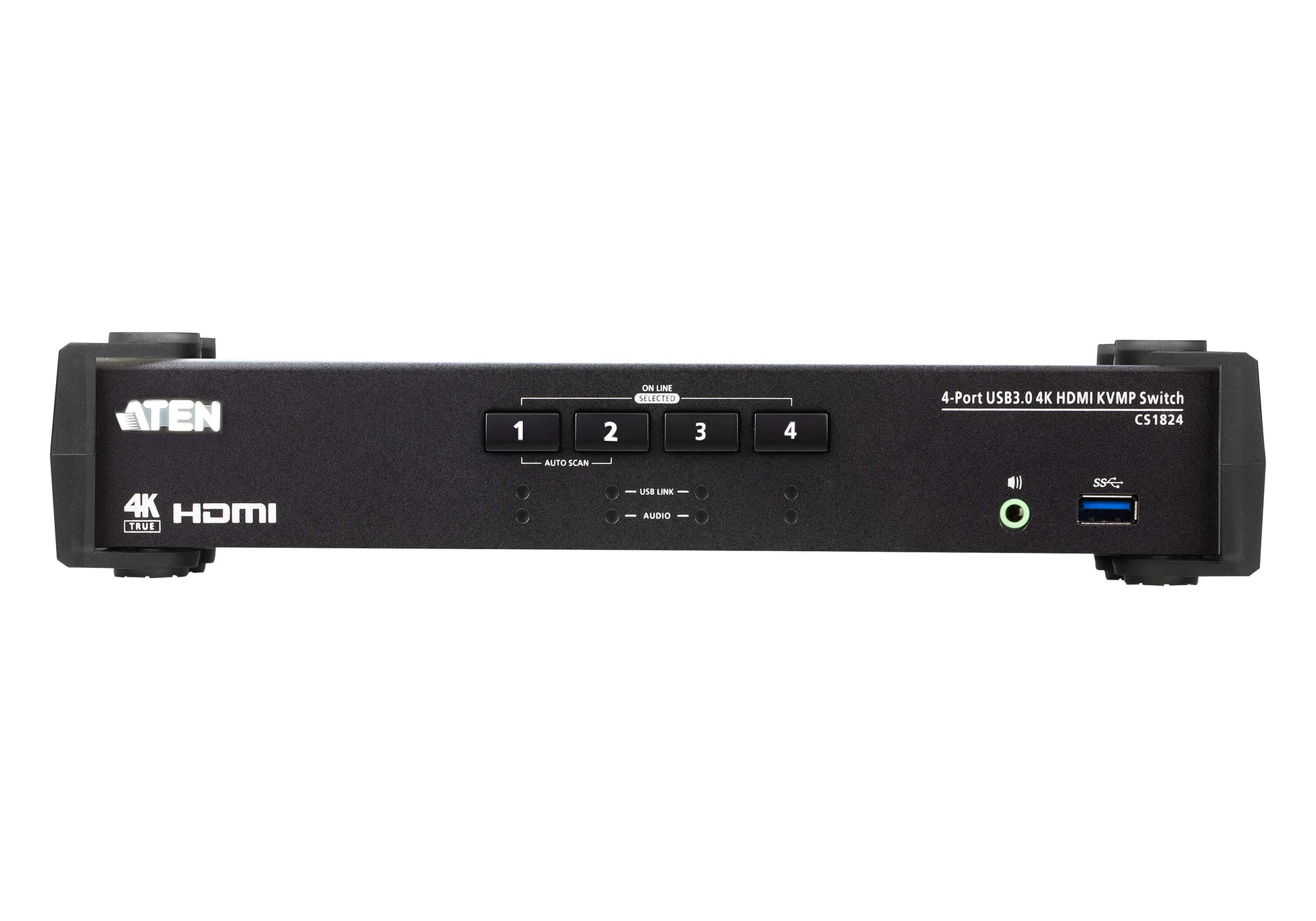

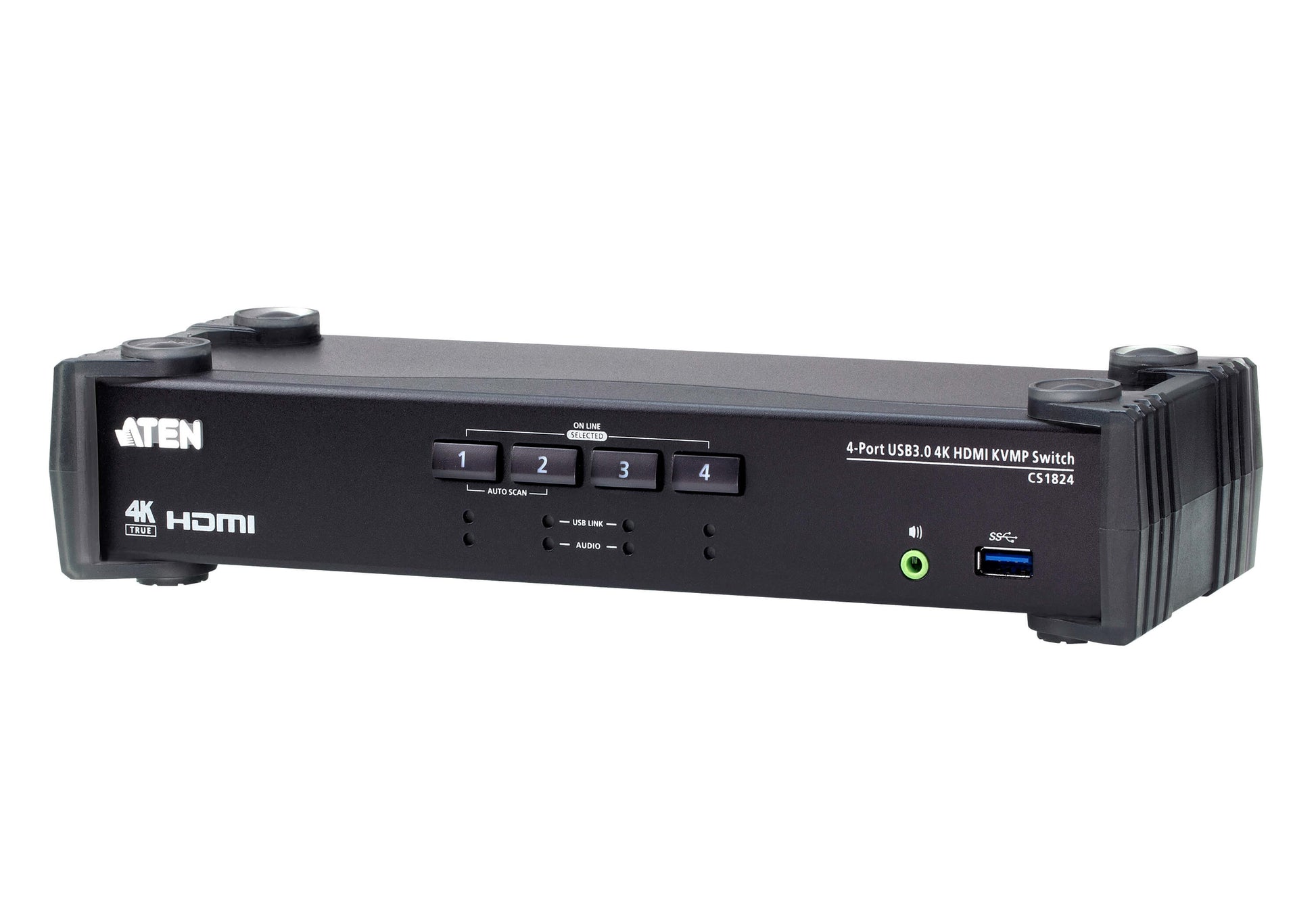

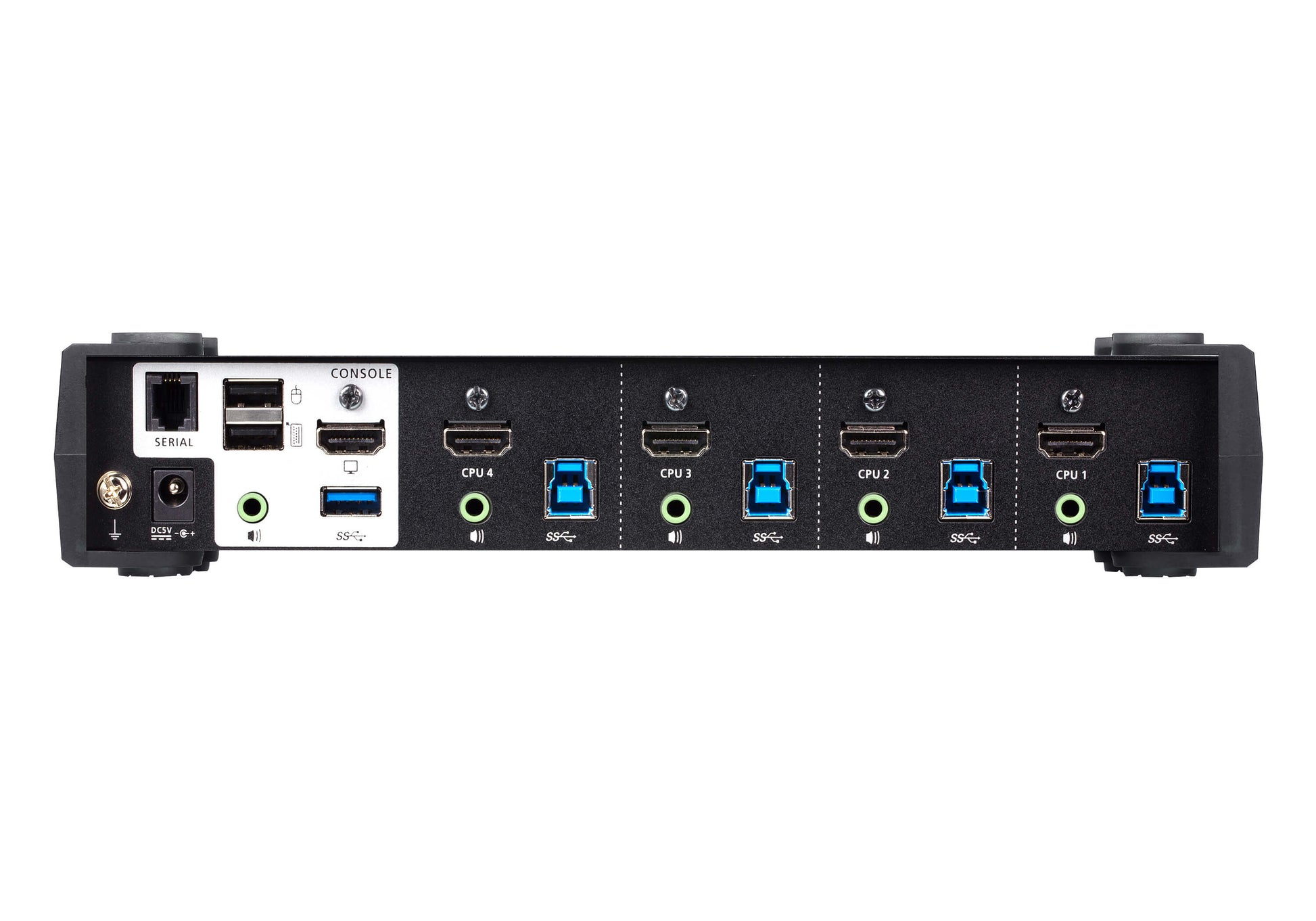

ATEN CS1824 KVM switch Black
ATEN CS1824 KVM switch Black
SKU: CS1824
Regular price
$420.97 USD
Regular price
Sale price
$420.97 USD
MSRP: $568.00
ATEN CS1824. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, Plastic. Power source: DC, Output voltage: 5 V, Power consumption (typical): 2.535 W. Width: 34.6" (880 mm), Depth: 106.3" (2700 mm), Height: 21.9" (555 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN CS1824. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, Plastic. Power source: DC, Output voltage: 5 V, Power consumption (typical): 2.535 W. Width: 34.6" (880 mm), Depth: 106.3" (2700 mm), Height: 21.9" (555 mm)
- Info: One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals|Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)|Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources|Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates|Audio Mixer Modes – mixes up to two audio sources as audio output|Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands|ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue|Independent switching of KVM, USB peripheral, and stereo audio focus2|HDMI 2.0 compliant; HDCP 2.2 compliant|Supports HD Audio2|Power on detection|Auto Scan Mode for monitoring all computers|Firmware upgradable|Note:|1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.|2. HD audio through HDMI channel cannot be switched independently
- Push button: Yes
- HD type: 4K Ultra HD
- Product color: Black
- Housing material: Metal, Plastic
- USB hub: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- USB connector type: USB Type-A, USB Type-B
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,99 s
- DC-in jack: Yes
- Serial ports quantity: 1
- HDMI ports quantity: 5
- Number of computers controlled: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
- Audio connections: Yes
- Console ports: 3.5mm headphone, HDMI, USB A
- Console USB ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- Power consumption (typical): 2.535 W
- Output voltage: 5 V
- Power source: DC
- Weight: 33.2 oz (940 g)
- Width: 34.6" (880 mm)
- Height: 21.9" (555 mm)
- Depth: 106.3" (2700 mm)
