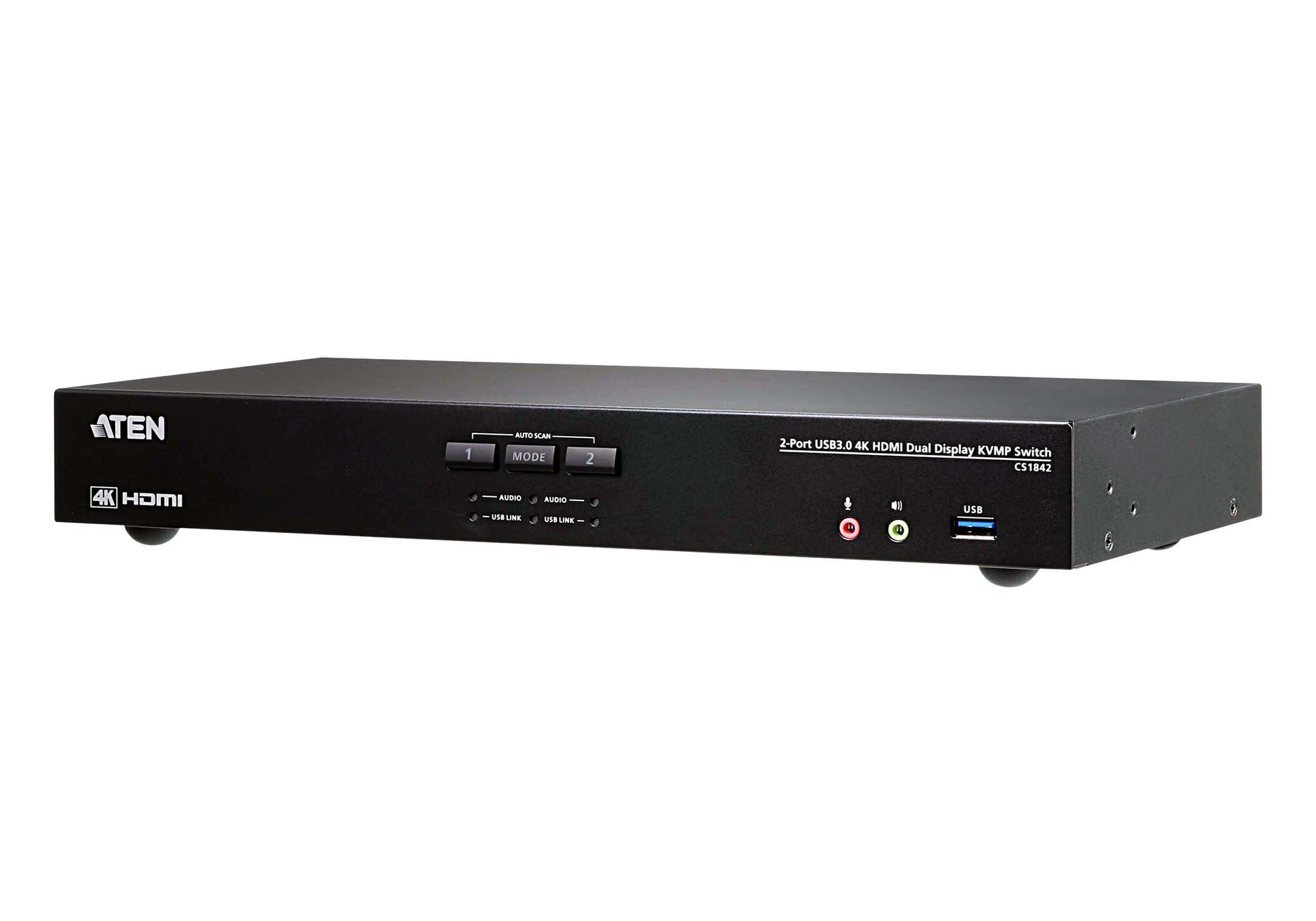

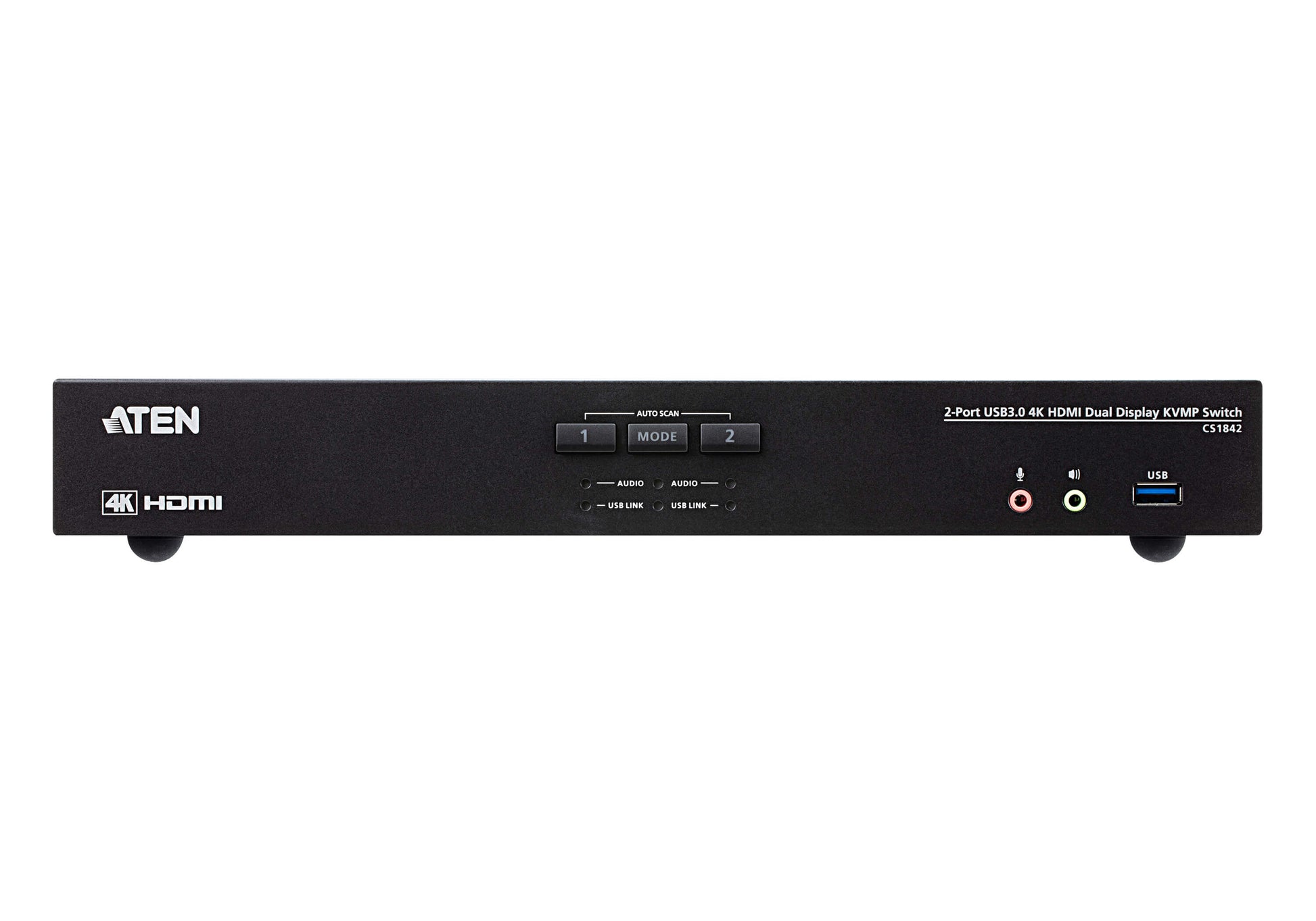

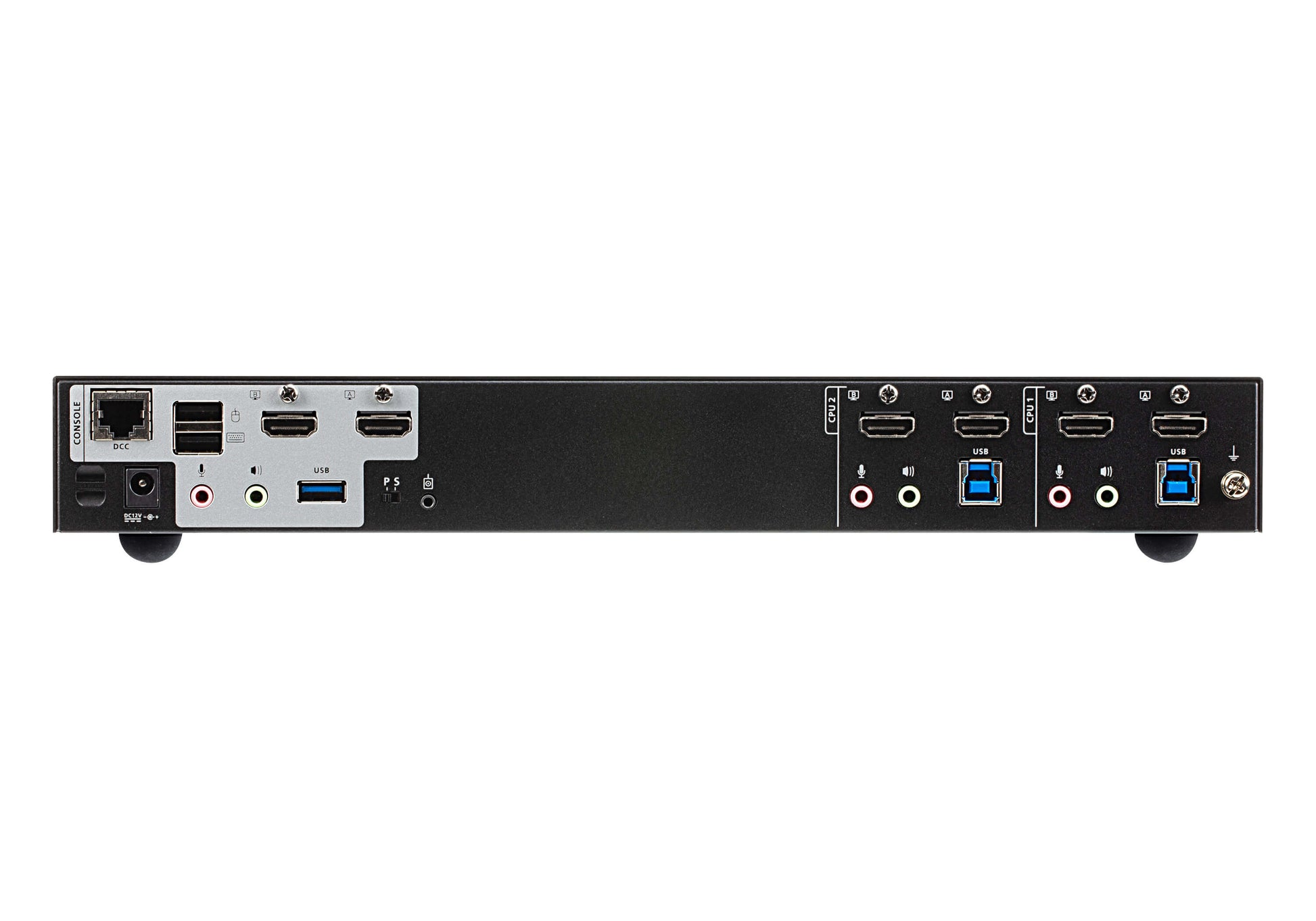

ATEN CS1842 KVM switch Rack mounting Black
ATEN CS1842 KVM switch Rack mounting Black
SKU: CS1842
Regular price
$415.78 USD
Regular price
Sale price
$415.78 USD
MSRP: $561.00
ATEN CS1842. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Scan interval: 1,99 s. Product color: Black, Rack capacity: 1U. Power source: AC, Input voltage: 12 V, Power consumption (typical): 3.17 W. Compliance certificates: RoHS
Quantity
Couldn't load pickup availability
- Details: ATEN CS1842. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Scan interval: 1,99 s. Product color: Black, Rack capacity: 1U. Power source: AC, Input voltage: 12 V, Power consumption (typical): 3.17 W. Compliance certificates: RoHS
- Info: One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals|Supports Quad Display by connecting two Dual Display KVM switches|Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports|Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)|Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2|Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates|Supports console keyboard emulation / bypass feature|Supports console mouse emulation / bypass feature|Independent switching of KVM, USB peripheral, and stereo audio focus3|Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards|HDMI 2.0 compliant; HDCP 2.2 compliant|Supports HD audio3|Power on detection|Auto Scan Mode for monitoring all computers|Firmware upgradable|Note:|1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.|2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844 user manual.|3. HD audio through HDMI channel cannot be switched independently.
- LED indicators: Yes
- Rack mounting: Yes
- Push button: Yes
- HD type: 4K Ultra HD
- Product color: Black
- Daisy chain: Yes
- Hot keys: Yes
- USB hub: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Built-in display: No
- USB connector type: USB Type-A, USB Type-B
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- Maximum resolution: 4096 x 2160 pixels
- Scan interval: 1,99 s
- DC-in jack: Yes
- HDMI ports quantity: 4
- Number of computers controlled: 2
- Audio connections: Yes
- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- Power consumption (typical): 3.17 W
- Input voltage: 12 V
- Power source: AC
- Compliance certificates: RoHS
- Rack capacity: 1U
- Weight: 3.53 lbs (1.6 kg)
- Width: 13.2" (335 mm)
- Height: 1.73" (44 mm)
- Depth: 6.32" (160.5 mm)
