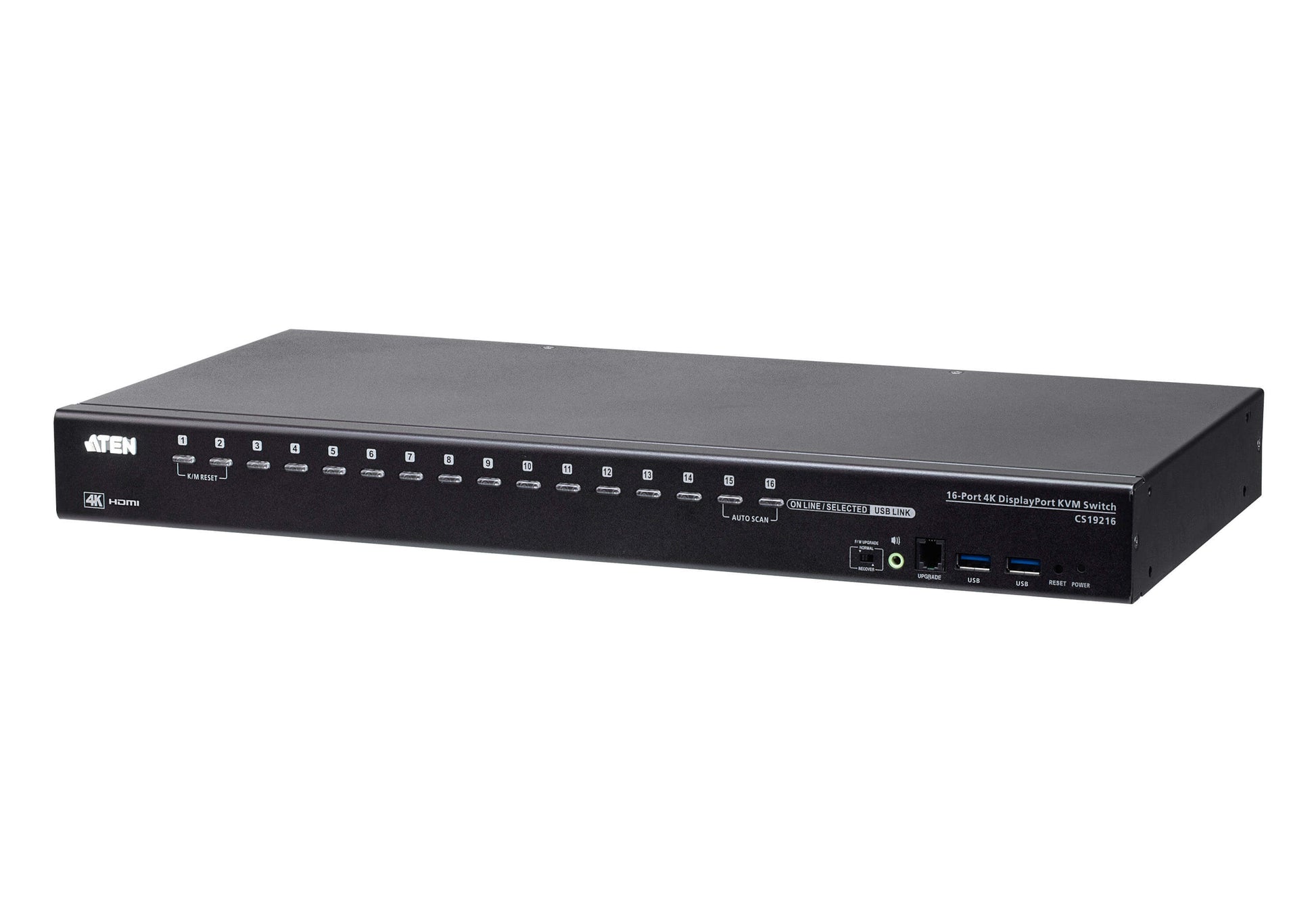

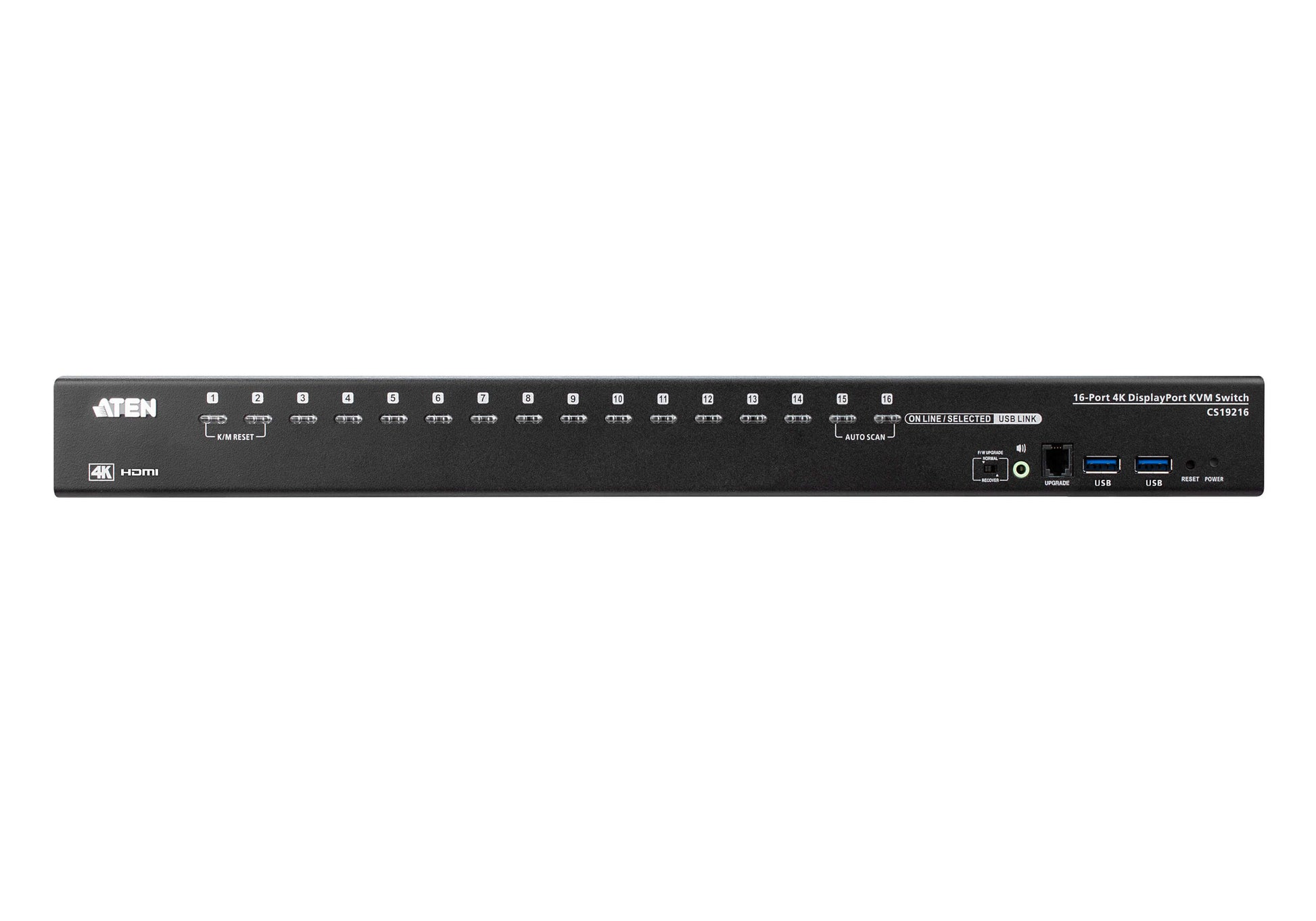

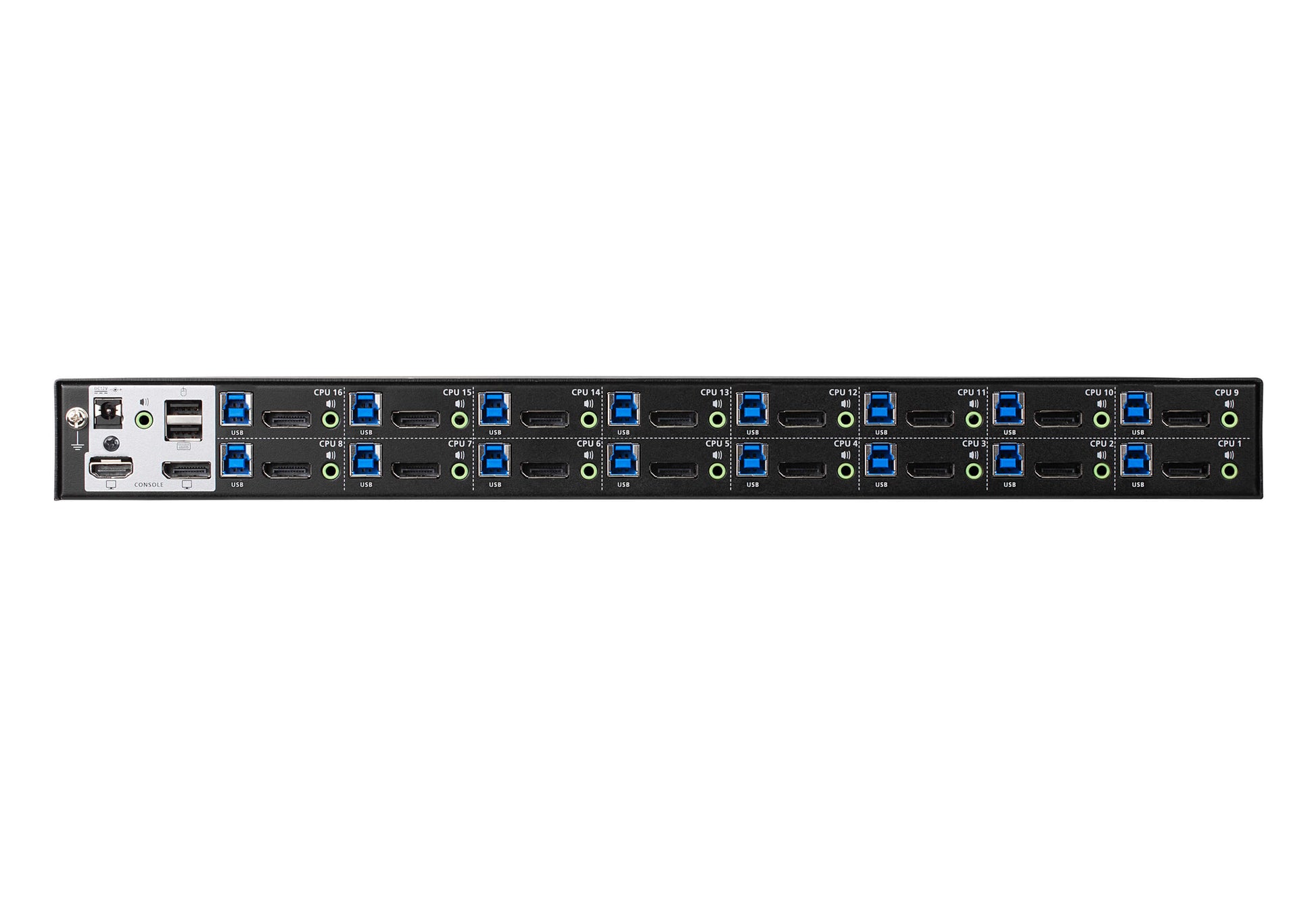

ATEN CS19216 KVM switch Rack mounting Black
ATEN CS19216 KVM switch Rack mounting Black
SKU: CS19216
Regular price
$1,480.72 USD
Regular price
Sale price
$1,480.72 USD
MSRP: $2,068.00
ATEN CS19216. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Scan interval: 255 s. Product color: Black, Rack capacity: 1U, Housing material: Metal. Power source: AC, Power consumption (typical): 26.66 W. Width: 17" (432.4 mm), Depth: 8.44" (214.3 mm), Height: 1.73" (44 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN CS19216. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Scan interval: 255 s. Product color: Black, Rack capacity: 1U, Housing material: Metal. Power source: AC, Power consumption (typical): 26.66 W. Width: 17" (432.4 mm), Depth: 8.44" (214.3 mm), Height: 1.73" (44 mm)
- Info: One USB console controls up to sixteen DisplayPort interface computers and two additional USB 3.0 peripheral devices|Cascadable to two levels – controls up to 256 computers1|Multi-Display feature – stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)|Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources|EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display|Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility|Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)|Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates|Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound|Supports HD audio2|Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands|Independent switching of KVM and USB peripheral focus3|Two-level (administrator/user) password authorization for enhanced security protection|Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.|Auto Scan Mode for monitoring all computers|Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice|Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese|Mac/Sun keyboard support and emulation4|Supports hot-plugging|DisplayPort 1.2 compliant; HDCP 2.2 compliant|Multiplatform support – Windows, Linux, Mac, and Sun|Firmware upgradable|Supports multimedia, wireless keyboards and mouse|Note:|1. Cascading between CS19208 and CS19216 is available.|2. HD audio through HDMI and DisplayPort channel cannot be switched independently.|3. Independent switching is only supported under mouse emulation mode.|4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
- LED indicators: Yes
- Rack mounting: Yes
- Push button: Yes
- HD type: 4K Ultra HD
- On Screen Display (OSD): Yes
- Product color: Black
- Housing material: Metal
- Hot keys: Yes
- USB hub: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Hot-Plug support: Yes
- Firmware upgradeable: Yes
- Built-in display: No
- USB connector type: USB Type-A, USB Type-B
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- Maximum resolution: 4096 x 2160 pixels
- Scan interval: 255 s
- DC-in jack: Yes
- Serial ports quantity: 1
- Headphone outputs: 18
- DisplayPorts quantity: 16
- HDCP: Yes
- DisplayPort version: 1.2
- Number of computers controlled: 16
- Audio connections: Yes
- Console ports: 3.5mm headphone, DisplayPort, HDMI, USB A
- Console USB ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- Power consumption (typical): 26.66 W
- Power source: AC
- External power adapter: Yes
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Rack capacity: 1U
- Cascadable: Yes
- Weight: 7.8 lbs (3.54 kg)
- Width: 17" (432.4 mm)
- Height: 1.73" (44 mm)
- Depth: 8.44" (214.3 mm)
