ATEN CS1922 KVM switch Black
ATEN CS1922 KVM switch Black
SKU: CS1922
Regular price
$212.54 USD
Regular price
Sale price
$212.54 USD
MSRP: $282.00
ATEN CS1922. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 4096 x 2160 pixels, Scan interval: 1,99 s. Product color: Black, Housing material: Metal, Plastic, LED indicators: Operation, USB. Output voltage: 5 V. Width: 3.46" (88 mm), Depth: 10.6" (270 mm), Height: 2.19" (55.5 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN CS1922. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 4096 x 2160 pixels, Scan interval: 1,99 s. Product color: Black, Housing material: Metal, Plastic, LED indicators: Operation, USB. Output voltage: 5 V. Width: 3.46" (88 mm), Depth: 10.6" (270 mm), Height: 2.19" (55.5 mm)
- Info: 2-port DisplayPort KVMP™ Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio|One USB console controls 2 computers and 2 USB peripherals|Computer selection via front panel pushbuttons, hotkeys and mouse1|Independent switching of KVM, USB, and Audio focus|Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)|2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates|DisplayPort 1.2 compliant, HDCP compliant2|Supports HD audio through DisplayPort3|Full bass response for high-quality 2.1 channel surround sound systems|Power On Detection – if a computer is powered off, the CS1922 automatically switches to the next powered-on computer|Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector4|DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter5|Hot pluggable – add or remove computers without powering down the switch|Keyboard emulation/bypass feature supports most gaming keyboard|Mouse emulation/bypass feature supports most mouse drivers and multifunction mice|Multi-platform support – Windows, Mac and Linux|Multilingual keyboard mapping supports English, Japanese, French and German keyboards|Mac keyboard support and emulation6|Auto Scan Mode for monitoring all computers|Firmware upgradeable|Note:|1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.|2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue.|3. HD audio through DisplayPort cannot be switched independently.|4. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant.|5. DisplayPort Dual – Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.|6. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.
- LED indicators: Operation, USB
- Product color: Black
- Housing material: Metal, Plastic
- USB hub: Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Hot-Plug support: Yes

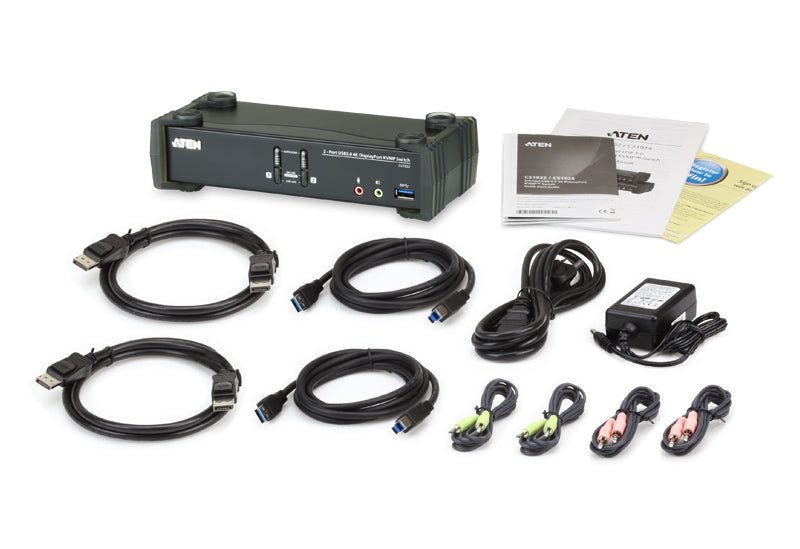

- Cables included: Audio (3.5mm), DisplayPort, USB
- Manual: Yes
- AC adapter included: Yes
- Built-in display: No
- USB connector type: USB Type-B
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- Maximum resolution: 4096 x 2160 pixels
- Scan interval: 1,99 s
- DC-in jack: Yes
- HDCP: Yes
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- Number of computers controlled: 4
- Audio connections: Yes

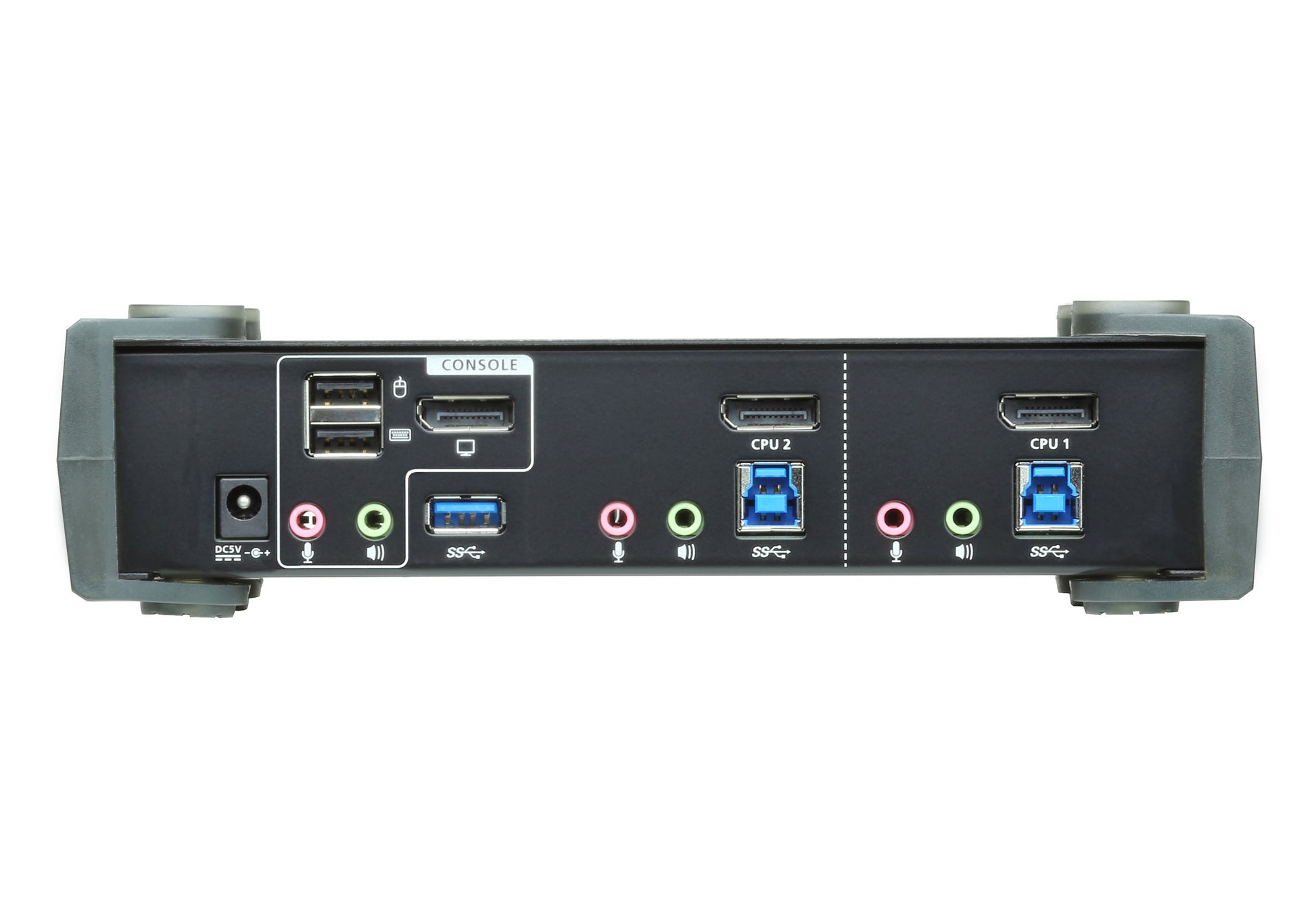

- Console ports: 3.5mm mic, DisplayPort, USB B
- Console USB ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- Output voltage: 5 V
- External power adapter: Yes
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Weight: 32.1 oz (910 g)
- Width: 3.46" (88 mm)
- Height: 2.19" (55.5 mm)
- Depth: 10.6" (270 mm)
