ATEN CS1924M KVM switch Black
ATEN CS1924M KVM switch Black
SKU: CS1924M
Regular price
$555.85 USD
Regular price
Sale price
$555.85 USD
MSRP: $750.00
ATEN CS1924M. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, Plastic. Power source: DC, Output voltage: 5 V, Power consumption (typical): 4.89 W. Compliance certificates: RoHS
Quantity
Couldn't load pickup availability
- Details: ATEN CS1924M. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, Plastic. Power source: DC, Output voltage: 5 V, Power consumption (typical): 4.89 W. Compliance certificates: RoHS
- Info: World’s First DisplayPort KVM Switch with Built-in MST Hub|One USB keyboard/mouse and DisplayPort or HDMI monitor control 4 computers and 2 USB peripherals|Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source1|Supports MST Mode, Splitter Mode, and Single Port Mode.|2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds|DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter2|Firmware upgradeable|Hot pluggable – add or remove computers without powering down the switch|Remarkable Audio/Video Experience|Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)|DisplayPort 1.2 compliant, HDCP 1.3 compliant3|Supports HD audio through DisplayPort4|Full bass response for high-quality 2.1 channel surround sound systems|Intelligent Operation|Computer selection via front panel pushbuttons, hotkeys, mouse5, and RS-232 commands|Independent switching of KVM, USB hub, and Audio focus|Power On Detection – if a computer is powered off, the CS1924M automatically switches to the next powered-on computer|Auto Scan Mode for monitoring all computers|Versatile Compatibility|Keyboard emulation/bypass feature supports most gaming keyboards|Mouse emulation/bypass feature supports most mouse drivers and multifunction mice|Multi-platform support – Windows, Mac and Linux|Multilingual keyboard mapping supports English, Japanese, French and German keyboards|Note:|1. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant|2. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups.|Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.|3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue.|4. HD audio through DisplayPort cannot be switched independently.|5. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
- LED indicators: Yes
- Push button: Yes
- HD type: 4K Ultra HD
- Product color: Black
- Housing material: Metal, Plastic
- Harmonized System (HS) code: 85176200
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%

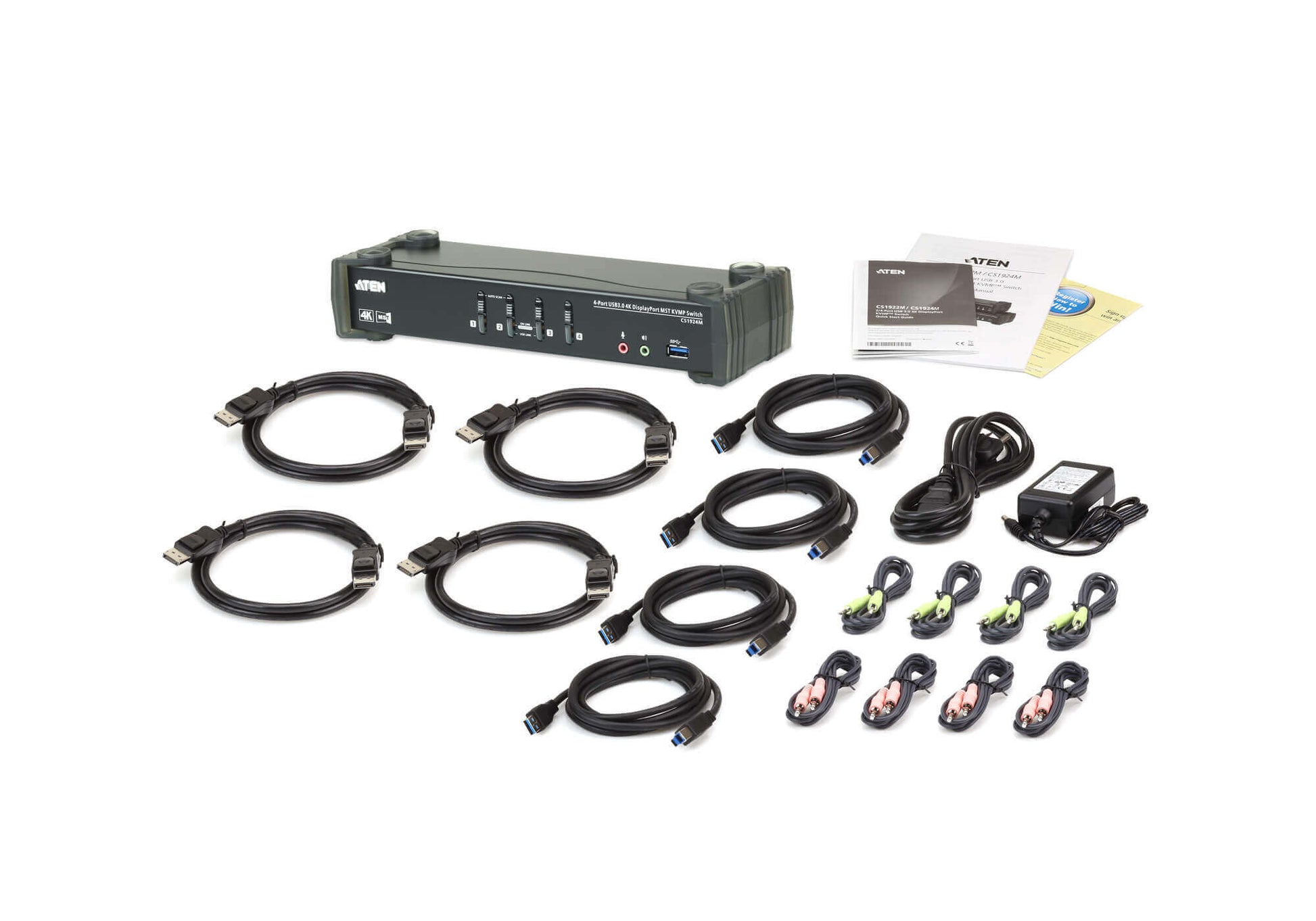

- Cables included: Audio (3.5mm), DisplayPort, USB
- Manual: Yes
- AC adapter included: Yes
- Built-in display: No
- USB connector type: USB Type-A, USB Type-B
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI/DisplayPort
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,99 s
- DC-in jack: Yes
- HDMI ports quantity: 1
- DisplayPorts quantity: 5
- DisplayPort version: 1.2
- Number of computers controlled: 4

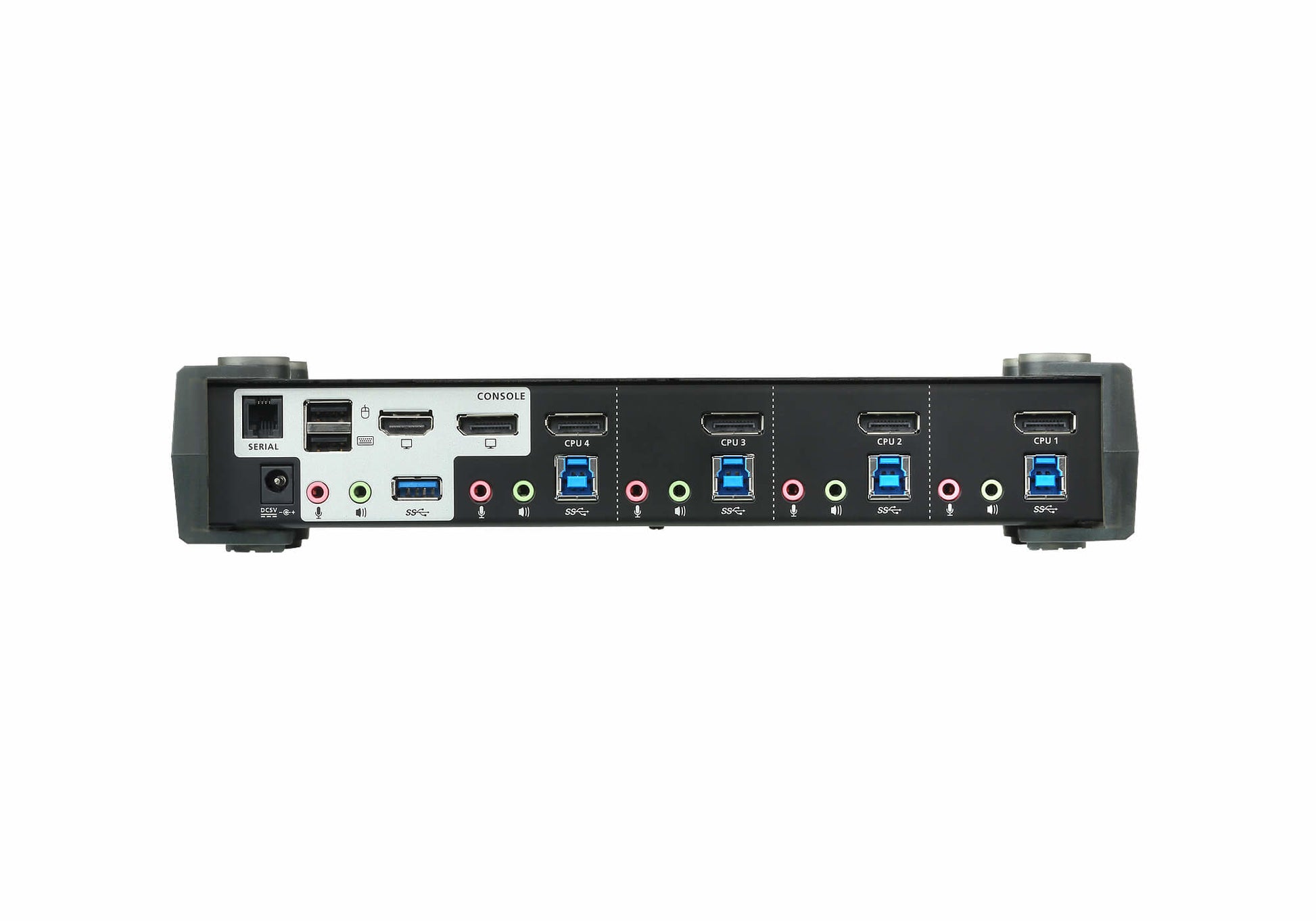

- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
- Power consumption (typical): 4.89 W
- Output voltage: 5 V
- Power source: DC
- Compliance certificates: RoHS
- Weight: 32.5 oz (920 g)
- Width: 3.46" (88 mm)
- Height: 2.19" (55.5 mm)
- Depth: 10.6" (270 mm)
