ATEN CS1944DP KVM switch Black
ATEN CS1944DP KVM switch Black
SKU: CS1944DP
Regular price
$486.09 USD
Regular price
Sale price
$486.09 USD
MSRP: $645.00
ATEN CS1944DP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 5.76 W. Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10...
Quantity
Couldn't load pickup availability
- Details: ATEN CS1944DP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 5.76 W. Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10...
- Info: One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals|Supports Quad Display by connecting two Dual Display KVM switches|Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)|Computer Selection via front panel, hotkeys, mouse, and RS-232 commands|2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates|Supports DisplayPort Dual-Mode technology (DP++)1|Supports MST (Multi-Stream Transport)2|Supports Console keyboard emulation / bypass feature|Supports Console mouse emulation / bypass feature|Independent switching of KVM, USB, and Audio|Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards|DisplayPort 1.2 compliant; HDCP compliant3|Supports HD audio4|Power on detection|Firmware upgradable|Note:|1. DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.|2. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant|3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue|4. HD audio through DisplayPort cannot be switched independently
- LED indicators: Yes
- Push button: Yes
- HD type: 4K Ultra HD
- Product color: Black
- Housing material: Metal
- Hot keys: No
- USB hub: Yes
- Harmonized System (HS) code: 85176200
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%

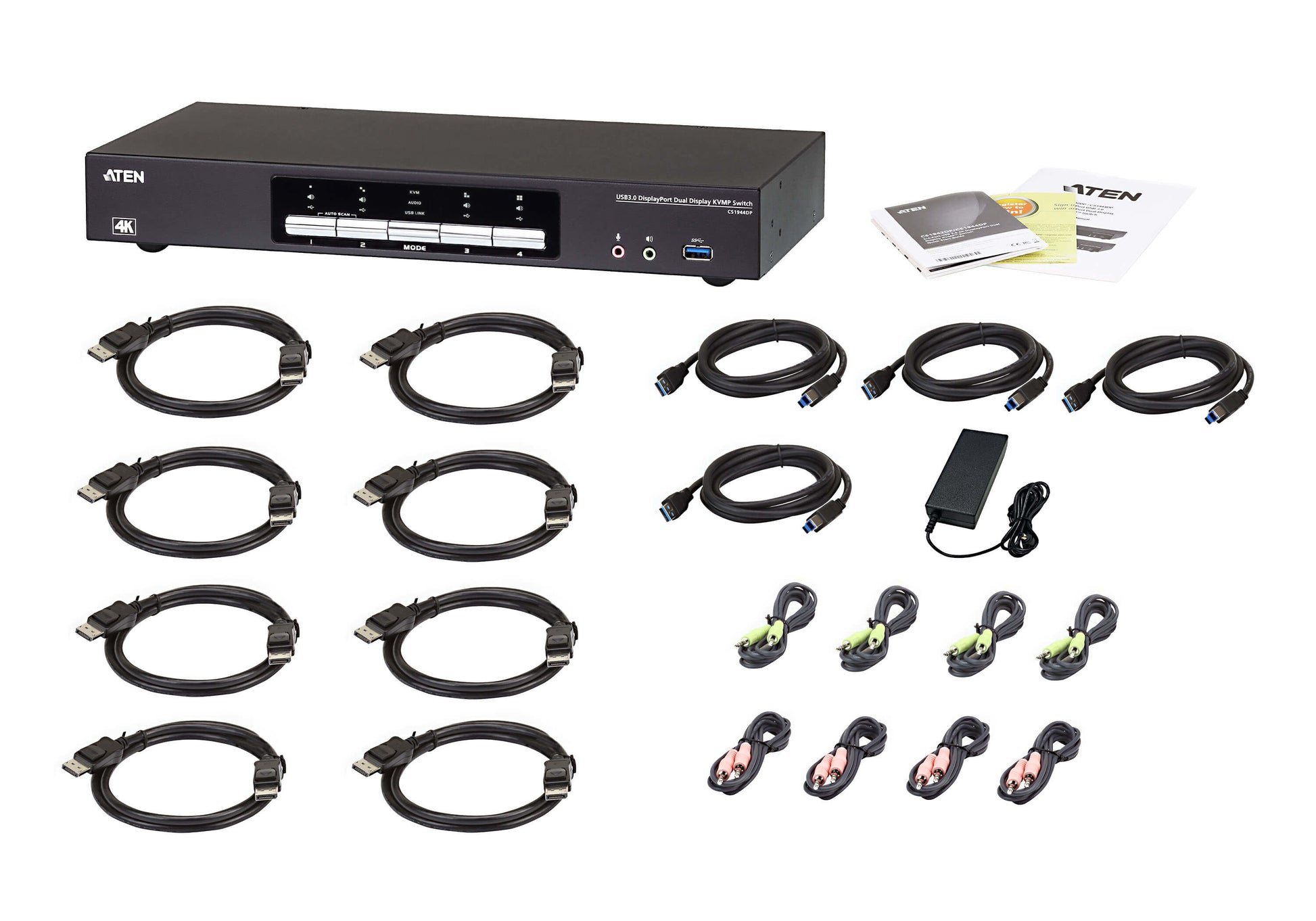

- Cables included: Audio (3.5mm), DisplayPort, KVM, USB
- Manual: Yes
- AC adapter included: Yes
- Firmware upgradeable: Yes
- Built-in display: No
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- Maximum resolution: 4096 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,99 s
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
- Headphone outputs: 6
- DisplayPorts quantity: 10
- HDCP: Yes
- Number of computers controlled: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
- Audio connections: Yes
- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity: 2
- Number of microphone inputs: 6
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- Power consumption (typical): 5.76 W
- Input voltage: 12 V
- Power source: DC
- Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
- Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
- Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 9.3, openSUSE 13.1
- Other operating systems supported: DOS, Novell NetWare 5.x, Novell NetWare 6.x
- Compliance certificates: RoHS
- Weight: 3.33 lbs (1.51 kg)
- Width: 6.17" (156.6 mm)
- Height: 1.73" (44 mm)
- Depth: 13.2" (335 mm)
