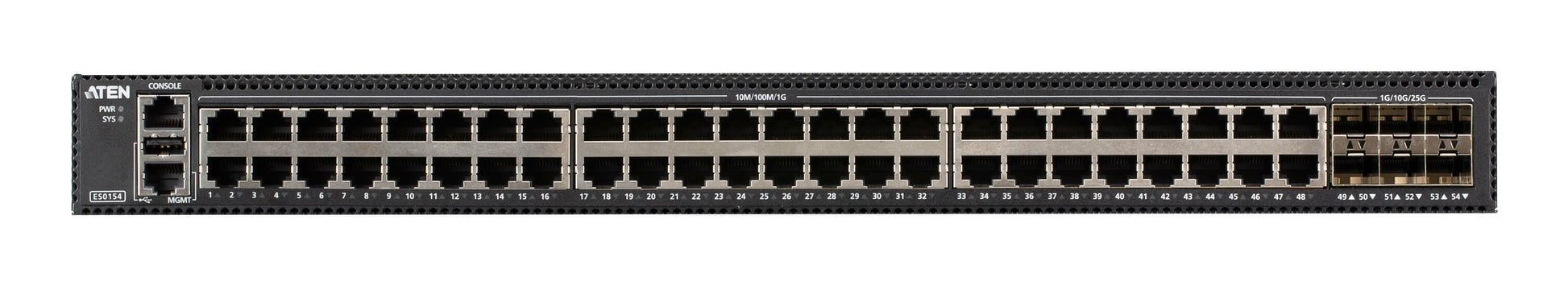

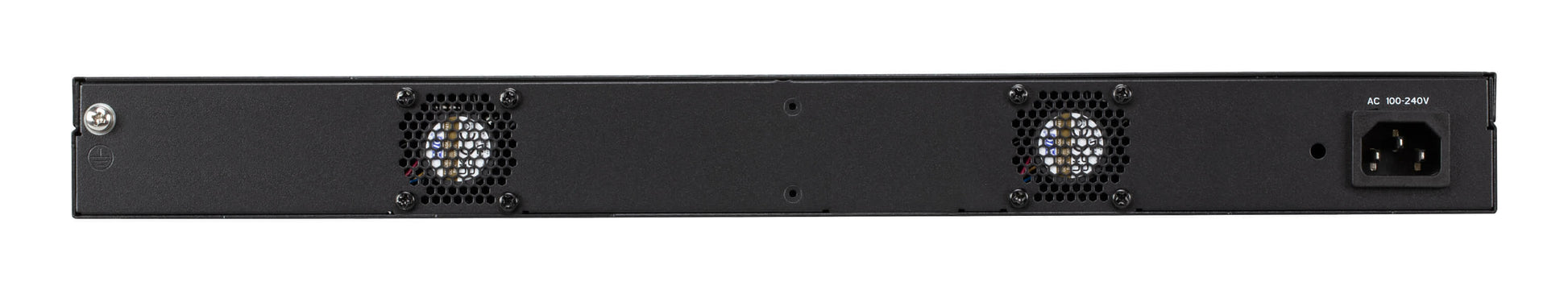

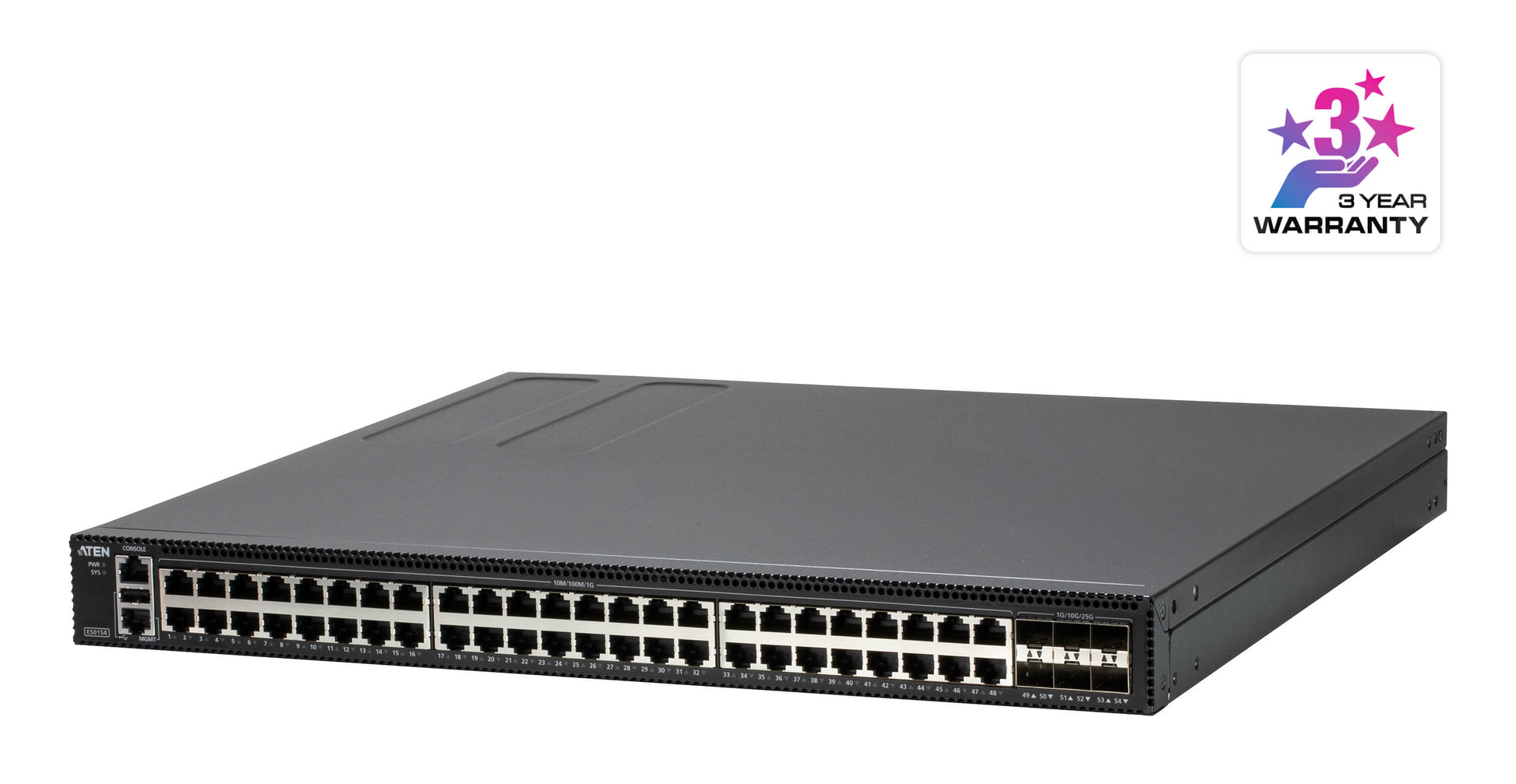

ATEN ES0154 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black

ATEN ES0154 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black

ES0154

$1,418.58 USD
$1,418.58 USD
Sale Sold out

MSRP: $1,775.00

ATEN ES0154. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 396 Gbit/s. Networking standards: IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Rack mounting
View full details
    • Details: ATEN ES0154. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 396 Gbit/s. Networking standards: IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Rack mounting
    • PDF: http://objects.icecat.biz/objects/mmo_120235275_1739527458_4031_799902.pdf
    • Info: Supports plug-and-play with KE, VE89 series devices|Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)|High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times|Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier|Supports IGMP Snooping Fast Leave|Supports Flow Control|Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network|Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks|Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability|Supports IPv4, IPv6
    • MAC address table: 32000 entries
    • Jumbo frames support: Yes
    • Switching capacity: 396 Gbit/s
    • Forwarding rate: 295 Mpps
    • Jumbo frames: 10000
    • Rack mounting: Yes
    • Product color: Black
    • Housing material: Metal
    • Country of origin: Taiwan
    • Switch type: Managed
    • Switch layer: L2+
    • Networking standards: IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
    • Flow control support: Yes
    • Quality of Service (QoS) support: Yes
    • 10G support: Yes
    • Auto-negotiation: Yes
    • Supported network protocols: IGMP v1/v2/v3, IGMP v1/v2
    • Operating temperature (T-T): -5 - 45 °C
    • Storage temperature (T-T): -20 - 70 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Package width: 21.7" (550 mm)
    • Package height: 5.91" (150 mm)
    • Package depth: 25.6" (650 mm)
    • Package weight: 15.8 lbs (7.18 kg)
    • Internal memory: 1000 MB
    • Flash memory: 256 MB
    • Fiber optic connector: SFP28
    • Basic switching RJ-45 Ethernet ports quantity: 48
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Console port: RJ-45
    • USB 2.0 ports quantity: 1
    • SFP module slots quantity: 6
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50/60 Hz
    • Power consumption (max): 54 W
    • Power source: AC
    • IGMP snooping: Yes
    • Weight: 10.3 lbs (4.68 kg)
    • Width: 16.5" (420 mm)
    • Height: 1.72" (43.6 mm)
    • Depth: 17.4" (442 mm)
