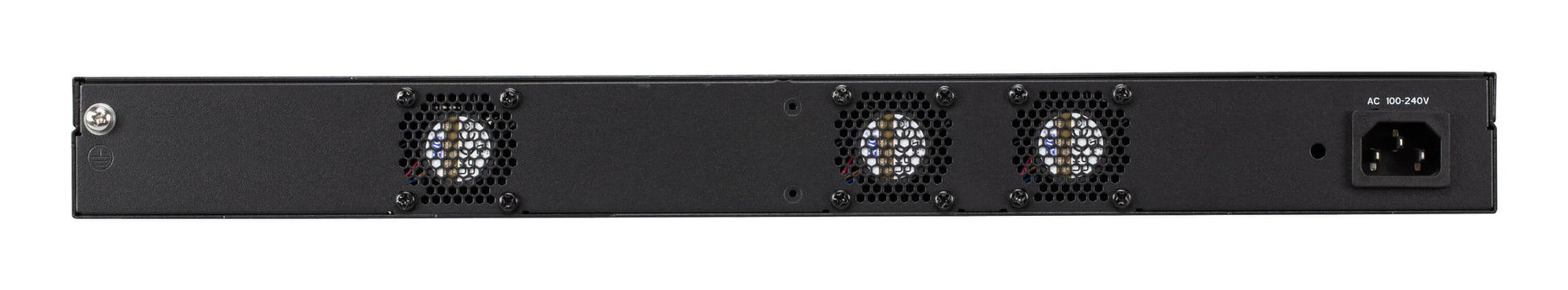

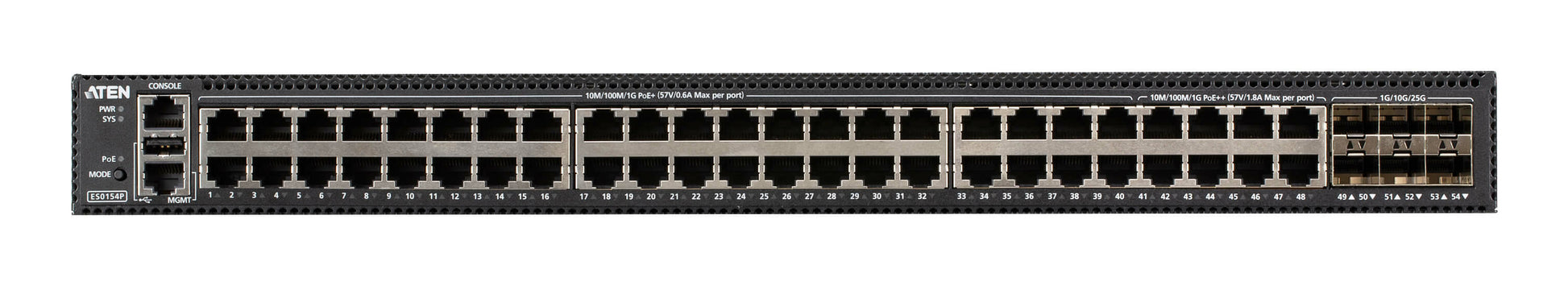

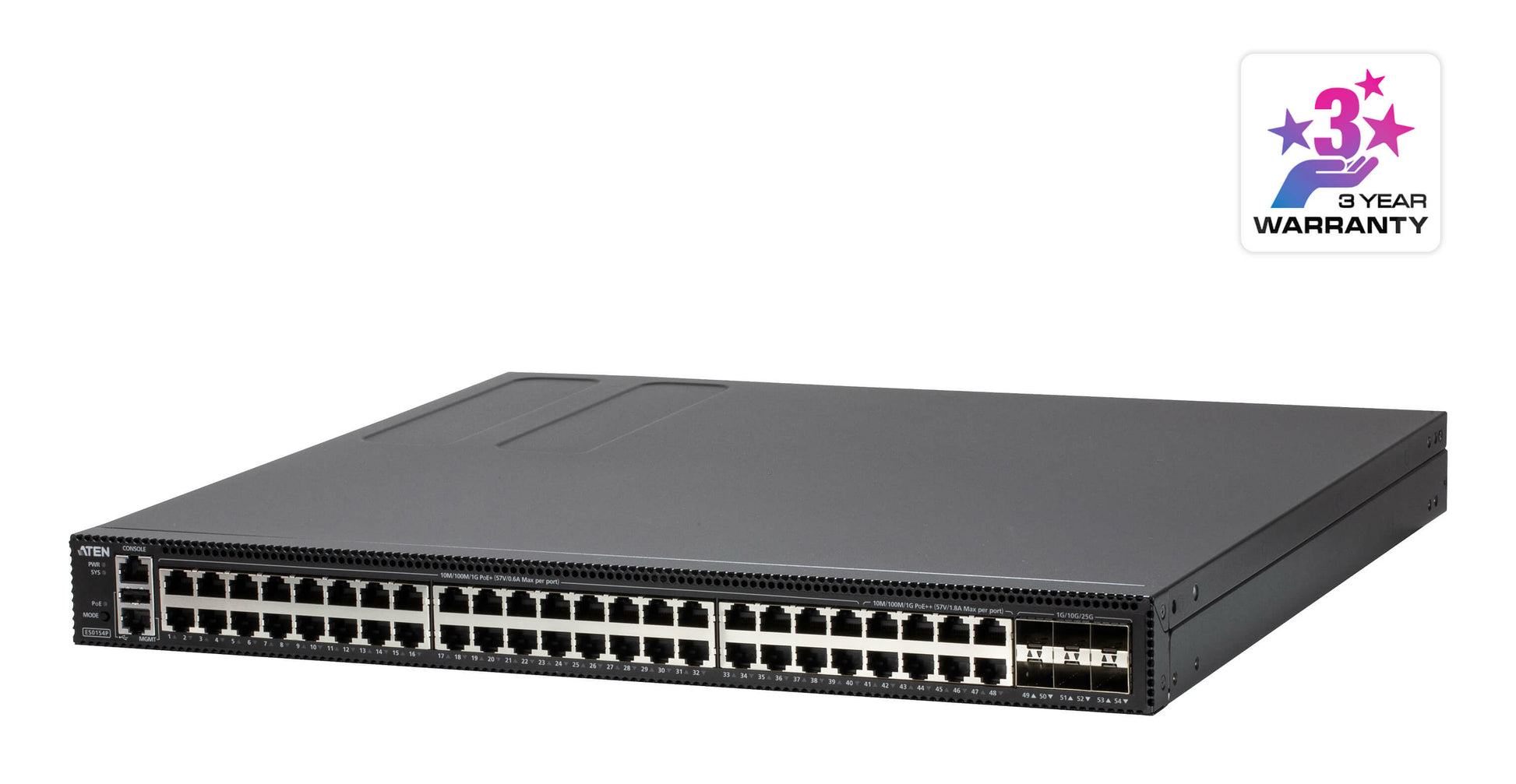

ATEN ES0154P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
ATEN ES0154P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
SKU: ES0154P
Regular price
$2,217.07 USD
Regular price
Sale price
$2,217.07 USD
MSRP: $2,774.00
ATEN ES0154P. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 396 Gbit/s. Networking standards: IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting
Quantity
Couldn't load pickup availability
- Details: ATEN ES0154P. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 396 Gbit/s. Networking standards: IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting
- PDF: http://objects.icecat.biz/objects/mmo_120235276_1739527630_0968_3795823.pdf
- Info: Supports plug-and-play with KE, VE89 series devices|Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps)|High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times|802.3af PoE / 802.3at PoE+ / 802.3bt PoE++ (41-48 ports only) port configuration and scheduling|Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier|Supports IGMP Snooping Fast Leave|Supports Flow Control|Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network|Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks|Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability|Supports IPv4, IPv6
- MAC address table: 32000 entries
- Jumbo frames support: Yes
- Switching capacity: 396 Gbit/s
- Forwarding rate: 295 Mpps
- Jumbo frames: 10000
- Rack mounting: Yes
- Product color: Black
- Housing material: Metal
- Country of origin: Taiwan
- Switch type: Managed
- Switch layer: L2+
- Networking standards: IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Flow control support: Yes
- Quality of Service (QoS) support: Yes
- 10G support: Yes
- Auto-negotiation: Yes
- Supported network protocols: IGMP v1/v2/v3, IGMP v1/v2
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Package width: 21.7" (550 mm)
- Package height: 5.91" (150 mm)
- Package depth: 25.6" (650 mm)
- Package weight: 17.4 lbs (7.91 kg)
- Internal memory: 1000 MB
- Flash memory: 256 MB
- Fiber optic connector: SFP28
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Console port: RJ-45
- USB 2.0 ports quantity: 1
- SFP module slots quantity: 6
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 835 W
- Power source: AC
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 48
- Power over Ethernet plus (PoE+) ports quantity: 48
- Total Power over Ethernet (PoE) budget: 740 W
- IGMP snooping: Yes
- Weight: 11.9 lbs (5.42 kg)
- Width: 16.5" (420 mm)
- Height: 1.72" (43.6 mm)
- Depth: 17.4" (442 mm)
