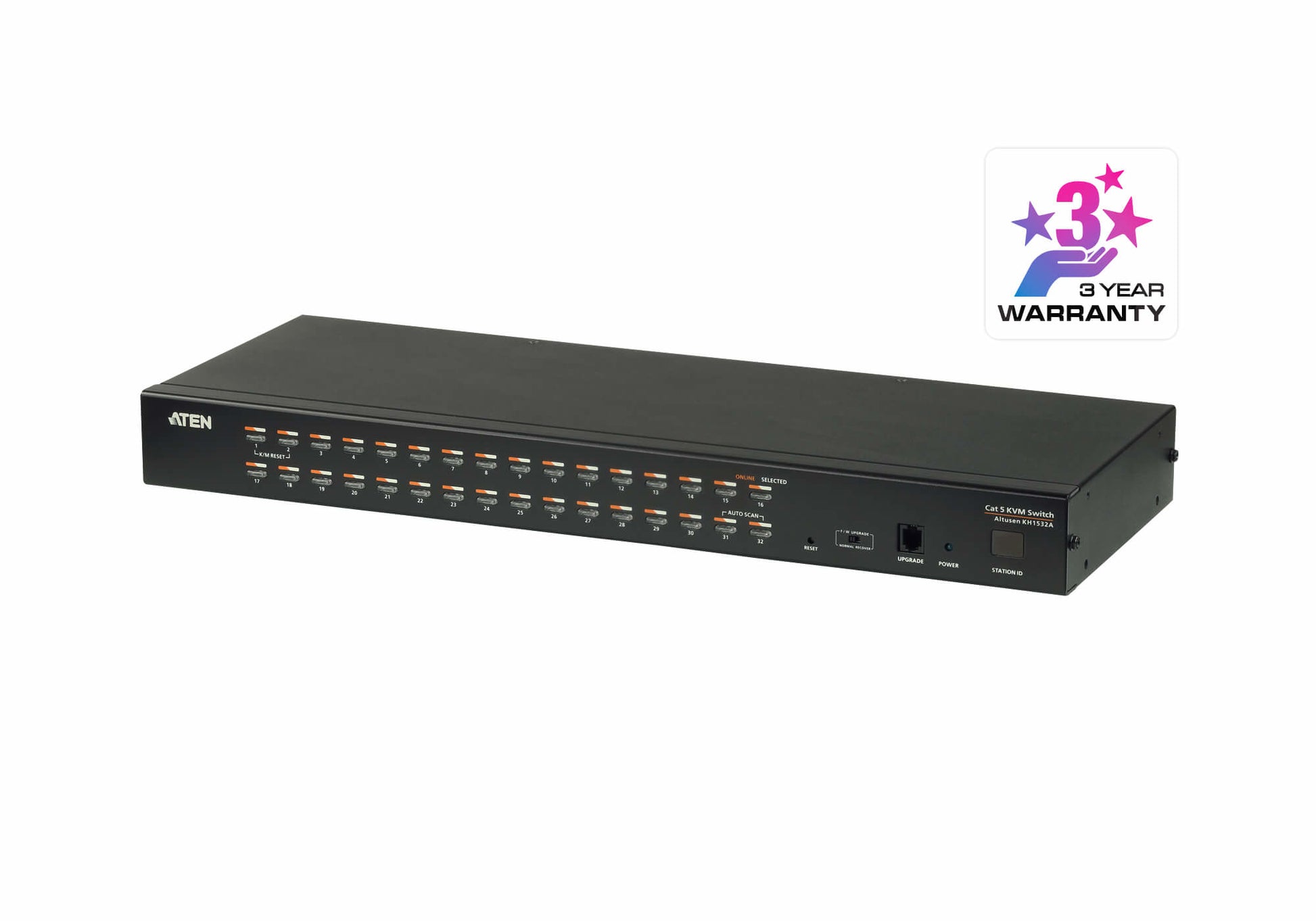

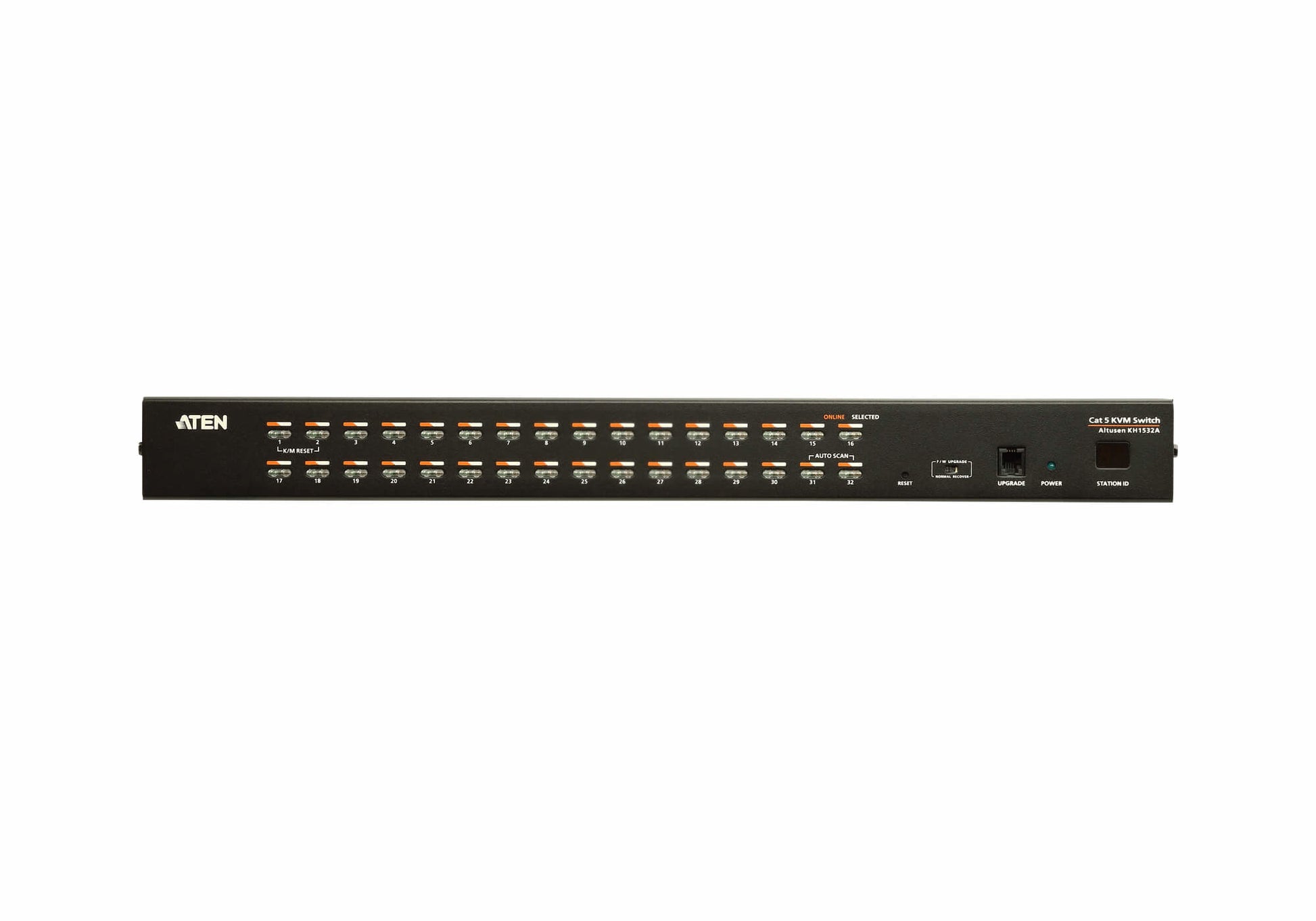

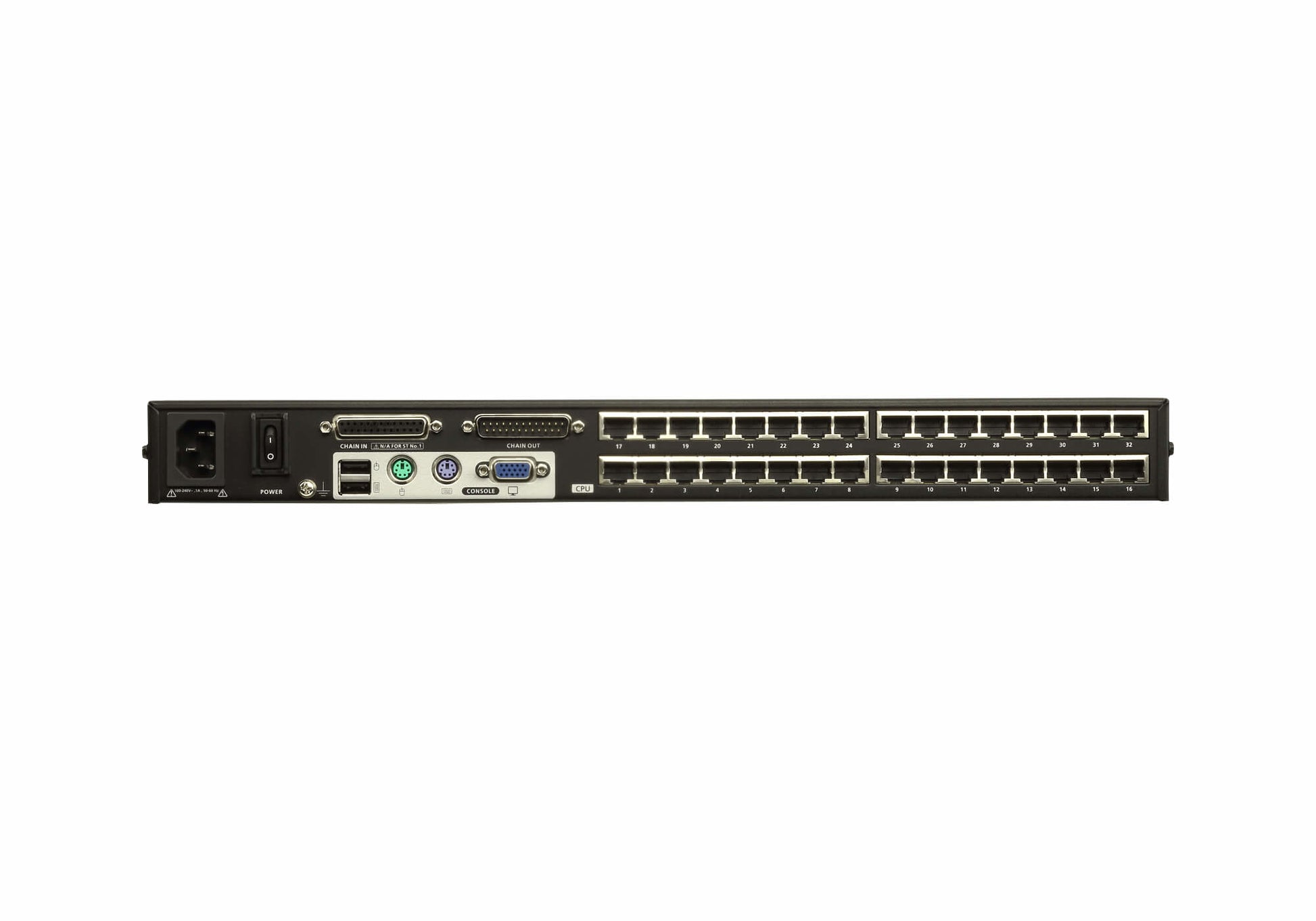

ATEN KH1532A KVM switch Rack mounting Black

ATEN KH1532A KVM switch Rack mounting Black

KH1532A

$861.87 USD
$861.87 USD
Sale Sold out

MSRP: $1,082.00

ATEN KH1532A. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Scan interval: 1,255 s. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100-240, 1 V, AC input frequency: 50-60 Hz. Compliance certificates: RoHS
View full details
    • Details: ATEN KH1532A. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Scan interval: 1,255 s. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100-240, 1 V, AC input frequency: 50-60 Hz. Compliance certificates: RoHS
    • Info: One KVM console controls up to 32 directly connected computers|Space-Saving RJ-45 connectors and Cat 5e/6 cabling|By daisy chaining up to 31 additional KH1532A switches, as many as 1024 computers can be controlled from the original KVM console|Console conversion – any KVM console can control any type of computer; mixed combinations (PS/2 & USB) are supported on both the KVM console and computer sides|Superior video quality – supports video resolutions up to 1920 x 1200 @ 60 Hz up to 30 meters*, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters|Configure port access rights for users on a port-by-port basis|Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)|Multiplatform support – Windows, Linux, Mac and Sun|Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types|Multiple user accounts – supports up to 10 user and 1 administrator accounts|Two-Level password security – supports one administrator and ten user profiles. Password protection prevents unauthorized access to the installation|Auto Scan mode enables continuous monitoring of user-selected computers|Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installations, upgrades, shutdowns, etc.), on all computers simultaneously|Adapter ID feature|Firmware Upgradeable|*For video resolution 1920 x 1200 @ 60Hz, a KA71XX or KA75XX series KVM adapter is required.
    • LED indicators: Yes
    • Rack mounting: Yes
    • Push button: Yes
    • HD type: Full HD
    • Product color: Black
    • Housing material: Metal
    • Daisy chain: Yes
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Cables included: AC, Phone (RJ-11)
    • Manual: Yes
    • Rack mount kit: Yes
    • Firmware upgradeable: Yes
    • Built-in display: No
    • USB connector type: USB Type-A
    • Keyboard port type: USB, PS/2
    • Mouse port type: USB, PS/2
    • Video port type: VGA
    • Maximum resolution: 1920 x 1200 pixels
    • Scan interval: 1,255 s
    • Ethernet LAN (RJ-45) ports: 32
    • VGA (D-Sub) ports quantity: 1
    • Number of computers controlled: 32
    • PS/2 ports quantity: 2
    • Console ports: PS/2, USB A, VGA (D-Sub)
    • Console USB ports quantity: 2
    • Power consumption (typical): 4.8 W
    • AC input frequency: 50-60 Hz
    • Input voltage: 100-240, 1 V
    • Power source: AC
    • Compliance certificates: RoHS
    • Weight: 6.19 lbs (2.81 kg)
    • Width: 6.44" (163.7 mm)
    • Height: 1.73" (44 mm)
    • Depth: 17.2" (437.2 mm)
