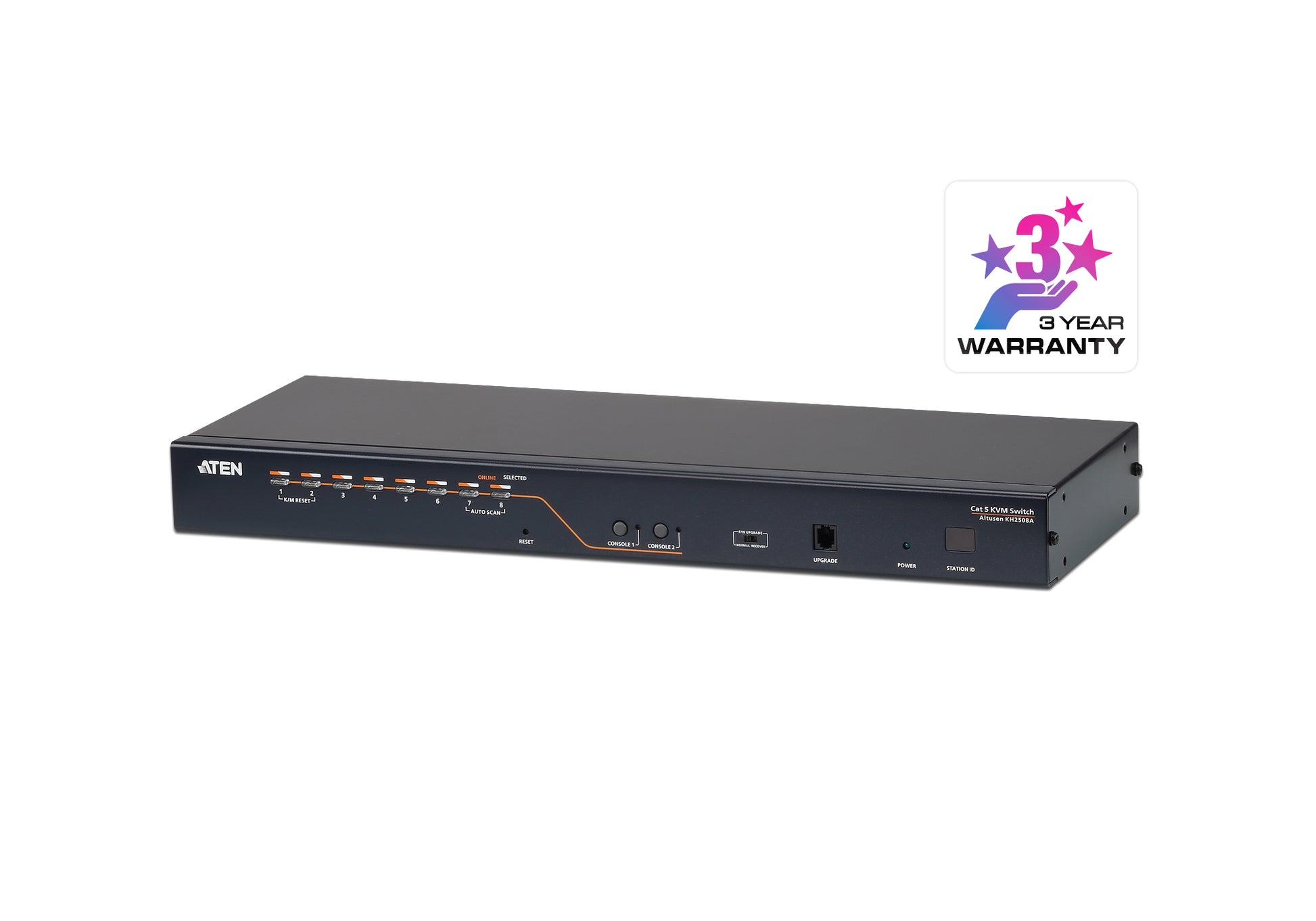

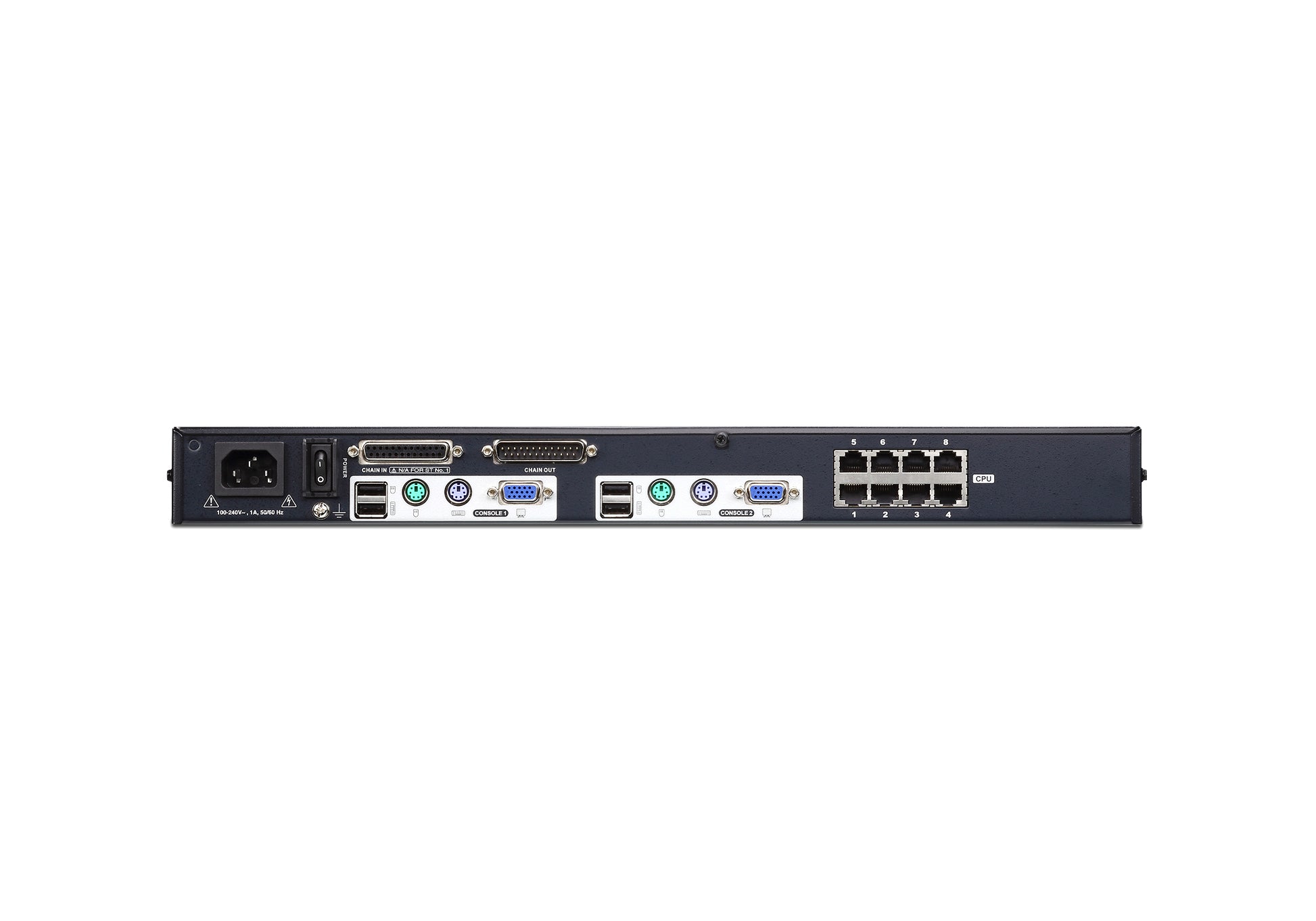

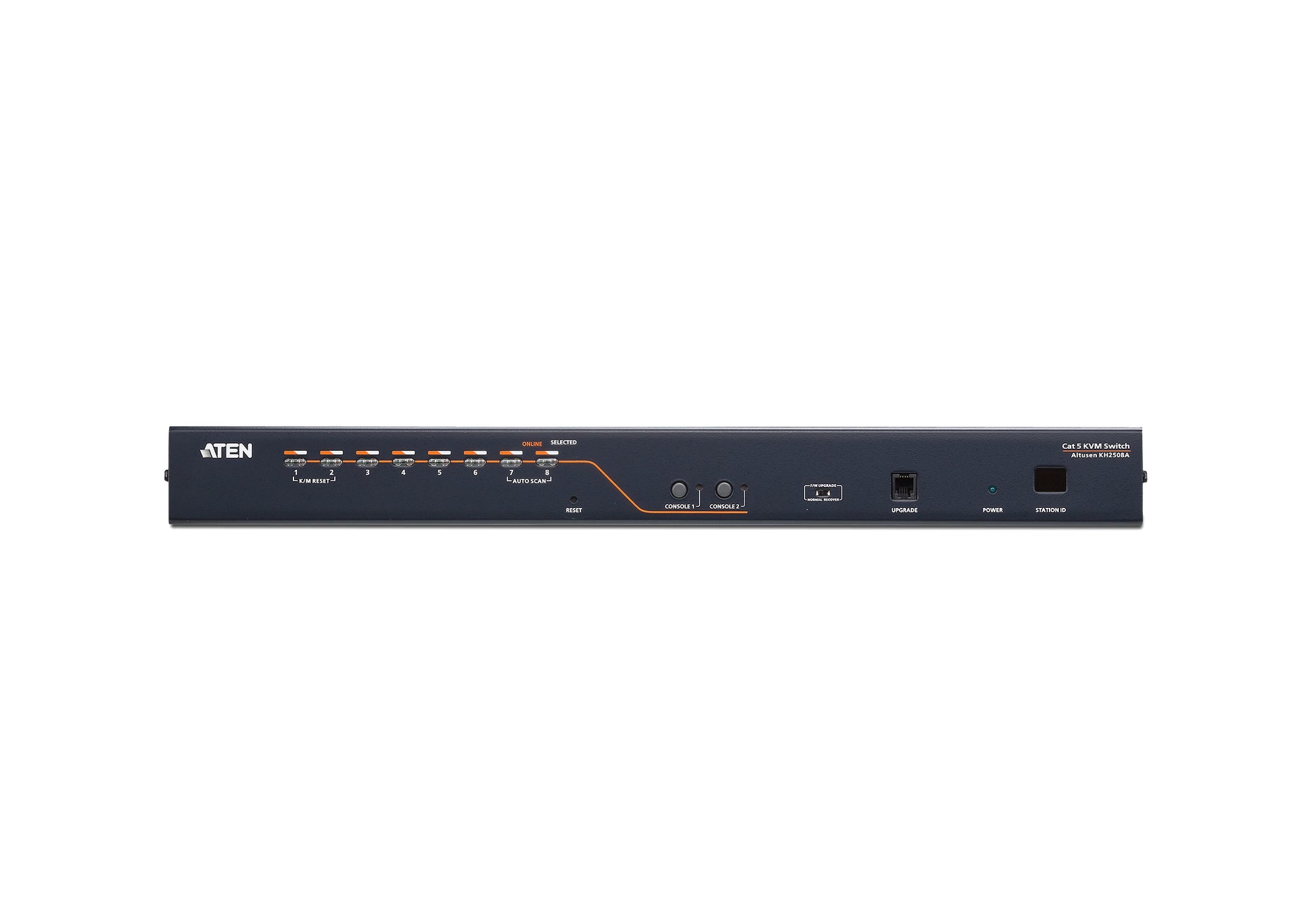

ATEN KH2508A KVM switch Rack mounting Black

ATEN KH2508A KVM switch Rack mounting Black

KH2508A

$638.71 USD
$638.71 USD
Sale Sold out

MSRP: $808.00

ATEN KH2508A. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 6.44" (163.6 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm)
View full details
    • Details: ATEN KH2508A. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 6.44" (163.6 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm)
    • PDF: http://objects.icecat.biz/objects/mmo_107346357_1695730264_529_10677.pdf
    • Info: Two KVM consoles independently and simultaneously control up to 8 directly connected computers|By daisy chaining up to 15 additional KH2508A switches, as many as 128 computers can be controlled from the original KVM console|Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*|Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
    • LED indicators: Yes
    • Rack mounting: Yes
    • Push button: Yes
    • Display switch button: Yes
    • HD type: WUXGA
    • On Screen Display (OSD): Yes
    • Product color: Black
    • Housing material: Metal
    • Daisy chain: Yes
    • Hot keys: Yes
    • Ethernet LAN: Yes
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Storage relative humidity (H-H): 0 - 80%
    • Cables included: AC
    • Manual: Yes
    • Quick installation guide: Yes
    • Rack mount kit: Yes
    • Number of users: 128 user(s)
    • Firmware upgradeable: Yes
    • Built-in display: No
    • USB connector type: USB Type-A
    • Keyboard port type: USB, PS/2
    • Mouse port type: USB, PS/2
    • Video port type: VGA
    • Maximum resolution: 1920 x 1200 pixels
    • Video bandwidth: 60 Hz
    • Scan interval: 1,255 s
    • Ethernet LAN (RJ-45) ports: 8
    • RJ-11 ports quantity: 1
    • VGA (D-Sub) ports quantity: 2
    • Number of computers controlled: 8
    • PS/2 ports quantity: 4
    • Console ports: PS/2, USB A, VGA (D-Sub)
    • Console USB ports quantity: 4
    • AC-in ports quantity: 1
    • Power consumption (typical): 9.3 W
    • AC input frequency: 50/60 Hz
    • Input voltage: 100 - 240 V
    • Input current: 1 A
    • Power source: AC
    • Weight: 6.19 lbs (2.81 kg)
    • Width: 6.44" (163.6 mm)
    • Height: 1.73" (44 mm)
    • Depth: 17.2" (437.2 mm)
