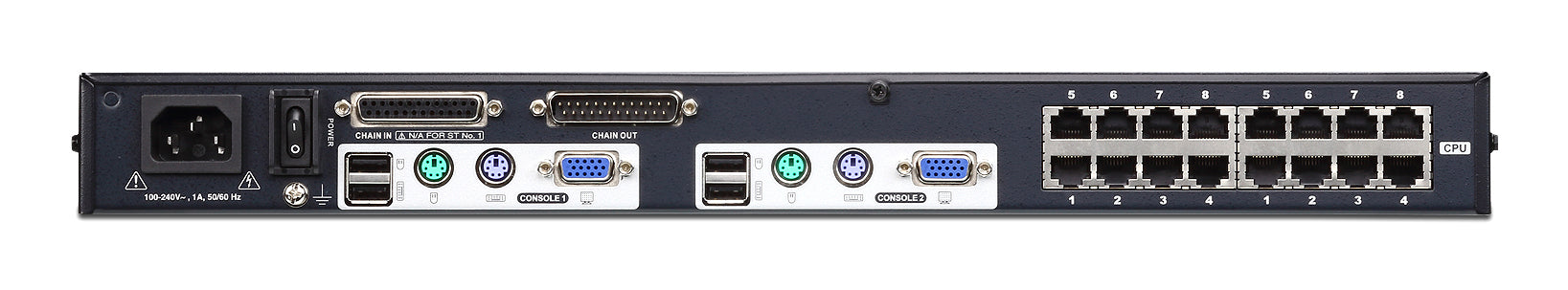

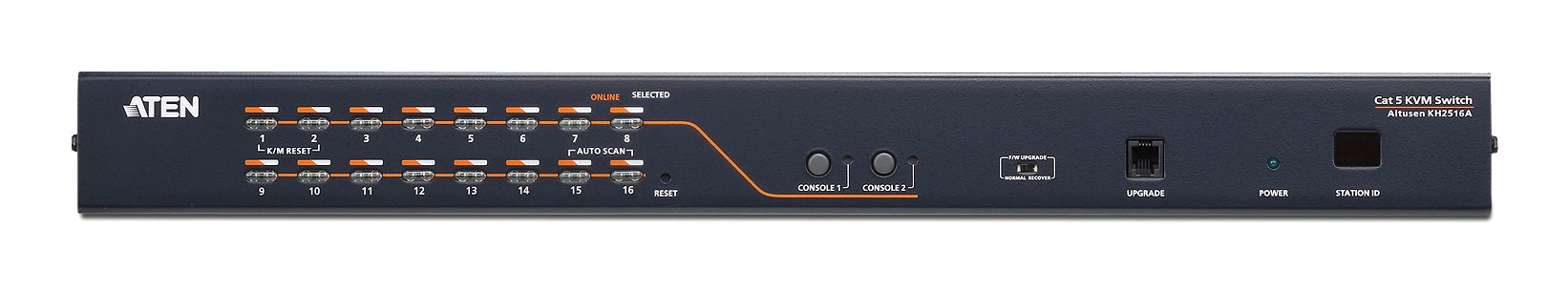

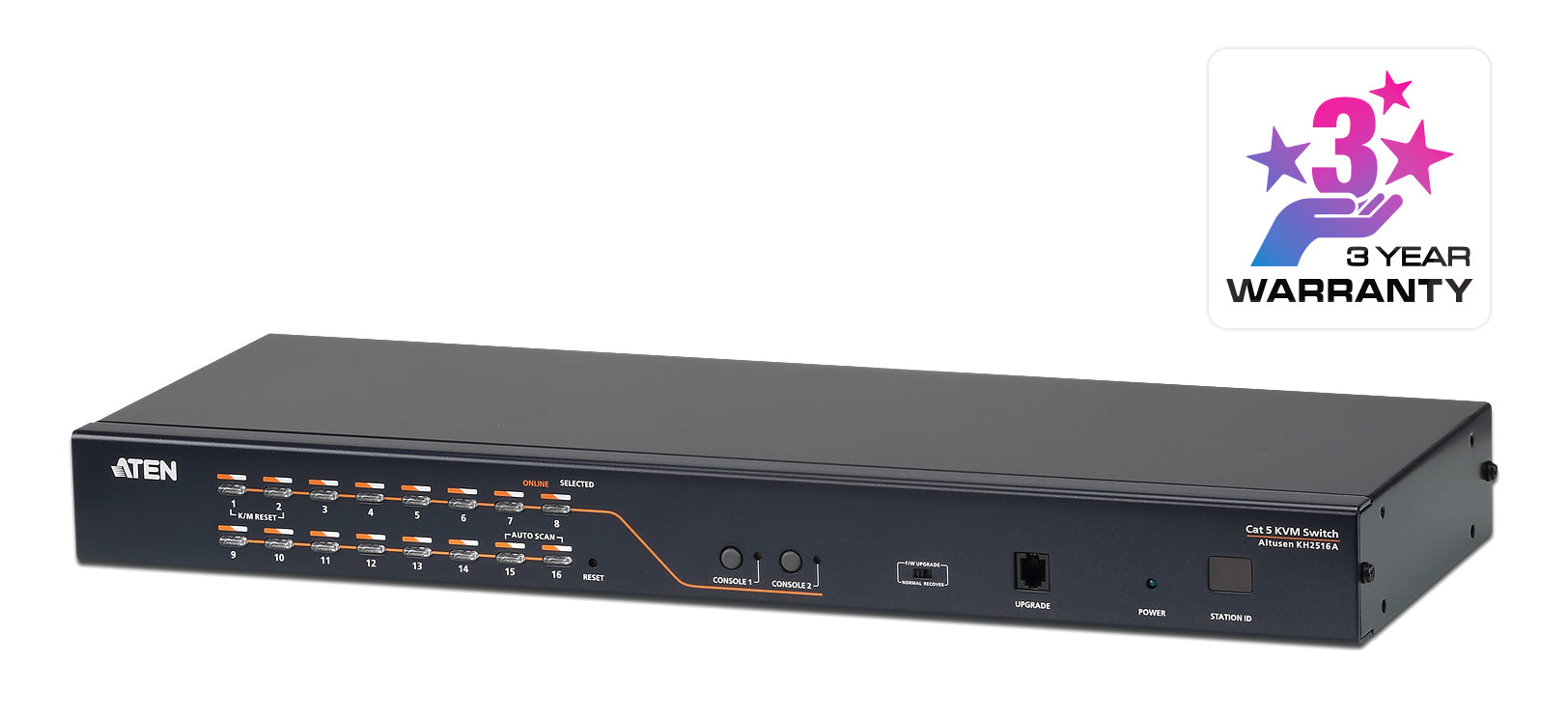

ATEN KH2516A KVM switch Black

ATEN KH2516A KVM switch Black

KH2516A

$706.50 USD
$706.50 USD
Sale Sold out

MSRP: $894.00

ATEN KH2516A. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.44" (163.6 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm)
View full details
    • Details: ATEN KH2516A. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 6.44" (163.6 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm)
    • PDF: http://objects.icecat.biz/objects/mmo_107346358_1739533358_8984_3795551.pdf
    • Info: Two KVM consoles independently and simultaneously control up to 16 directly connected computers|By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console|Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides|Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*|OSD Backup/Restore feature – enables the administrator to back up the switch's configuration and user profile information|Configure port access rights for users on a port - by - port basis|Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes|Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)|Multiplatform support – Windows, Linux, Mac and Sun|Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types|Multiple User Accounts -Supports up to 10 user and 1 administrator accounts|Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation|Auto Scan mode enables continuous monitoring of user-selected computers|Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously|Adapter ID|Firmware Upgradeable
    • LED indicators: Yes
    • Push button: Yes
    • HD type: WUXGA
    • Product color: Black
    • Housing material: Metal
    • Daisy chain: Yes
    • Hot keys: Yes
    • Ethernet LAN: Yes
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Storage relative humidity (H-H): 0 - 80%
    • Manual: Yes
    • Quick installation guide: Yes
    • Built-in display: No
    • USB connector type: USB Type-A
    • Keyboard port type: USB, PS/2
    • Mouse port type: USB, PS/2
    • Video port type: VGA
    • Maximum resolution: 1920 x 1200 pixels
    • Video bandwidth: 60 Hz
    • Scan interval: 1,255 s
    • Ethernet LAN (RJ-45) ports: 16
    • RJ-11 ports quantity: 1
    • Number of computers controlled: 16
    • PS/2 ports quantity: 2
    • Console ports: PS/2, USB A, VGA (D-Sub)
    • Console USB ports quantity: 2
    • AC input frequency: 50 - 60 Hz
    • Input voltage: 100 - 240 V
    • Input current: 1 A
    • Power source: AC
    • Weight: 6.28 lbs (2.85 kg)
    • Width: 6.44" (163.6 mm)
    • Height: 1.73" (44 mm)
    • Depth: 17.2" (437.2 mm)
