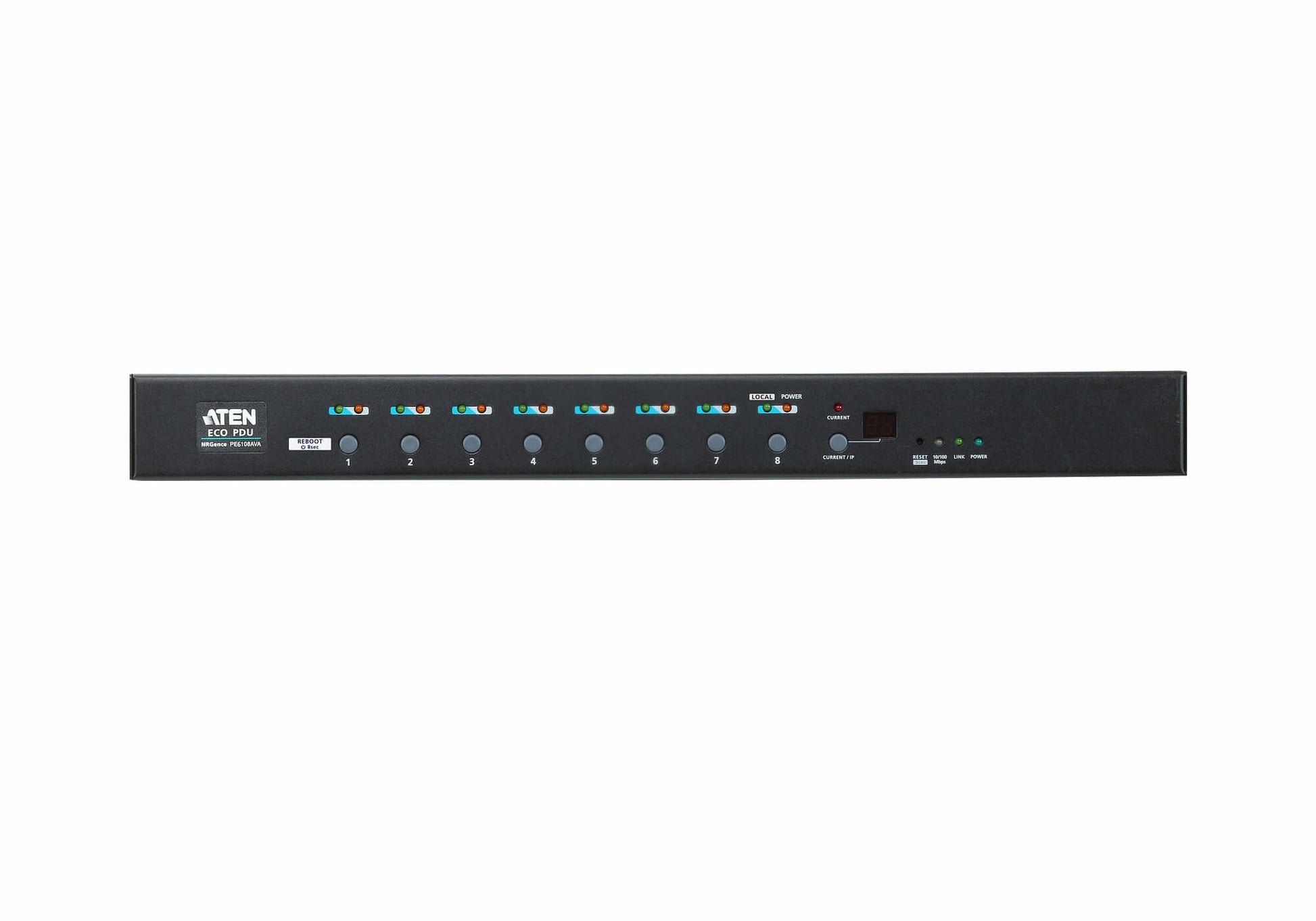

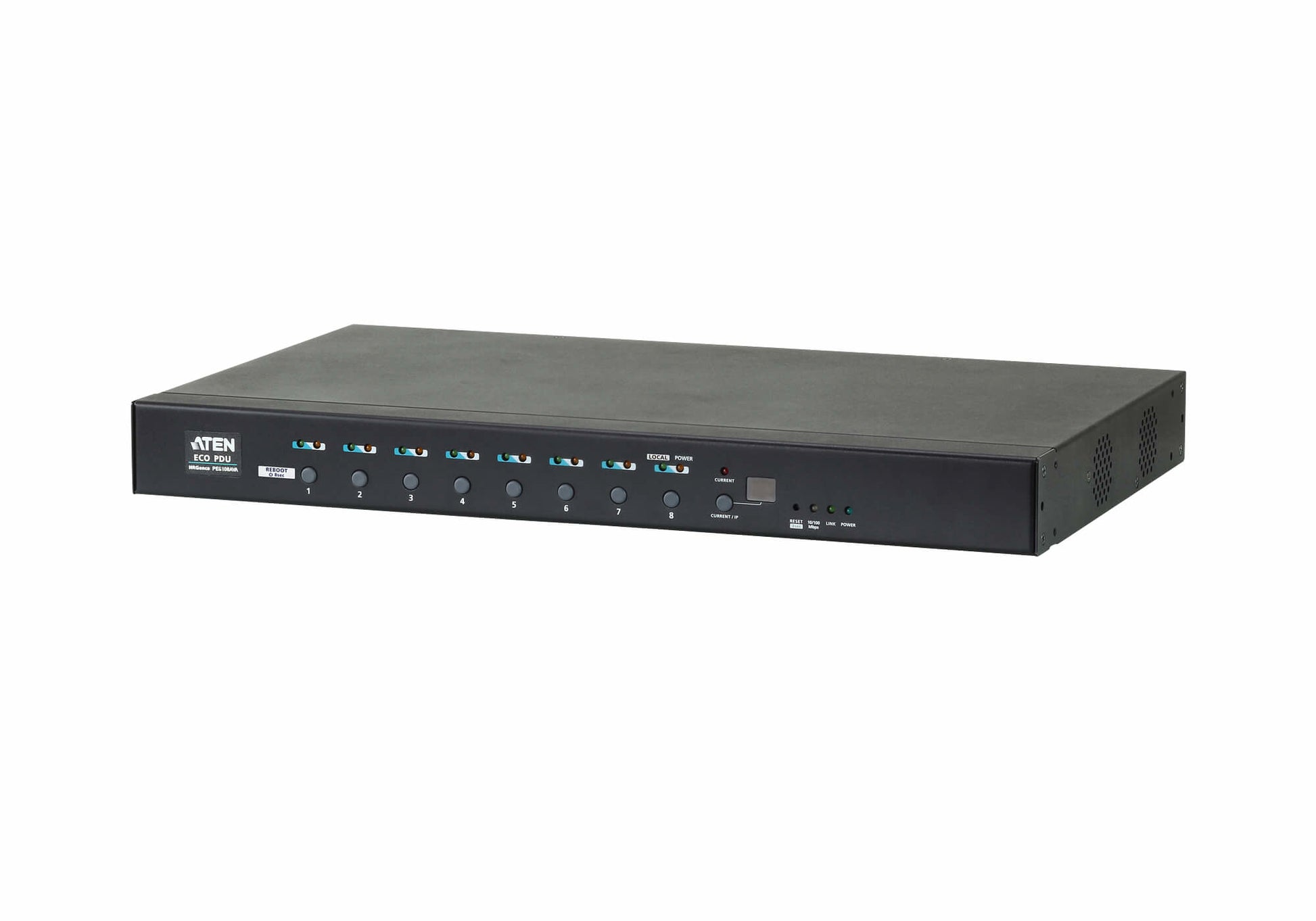

ATEN PE6108AV power distribution unit (PDU) 8 AC outlet(s) 1U Black
ATEN PE6108AV power distribution unit (PDU) 8 AC outlet(s) 1U Black
SKU: PE6108AV
Regular price
$501.02 USD
Regular price
Sale price
$501.02 USD
MSRP: $676.00
ATEN PE6108AV. Rack capacity: 1U, Product color: Black. AC outlets quantity: 8 AC outlet(s), AC outlet types: NEMA 5–15R, Power plug: NEMA 5–15P. Cable length: 118.1" (3 m), Security algorithms: 128-bit SSL, 802.1x RADIUS. Monitoring: Current, Humidity, Power, Temperature, Voltage, Supported network protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, V3, Telnet. Nominal input voltage: 100-120 V, Maximum current: 15 A, AC input frequency: 50-60 Hz
Quantity
Couldn't load pickup availability
- Details: ATEN PE6108AV. Rack capacity: 1U, Product color: Black. AC outlets quantity: 8 AC outlet(s), AC outlet types: NEMA 5–15R, Power plug: NEMA 5–15P. Cable length: 118.1" (3 m), Security algorithms: 128-bit SSL, 802.1x RADIUS. Monitoring: Current, Humidity, Power, Temperature, Voltage, Supported network protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, V3, Telnet. Nominal input voltage: 100-120 V, Maximum current: 15 A, AC input frequency: 50-60 Hz
- PDF: http://objects.icecat.biz/objects/mmo_59232961_1533729565_7646_16606.pdf

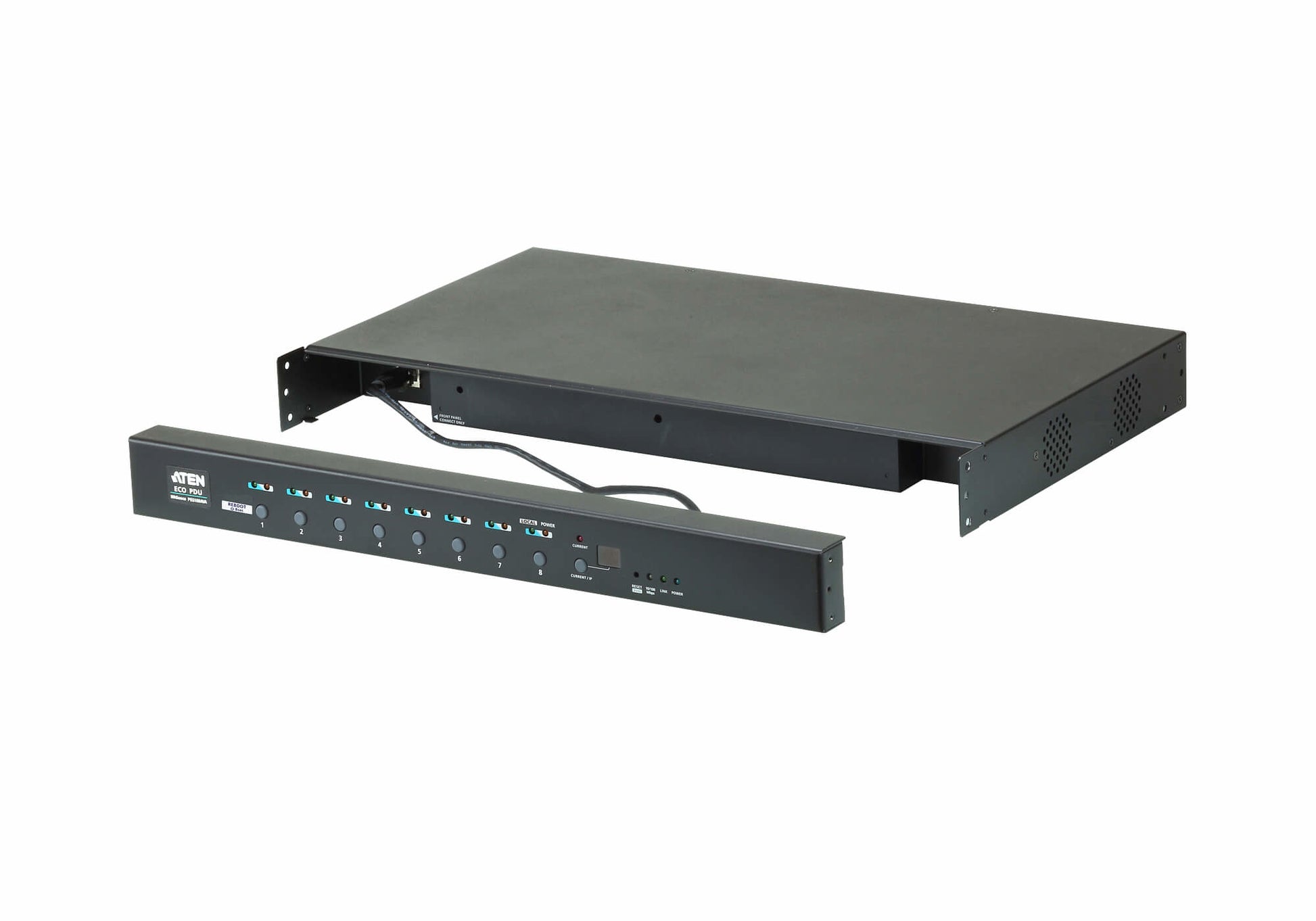

- Info: Connections|Detachable front panel fits 19” racks with different depths|Built-in 10/100 Mbit Ethernet Interface|Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, and V3, Telnet|2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS|Browser access via IE, Firefox, Chrome, Safari, and more|Easy integration with ATEN Control System and Control4 libraries|Supports RS-232 port and power outlet control (on/off) by outlet group.|Metering|1% Metering Accuracy – supports bank-level power metering|Environment Monitoring – supports external temperature or temperature and humidity sensors for rack temperature and humidity monitoring|Outlet Switch Control|Remote and local power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups|Multiple Power Control Methods – Wake on LAN, System After AC Back, Kill the Power|Power-On Sequencing – users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order to enhance equipment safety|Proactive Overload Protection (POP) :|- automatically powers off outlets when current overloads to protect operating devices.|- Priority Mode enables outlets to be powered off following the outlet shutdown order pre-defiend by the administrator via web browser|Auto Ping – the method pings a device at specified intervals, and if there is no response (request timed out), the PDU automatically powers cycles the outlet (off and then on)|Holiday Mode – when Holiday Mode is enabled, each outlet will be set to the selection chosen for it: POWER OFF or POWER ON|eco DC Energy & DCIM Management Web GUI*|Automatic discovery of all ATEN PDUs within the same intranet|Remote real-time power measurement and monitoring of PDUs|Real-time environment monitoring via sensors|Plotting and monitoring of all ATEN PDU devices|Exceed threshold alerts through real-time monitoring, SMTP, and System logs|Power analysis reports|* eco DC is designed to work with ATEN eco PDUs and is bundled with all PE Series models.
- Certification: PSE, FCC, J55032
- On/off switch: Yes
- Product color: Black
- Cable length: 118.1" (3 m)
- Maximum current: 15 A
- Monitoring: Current, Humidity, Power, Temperature, Voltage
- Security algorithms: 128-bit SSL, 802.1x RADIUS
- Supported network protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, V3, Telnet
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Nominal output voltage: 100-120 V
- Nominal input voltage: 100-120 V
- Cables included: AC, LAN (RJ-45)
- Manual: Yes
- Ethernet LAN (RJ-45) ports: 1

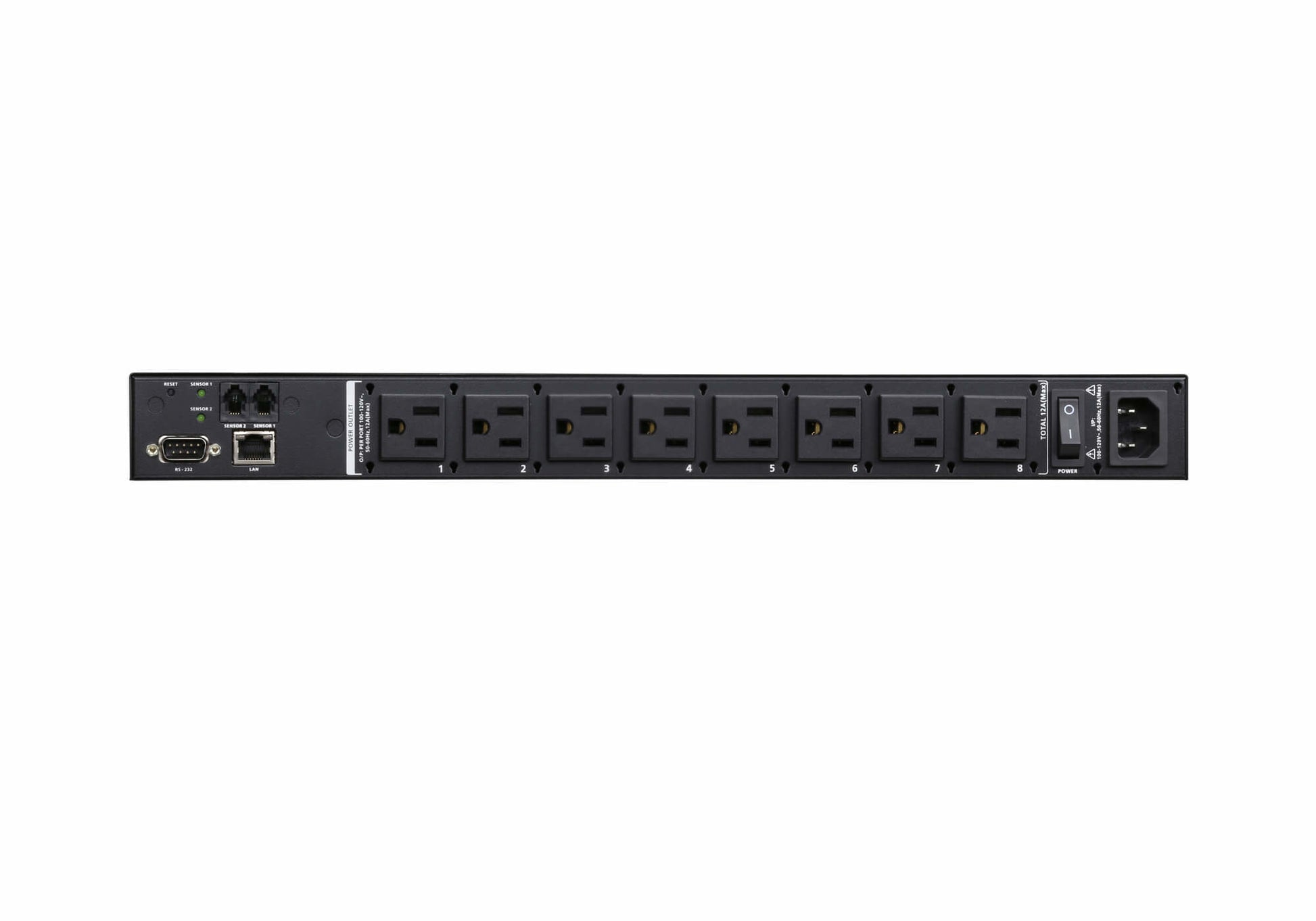

- AC outlet types: NEMA 5–15R
- Power plug: NEMA 5–15P
- AC outlets quantity: 8 AC outlet(s)
- Serial ports quantity: 1
- AC input frequency: 50-60 Hz
- Load capacity: 1800 VA
- Rack capacity: 1U
- Weight: 8.16 lbs (3.7 kg)
- Width: 17" (432.4 mm)
- Height: 1.73" (44 mm)
- Depth: 10.5" (267.3 mm)
- Size (imperial): 19"
