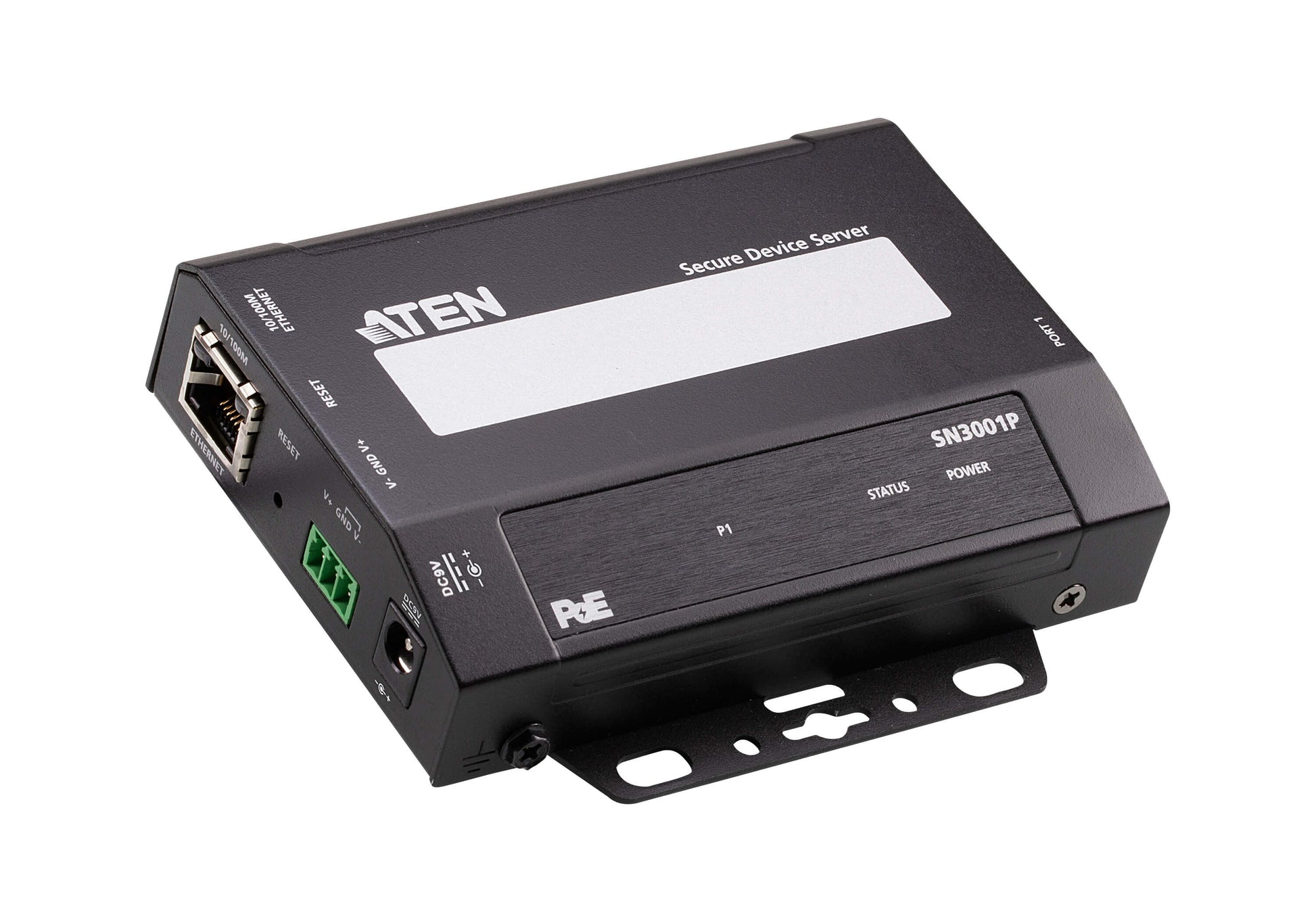

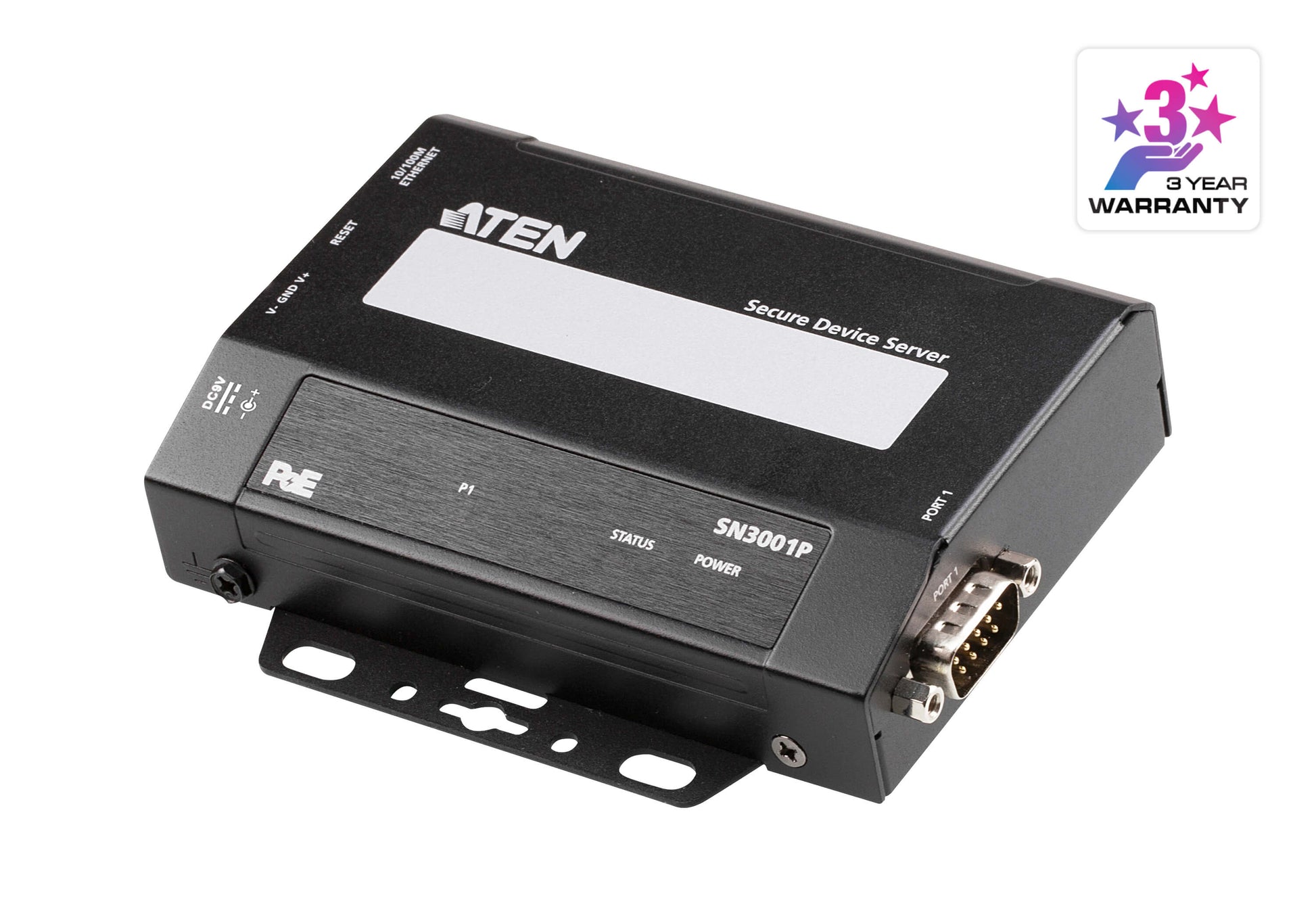

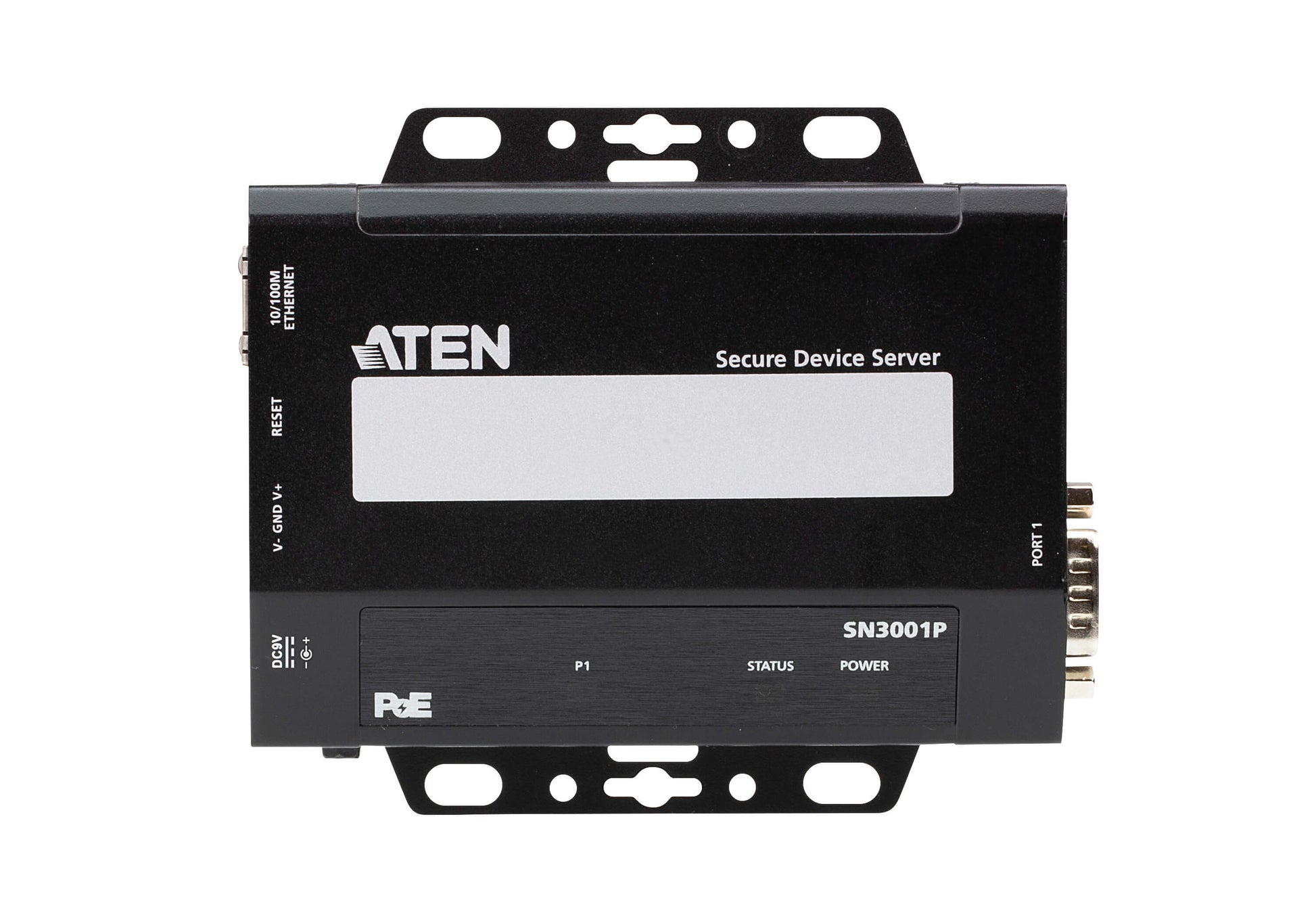

ATEN SN3001P console server RS-232
ATEN SN3001P console server RS-232
SKU: SN3001P
Regular price
$135.92 USD
Regular price
Sale price
$135.92 USD
MSRP: $163.00
ATEN SN3001P. Console port: RS-232. Dimensions (WxDxH): 3.86 x 4.61 x 1.02" (98 x 117 x 26 mm), Weight: 7.41 oz (210 g). Power source type: DC. Certification: IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs UL 60950-1, UL 62368-1 RoHS
Quantity
Couldn't load pickup availability
- Details: ATEN SN3001P. Console port: RS-232. Dimensions (WxDxH): 3.86 x 4.61 x 1.02" (98 x 117 x 26 mm), Weight: 7.41 oz (210 g). Power source type: DC. Certification: IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs UL 60950-1, UL 62368-1 RoHS

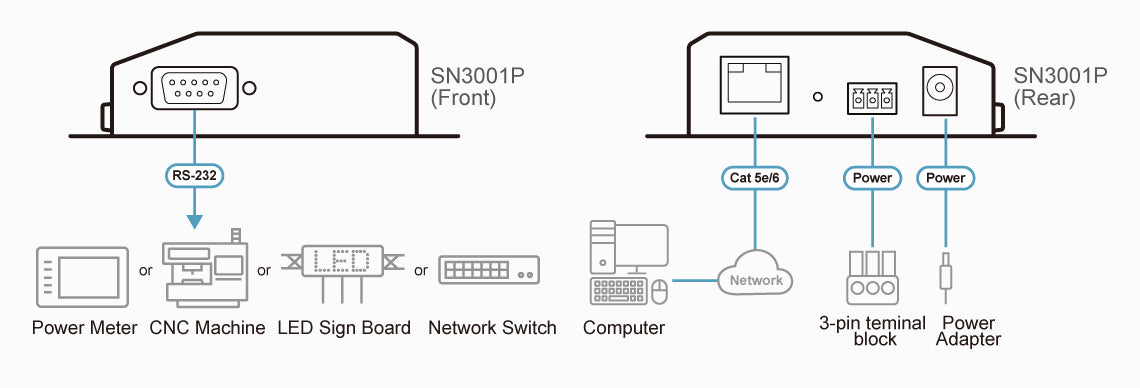

- Info: Serial-to-Ethernet Connectivity|1 RS-232 serial port for secured serial data over Ethernet transmission|Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)|Standard operation modes – Real COM, TCP Server / Client, Serial Tunneling Server / Client, UDP, Console Management (Telnet), and Console Management Direct (Telnet)|Real COM, Real TTY, and Fixed TTY drivers for Windows, Linux, and UNIX|Convenient console management access via Java viewer (SSH/Telnet) or third-party clients such as PuTTY|Easy console port access via Java viewer and Sun Solaris ready ("break-safe")|Multiple users can simultaneously access the same port – up to 16 connections per port|Hardware|Redundant power input (power jack and terminal block) for fail-safe power|IEEE 802.3af-compliant PoE PD (powered device) equipment|Surge protection for serial, Ethernet, and power|DIN-rail mounting, wall mounting, rack mounting, and desktop installation available|Supports baud rates of 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k bps|Security|Supports secured login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates|Configurable user permissions for port access and control|Local and remote authentication and login|Third-party authentication (e.g. RADIUS)|IP address filter for security protection|System Management|Browser access with an intuitive GUI design|Web-based quick setup wizard for fast configuration|Terminal-based access with a menu-driven UI via Telnet / SSH|Online / Offline detection of connected serial devices (including terminal blocks) – automatically sending event notifications when the devices are offline (e.g. power failure) for device status monitoring|System event logs will be saved to an internal memory or Syslog server|Port logs will be saved to an internal memory or Syslog server|SNMP agent (v1/v2c)|Event notification – supports notification of SMTP email and SNMP Trap (v1/v2c)|Backup / Restore system configuration and upgradeable firmware|64 KB port buffer prevents data loss when the network is down|NTP for time server synchronization|Multi-language web-based GUI
- Certification: IEC 61000-4-8 PFMF
- IEC 61000-4-11 DIPs
- UL 60950-1, UL 62368-1
- RoHS
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Dimensions (WxDxH): 3.86 x 4.61 x 1.02" (98 x 117 x 26 mm)

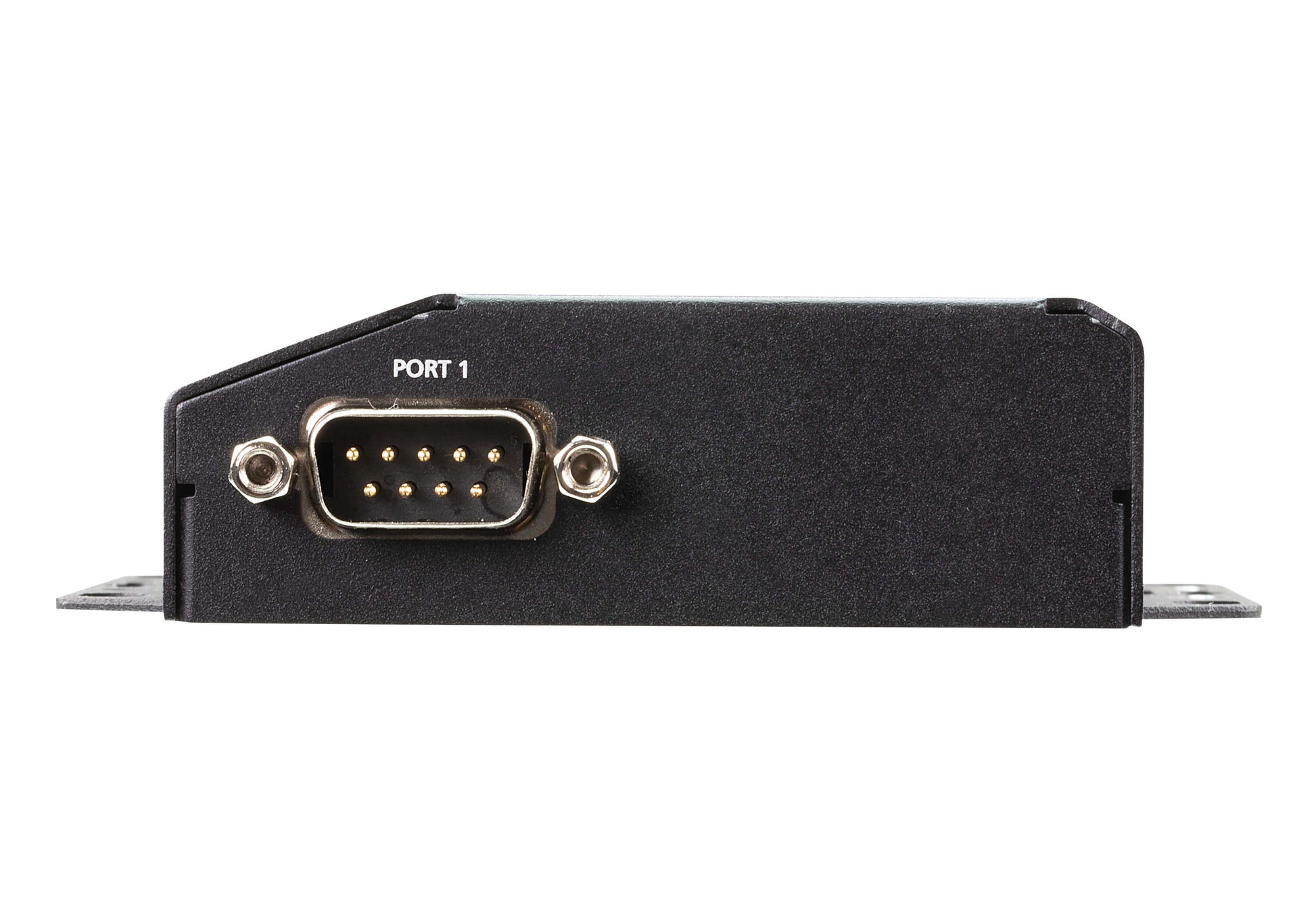

- Console port: RS-232

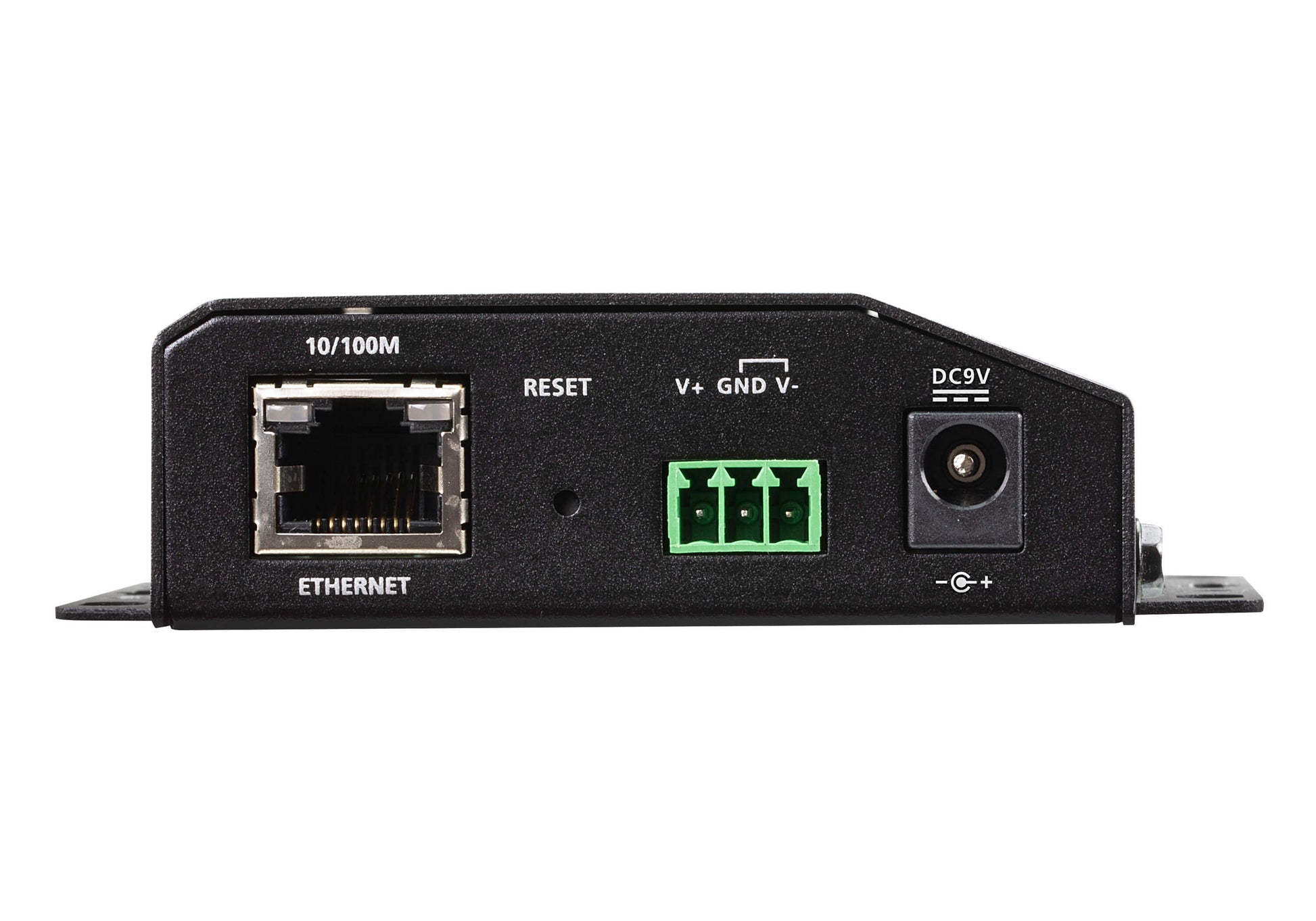

- Ethernet LAN (RJ-45) ports: 1
- Serial ports quantity: 1
- Power source type: DC
- Weight: 7.41 oz (210 g)
