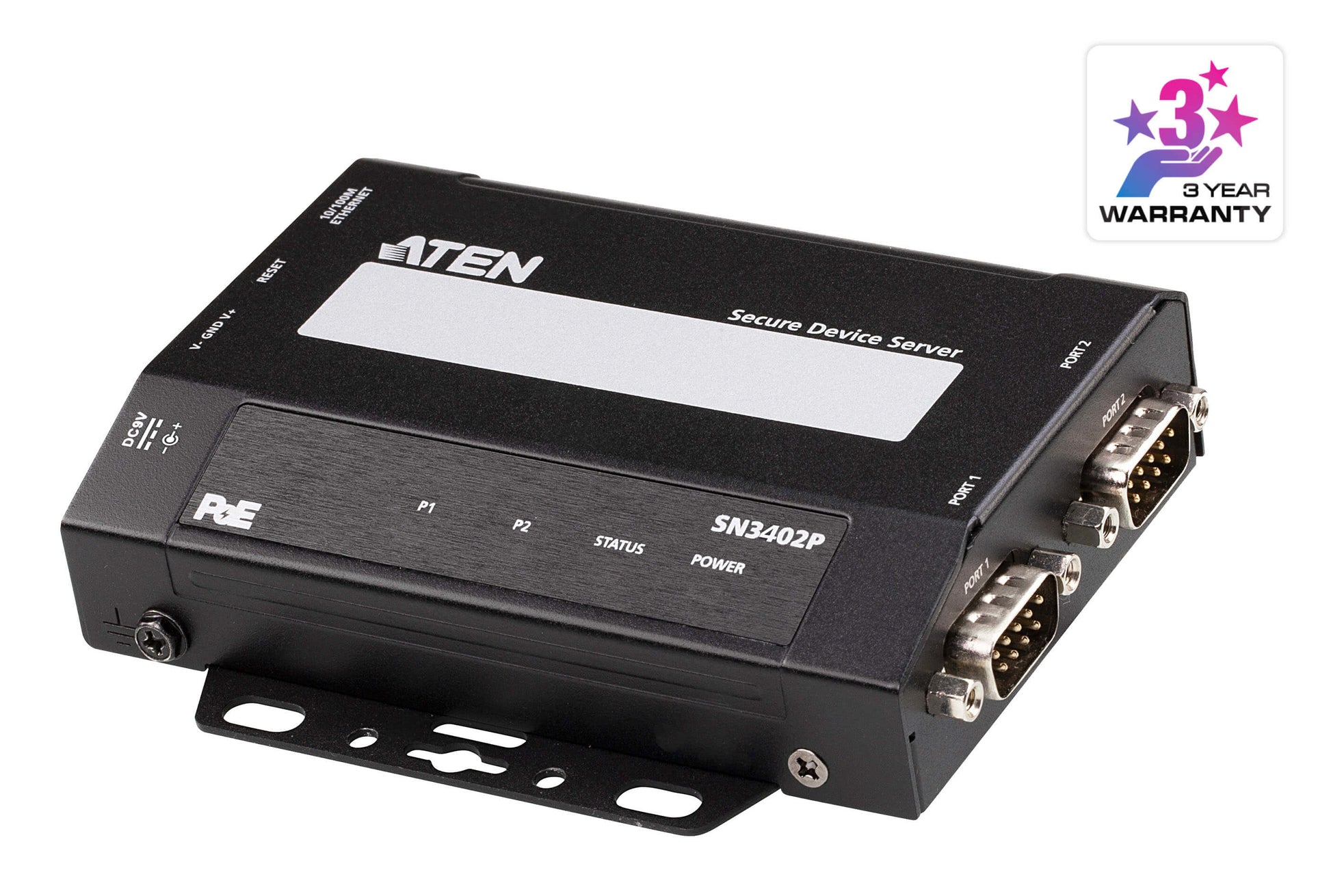

ATEN SN3402P serial server RS-232/422/485

ATEN SN3402P serial server RS-232/422/485

SN3402P

$223.84 USD
$223.84 USD
Sale Sold out

MSRP: $272.00

ATEN SN3402P. Power source type: DC, PoE, Power consumption (max): 1.3 W, Power consumption (typical): 1.19 W. LED indicators: Power, Status. Width: 4.61" (117 mm), Depth: 3.86" (98 mm), Height: 1.02" (26 mm). Product color: Black, Housing material: Metal, Safety: UL 60950-1, UL 62368-1. Number of foot pads: 4 pc(s)
View full details
    • Details: ATEN SN3402P. Power source type: DC, PoE, Power consumption (max): 1.3 W, Power consumption (typical): 1.19 W. LED indicators: Power, Status. Width: 4.61" (117 mm), Depth: 3.86" (98 mm), Height: 1.02" (26 mm). Product color: Black, Housing material: Metal, Safety: UL 60950-1, UL 62368-1. Number of foot pads: 4 pc(s)
    • PDF: http://objects.icecat.biz/objects/mmo_102152296_1739620079_3574_2487548.pdf

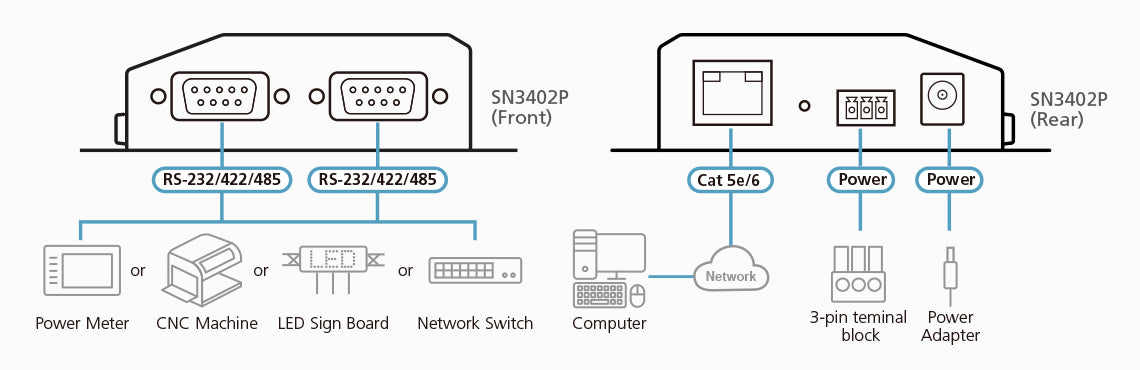

    • Info: 2 RS-232/422/485 serial ports for secured serial data over Ethernet transmission|Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)|Redundant power input (power jack and terminal block) for fail-safe power; IEEE 802.3af-compliant PoE PD (powered device) equipment|Support Modbus gateway to convert between Modbus TCP and Modbus RTU / ASCII protocols
    • LED indicators: Power, Status
    • Safety: UL 60950-1, UL 62368-1
    • Product color: Black
    • Data transfer rate: 100 Mbit/s
    • Housing material: Metal
    • Reset button: Yes
    • DIN rail mounting: Yes
    • Input frequency: 50 - 60 Hz
    • Baud rate: 921.6 Kbit/s
    • Electrostatic Discharge (ESD) protection: 8 kV
    • Country of origin: Taiwan
    • Networking standards: IEEE 802.3af
    • Flow control support: Yes
    • Ethernet LAN: Yes
    • Ethernet LAN data rates: 10,100 Mbit/s
    • Operating temperature (T-T): 0 - 60 °C
    • Storage temperature (T-T): -40 - 75 °C
    • Operating relative humidity (H-H): 5 - 95%
    • User guide: Yes
    • Terminal block included: Yes
    • DIN rail kit included: Yes
    • Number of foot pads: 4 pc(s)
    • Package width: 2.32" (59 mm)
    • Package height: 6.3" (160 mm)
    • Package depth: 9.41" (239 mm)
    • Package weight: 15.2 oz (430 g)
    • Ethernet LAN (RJ-45) ports: 1
    • Serial interface type: RS-232/422/485
    • Serial ports quantity: 2
    • Terminal block port: Yes
    • Power consumption (typical): 1.19 W
    • Output voltage: 9 - 48 V
    • Power consumption (max): 1.3 W
    • Input voltage: 100 - 240 V
    • Power source type: DC, PoE
    • Sustainability certificates: UL ECOLOGO
    • Compliance certificates: RoHS
    • Isolation: 1.5 kV
    • RS-232 signals: CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD
    • Data bits: 5, 6, 7, 8
    • Flow Control type: DTR/DSR, RTS/CTS, XON/XOFF
    • Parity bit: Even, Mark, No, Odd, Space
    • Stop bits: 1, 1.5, 2
    • Surge protection voltage: 2 kV
    • RS-422 signals: GND, RxD+, RxD-, TxD+, TxD-
    • RS-485 signals: Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
    • Weight: 7.76 oz (220 g)
    • Width: 4.61" (117 mm)
    • Height: 1.02" (26 mm)
    • Depth: 3.86" (98 mm)
    • Sustainability compliance: Yes
