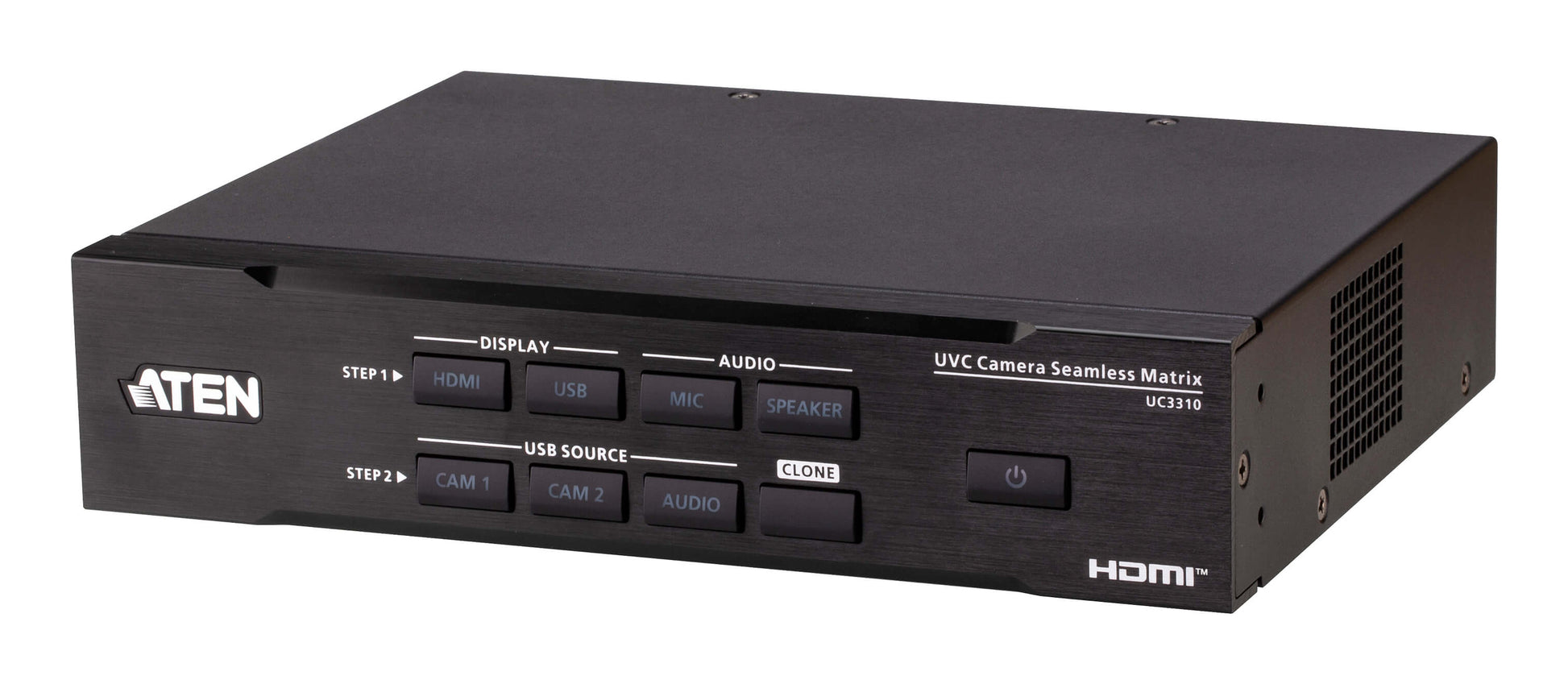

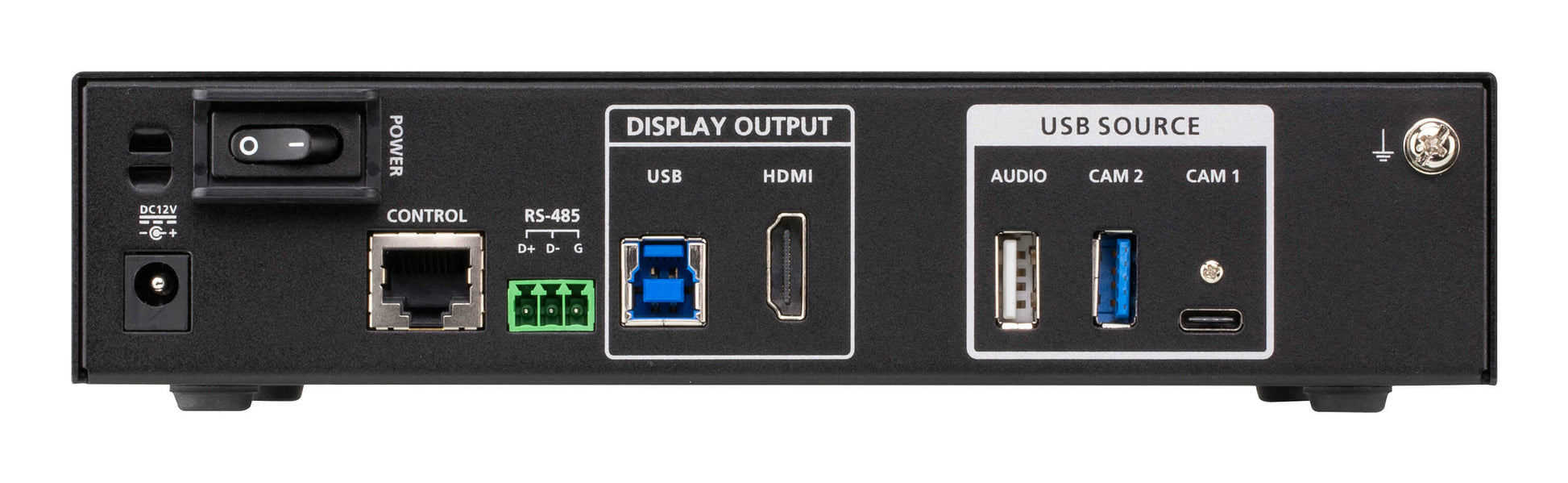

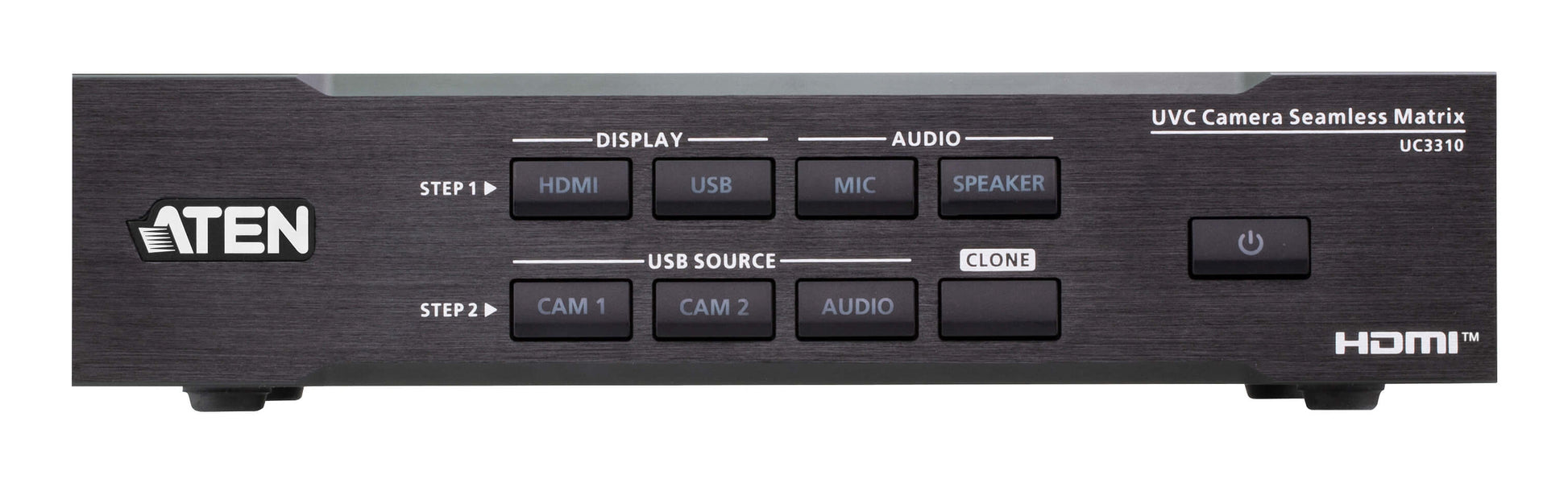

ATEN UC3310 video capturing device USB 3.2 Gen 1 (3.1 Gen 1)

ATEN UC3310 video capturing device USB 3.2 Gen 1 (3.1 Gen 1)

UC3310

$299.24 USD
$299.24 USD
Sale Sold out

MSRP: $443.00

ATEN UC3310. Product color: Black, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Housing material: Metal. Supported video modes: 720p, 1080p, 2160p. Audio sampling rate: 48 kHz, Audio sampling rate: 16 bit. USB connector type: USB Type-A, USB Type-C, USB version: 3.2 Gen 1 (3.1 Gen 1). Power supply type: DC, Output voltage: 12 V
View full details
    • Details: ATEN UC3310. Product color: Black, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Housing material: Metal. Supported video modes: 720p, 1080p, 2160p. Audio sampling rate: 48 kHz, Audio sampling rate: 16 bit. USB connector type: USB Type-A, USB Type-C, USB version: 3.2 Gen 1 (3.1 Gen 1). Power supply type: DC, Output voltage: 12 V
    • PDF: http://objects.icecat.biz/objects/mmo_120573919_1739622100_0897_2510516.pdf
    • Info: Converts up to two 4K@30 USB camera inputs into one HDMI|Supports USB audio in / out for matrix switching|Support 1080p @ 30 UVC output simultaneously for live broadcasting on popular streaming software (Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch)|Pushbuttons on the front panel allow quick and intuitive signal selection and assignment|RS-232 connection enables integration with ATEN VK Control System|Built-in RS-485 interface to support VISCA protocol for PTZ camera controller connection|Optional rack mount kit gives installation flexibility in media cabinets or DIT stations|Plug-and-play convenience with no software drivers needed|Supports all major operating systems including windows 10 and macOS 10.13
    • Audio sampling rate: 16 bit
    • Internal: No
    • Supported video modes: 720p, 1080p, 2160p
    • Product color: Black
    • Housing material: Metal
    • Power supply type: DC
    • Country of origin: Taiwan
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Mac compatibility: Yes
    • Minimum processor: Intel i3 Dual Core 2.8Ghz
    • USB connector type: USB Type-A, USB Type-C
    • Host interface: USB 3.2 Gen 1 (3.1 Gen 1)
    • USB port: Yes
    • USB ports quantity: 3
    • USB version: 3.2 Gen 1 (3.1 Gen 1)
    • RS-232 ports: 1
    • Number of HDMI outputs: 1
    • Video in: 1 x USB3.2 Gen1 Type A, 1 x USB3.2 Gen1 Type C
    • Output voltage: 12 V
    • Windows operating systems supported: Windows 10, Windows 11
    • Minimum RAM: 4000 MB
    • Weight: 34.6 oz (980 g)
    • Width: 7.87" (200 mm)
    • Height: 1.73" (44 mm)
    • Depth: 6.48" (164.6 mm)
