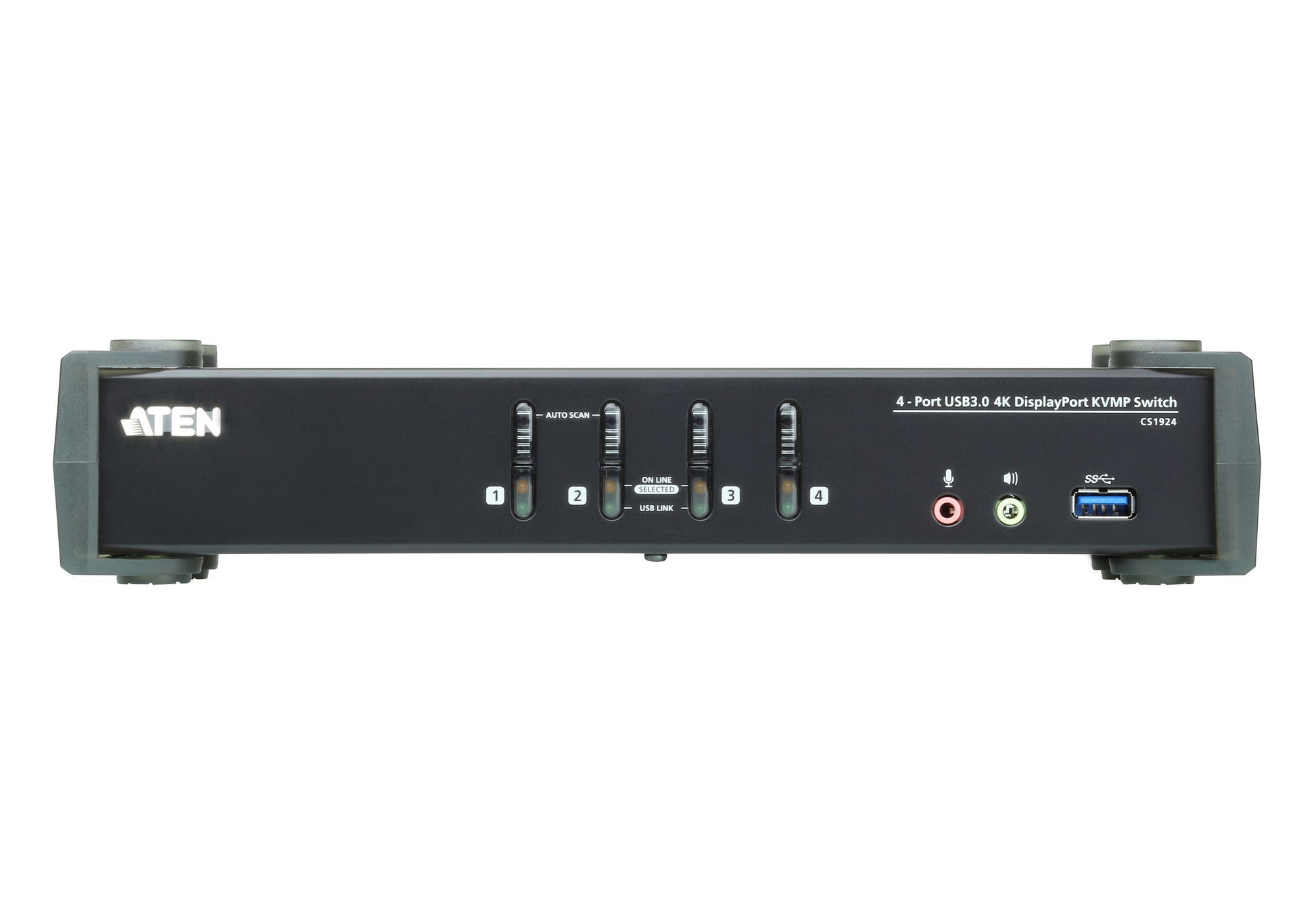

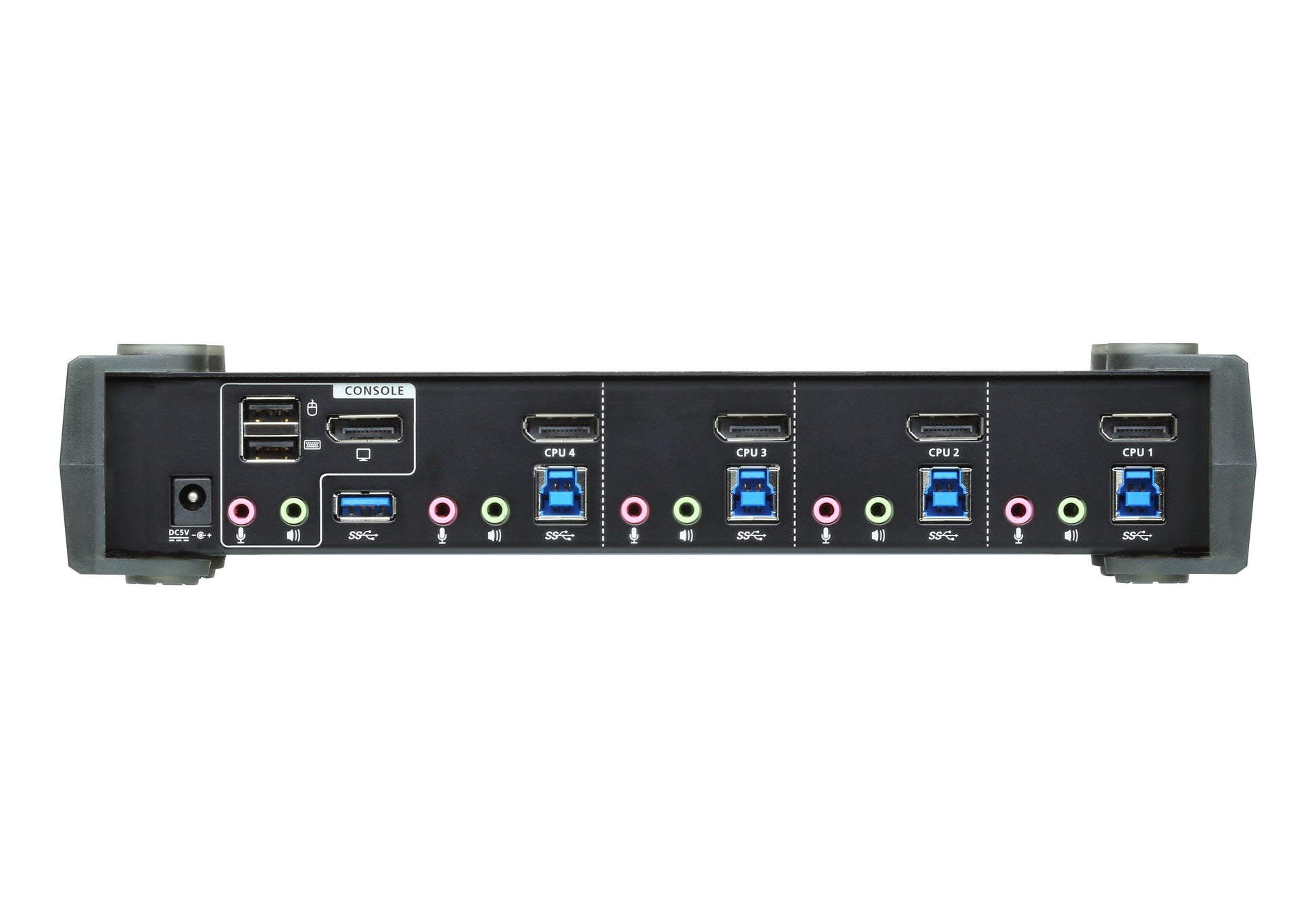

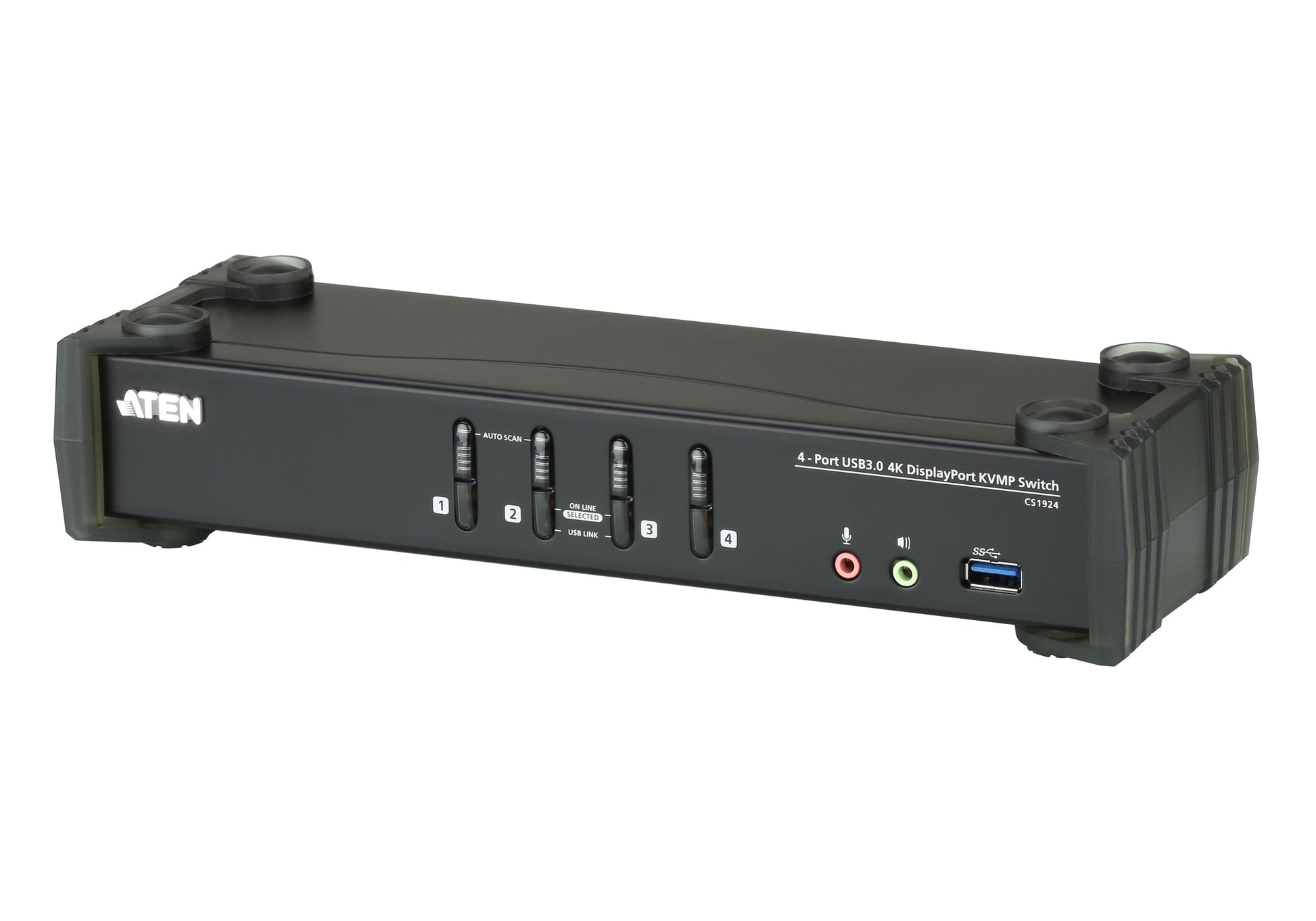

ATEN Umschalter KVM switch Black
ATEN Umschalter KVM switch Black
SKU: CS1924
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
ATEN Umschalter. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 4096 x 2160 pixels, Maximum digital resolution: 4096 x 2160 pixels, Scan interval: 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s. Product color: Black, Housing material: Metal, Plastic, LED indicators: Activity, Link. Windows operating systems supported: Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home..., Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10.... Compliance certificates: RoHS
Quantity
Couldn't load pickup availability
- Details: ATEN Umschalter. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 4096 x 2160 pixels, Maximum digital resolution: 4096 x 2160 pixels, Scan interval: 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s. Product color: Black, Housing material: Metal, Plastic, LED indicators: Activity, Link. Windows operating systems supported: Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home..., Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10.... Compliance certificates: RoHS
- Info: 4-port DisplayPort KVMP™ Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio|One USB console controls 4 computers and 2 USB peripherals|Computer selection via front panel pushbuttons, hotkeys and mouse1|Independent switching of KVM, USB, and Audio focus|Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)|2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates|DisplayPort 1.2 compliant, HDCP compliant2|Supports HD audio through DisplayPort3|Full bass response for high-quality 2.1 channel surround sound systems|Power On Detection – if a computer is powered off, the CS1924 automatically switches to the next powered-on computer|Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector4|DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter5|Hot pluggable – add or remove computers without powering down the switch|Keyboard emulation/bypass feature supports most gaming keyboard|Mouse emulation/bypass feature supports most mouse drivers and multifunction mice|Multi-platform support – Windows, Mac and Linux|Multilingual keyboard mapping supports English, Japanese, French and German keyboards|Mac keyboard support and emulation6|Auto Scan Mode for monitoring all computers|Firmware upgradeable|Note:|1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.|2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue.|3. HD audio through DisplayPort cannot be switched independently.|4. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant.|5. DisplayPort Dual – Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.|6. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.
- LED indicators: Activity, Link
- Push button: Yes
- Product color: Black
- Housing material: Metal, Plastic
- USB hub: Yes
- Ethernet LAN: No
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Power requirements: 5V DC
- Hot-Plug support: Yes

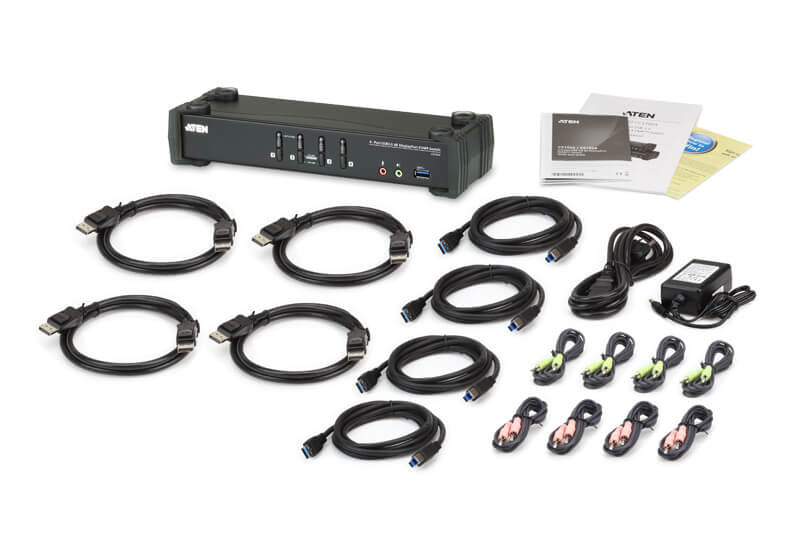

- Cables included: Audio (3.5mm), DisplayPort, USB
- Manual: Yes
- AC adapter included: Yes
- Built-in display: No
- Maximum digital resolution: 4096 x 2160 pixels
- USB connector type: USB Type-A, USB Type-B
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- Maximum resolution: 4096 x 2160 pixels
- Scan interval: 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s
- Audio channels: 2.1
- DC-in jack: Yes
- USB 2.0 ports quantity: 2
- Headphone outputs: 6
- HDCP: Yes
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- Number of computers controlled: 4
- Audio connections: Yes
- Console ports: USB A
- Console USB ports quantity: 2
- Number of microphone inputs: 6
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 6
- Display connection: Yes
- Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
- Windows operating systems supported: Windows 10 Home, Windows 2000, Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home Premium, Windows XP Home
- Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 9.3
- Compliance certificates: RoHS
- Weight: 32.1 oz (910 g)
- Width: 3.46" (88 mm)
- Height: 2.19" (55.5 mm)
- Depth: 10.6" (270 mm)
