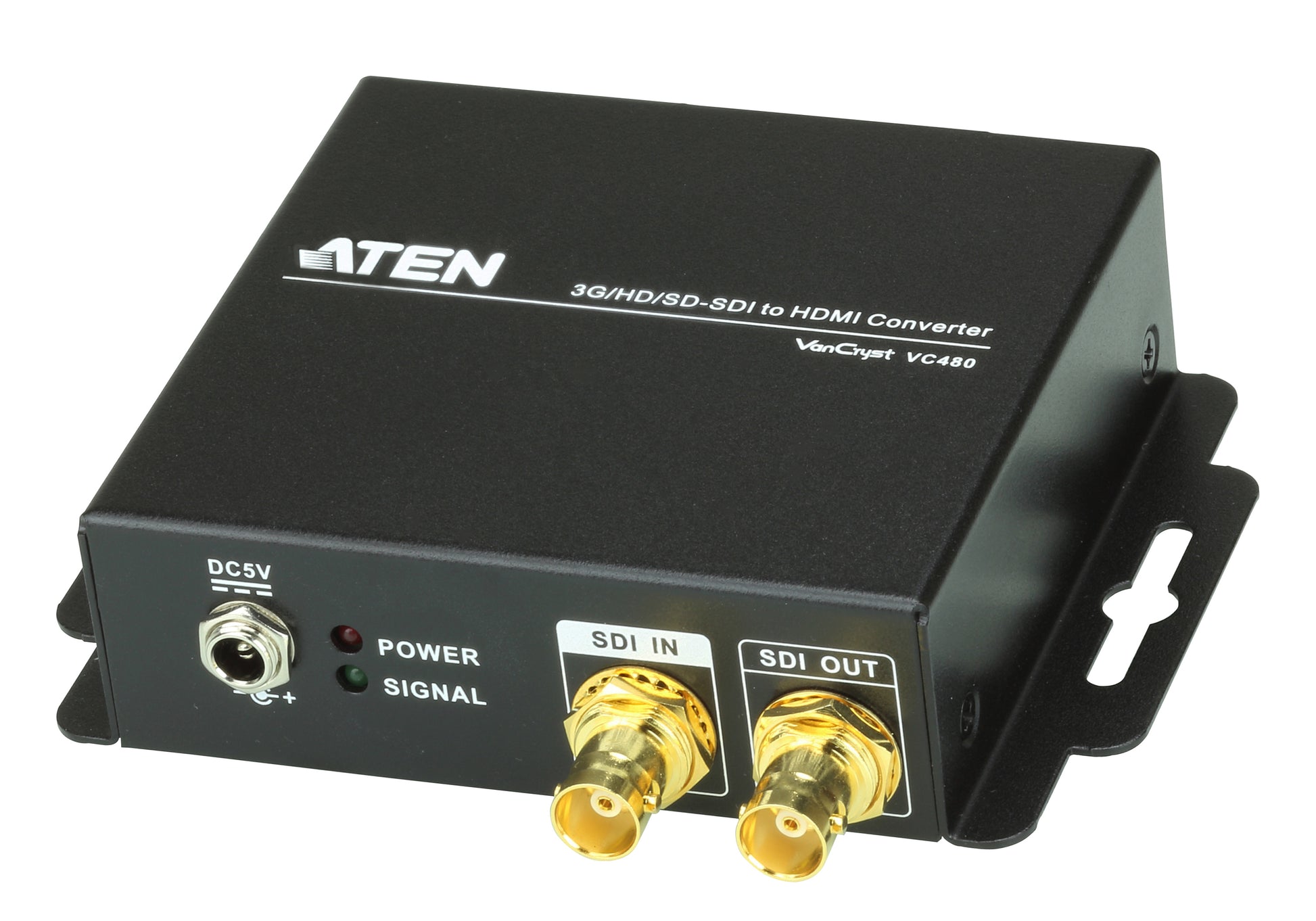

ATEN VC480 video signal converter
ATEN VC480 video signal converter
SKU: VC480
Regular price
$236.76 USD
Regular price
Sale price
$236.76 USD
MSRP: $300.00
ATEN VC480. Product color: Black. Host interface: BNC, Output interface: HDMI, BNC. Input voltage: 5 V. Width: 4.28" (108.7 mm), Depth: 4.84" (123 mm), Height: 1.2" (30.5 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN VC480. Product color: Black. Host interface: BNC, Output interface: HDMI, BNC. Input voltage: 5 V. Width: 4.28" (108.7 mm), Depth: 4.84" (123 mm), Height: 1.2" (30.5 mm)
- Info: Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals|Supports additional analog stereo audio and coaxial digital audio|HDMI (Deep Color)|LED indication of power and signal status|Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6|Supported SDI formats:|• SD-SDI (SMPTE 259M, up to 270Mbps)|• HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)|• 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)|Video Support:|525i@59.96, 625i@50|720p@23.98/24/25/29.94/30/50/59.94/60|1080i@50/59.94/60|1080p@23.97/24/25/29.97/30/50/59.94/60|Buffered loop-through output provides extended monitoring|Supports 8 audio channels @48kHz rate|Features automatic detection of 3G/HD/SD-SDI signals|Reclocking SDI signals for cascading and thus longer transmission|Locking power connector for secure communications
- Product color: Black
- Harmonized System (HS) code: 85176990
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
- Host interface: BNC
- Output interface: HDMI, BNC
- Input voltage: 5 V
- Weight: 10.2 oz (290 g)
- Width: 4.28" (108.7 mm)
- Height: 1.2" (30.5 mm)
- Depth: 4.84" (123 mm)
