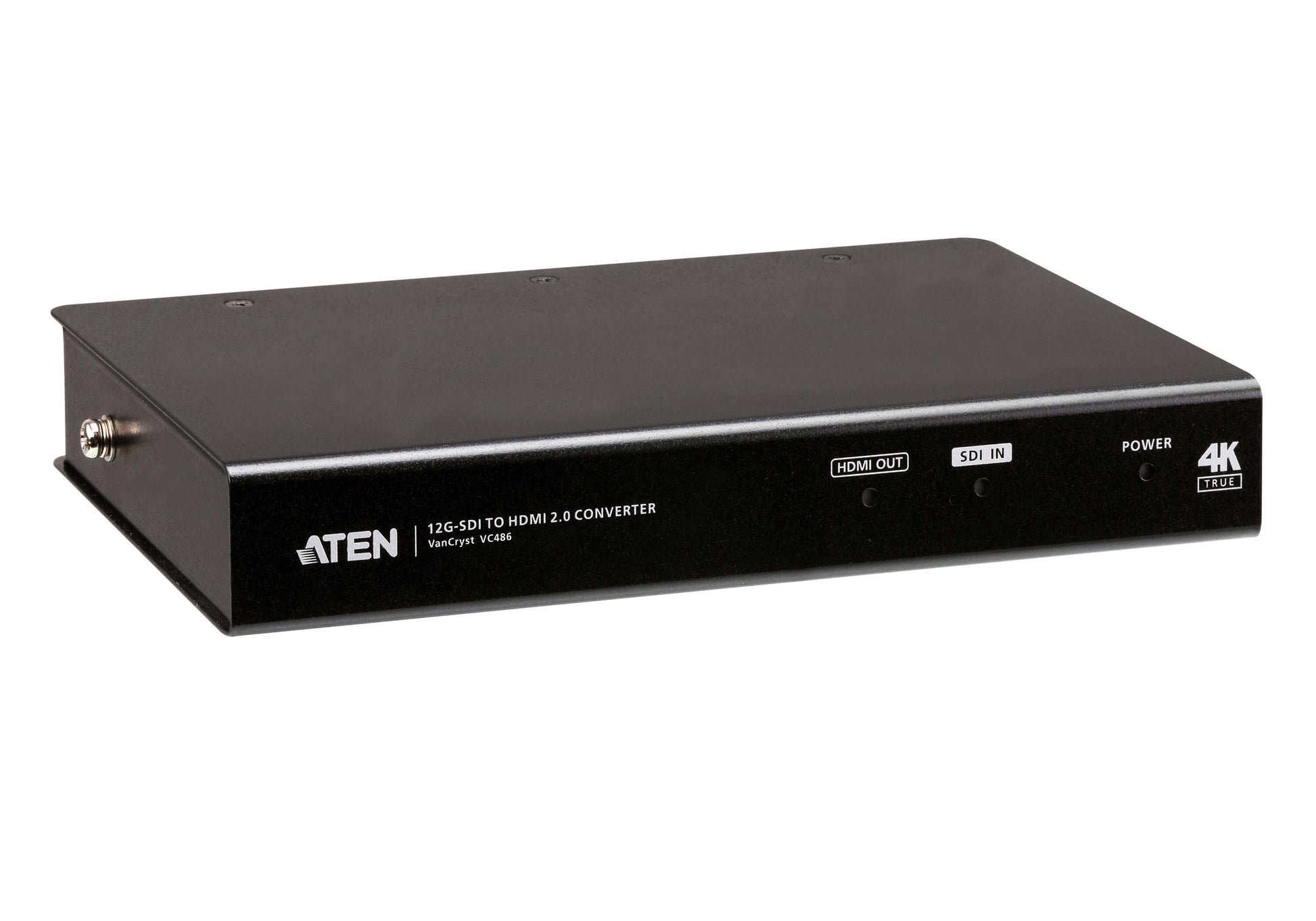

ATEN VC486 video signal converter 3840 x 2160 pixels

ATEN VC486 video signal converter 3840 x 2160 pixels

VC486

$493.79 USD
$493.79 USD
Sale Sold out

MSRP: $624.00

ATEN VC486. Product color: Black, Housing material: Metal. Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 720p, 1080i, 1080p, 2160p, Serial Digital Interface (SDI) standard: SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082. Line-out balanced impedance: 75 ?. Host interface: SDI, Output interface: HDMI, Video in: SDI. Input voltage: 5 V, Operating voltage: 5 V, Operating current: 3 A
View full details
    • Details: ATEN VC486. Product color: Black, Housing material: Metal. Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 720p, 1080i, 1080p, 2160p, Serial Digital Interface (SDI) standard: SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082. Line-out balanced impedance: 75 ?. Host interface: SDI, Output interface: HDMI, Video in: SDI. Input voltage: 5 V, Operating voltage: 5 V, Operating current: 3 A
    • PDF: http://objects.icecat.biz/objects/mmo_86172971_1622623061_0034_33891.pdf
    • Info: Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time|SDI signal re-clocked for high signal quality|Supports SDI standard SMPTE-292/424/425-3/2081/2082|Supports an SDI distance of up to 45 m (12G-SDI), 60 m (6G-SDI), 90 m (3G-SDI) and 150 m (HD-SDI)|Supported SDI formats:|• HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)|• 3G-SDI (SMPTE 424M, 425M level A and B, up to 2.97 Gbps)|• 6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps)|• 12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12 Gbps)|Supports analog stereo audio output with RCA (R/L) connector|Automatic detection of input video signals|Analog Audio channel selection with a 8-step rotary switch|Locking power connector
    • Line-out balanced impedance: 75 ?
    • LED indicators: Yes
    • Supported video modes: 720p, 1080i, 1080p, 2160p
    • Product color: Black
    • Housing material: Metal
    • Extended display identification data (EDID): Yes
    • Reclocking: Yes
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 20 - 90%
    • Storage relative humidity (H-H): 20 - 90%
    • Manual: Yes
    • Maximum video resolution: 3840 x 2160 pixels
    • Host interface: SDI
    • Audio output: HDMI, SDI
    • Output interface: HDMI
    • Video in: SDI
    • Video out: HDMI, SDI
    • BNC output ports: 1
    • BNC video output: Yes
    • Power consumption (typical): 5.69 W
    • Input voltage: 5 V
    • Operating voltage: 5 V
    • Operating current: 3 A
    • Serial Digital Interface (SDI) standard: SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082
    • Weight: 22.9 oz (650 g)
    • Width: 51" (1296 mm)
    • Height: 11.3" (287 mm)
    • Depth: 7.17" (182 mm)
