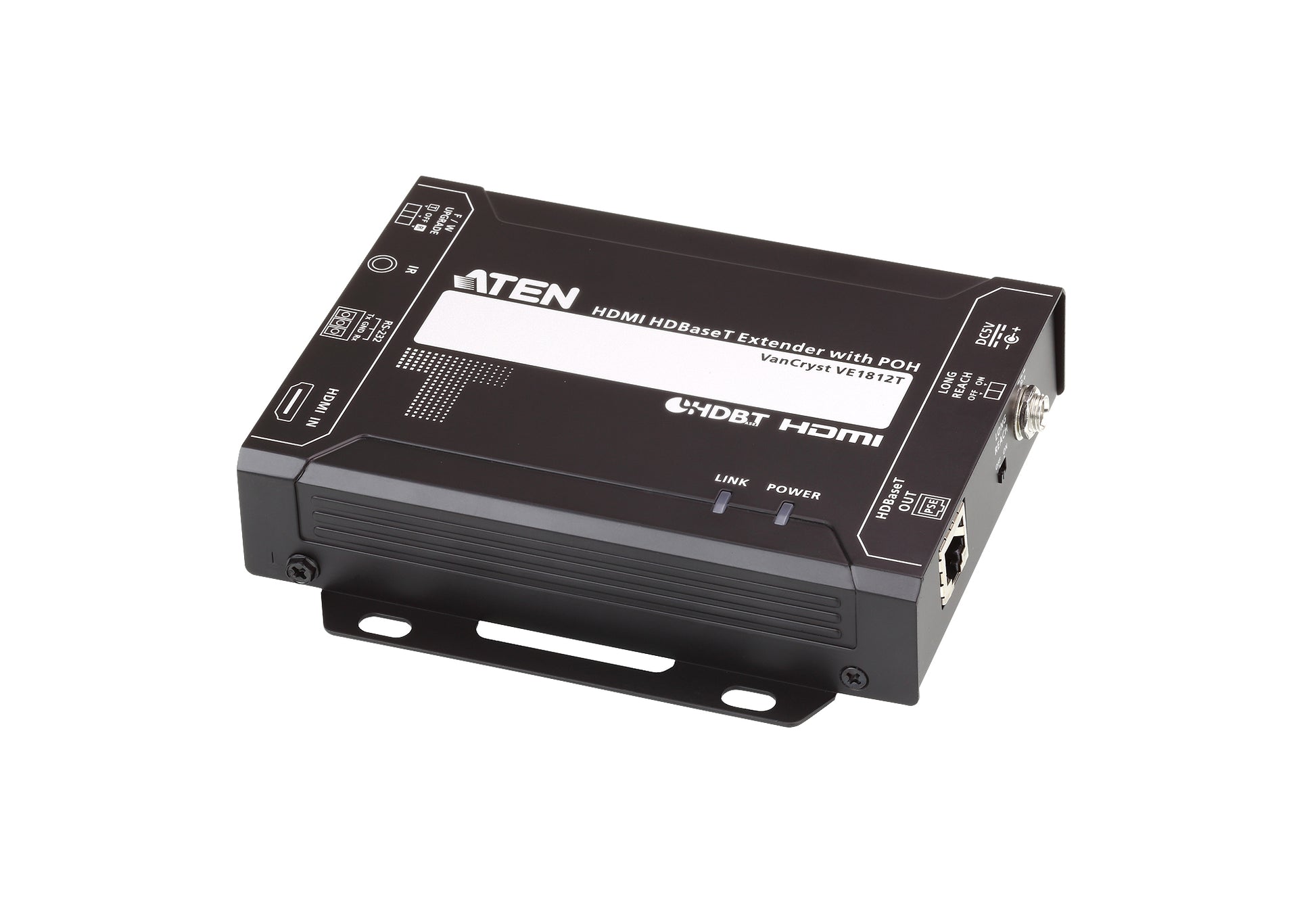

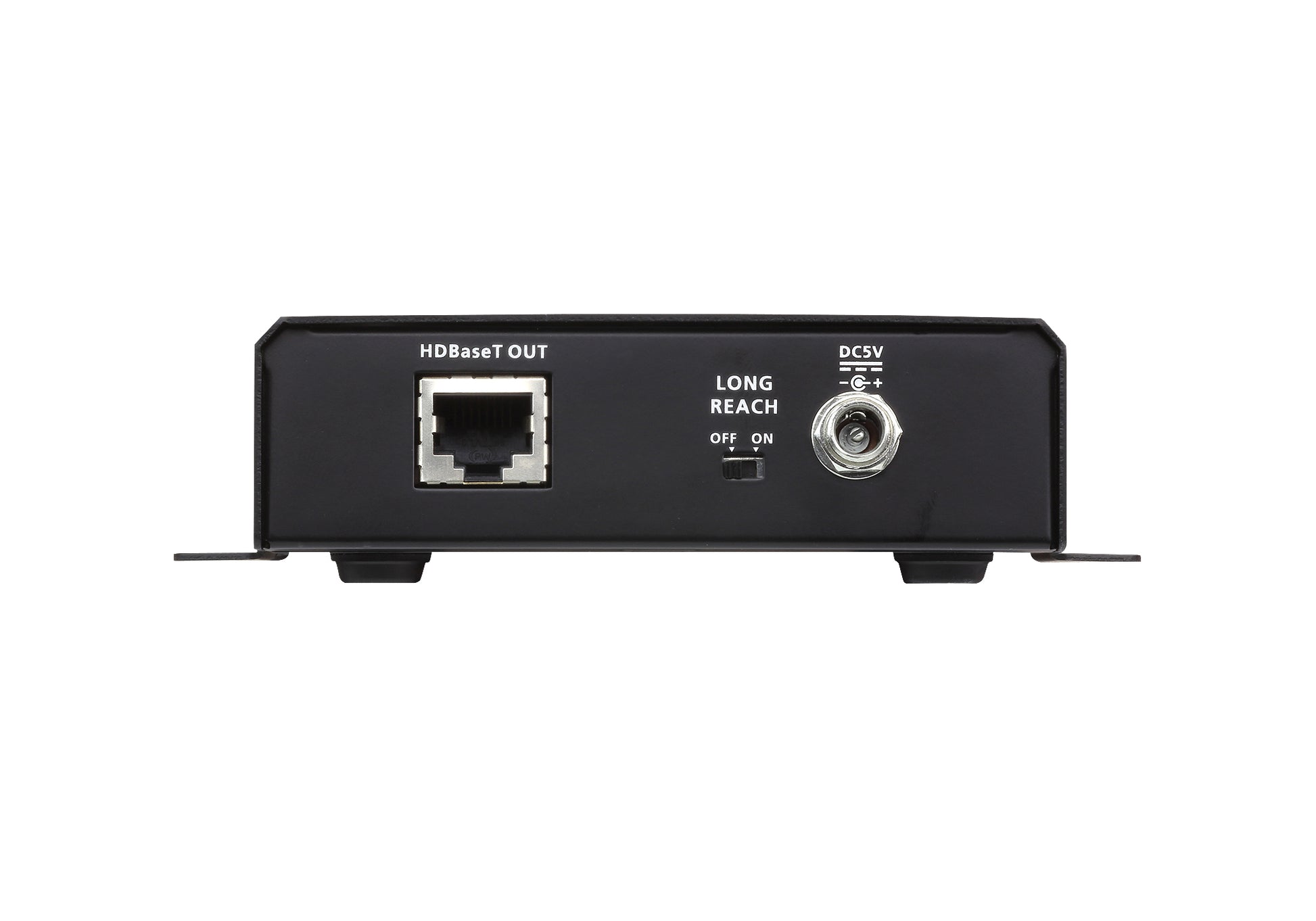

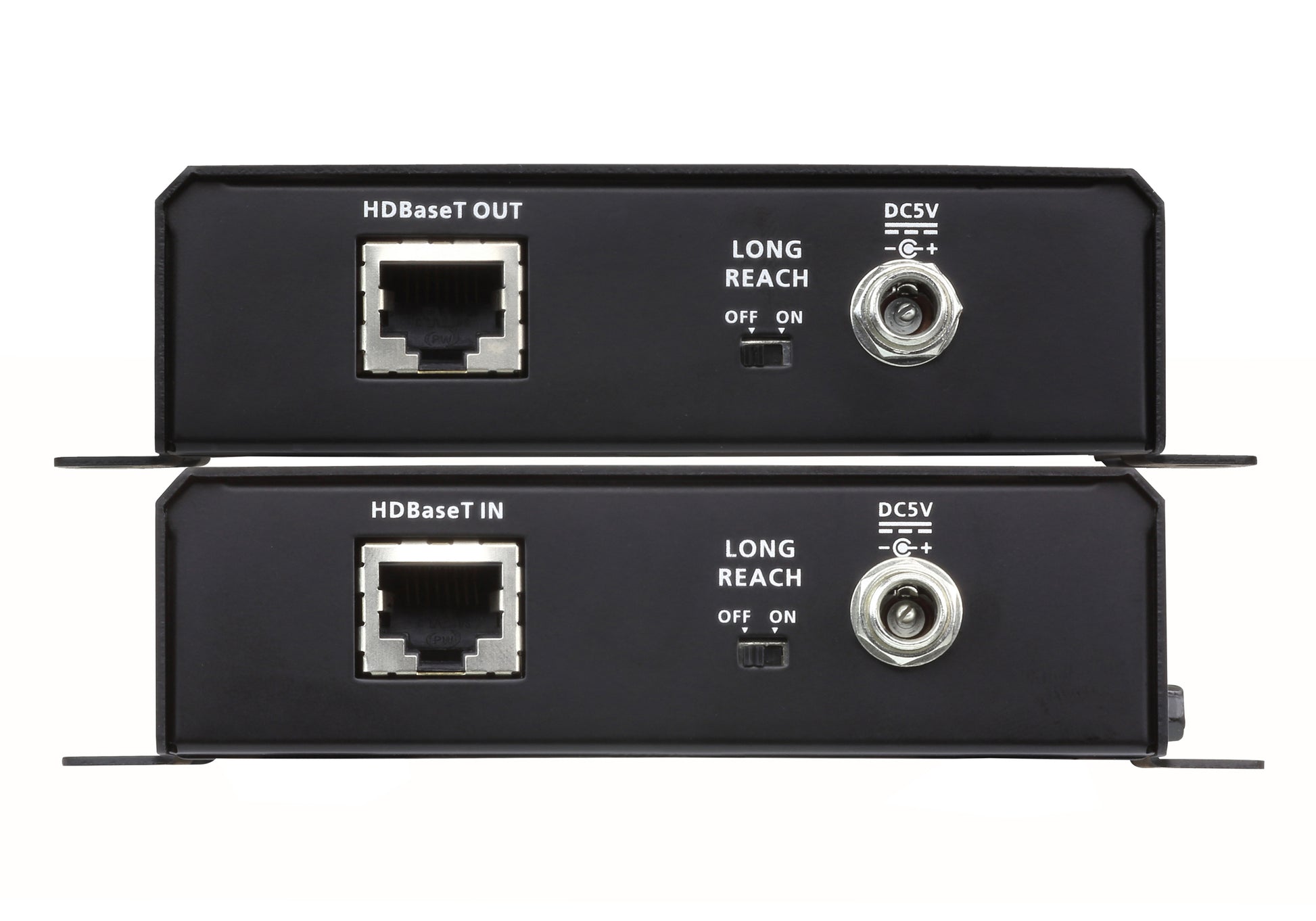

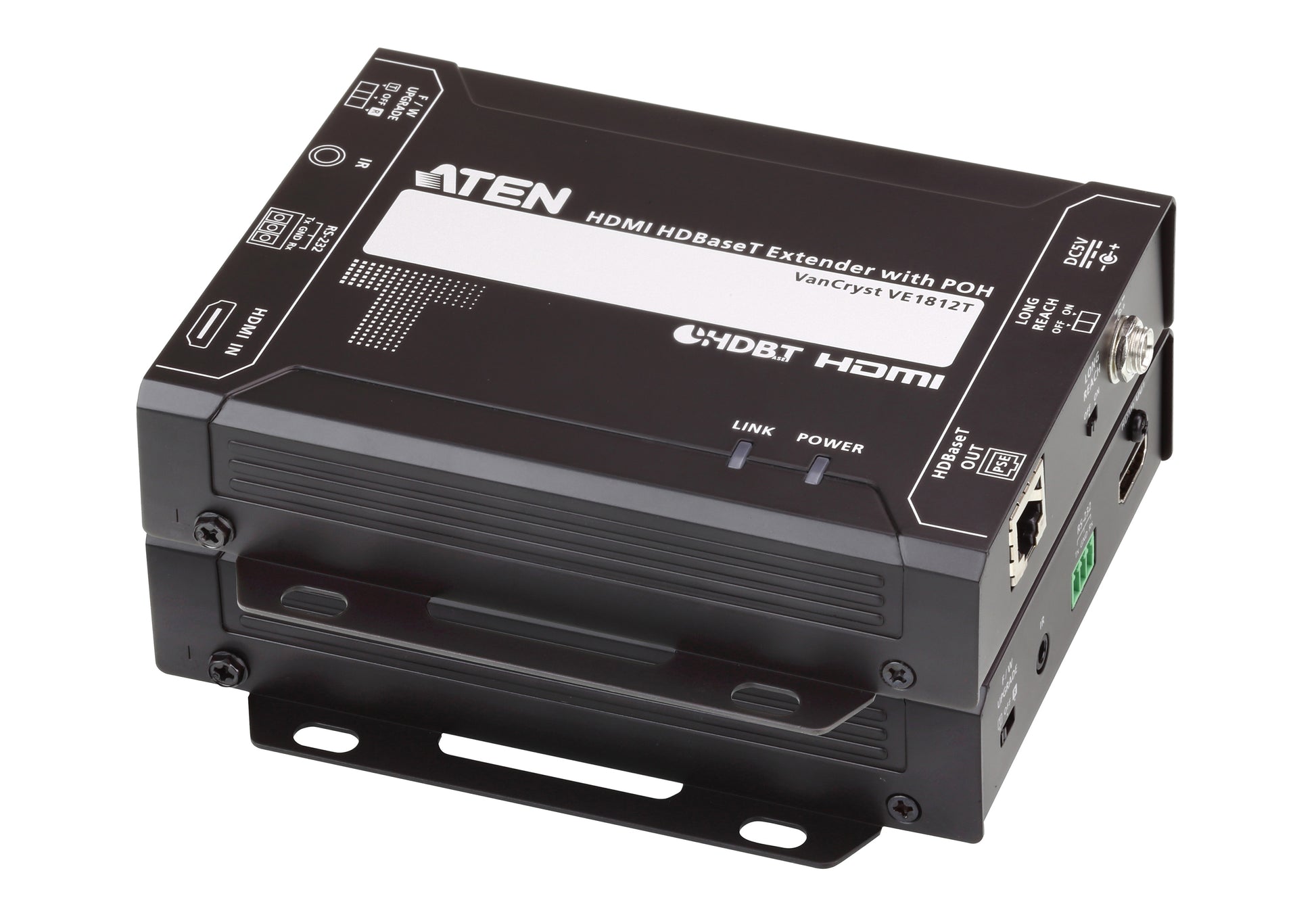

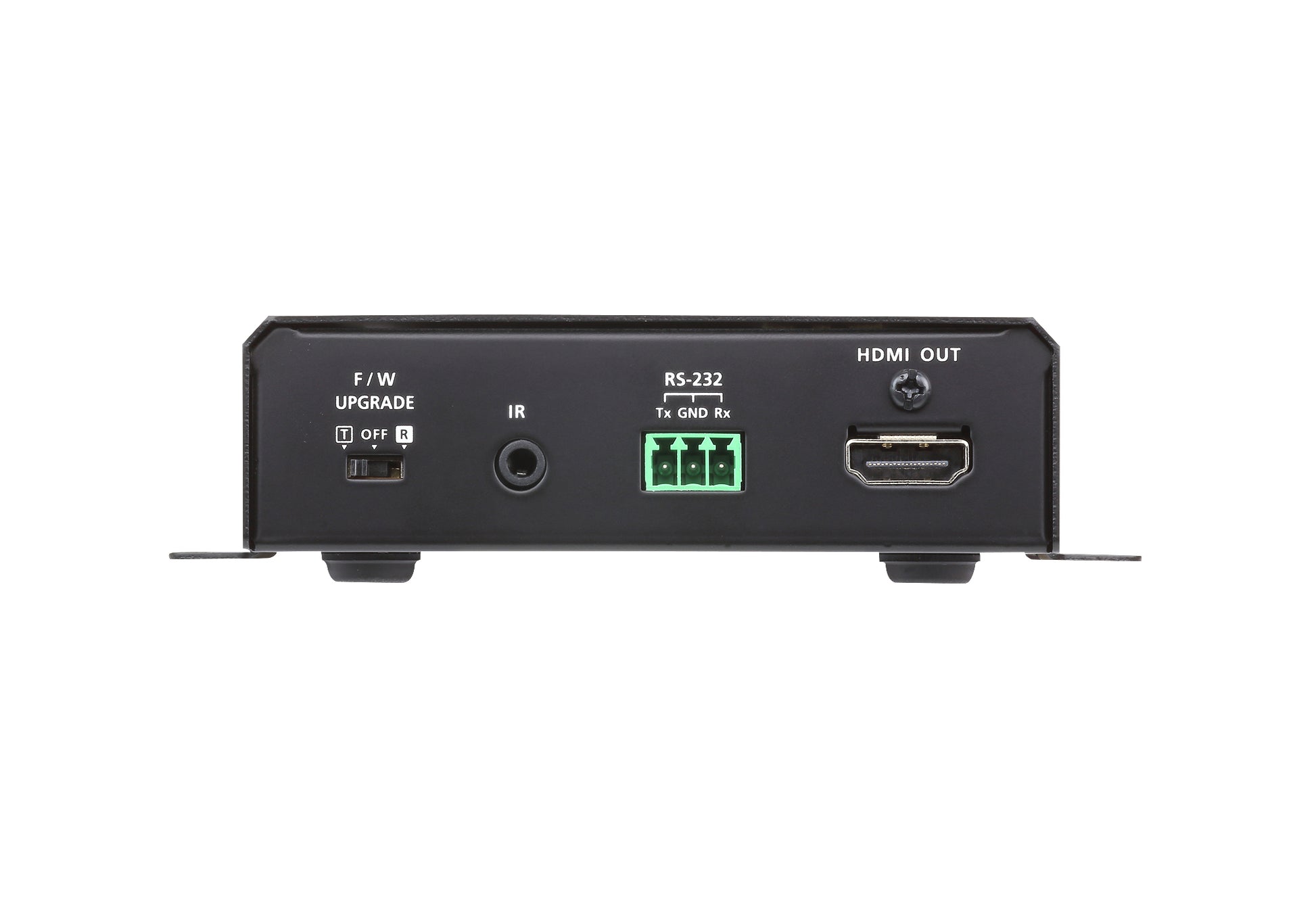

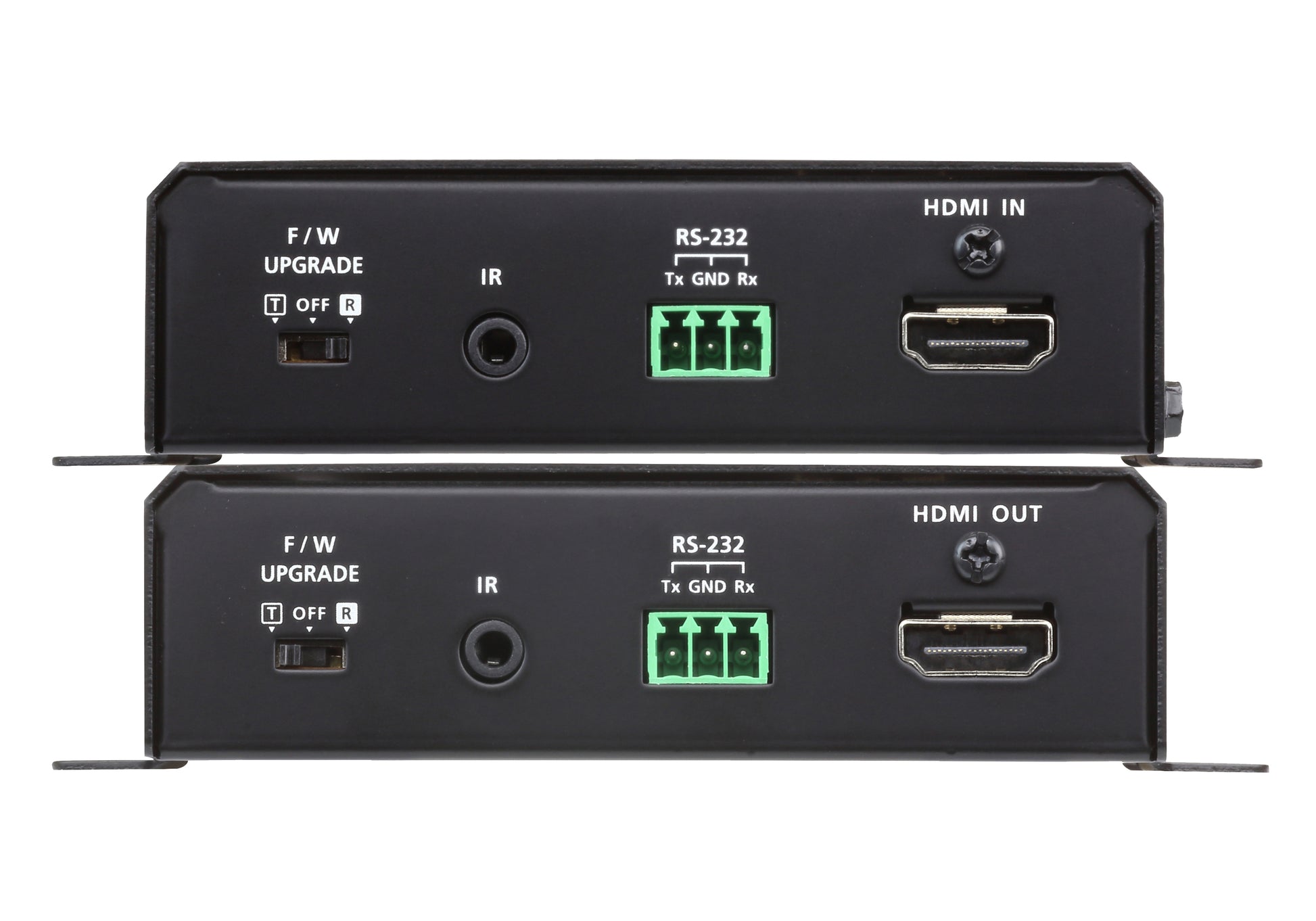

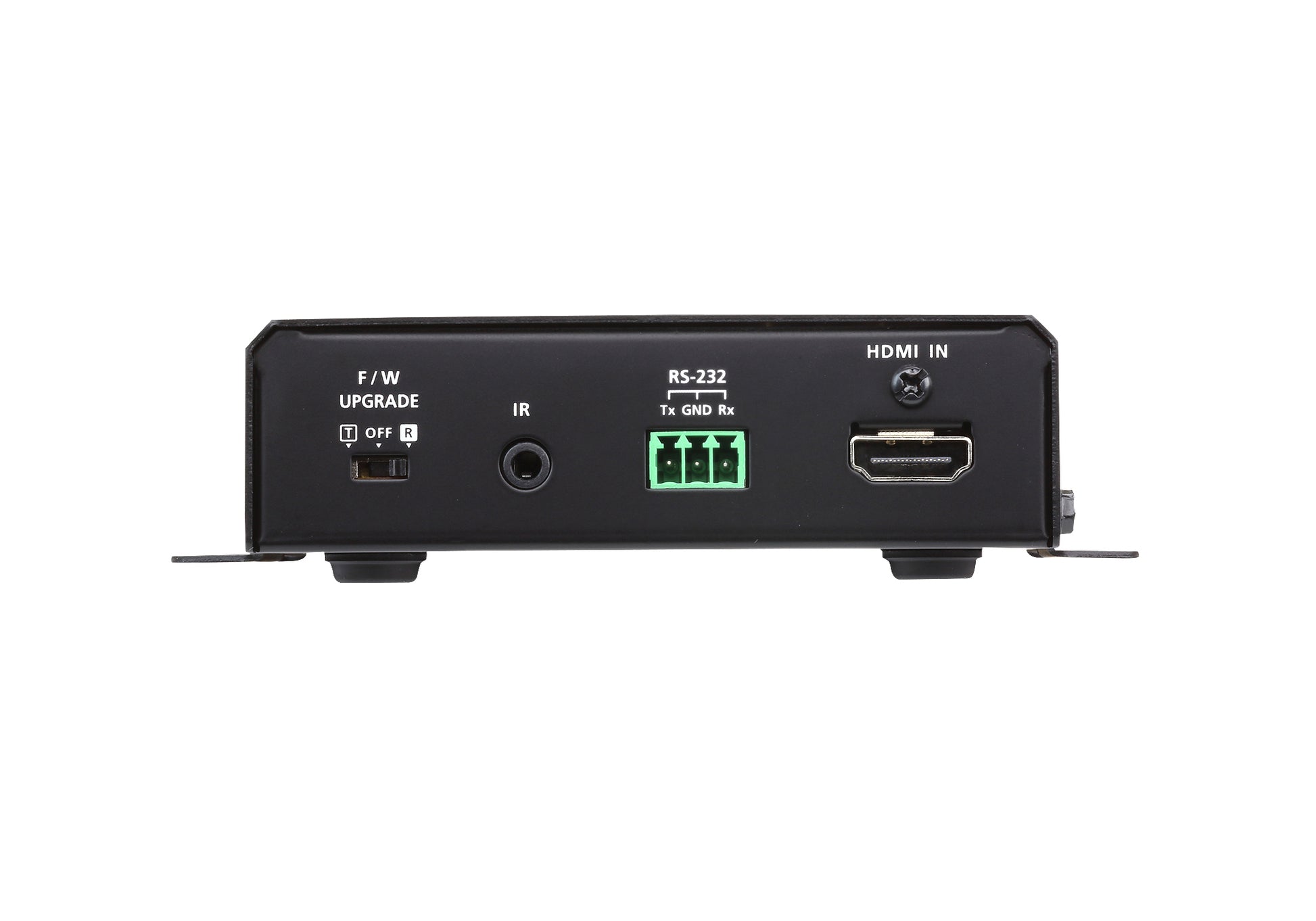

ATEN VE1812 AV extender AV transmitter & receiver Black

ATEN VE1812 AV extender AV transmitter & receiver Black

VE1812

$467.94 USD
$467.94 USD
Sale Sold out

MSRP: $592.00

ATEN VE1812. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (transmitter) (max): 4.3 W. Receiver dimensions (WxDxH): 4.84 x 5.53 x 1.18" (123 x 140.4 x 30 mm), Receiver weight: 15.9 oz (450 g), Transmitter dimensions (WxDxH): 4.84 x 5.53 x 1.18" (123 x 140.4 x 30 mm)
View full details
    • Details: ATEN VE1812. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (transmitter) (max): 4.3 W. Receiver dimensions (WxDxH): 4.84 x 5.53 x 1.18" (123 x 140.4 x 30 mm), Receiver weight: 15.9 oz (450 g), Transmitter dimensions (WxDxH): 4.84 x 5.53 x 1.18" (123 x 140.4 x 30 mm)
    • Info: HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable|Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p|4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable|HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology|POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable|Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners|Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time|Rack- Mountable
    • LED indicators: Yes
    • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
    • 3D: Yes
    • Supported video modes: 1080p
    • Product color: Black
    • Type: AV transmitter & receiver
    • Bandwidth: 340 MHz
    • Consumer Electronics Control (CEC) support: Yes
    • Impedance: 100 ?
    • Cable types supported: Cat5e, Cat6, Cat6a
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Connectivity technology: Wired
    • Quick start guide: Yes
    • AC adapter included: Yes
    • Maximum transfer distance: 5905.5" (150 m)
    • Firmware upgradeable: Yes
    • Maximum resolution: 4096 x 2160 pixels
    • DC-in jack: Yes
    • RJ-45 input ports: 1
    • RJ-45 output ports: 1
    • HDCP: Yes
    • HDBaseT port: Yes
    • Number of HDMI outputs: 1
    • Video in: 1
    • Video out: 1
    • HDMI in: 1
    • RS-232 input ports: 1
    • RS-232 output ports: 1
    • Remote (IR) output: 1
    • 3.5 mm (1/8-inch) out: Yes
    • 3.5 mm (1/8-inch) in: Yes
    • Remote (IR) input: 1
    • External power adapter: Yes
    • Power consumption (receiver) (max): 6.4 W
    • Power consumption (transmitter) (max): 4.3 W
    • Operating voltage (receiver): 5 V
    • Operating voltage (transmitter): 5 V
    • Compliance certificates: RoHS
    • Material: Metal
    • Transmitter weight: 16.6 oz (470 g)
    • Receiver dimensions (WxDxH): 4.84 x 5.53 x 1.18" (123 x 140.4 x 30 mm)
    • Receiver weight: 15.9 oz (450 g)
    • Transmitter dimensions (WxDxH): 4.84 x 5.53 x 1.18" (123 x 140.4 x 30 mm)
