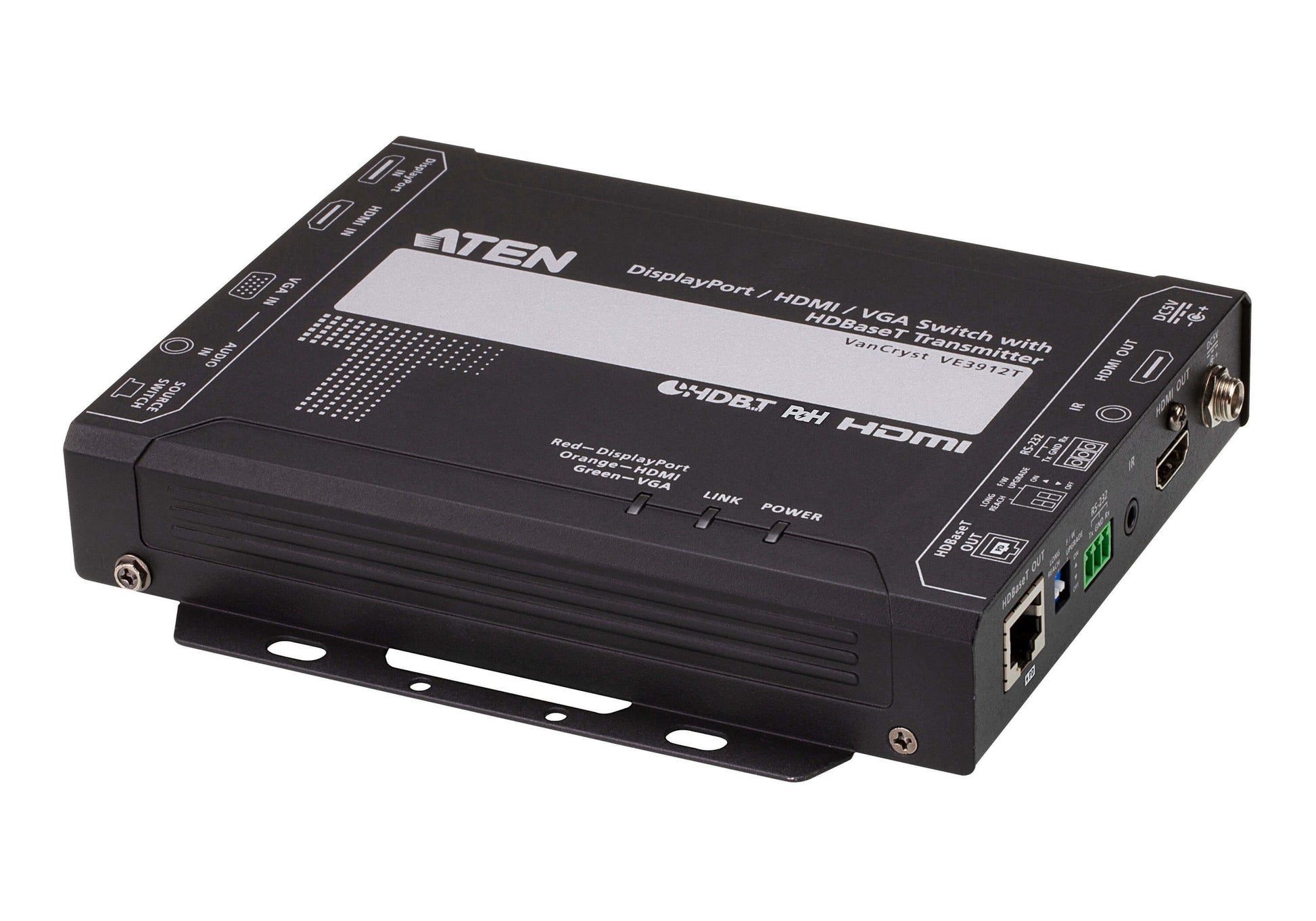

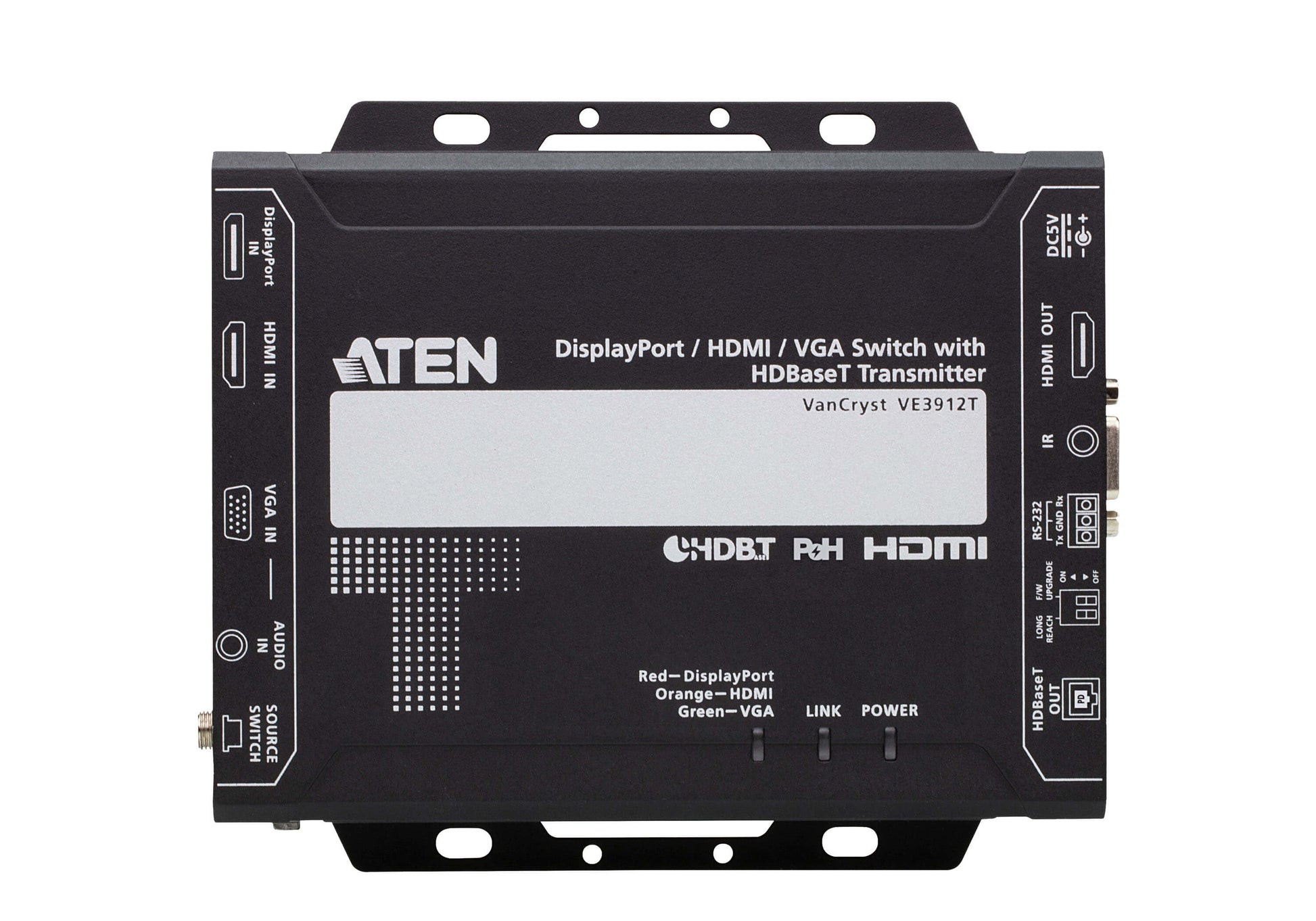

ATEN VE3912T AV extender AV transmitter Black
ATEN VE3912T AV extender AV transmitter Black
SKU: VE3912T
Regular price
$455.66 USD
Regular price
Sale price
$455.66 USD
MSRP: $576.00
ATEN VE3912T. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired, Video in: 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black), Video out: 1 x HDMI Type A Female (Black). Power consumption (max): 8.77 W. Width: 5.79" (147 mm), Depth: 6.81" (173 mm), Height: 1.18" (30 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN VE3912T. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired, Video in: 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black), Video out: 1 x HDMI Type A Female (Black). Power consumption (max): 8.77 W. Width: 5.79" (147 mm), Depth: 6.81" (173 mm), Height: 1.18" (30 mm)

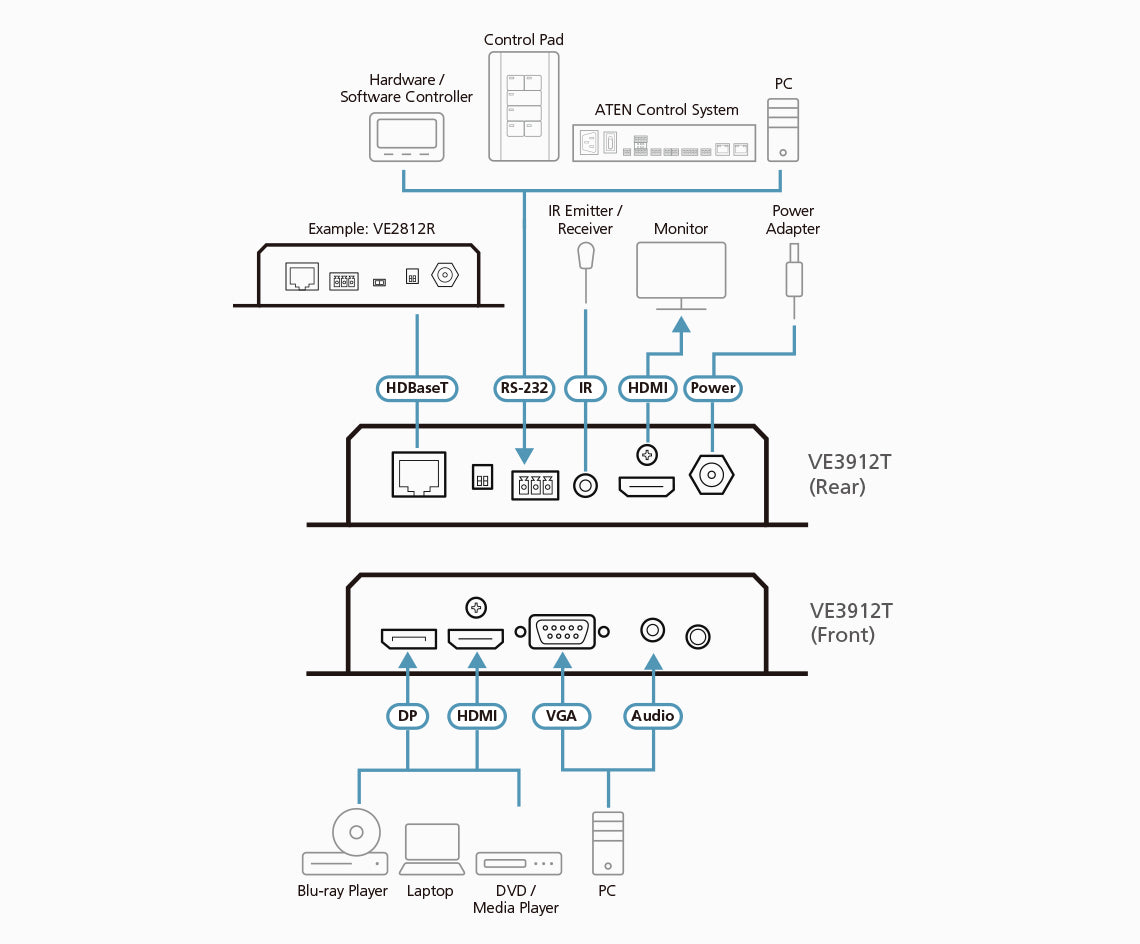

- Info: Extends DisplayPort, HDMI or VGA signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable|Supports multiple source inputs (DisplayPort/HDMI/VGA) – easily switching among sources via a pushbutton|Auto Switch Mode – allows the VE3912T to automatically switch to a newly plugged-in source|HDMI (3D, Deep Color, 4k); HDCP 2.2 compliant|Superior video quality:|• HDMI/Displayport: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable|• VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable|HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p|Mirrored Video Output – supports 4K@30Hz, 4:4:4 over the HDBaseT output, and a local HDMI output|PoH (Power over HDBaseT) – with its built-in PoH function, it receives power from the HDBaseT output port on the connected device|Perfect HDBaseT Compatibility – compatible with ATEN HDBaseT receivers, available to deliver crystal video and audio signals to Displayport/HDMI/VGA output port|Features RS-232 Serial Communication Switch – Command mode and Bypass mode to meet application requirements; users can command input port switch through RS-232 of receiver, such as VE2812R|EDID Expert™ – selects optimum EDID settings for high-quality display and use HDBaseT output as priority of optimum video resolution|Plug-and-play with no software installation required|Rack-mountable|Built-in 8KV/15KV ESD protection
- Control type: Buttons
- On/off switch: Yes
- Supported graphics resolutions: 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
- Supported video modes: 1080p, 2160p
- Product color: Black
- Type: AV transmitter
- Bandwidth: 340 MHz
- Consumer Electronics Control (CEC) support: Yes
- HDCP pass-through: Yes
- Power: 8.77 W
- Impedance: 100 ?
- Ethernet LAN: Yes
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Connectivity technology: Wired
- Quick start guide: Yes
- AC adapter included: Yes
- Mounting brackets included: Yes
- Maximum transfer distance: 3937" (100 m)
- Maximum resolution: 4096 x 2160 pixels
- DC-in jack: Yes
- RJ-45 input ports: 1
- VGA (D-Sub) ports quantity: 2
- HDCP: Yes
- Audio input: 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x DisplayPort Female (Black)
- HDCP version: 2.2
- Number of HDMI outputs: 1
- VGA (D-Sub) input ports: 1
- DisplayPorts in: 1

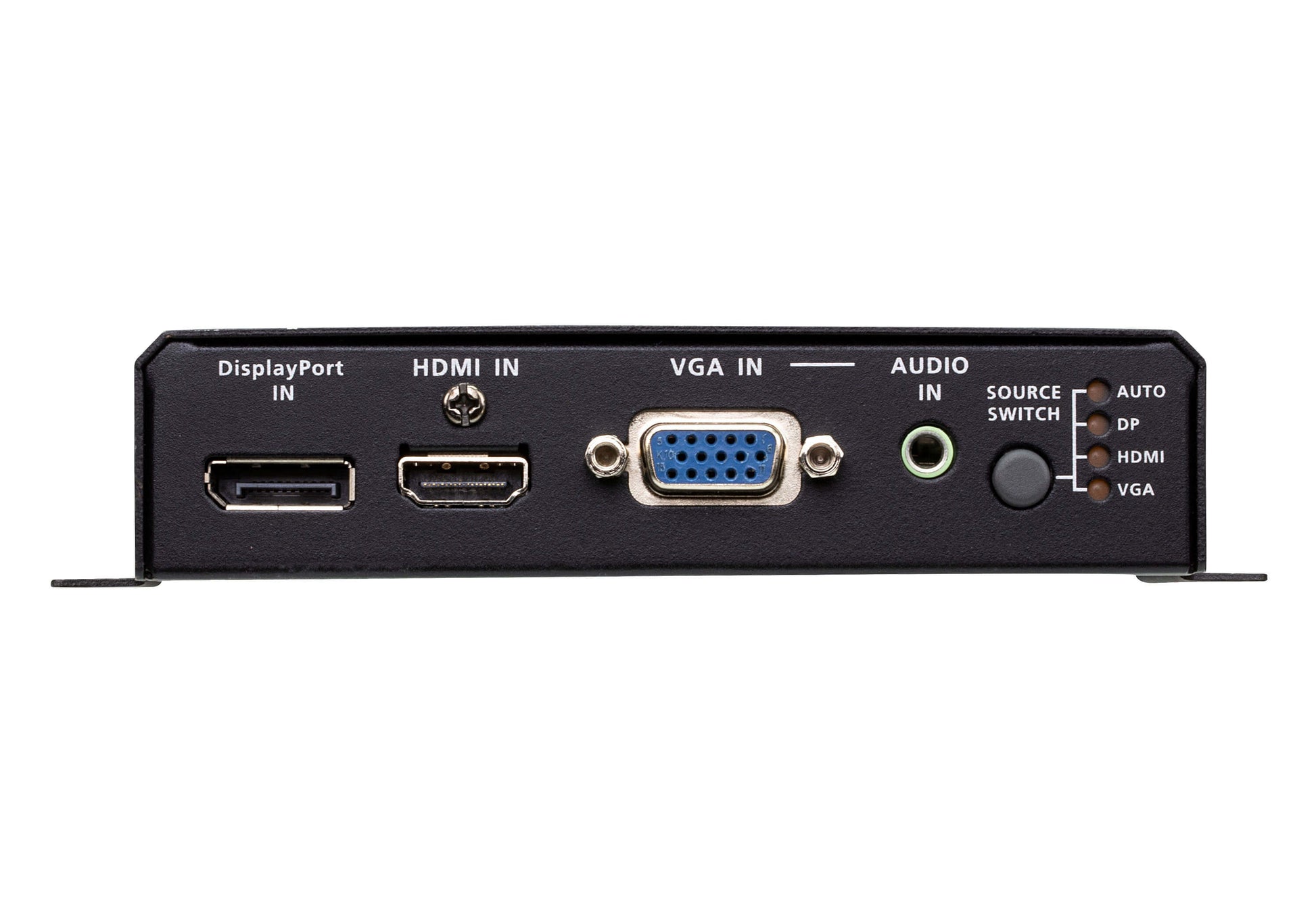

- Video in: 1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue) 1 x DisplayPort Female (Black)

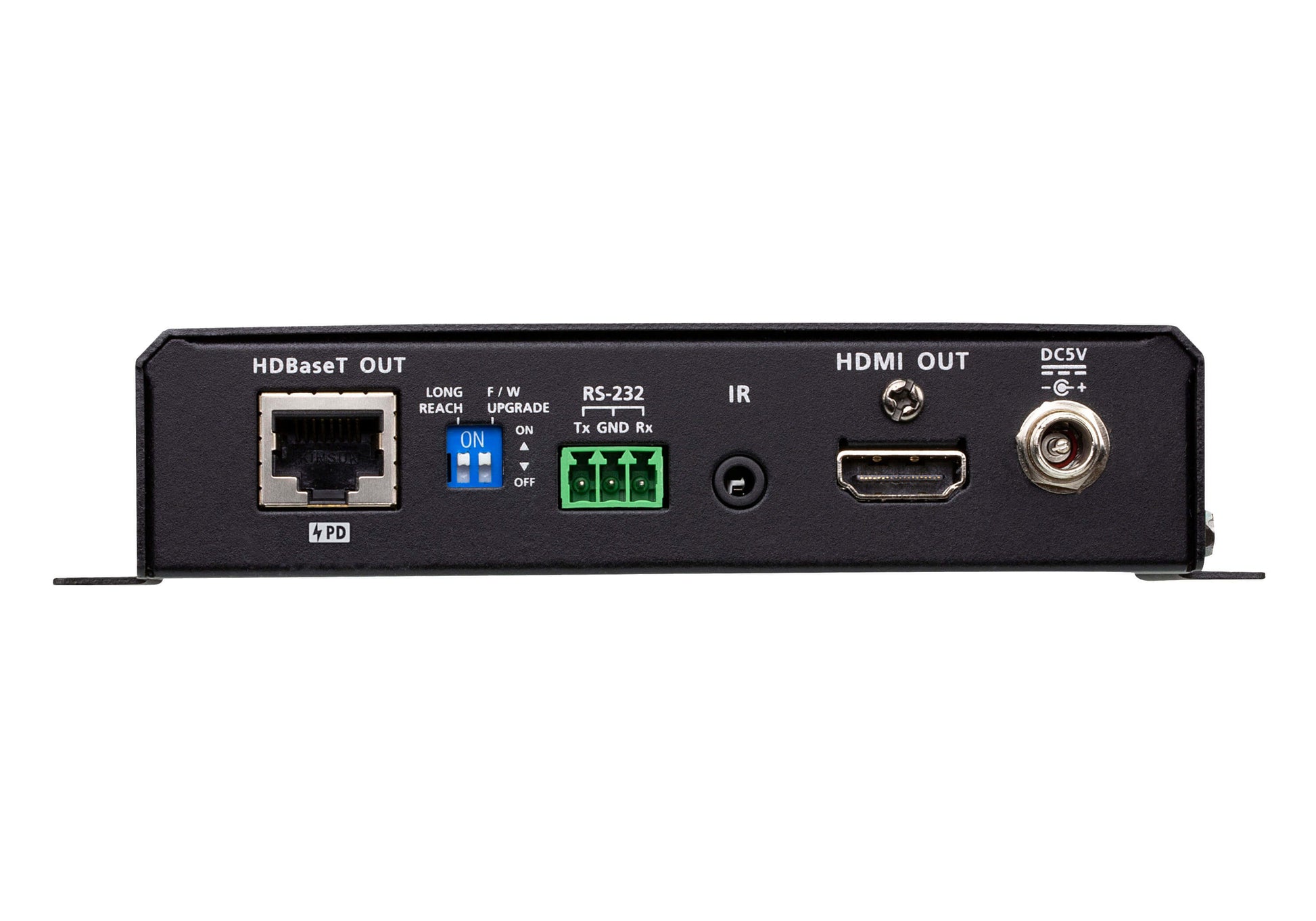

- Video out: 1 x HDMI Type A Female (Black)
- HDMI in: 1
- RS-232 output ports: 1
- AUX in: Yes
- Power consumption (max): 8.77 W
- External power adapter: Yes
- Compliance certificates: RoHS
- Material: Metal
- Weight: 22.9 oz (650 g)
- Width: 5.79" (147 mm)
- Height: 1.18" (30 mm)
- Depth: 6.81" (173 mm)
