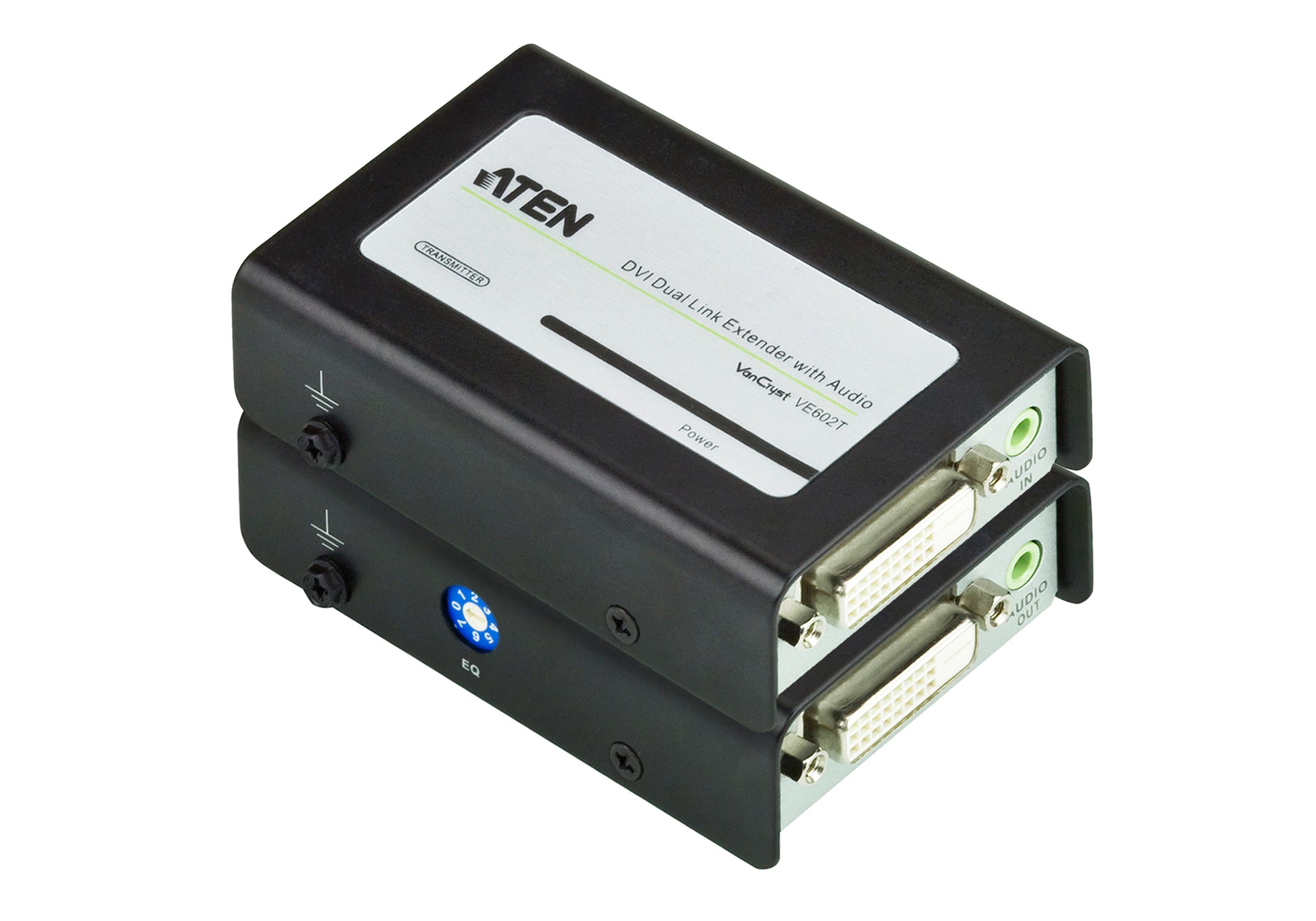

ATEN VE602 AV extender AV transmitter & receiver Black

ATEN VE602 AV extender AV transmitter & receiver Black

VE602

$195.96 USD
$195.96 USD
Sale Sold out

MSRP: $260.00

ATEN VE602. Type: AV transmitter & receiver, Maximum resolution: 2560 x 1600 pixels, Cable types supported: Cat5e. Power consumption (TX): 2.4 W, Power consumption (RX): 2.86 W. Receiver dimensions (WxDxH): 2.2 x 0.945 x 3.59" (56 x 24 x 91.3 mm), Receiver weight: 6.35 oz (180 g), Transmitter dimensions (WxDxH): 2.2 x 0.945 x 3.59" (56 x 24 x 91.3 mm)
View full details
    • Details: ATEN VE602. Type: AV transmitter & receiver, Maximum resolution: 2560 x 1600 pixels, Cable types supported: Cat5e. Power consumption (TX): 2.4 W, Power consumption (RX): 2.86 W. Receiver dimensions (WxDxH): 2.2 x 0.945 x 3.59" (56 x 24 x 91.3 mm), Receiver weight: 6.35 oz (180 g), Transmitter dimensions (WxDxH): 2.2 x 0.945 x 3.59" (56 x 24 x 91.3 mm)
    • Info: Extends the distance between the DVI source and DVI display device|Long distance transmission – up to 60 m|Uses Cat 5e cable to connect the local and remote units|Employs ATEN EDID technology that allows signal transmission over one Cat 5e cable|Uses a second (Sub) Cat 5e cable for dual link signals*|Supports EDID Learning – Automatically learns and saves the EDID data of the display to which the Transmitter (VE602T) is connected|Superior video quality – DVI Dual Link up to 2560 x 1600 @ 60 Hz (40 m); DVI Single Link up to 1920x1200 @ 60 Hz (40 m), 1024 x 768 @ 60 Hz (60 m)|Audio enabled|8 segment equalization adjustment switch optimizes display quality|Built-in 8KV/15KV ESD protection|Supports widescreen formats|Rack mountable|Note:|* The length of the two Cat 5e cables must be the same.|** Note: HDCP is not supported
    • Supported graphics resolutions: 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
    • Product color: Black
    • Type: AV transmitter & receiver
    • Bandwidth: 225 MHz
    • Impedance: 100 ?

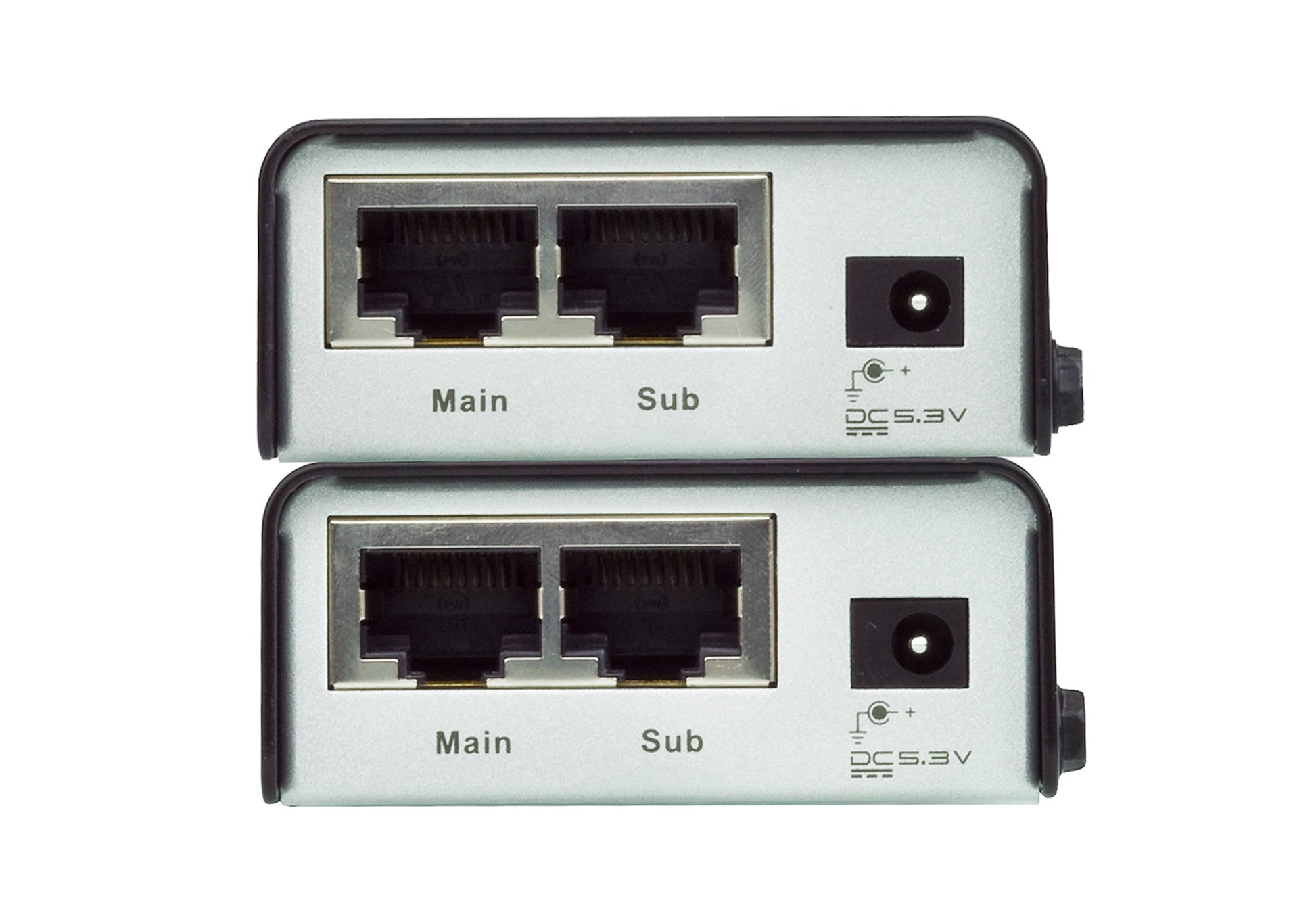

    • Cable types supported: Cat5e
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Maximum transfer distance: 2362.2" (60 m)
    • Maximum resolution: 2560 x 1600 pixels
    • DC-in jack: Yes
    • Audio input: 1
    • Audio output: 1

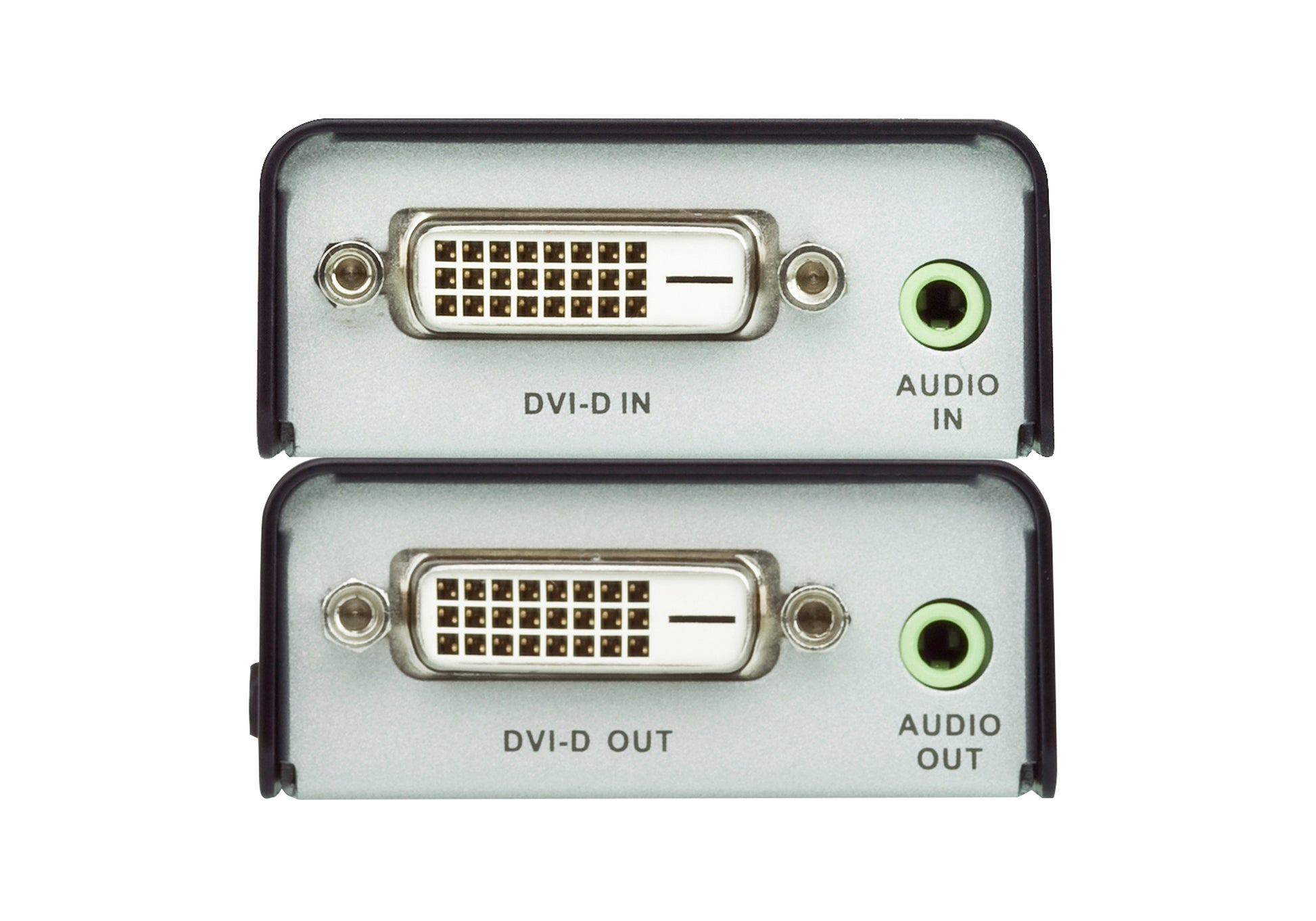

    • DVI input ports: 1
    • DVI output ports: 1
    • Power consumption (TX): 2.4 W
    • Power consumption (RX): 2.86 W
    • Transmitter weight: 6.35 oz (180 g)
    • Receiver dimensions (WxDxH): 2.2 x 0.945 x 3.59" (56 x 24 x 91.3 mm)
    • Receiver weight: 6.35 oz (180 g)
    • Transmitter dimensions (WxDxH): 2.2 x 0.945 x 3.59" (56 x 24 x 91.3 mm)
