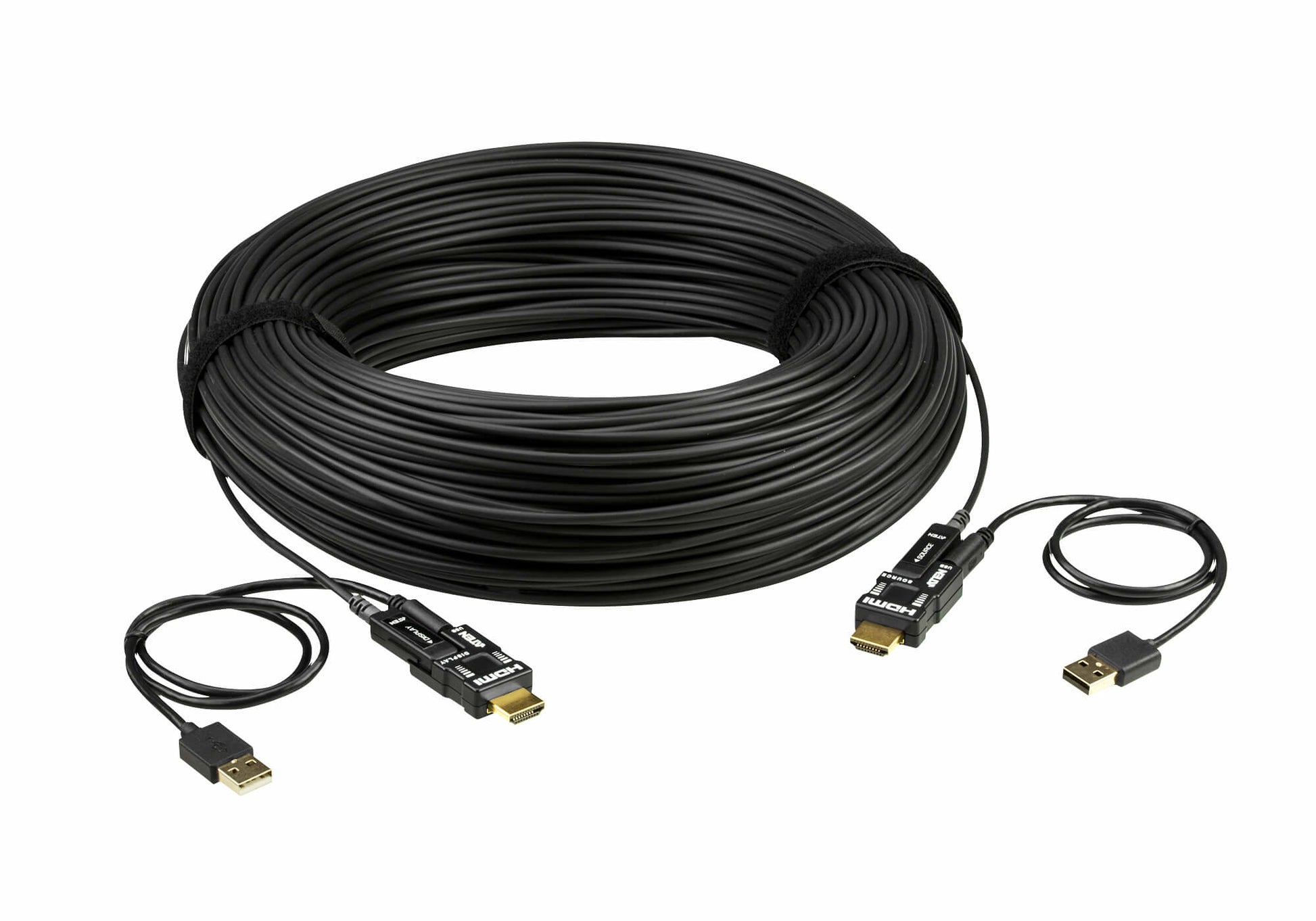

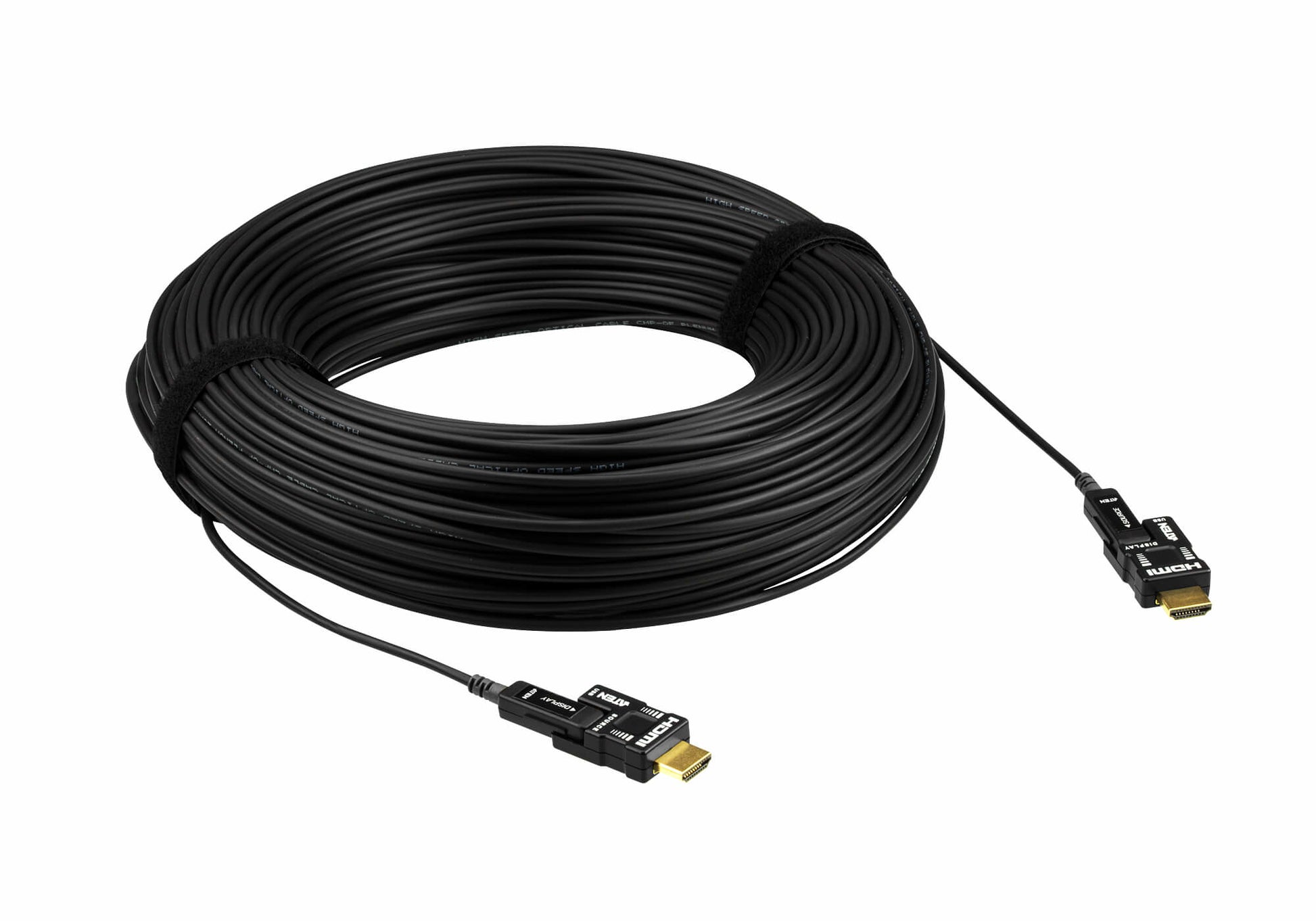

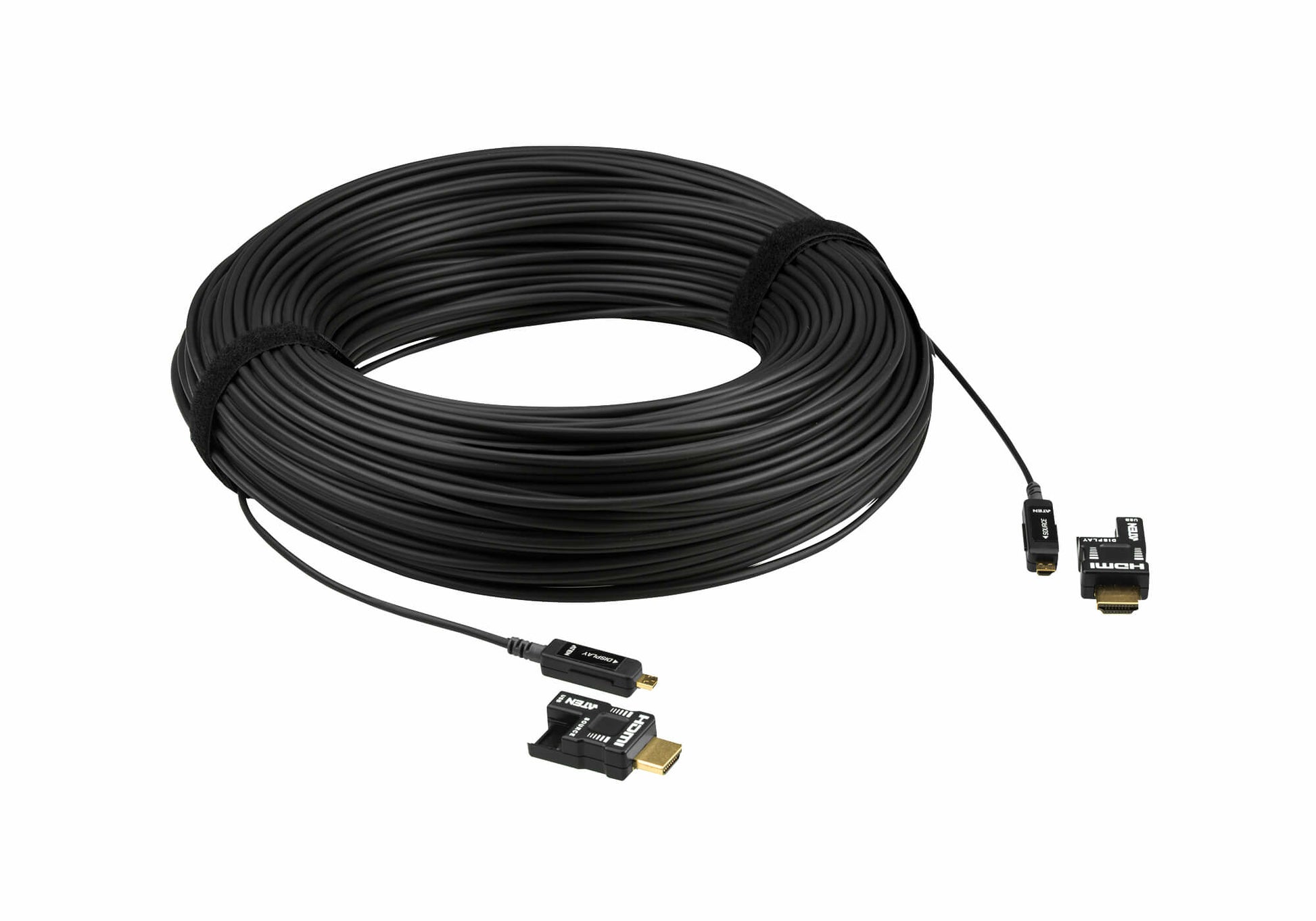

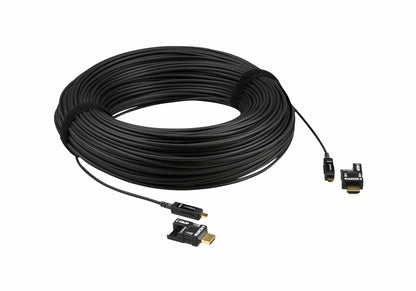

- Details: ATEN VE7835. Cable length: 3937" (100 m), Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, 3D, Data transfer rate: 18 Gbit/s, Product color: Black
- PDF: http://objects.icecat.biz/objects/mmo_107346421_1687741695_5171_3169.pdf
- Info: HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant|Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 100 m|Reduced EMI and RFI for lower noise interference|Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio|Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)|Additional power source is available via Micro USB cable for better compatibility|Gold-plated connectors for reliable transmissions|Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)|Pluggable gender for easy installation|Plug-and-play
- Certification: CE / FCC / RoHS2 / UL CMP-OF
- Maximum refresh rate: 60 Hz
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- 3D: Yes
- High Dynamic Range (HDR) supported: Yes
- Product color: Black
- Plug and Play: Yes
- Cable length: 3937" (100 m)
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Data transfer rate: 18 Gbit/s
- Connector contacts plating: Gold
- Connector 1 form factor: Straight
- Connector 2 form factor: Rotating
- Cable type: Round cable
- AWG wire size: 28
- Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
- Bandwidth: 600 MHz
- Cable jacket material: Acrylonitrile butadiene styrene (ABS)
- Cable material: Copper
- Supported digital audio channels (uncompressed): 8
- Bending radius (min): 0.236" (6 mm)
- Extended display identification data (EDID): Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 85%
- Quantity per pack: 1 pc(s)
- HDCP: Yes
- HDCP version: 2.2
- Color sampling: 4:4:4, 4:2:0, 4:2:2
- Weight: 3.62 lbs (1.64 kg)
- Cable diameter: 0.134" (3.4 mm)
