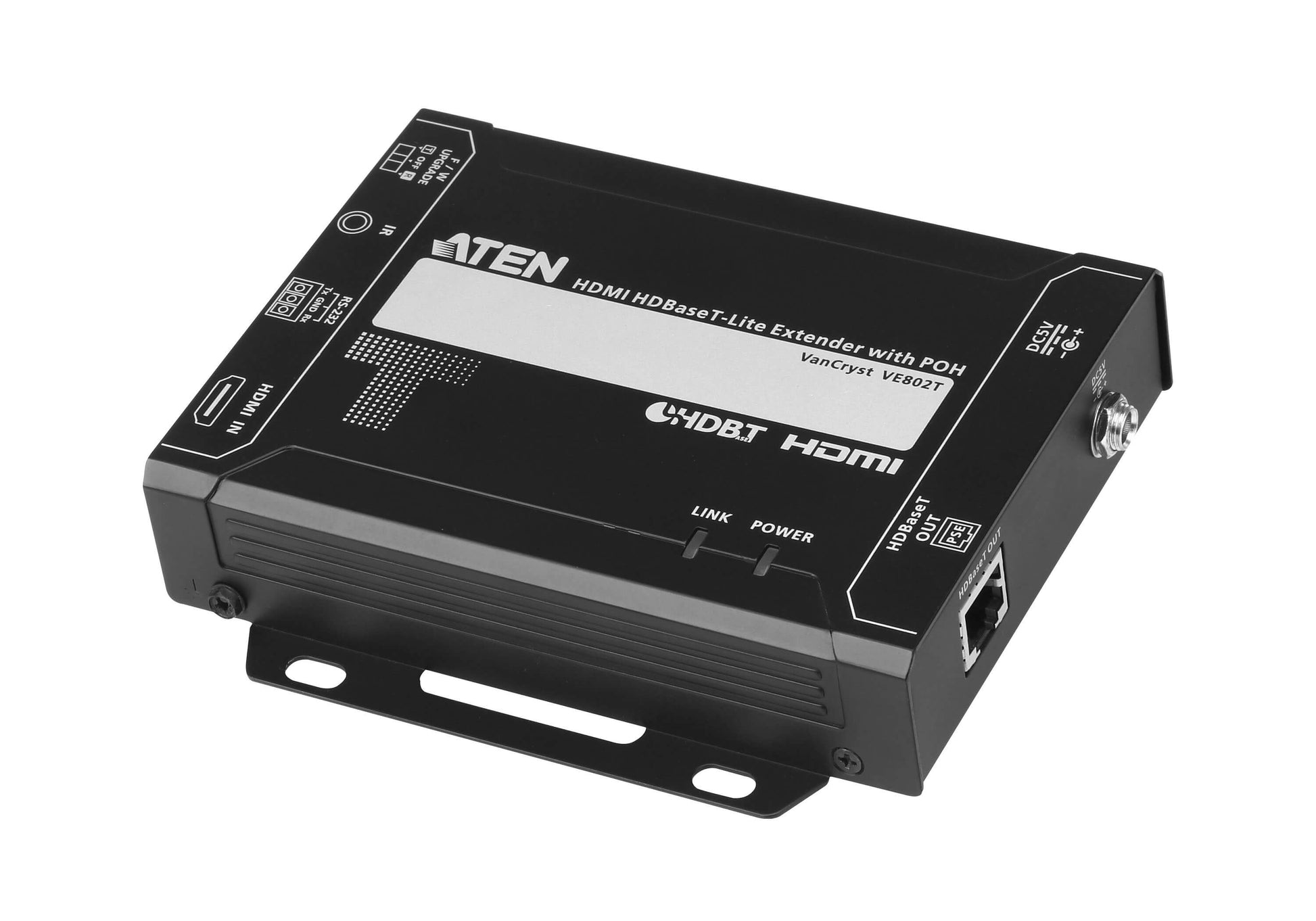

ATEN VE802T AV extender AV transmitter Black

ATEN VE802T AV extender AV transmitter Black

VE802T

$170.51 USD
$170.51 USD
Sale Sold out

MSRP: $209.00

ATEN VE802T. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. AC input frequency: 60 Hz, Operating voltage: 5 V, Power consumption (transmitter) (max): 3.6 W. Transmitter dimensions (WxDxH): 4.84 x 5.7 x 1.18" (123 x 144.8 x 30 mm), Transmitter weight: 15.5 oz (440 g)
View full details
    • Details: ATEN VE802T. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. AC input frequency: 60 Hz, Operating voltage: 5 V, Power consumption (transmitter) (max): 3.6 W. Transmitter dimensions (WxDxH): 4.84 x 5.7 x 1.18" (123 x 144.8 x 30 mm), Transmitter weight: 15.5 oz (440 g)
    • Info: HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable|Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)|HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology|POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable|Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners|Bi-directional IR channel – IR transmission is processed one direction at a time|Rack- Mountable
    • Supported graphics resolutions: 4096 x 2160
    • Supported video modes: 2160p
    • Product color: Black
    • Type: AV transmitter
    • Bandwidth: 340 MHz
    • Consumer Electronics Control (CEC) support: Yes
    • Impedance: 100 ?
    • Cable types supported: Cat5e, Cat6, Cat6a
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Manual: Yes
    • Maximum transfer distance: 2755.9" (70 m)
    • Maximum resolution: 4096 x 2160 pixels

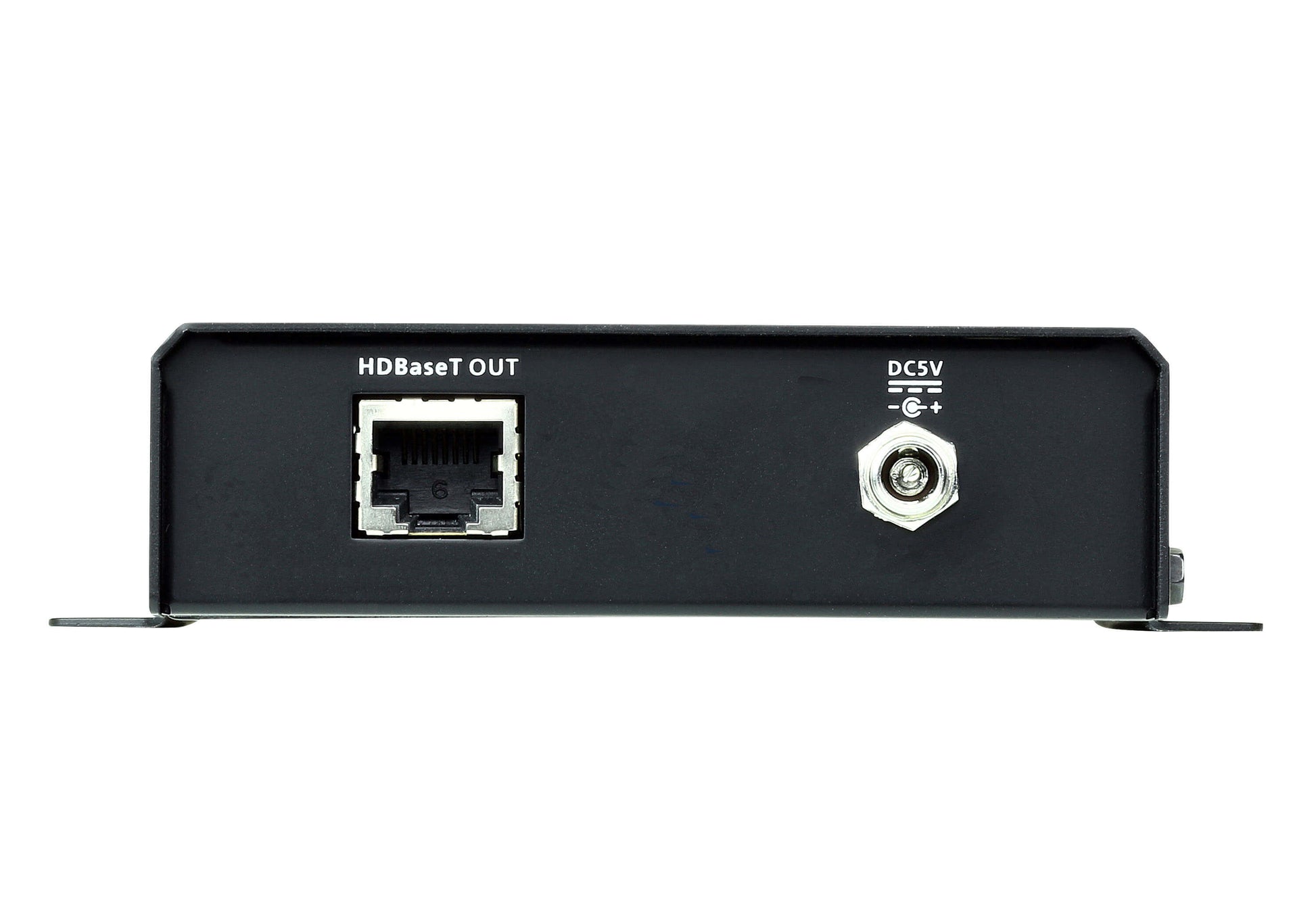

    • DC-in jack: Yes
    • HDCP: Yes

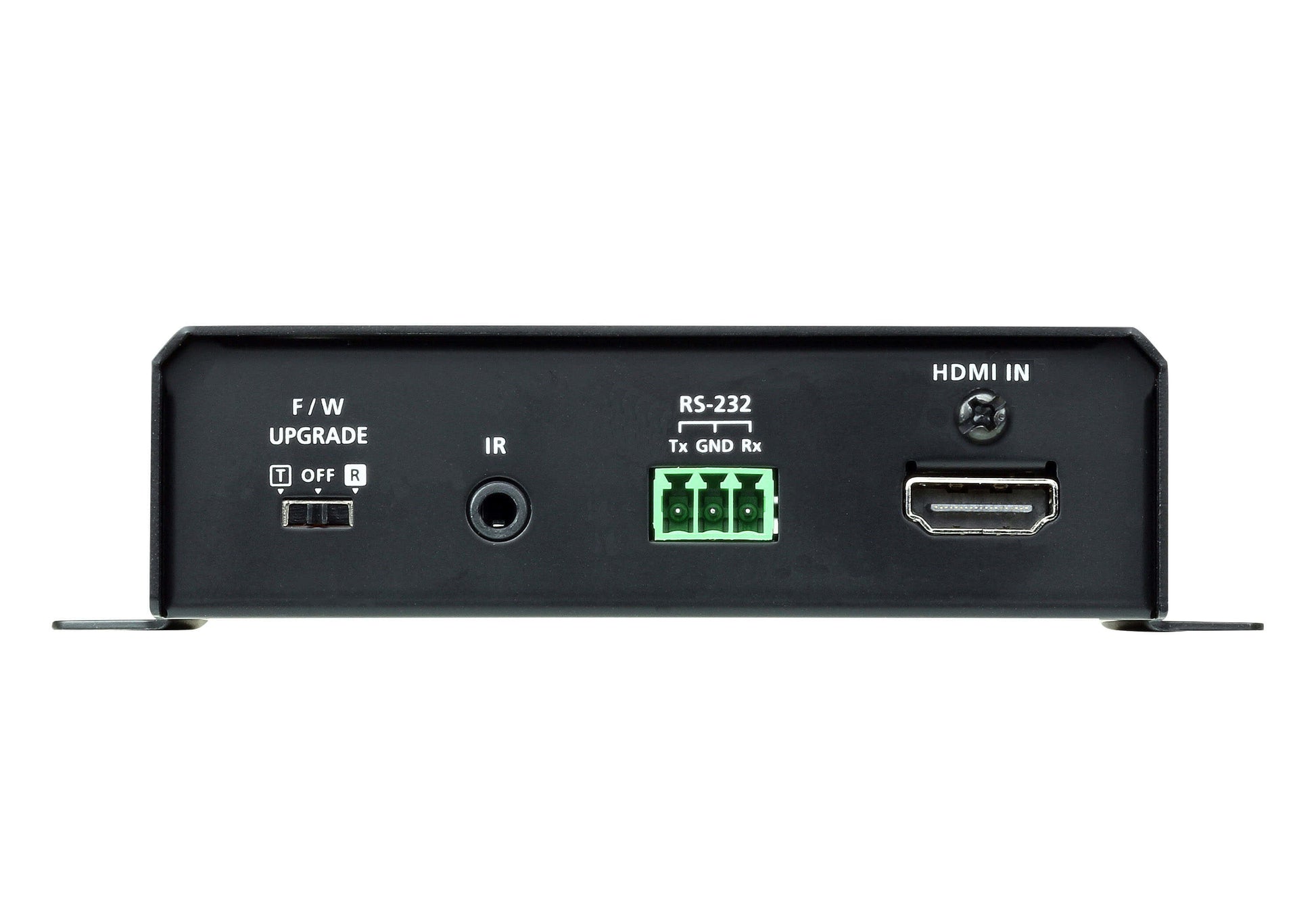

    • Audio input: 1
    • Audio output: 1
    • Number of HDMI outputs: 1
    • HDMI in: 1
    • RS-232 output ports: 1
    • Remote (IR) output: 1
    • AC input frequency: 60 Hz
    • Operating voltage: 5 V
    • Power consumption (transmitter) (max): 3.6 W
    • Material: Metal
    • Transmitter weight: 15.5 oz (440 g)
    • Transmitter dimensions (WxDxH): 4.84 x 5.7 x 1.18" (123 x 144.8 x 30 mm)
