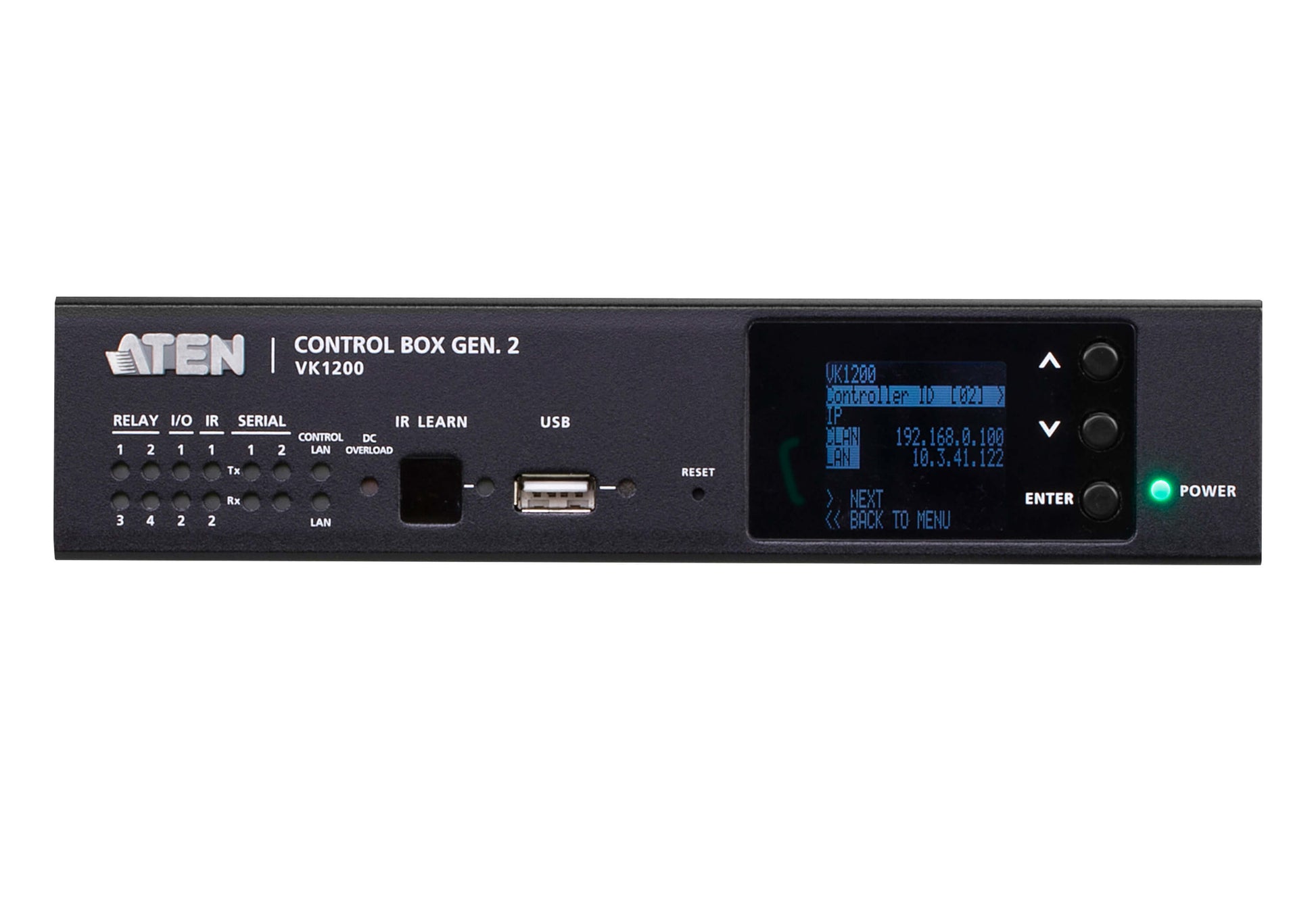

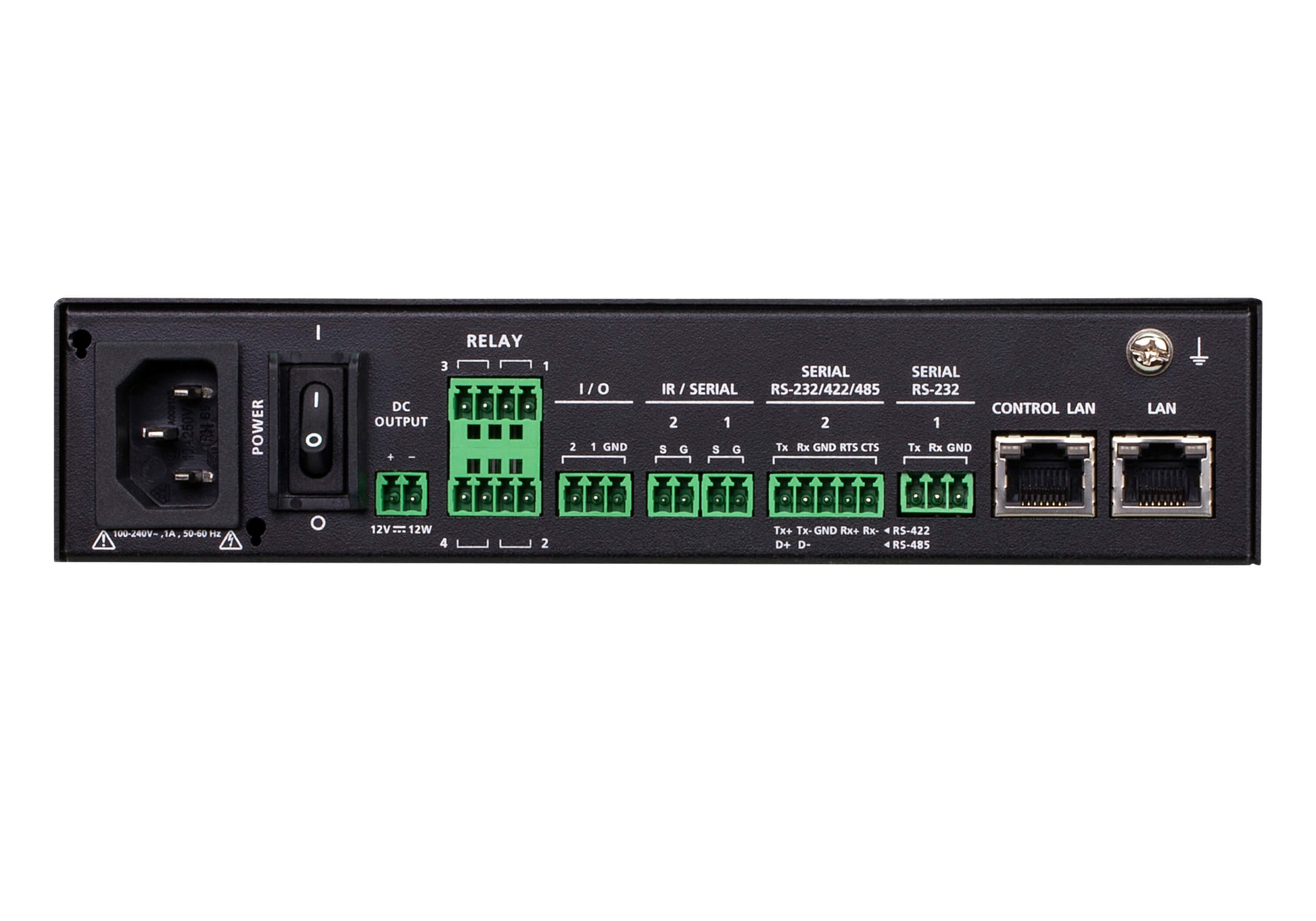

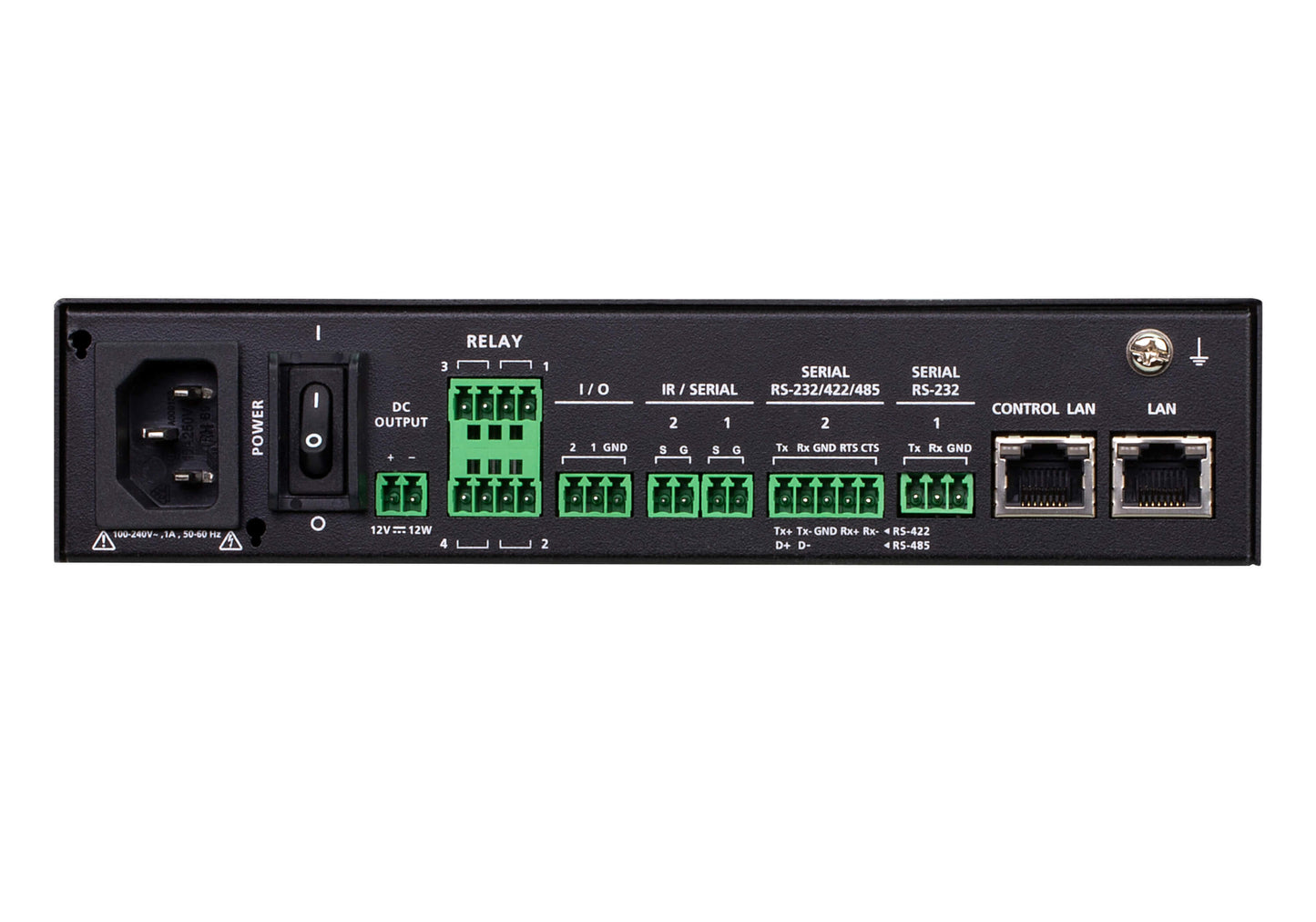

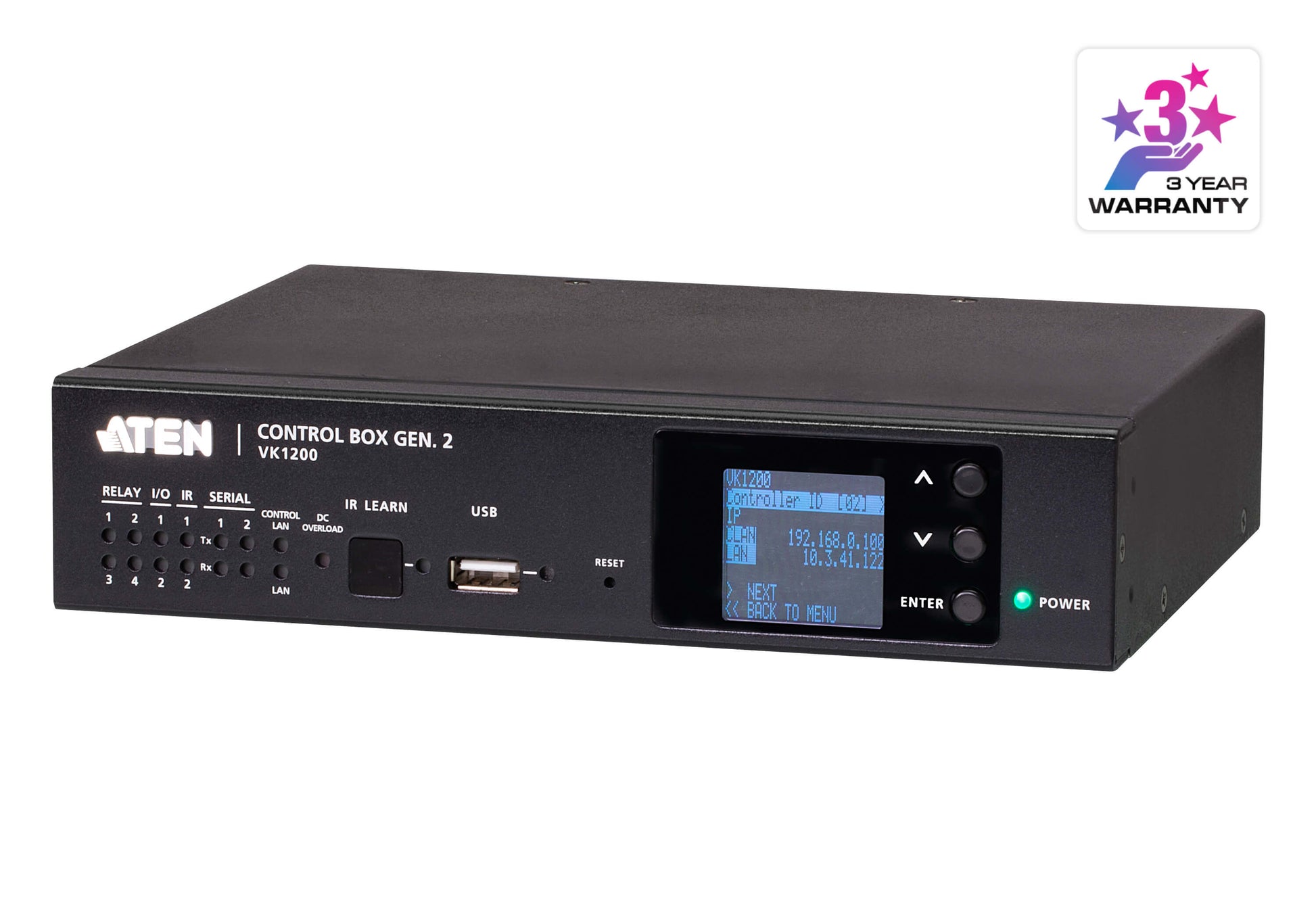

ATEN VK1200 gateway/controller 10, 100, 1000 Mbit/s

ATEN VK1200 gateway/controller 10, 100, 1000 Mbit/s

VK1200

$1,172.72 USD
$1,172.72 USD
Sale Sold out

MSRP: $1,687.00

ATEN VK1200. Product color: Black. Display type: LCD, Internal memory: 1024 MB, Flash memory: 8000 MB. Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH. Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: SSH
View full details
    • Details: ATEN VK1200. Product color: Black. Display type: LCD, Internal memory: 1024 MB, Flash memory: 8000 MB. Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH. Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: SSH
    • Info: VK1200 Control Box with Dual LAN|High performance processor embedded with quad-core CPU and 1 GB memory for designing and controlling complex projects|Dual, isolated LAN for secured communication among IT devices|Supports various interface connections for hardware-software integration and mobile device control|DC outputs for power supply connections|USB port for easy project upload|LCD display shows the option for configuration and information display|IR learning function for adding IR device drivers|Supports native KNX IP for building management systems|Telnet, TCP, UDP, HTTP, HTTPS, ONVIF, and PJLink compliant|Supports Pronto formatted IR codes – IR command codes can be entered in Hex format|Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data|Supports Telnet CLI (command-line interface) mode for third-party system integration|Supports centralized control and management by ATEN Unizon™.|Supports project file backup|Web GUI for easy system configuration|Supports SSH communication for data monitoring|LED indication of connection and hardware status|2 free licenses for mobile control*|Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, see Specifications.
    • LED indicators: Yes
    • Display type: LCD
    • Display diagonal: 1.6"
    • Display resolution: 128 x 64 pixels
    • Product color: Black
    • Input frequency: 50-60 Hz
    • Ethernet LAN data rates: 10,100,1000 Mbit/s
    • Security algorithms: SSH
    • DHCP server: Yes
    • Supported network protocols: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Storage relative humidity (H-H): 0 - 80%
    • Cables included: AC
    • Manual: Yes
    • Internal memory: 1024 MB
    • Flash memory: 8000 MB
    • Ethernet LAN (RJ-45) ports: 2
    • USB 2.0 ports quantity: 1
    • Power consumption (typical): 4.7 W
    • Output voltage: 12 V
    • Input voltage: 100-240 V
    • Output current: 1 A
    • Weight: 2.71 lbs (1.23 kg)
    • Width: 7.87" (200 mm)
    • Height: 1.73" (44 mm)
    • Depth: 6.46" (164.1 mm)
