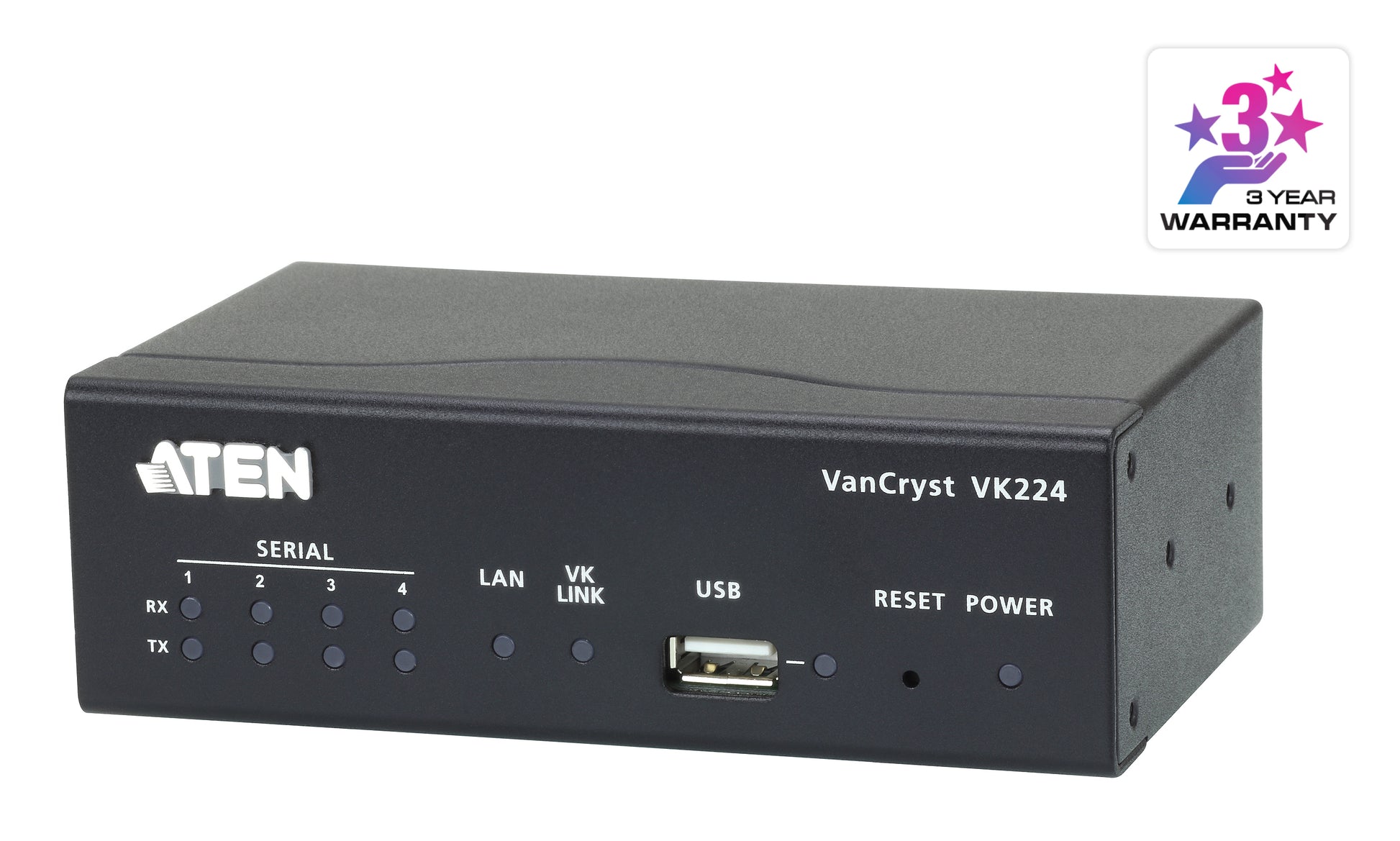

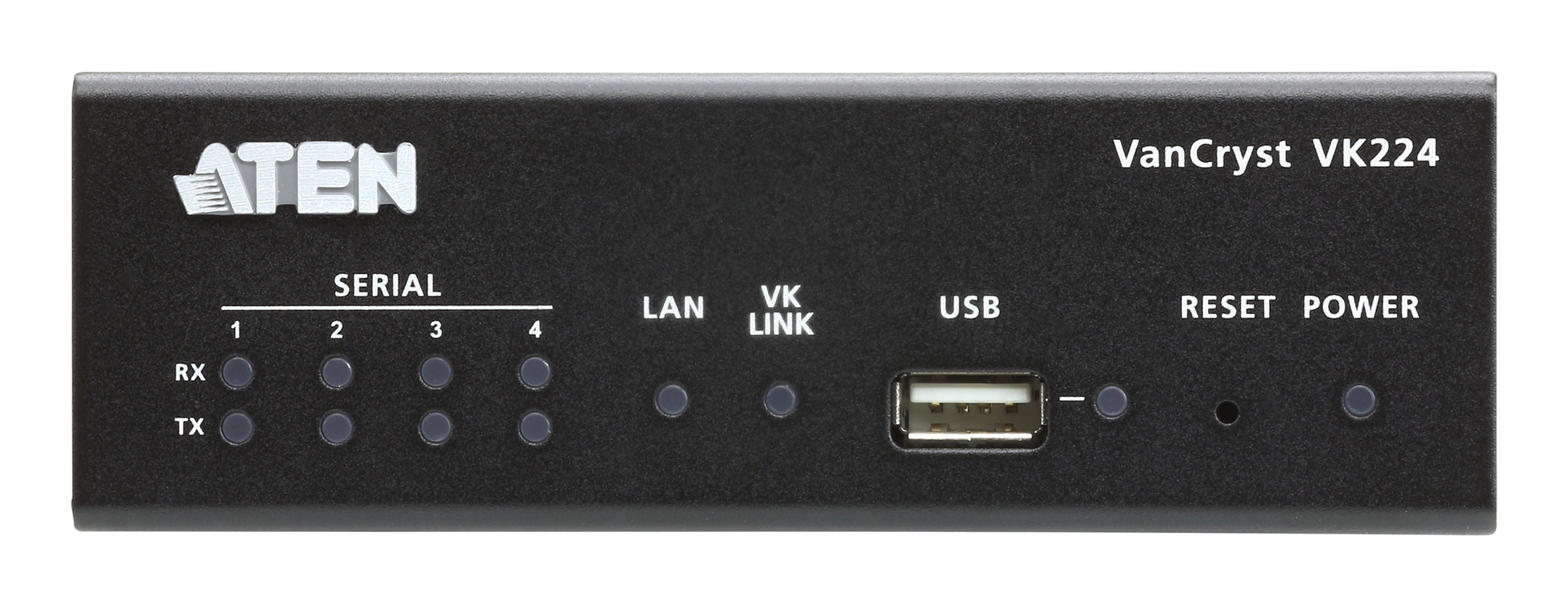

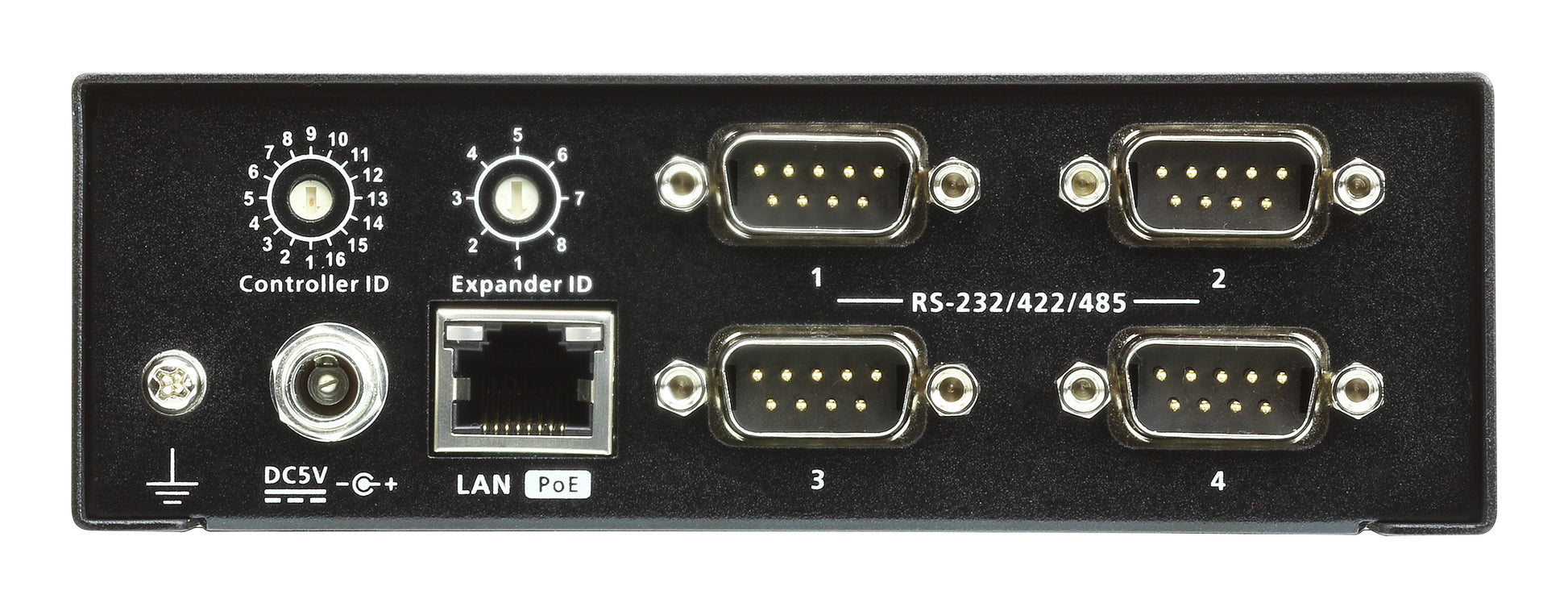

ATEN VK224 serial switch box Wired
ATEN VK224 serial switch box Wired
SKU: VK224
Regular price
$439.62 USD
Regular price
Sale price
$439.62 USD
MSRP: $611.00
ATEN VK224. Connectivity technology: Wired. Dimensions (WxDxH): 2.99 x 5.12 x 1.65" (76 x 130 x 42 mm), Weight: 15.9 oz (450 g). Quantity per master (outer) case: 5 pc(s), Master (outer) case weight: 8.58 lbs (3.89 kg). I/O ports: 4 x RS-232/422/485, 1 x RJ-45, 1 x USB Type A
Quantity
Couldn't load pickup availability
- Details: ATEN VK224. Connectivity technology: Wired. Dimensions (WxDxH): 2.99 x 5.12 x 1.65" (76 x 130 x 42 mm), Weight: 15.9 oz (450 g). Quantity per master (outer) case: 5 pc(s), Master (outer) case weight: 8.58 lbs (3.89 kg). I/O ports: 4 x RS-232/422/485, 1 x RJ-45, 1 x USB Type A
- PDF: http://objects.icecat.biz/objects/mmo_107346392_1739628991_2711_2512174.pdf
- Info: An Ethernet-to-serial box ships with 4 bi-directional RS-232/422/485 serial ports|Supports Power over Ethernet (PoE) or DC power supply|Supports Modbus protocol - enables integration with Modbus devices, including TCP, RTU and its checksum data|Supports Telnet CLI (command-line interface) mode for third-party system integration|WebUI provides VK224 system information, including firmware upgrade|An expansion solution for connecting more serial devices to ATEN Control System|Flexible deployment via Ethernet connection|Works with a connected ATEN controller with ID Switch through instant configuration
- Product color: Black
- Quantity per master (outer) case: 5 pc(s)
- Master (outer) case weight: 8.58 lbs (3.89 kg)
- Master (outer) case width: 9.84" (250 mm)
- Master (outer) case length: 12.8" (325 mm)
- Master (outer) case height: 6.89" (175 mm)
- Master (outer) case net weight: 6.06 lbs (2.75 kg)
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Dimensions (WxDxH): 2.99 x 5.12 x 1.65" (76 x 130 x 42 mm)
- Connectivity technology: Wired
- Manual: Yes
- Package width: 2.32" (59 mm)
- Package height: 6.3" (160 mm)
- Package depth: 9.41" (239 mm)
- Package weight: 25 oz (710 g)
- Material: Metal
- Weight: 15.9 oz (450 g)
- I/O ports: 4 x RS-232/422/485, 1 x RJ-45, 1 x USB Type A
