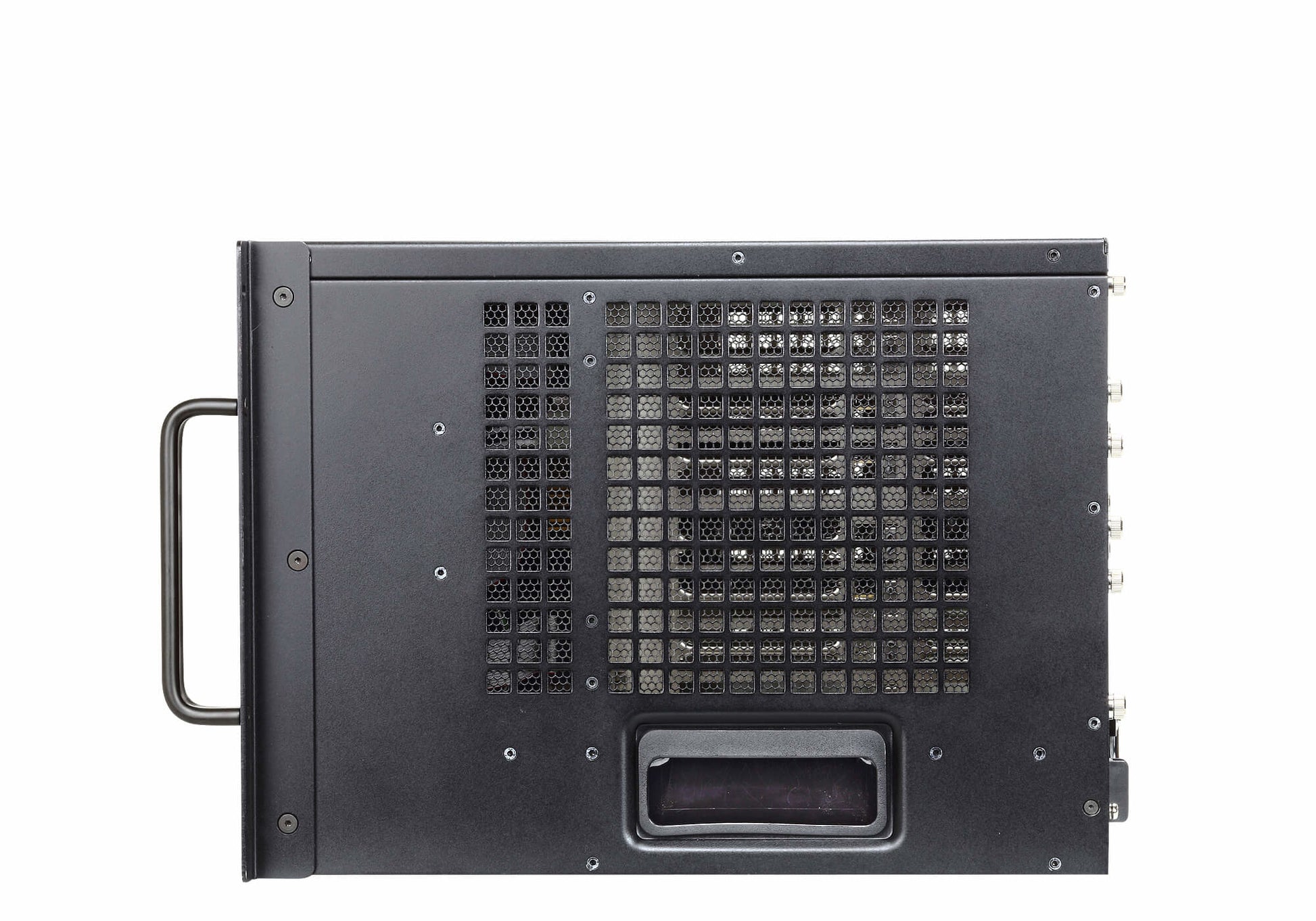

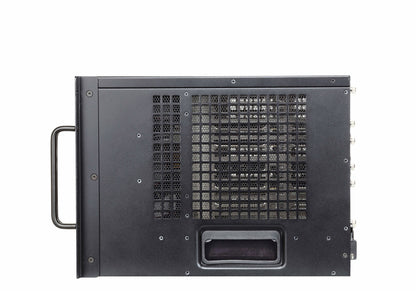

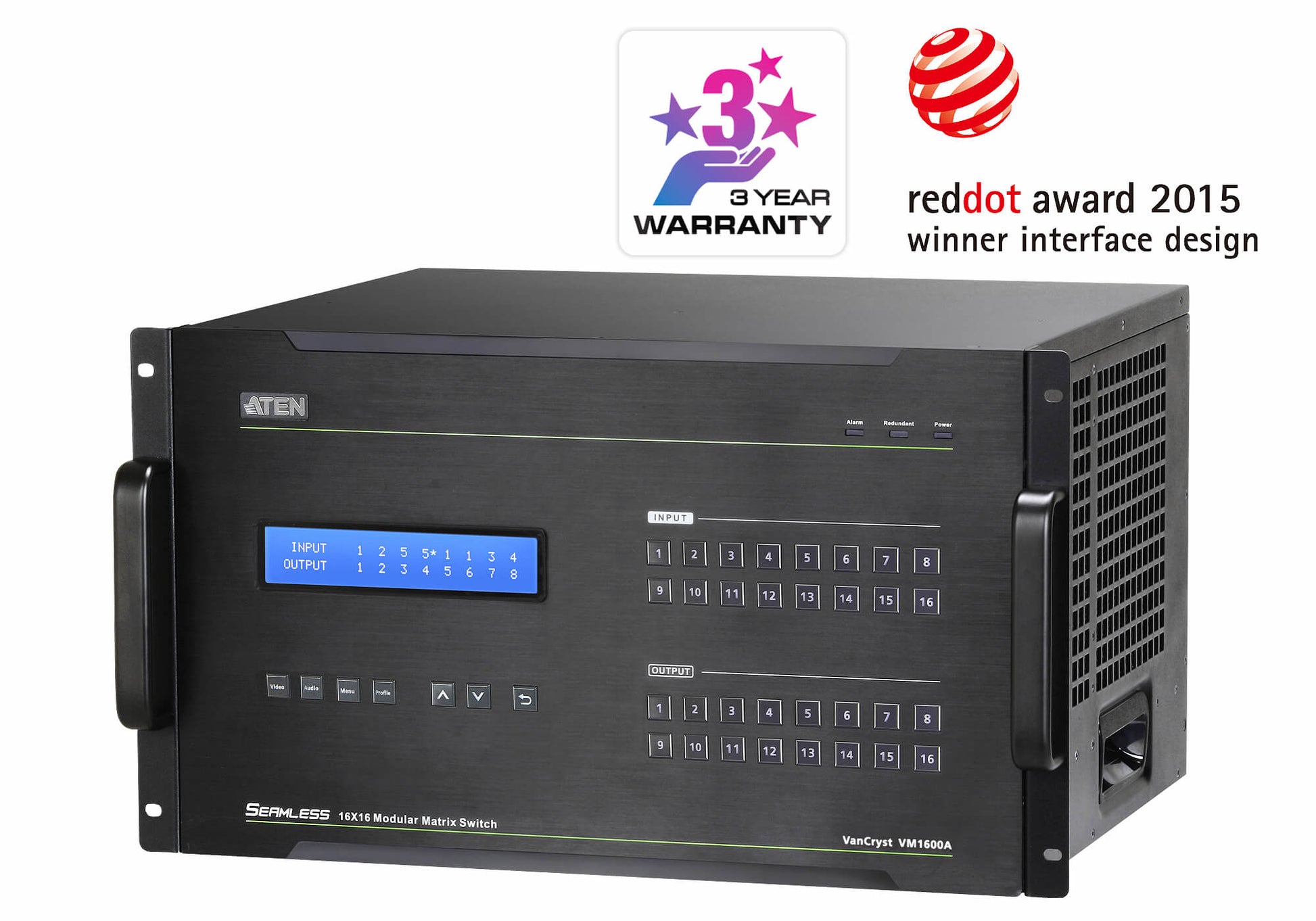

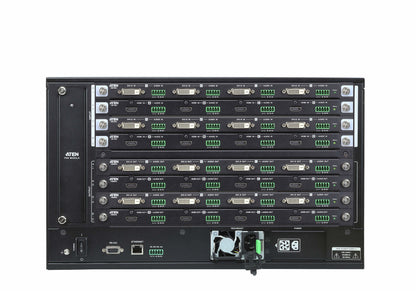

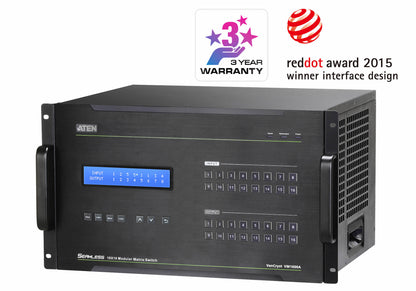

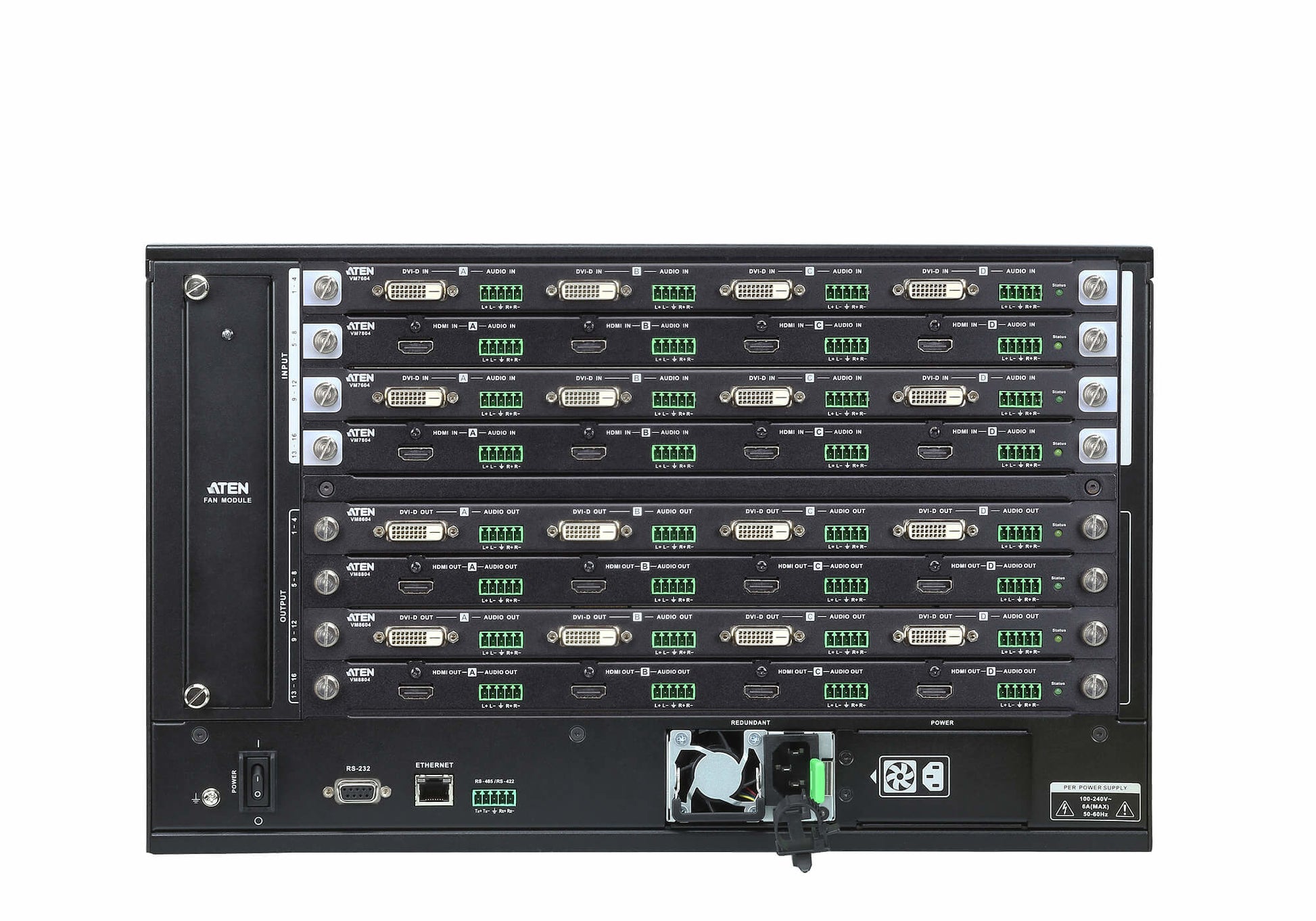

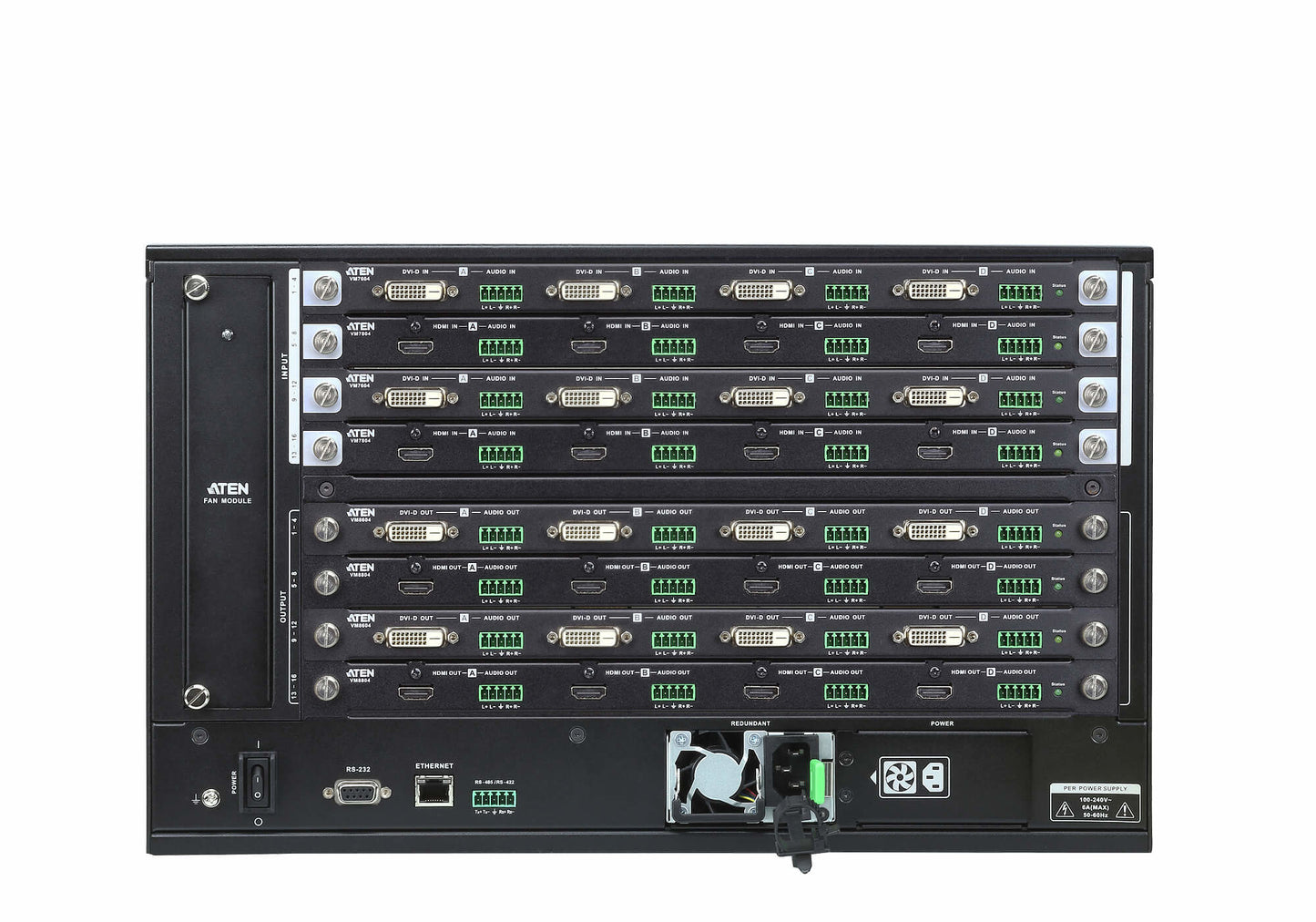

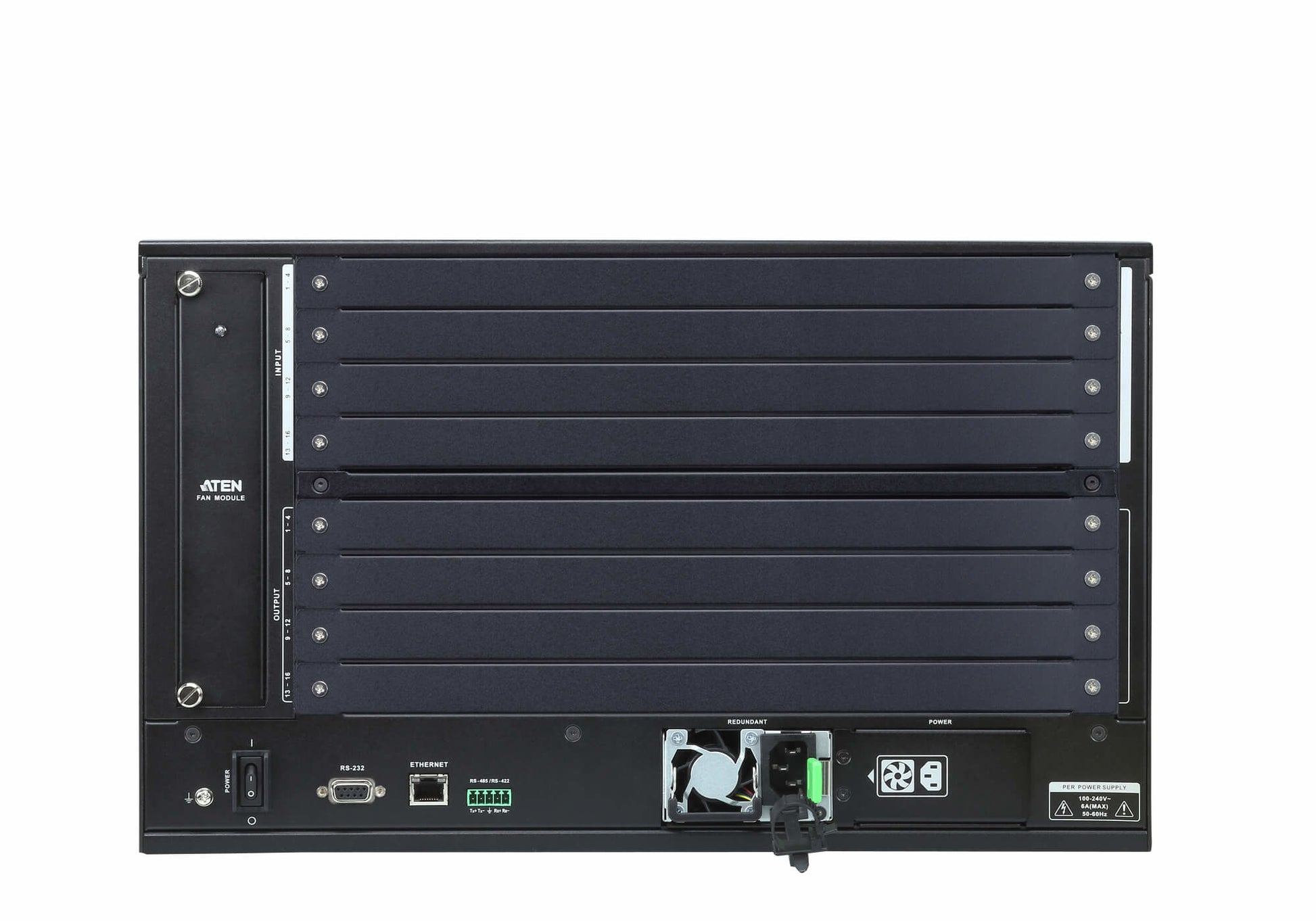

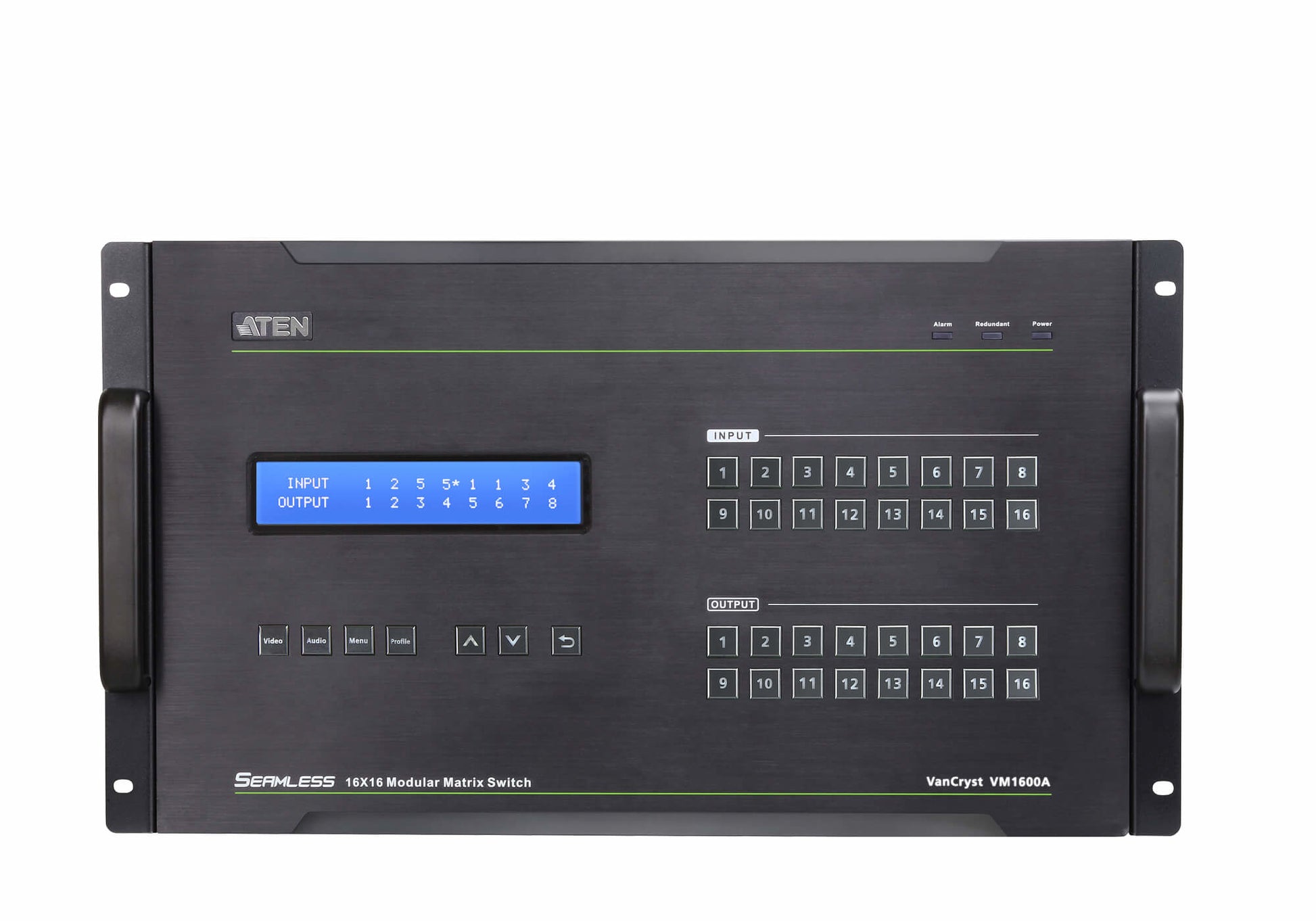

ATEN VM1600A video switch
ATEN VM1600A video switch
SKU: VM1600A
Regular price
$5,152.56 USD
Regular price
Sale price
$5,152.56 USD
MSRP: $7,410.00
ATEN VM1600A. Material: Metal, Product color: Black, Supported graphics resolutions: 3840 x 2160, 4096 x 2160. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Power consumption (typical): 460 W. Width: 19" (482 mm), Depth: 18.4" (466.6 mm), Height: 10.5" (265.9 mm). Cables included: AC
Quantity
Couldn't load pickup availability
- Details: ATEN VM1600A. Material: Metal, Product color: Black, Supported graphics resolutions: 3840 x 2160, 4096 x 2160. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Power consumption (typical): 460 W. Width: 19" (482 mm), Depth: 18.4" (466.6 mm), Height: 10.5" (265.9 mm). Cables included: AC
- Info: Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards|Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet|View and control via ATEN Video Matrix Control App in a swift and agile way|4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*|Scaler –features a (4K) video scaling function to convert input resolutions to the display’s native resolutions*|Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*|Video wall –allows you to create custom video wall layouts via intuitive web GUI*|Calendar-based scheduling – allows profile playing based on the pre-set schedule and RTC|EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens|Audio-enabled –HDMI audio can be extracted and stereo audio can be embedded*|Bi-directional RS-232 channel – allows you to control the connected serial devices simultaneously through the web GUI|Supports redundant power module for higher reliability|Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability|Optional redundant power supply –ensures reliability for mission-critical applications|Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders|HDCP 2.2 Compatible*|HDMI: 3D, Deep Color, 4K*|Consumer Electronics Control (CEC) supported*|Rack mountable (6U design)|Note:|1. The availability of the features with “*”depends on which I/O board is inserted.|2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.|3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
- LED indicators: Yes
- HD type: 4K Ultra HD
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- 3D: Yes
- Product color: Black
- Bandwidth: 15.2 Gbit/s
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- User guide: Yes
- Cables included: AC
- Maximum resolution: 4096 x 2160 pixels
- RJ-45 input ports: 1
- HDMI ports quantity: 32
- HDCP: Yes
- RS-232 ports: 1
- HDCP version: 2.2
- Power consumption (typical): 460 W
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Rack capacity: 6U
- Material: Metal
- Weight: 33.3 lbs (15.1 kg)
- Width: 19" (482 mm)
- Height: 10.5" (265.9 mm)
- Depth: 18.4" (466.6 mm)
