ATEN VM3250 matrix switcher Modular AV matrix switchers Built-in display

ATEN VM3250 matrix switcher Modular AV matrix switchers Built-in display

VM3250

$11,551.48 USD
$11,551.48 USD
Sale Sold out

MSRP: $16,611.00

ATEN VM3250. Product type: Modular AV matrix switchers, Data transfer rate: 22.5 Gbit/s, Maximum resolution: 4096 x 2160 pixels. Housing color: Black, Housing material: Metal, Rack capacity: 9U. Display type: LCD. AC input voltage: 100-240 V, AC input frequency: 50-60 Hz, Input current: 10 A. Width: 18.6" (471.9 mm), Depth: 19" (482 mm), Height: 15.7" (399 mm)
View full details
    • Details: ATEN VM3250. Product type: Modular AV matrix switchers, Data transfer rate: 22.5 Gbit/s, Maximum resolution: 4096 x 2160 pixels. Housing color: Black, Housing material: Metal, Rack capacity: 9U. Display type: LCD. AC input voltage: 100-240 V, AC input frequency: 50-60 Hz, Input current: 10 A. Width: 18.6" (471.9 mm), Depth: 19" (482 mm), Height: 15.7" (399 mm)

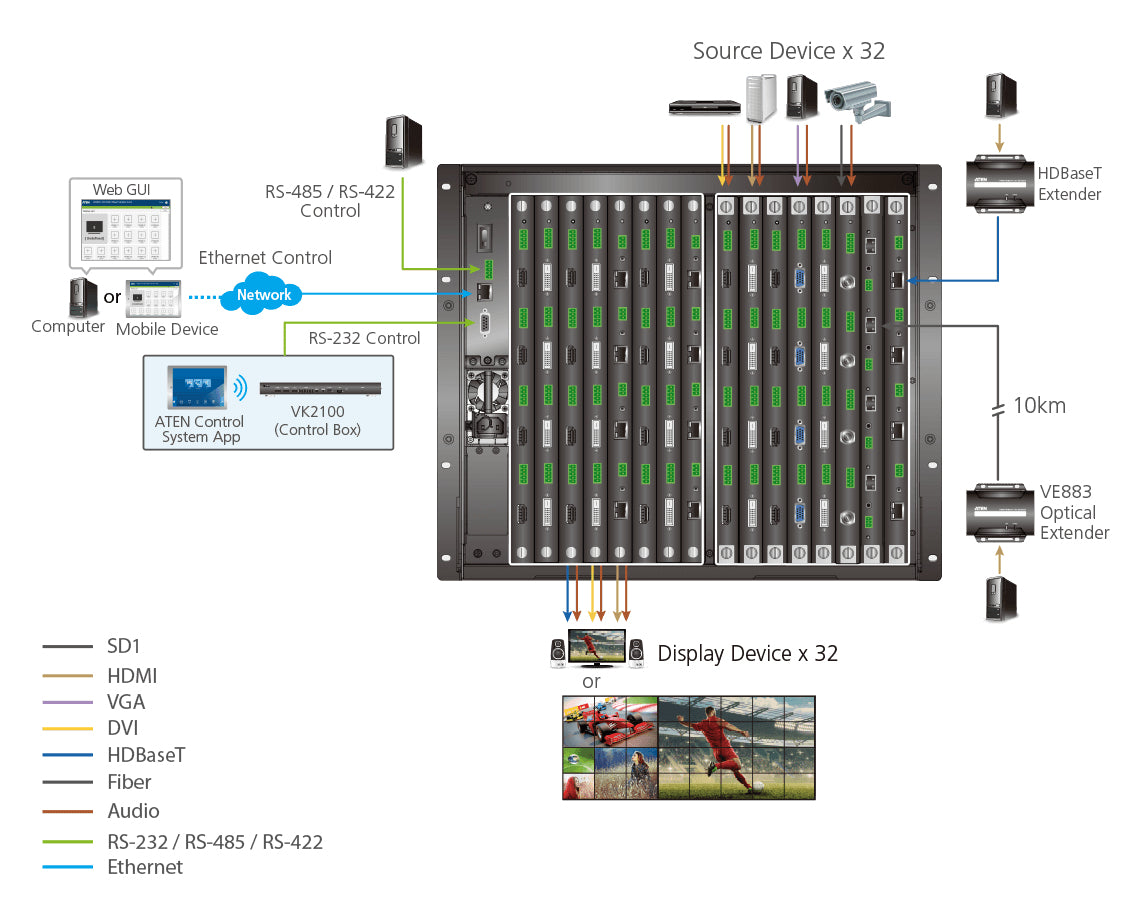

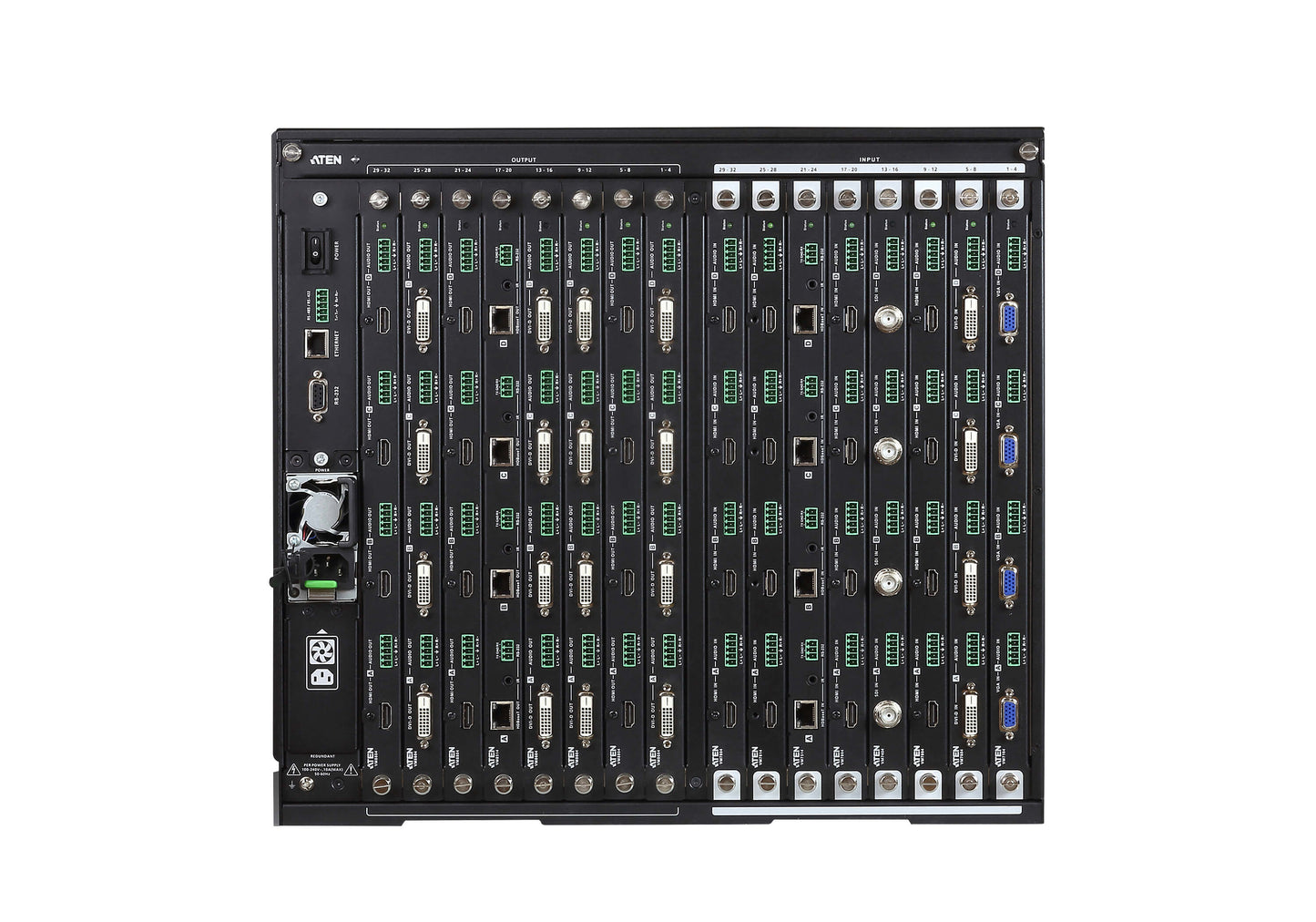

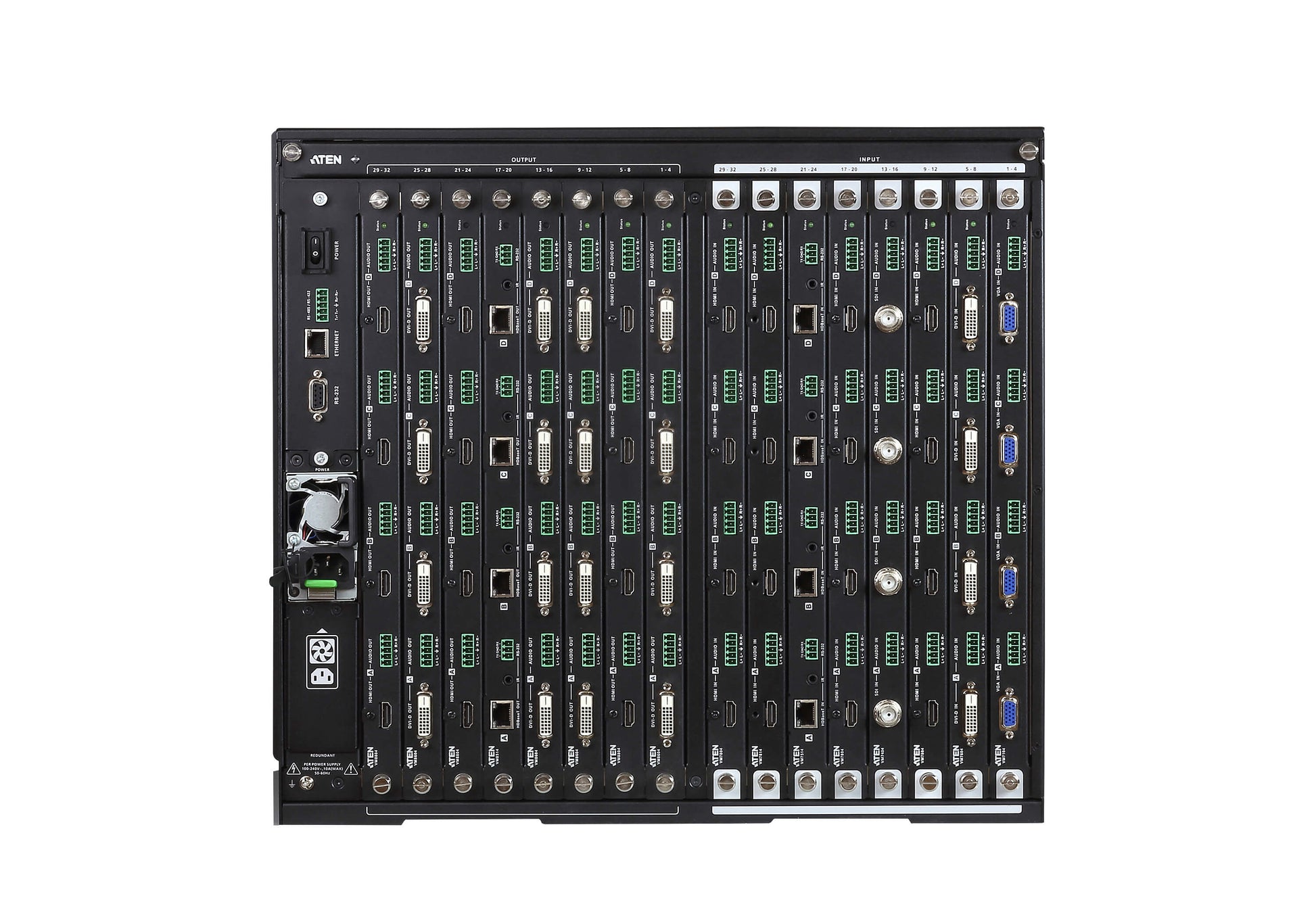

    • Info: 32 x 32 I/O connections via 8 x 8 I/O slots for modular matrix boards|Multiple Control Methods – system management via front-panel pushbuttons, serial control over RS-232/RS-485/RS-422, and web GUI/Telnet over Ethernet connections|View and control via ATEN Video Matrix Control App in a swift and agile way|True 4K Resolutions – Supports uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) *|Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions*|Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*|Video Wall – allows you to create custom video wall layouts via intuitive web GUI*|Live Streaming – supports single source live streaming via web GUI for convenient evaluation of display output|Content and Layout Preview – displays thumbnails of source media in web GUI, simplifying profile configuration|Calendar-based Scheduling – allows profile playing based on the pre-set schedule synchronized with RTC|EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens|Audio-enabled – HDMI audio can be extracted and stereo audio can be embedded*|Optional Redundant Power Supply – ensures higher reliability for mission-critical applications|Support long-distance transmission via optical or HDBaseT I/O boards and extenders|Hot-swappable I/O boards, fan module, and power supplies for easy maintenance|ESD protection for HDMI|Rack-mountable (9U design)|*Note:|1. The availability of these features depends on which I/O board is inserted.|2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™
    • Rack mounting: Yes
    • Display type: LCD
    • Product type: Modular AV matrix switchers
    • Data transfer rate: 22.5 Gbit/s
    • Housing material: Metal
    • Housing color: Black
    • Extended display identification data (EDID): Yes
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Storage relative humidity (H-H): 0 - 80%
    • Cables included: AC
    • Manual: Yes
    • Built-in display: Yes
    • Maximum resolution: 4096 x 2160 pixels
    • RJ-45 input ports: 1
    • AC input voltage: 100-240 V
    • AC input frequency: 50-60 Hz
    • Input current: 10 A
    • Hot-swap PSU: Yes
    • Rack capacity: 9U
    • Weight: 40.1 lbs (18.2 kg)
    • Width: 18.6" (471.9 mm)
    • Height: 15.7" (399 mm)
    • Depth: 19" (482 mm)
