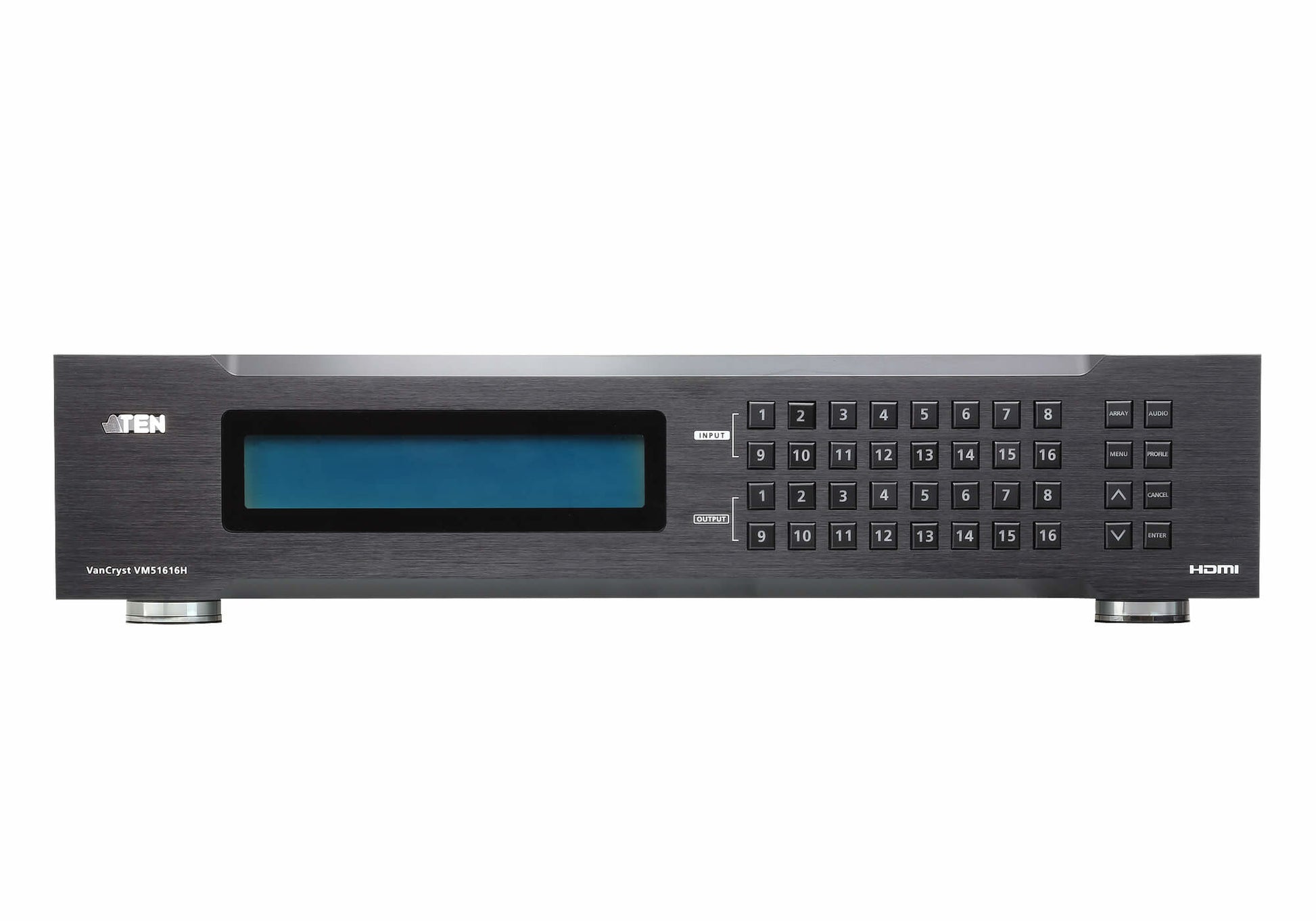

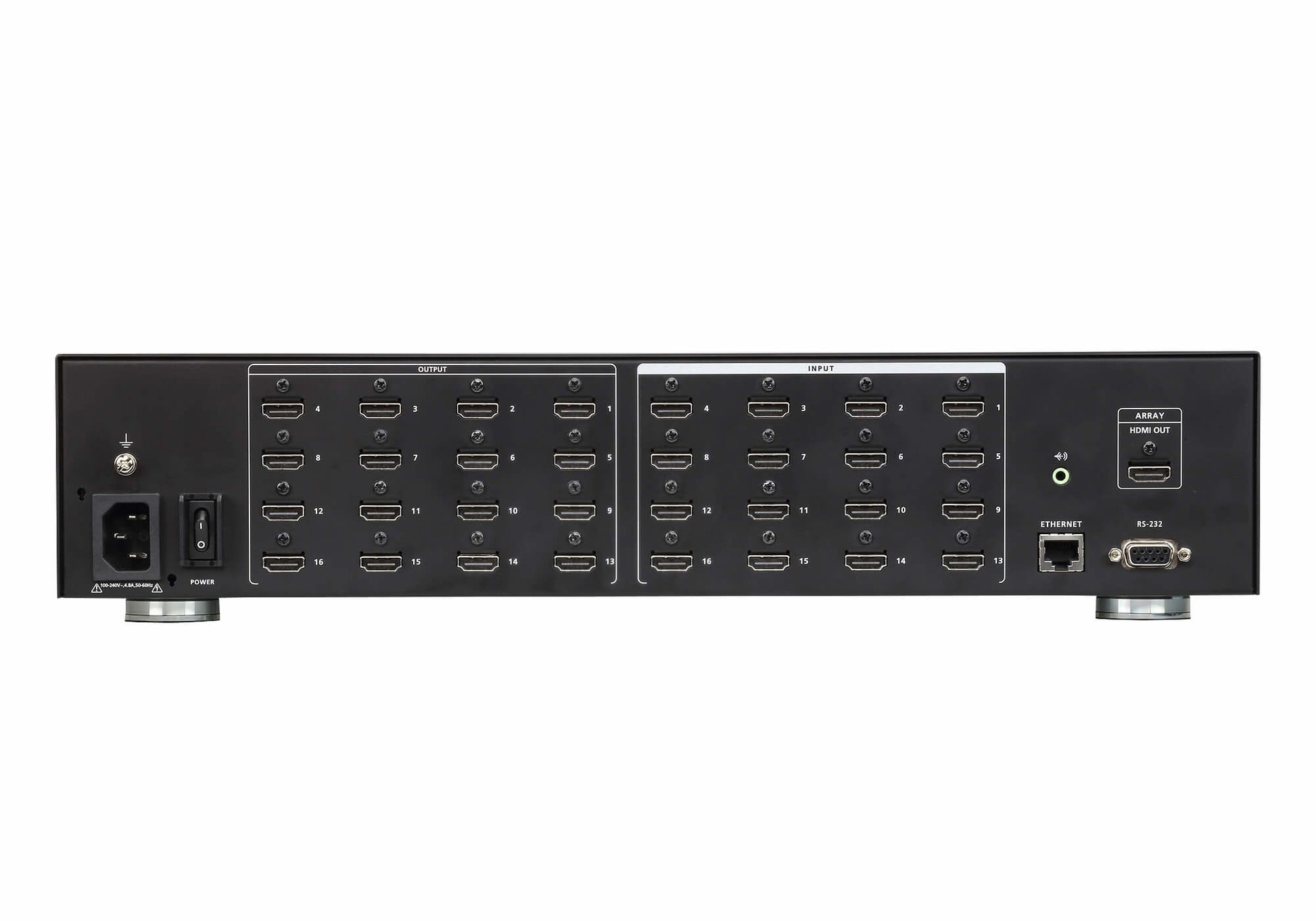

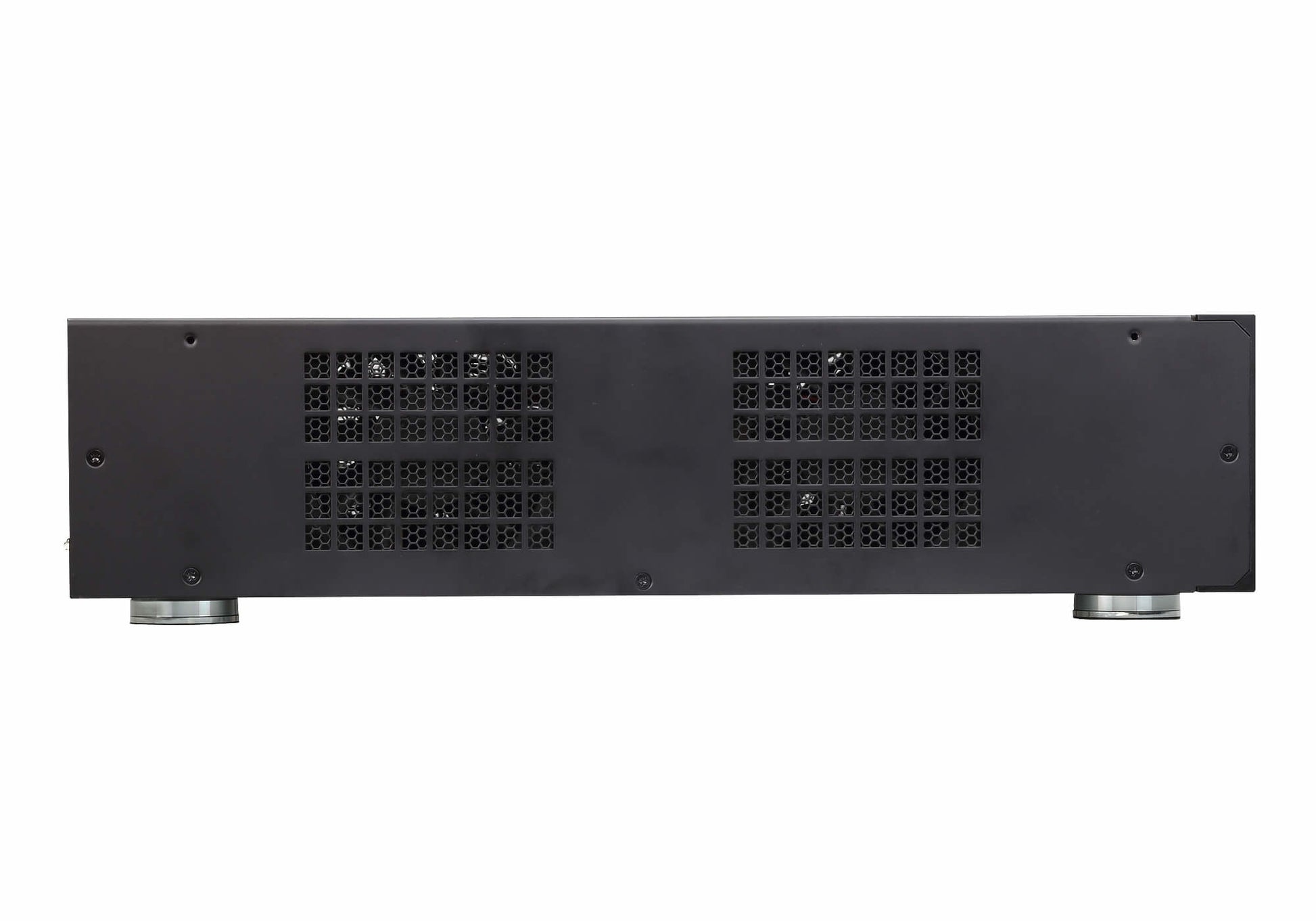

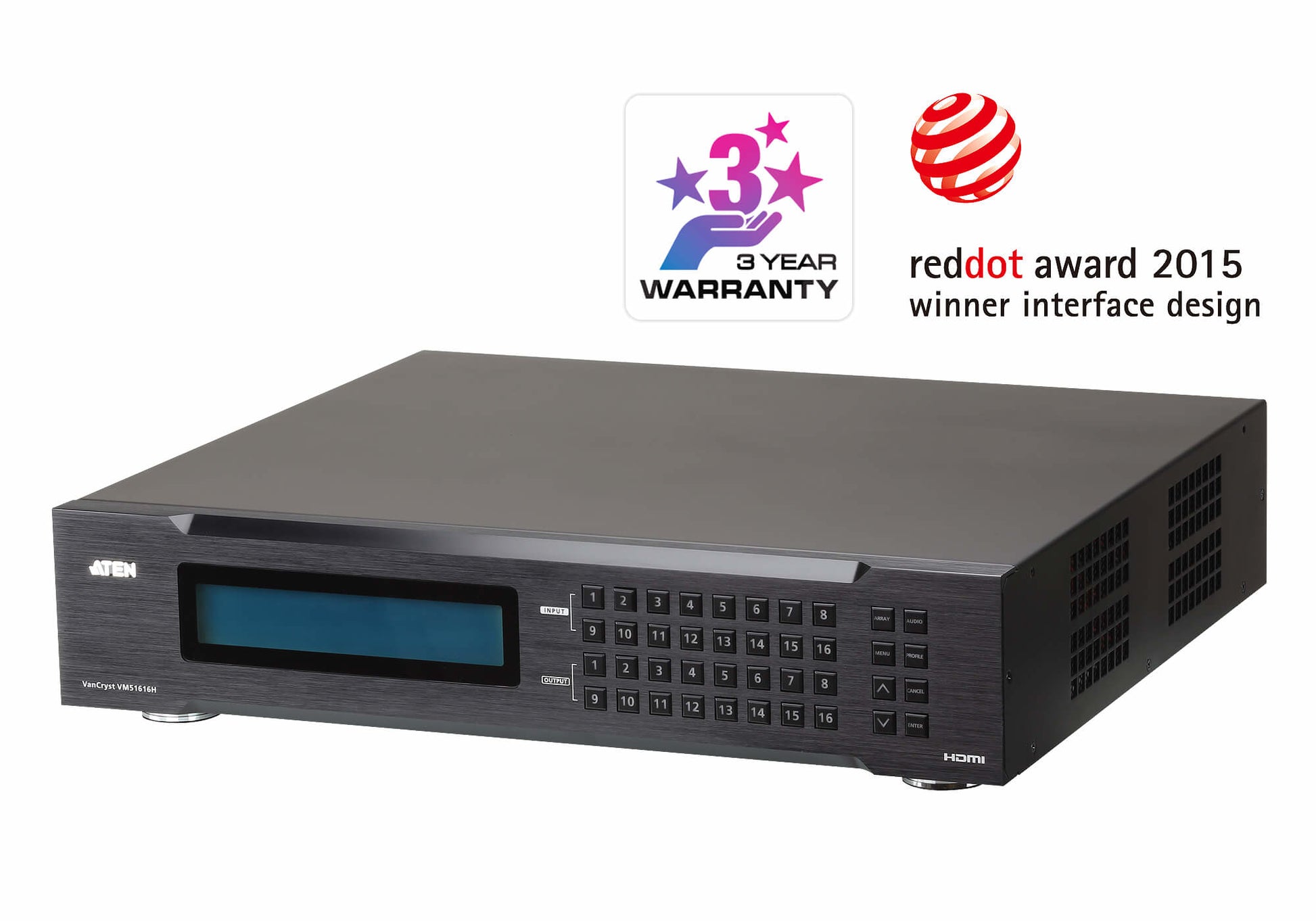

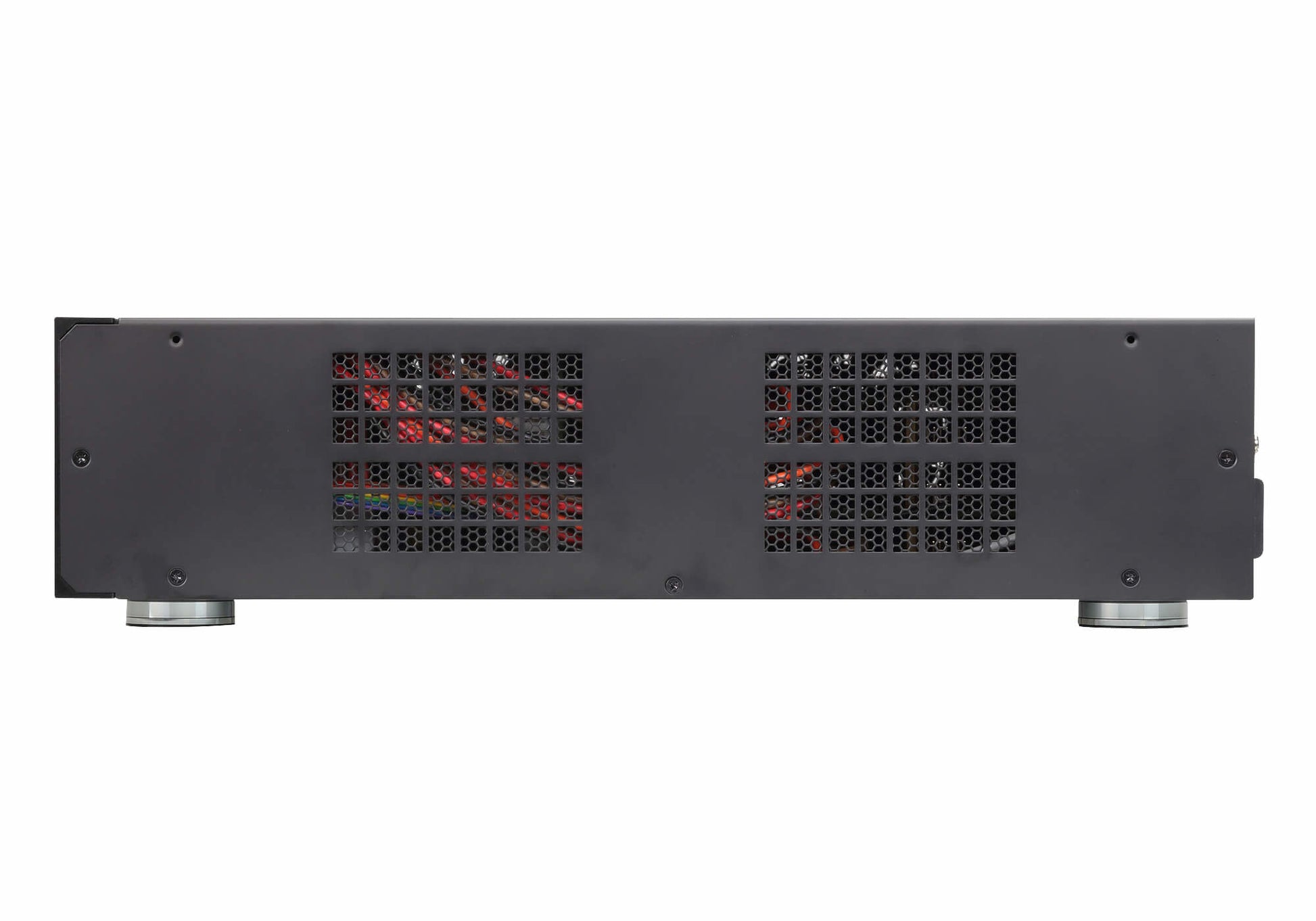

ATEN VM51616H video switch HDMI

ATEN VM51616H video switch HDMI

VM51616H

$8,599.09 USD
$8,599.09 USD
Sale Sold out

MSRP: $12,366.00

ATEN VM51616H. Video port type: HDMI. Material: Metal, Product color: Black, Maximum operating distance: 590.6" (15 m). AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, AC adapter input current: 1 A. Width: 17" (432.4 mm), Depth: 15" (381.8 mm), Height: 3.46" (88 mm). Quantity per pack: 1 pc(s), Cables included: AC
View full details
    • Details: ATEN VM51616H. Video port type: HDMI. Material: Metal, Product color: Black, Maximum operating distance: 590.6" (15 m). AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, AC adapter input current: 1 A. Width: 17" (432.4 mm), Depth: 15" (381.8 mm), Height: 3.46" (88 mm). Quantity per pack: 1 pc(s), Cables included: AC
    • Info: Connects any of 16 HDMI sources to any of to 16 HDMI displays|Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet|View and control via ATEN Video Matrix Control App in a swift and agile way|Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*|Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions|Video Wall –allows you to create custom video wall layouts via intuitive web GUI*|EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens|FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate|Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)|HDMI (3D, Deep color); HDCP 1.4 compatible|Consumer Electronics Control (CEC) support|Local HDMI output –allows multiple preview of 16 video sources|Audio-enabled; HDMI audio can be extracted to stereo audio|Supports Dolby True HD and DTS HD Master audio|ESD protection for HDMI|Rack-mountable (2U design)|*Note:|1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.|2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
    • Input impedance: 100 ?
    • LED indicators: Yes
    • 3D: Yes
    • Supported video modes: 480p, 720p, 1080i, 1080p
    • Product color: Black
    • Dolby technologies: DTS-HD, Dolby TrueHD
    • Bandwidth: 225 MHz
    • Maximum operating distance: 590.6" (15 m)
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Output impedance: 100 ?
    • Quantity per pack: 1 pc(s)
    • Mounting kit: Yes
    • Cables included: AC
    • Manual: Yes
    • Video port type: HDMI
    • Maximum resolution: 1920 x 1080 pixels
    • RJ-45 input ports: 1
    • HDMI ports quantity: 32
    • HDCP: Yes
    • RS-232 ports: 1
    • HDCP version: 1.4
    • Number of HDMI outputs: 16
    • HDMI in: 16
    • 3.5 mm (1/8-inch) out: Yes
    • AC adapter input voltage: 100 - 240 V
    • AC adapter frequency: 50/60 Hz
    • AC adapter input current: 1 A
    • Compliance certificates: RoHS
    • Rack capacity: 2U
    • Material: Metal
    • Weight: 17.3 lbs (7.86 kg)
    • Width: 17" (432.4 mm)
    • Height: 3.46" (88 mm)
    • Depth: 15" (381.8 mm)
