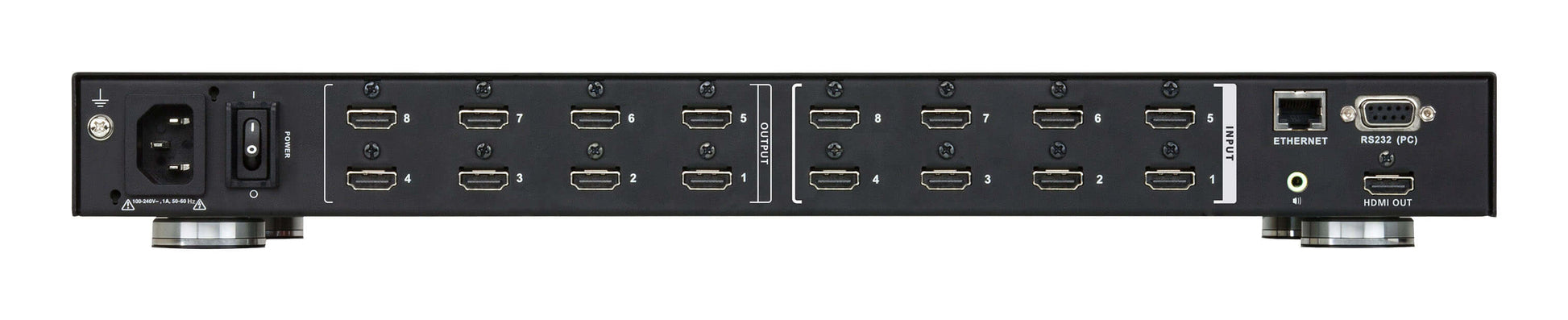

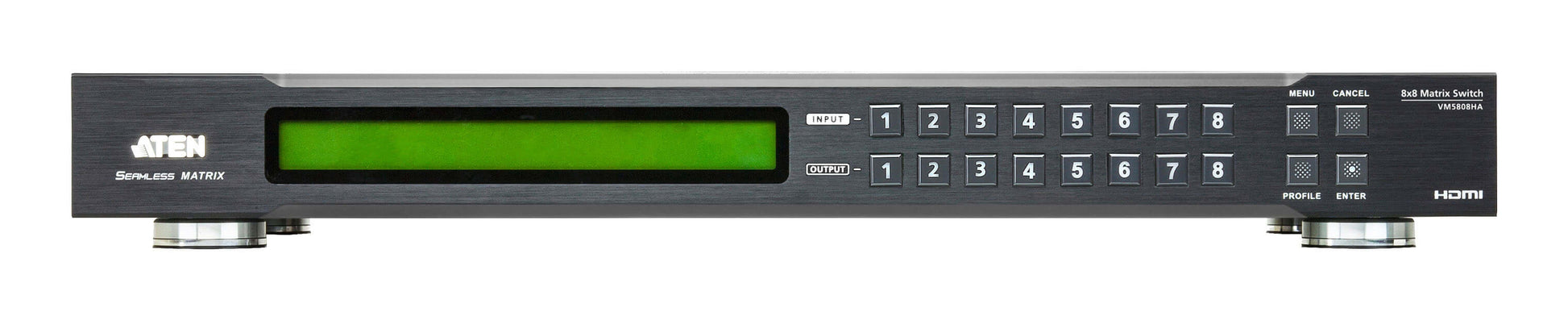

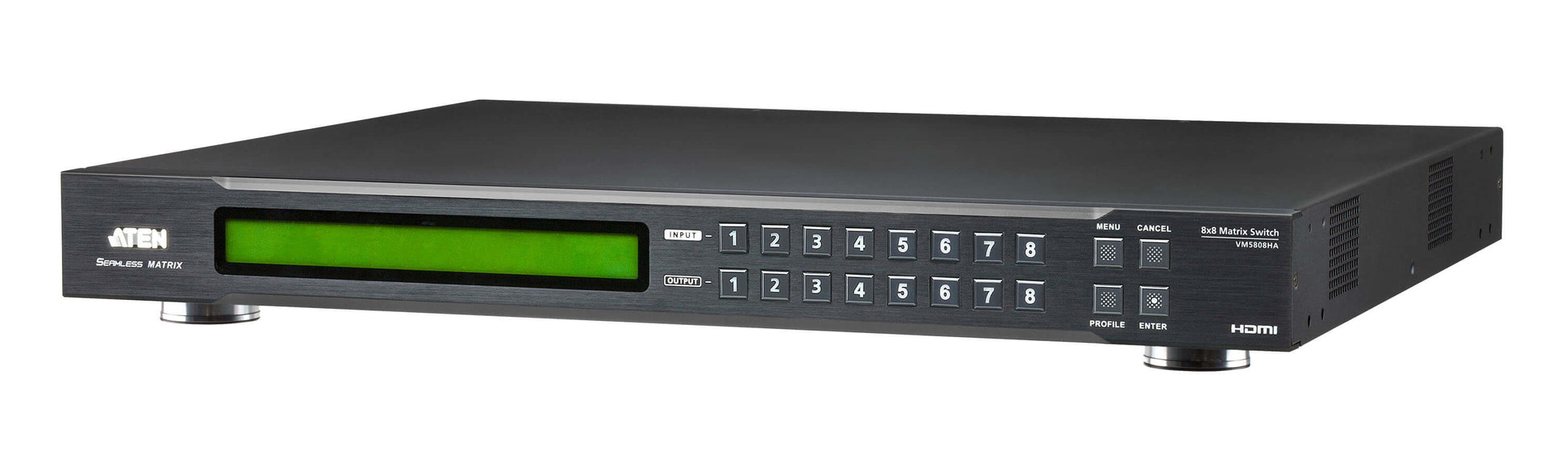

ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W

ATEN VM5808HA matrix switcher AV matrix switcher 58.1 W

VM5808HA

$3,819.30 USD
$3,819.30 USD
Sale Sold out

MSRP: $5,492.00

ATEN VM5808HA. Product type: AV matrix switcher, Data transfer rate: 6.75 Gbit/s, Maximum pixel clock: 225 MHz. Housing color: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (max): 58.1 W, Power consumption (typical): 56.6 W, AC input voltage: 100 - 240 V. Country of origin: Taiwan. Width: 14.9" (378.2 mm), Depth: 17" (432.4 mm), Height: 1.73" (44 mm)
View full details
    • Details: ATEN VM5808HA. Product type: AV matrix switcher, Data transfer rate: 6.75 Gbit/s, Maximum pixel clock: 225 MHz. Housing color: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (max): 58.1 W, Power consumption (typical): 56.6 W, AC input voltage: 100 - 240 V. Country of origin: Taiwan. Width: 14.9" (378.2 mm), Depth: 17" (432.4 mm), Height: 1.73" (44 mm)
    • PDF: http://objects.icecat.biz/objects/mmo_100435916_1739731137_3663_2644791.pdf
    • Info: Routes any of 8 HDMI sources to any of 8 HDMI displays|Local HDMI output – enables previewing of up to 8 video sources in a multi-view window|Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control System|Device status can be viewed and controlled via ATEN Video Matrix Control App|Video Wall functionality via intuitive web GUI* allows for customization of up to 16 layouts for any type of video walls|Built-in scaler automatically converts input resolutions for optimal appearance on the display|FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate|ATEN Seamless Switch technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission|EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens|Audio enabled; HDMI audio can be extracted to stereo audio|HDMI (3D, Deep color); HDCP 1.4|Supports Dolby True HD and DTS HD Master audio|Supports Consumer Electronics Control (CEC)|ESD protection for HDMI|Firmware upgradeable|Rack mountable (1U design)|*Note:|1. If Seamless Switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling Seamless Switching is a must.|2. Videos may not display within range when Seamless Switch or Video Wall is enabled, in which case please adjust the display settings on your device.
    • Rack mounting: Yes
    • On/off switch: Yes
    • 3D: Yes
    • Product type: AV matrix switcher
    • Data transfer rate: 6.75 Gbit/s
    • Housing material: Metal
    • Housing color: Black
    • Extended display identification data (EDID): Yes
    • Maximum pixel clock: 225 MHz
    • Country of origin: Taiwan
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Heat dissipation: 265 BTU/h
    • Heat dissipation (max): 272 BTU/h
    • Supported resolutions: 640 x 480 @ 60/72/75 Hz
    • 1280 x 720p 60 Hz (16:9)
    • 800 x 600 @ 56/60/72/75 Hz
    • 1920 x 1080i 60 Hz (16:9)
    • 1024 x 768 @ 60/70/75 Hz
    • 1920 x 1080p 60 Hz (16:9)
    • 1280 x 800 @ 60 Hz
    • 720 x 576p 50 Hz (4:3) / (16:9)
    • 1280 x 1024 @ 60/75 Hz
    • 1280x720p 50Hz (16:9)
    • 1366 x 768 @ 60 Hz
    • 1920 x 1080i 50 Hz (16:9)
    • 1400 x 1050 @ 60 Hz
    • 1440 x 900 @ 60 Hz
    • 1600 x 1200 @ 60 Hz
    • 1680 x 1050 @ 60 Hz
    • 1920 x 1080 @ 60 Hz
    • 1920 x 1200 @ 60 Hz (Reduced Blanking)
    • 640 x 480p 60 Hz (4:3)
    • Cables included: AC
    • Manual: Yes
    • Rack mount kit: Yes
    • Firmware upgradeable: Yes
    • Built-in display: No
    • Maximum resolution: 1920 x 1080 pixels
    • Ethernet LAN (RJ-45) ports: 1
    • HDCP: Yes
    • RS-232 ports: 1
    • HDCP version: 1.4
    • Audio (L/R) out: 1
    • HDMI output ports quantity: 9
    • HDMI input ports quantity: 8
    • Power consumption (typical): 56.6 W
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50 - 60 Hz
    • Power consumption (max): 58.1 W
    • Input current: 1 A
    • Rack capacity: 1U
    • Weight: 12.2 lbs (5.54 kg)
    • Width: 14.9" (378.2 mm)
    • Height: 1.73" (44 mm)
    • Depth: 17" (432.4 mm)
