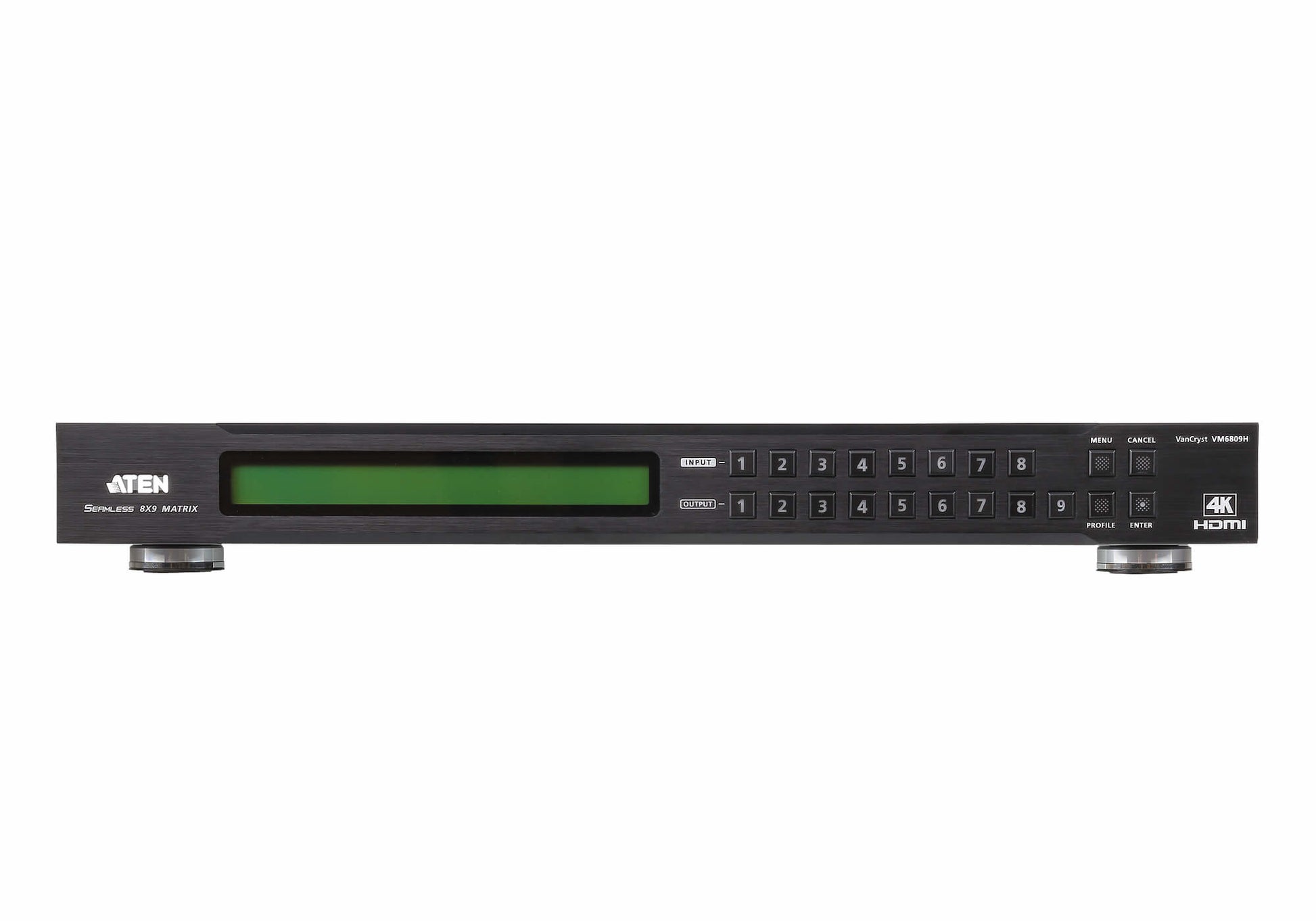

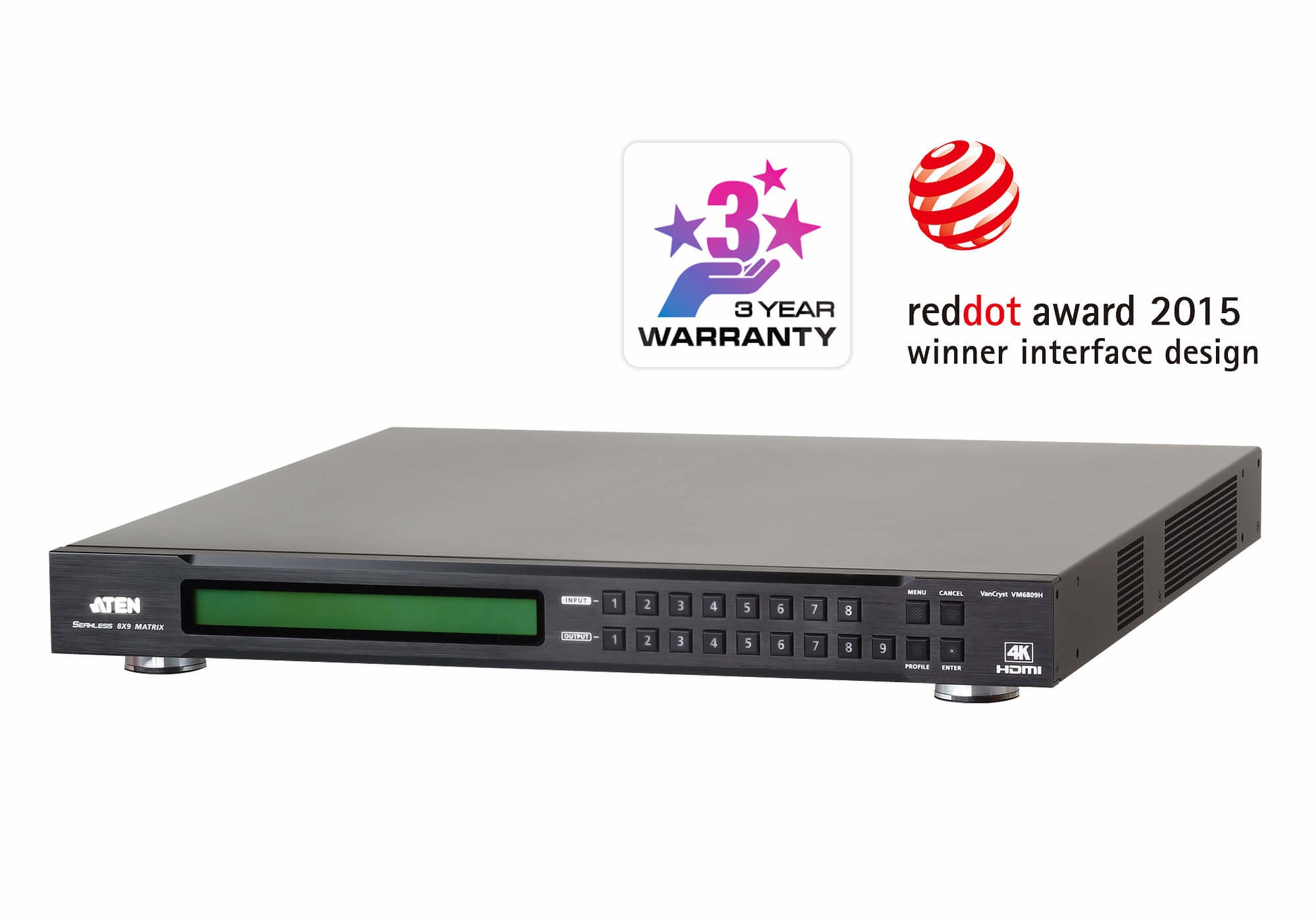

ATEN VM6809H video switch HDMI
ATEN VM6809H video switch HDMI
SKU: VM6809H
Regular price
$5,251.89 USD
Regular price
Sale price
$5,251.89 USD
MSRP: $7,552.00
ATEN VM6809H. Video port type: HDMI. Material: Metal, Product color: Black, Maximum operating distance: 590.6" (15 m). AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, AC adapter input current: 1 A. Width: 17.7" (450.3 mm), Depth: 17" (432.4 mm), Height: 1.73" (44 mm). Quantity per pack: 1 pc(s), Cables included: AC
Quantity
Couldn't load pickup availability
- Details: ATEN VM6809H. Video port type: HDMI. Material: Metal, Product color: Black, Maximum operating distance: 590.6" (15 m). AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, AC adapter input current: 1 A. Width: 17.7" (450.3 mm), Depth: 17" (432.4 mm), Height: 1.73" (44 mm). Quantity per pack: 1 pc(s), Cables included: AC

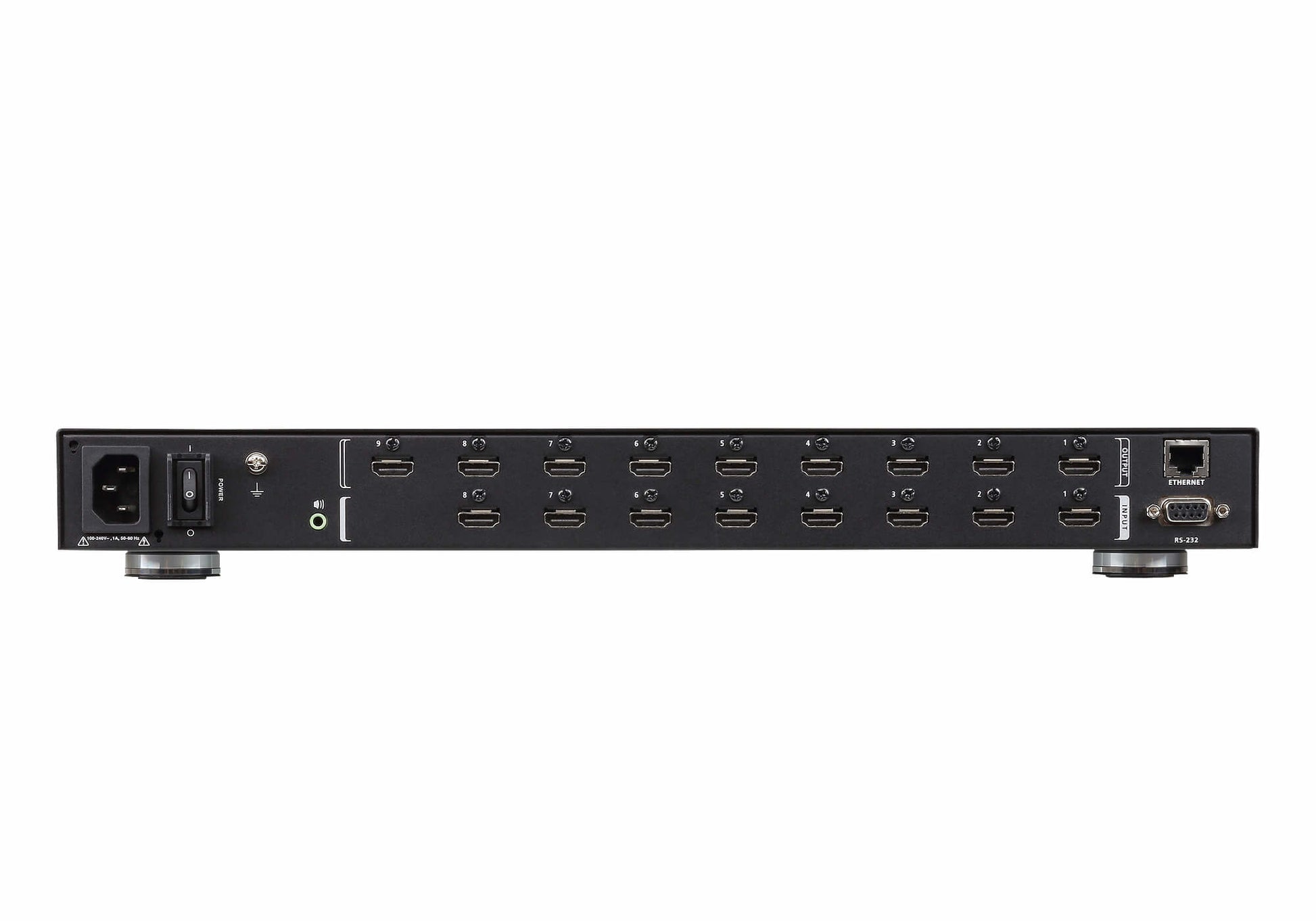

- Info: 8 x 9 HDMI input/output connections|Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web GUI or Telnet|View and control via ATEN Video Matrix Control App in a swift and agile way|4K Scaler – features a 4K video scaling function to convert input resolutions to the display’s native resolutions|Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*|Video Wall – allows you to create custom video wall layouts via intuitive web GUI*|EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens|4K Video Wall using Lower-Resolution Displays – split a 4K signal to four 1080p displays or nine 720p displays to form a 2x2 or 3x3 4K video wall|FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate|HDMI (3D, Deep color, 4K); HDCP 2.2 compatible|Consumer Electronics Control (CEC) supported*|Audio-enabled, HDMI audio can be extracted to stereo audio|ESD protection for HDMI|Rack-mountable (1U design)|*Note:|1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.|2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
- Input impedance: 100 ?
- LED indicators: Yes
- HD type: 4K Ultra HD
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- 3D: Yes
- Supported video modes: 480p, 720p, 1080p
- Product color: Black
- Bandwidth: 340 MHz
- Built-in speaker(s): No
- Maximum operating distance: 590.6" (15 m)
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Output impedance: 100 ?
- Quantity per pack: 1 pc(s)
- Mounting kit: Yes
- Cables included: AC
- Manual: Yes
- Video port type: HDMI
- Maximum resolution: 4096 x 2160 pixels
- RJ-45 input ports: 1
- HDMI ports quantity: 17
- HDMI version: 2.0
- HDCP: Yes
- RS-232 ports: 1
- HDCP version: 2.2
- Number of HDMI outputs: 9
- HDMI in: 8
- 3.5 mm (1/8-inch) out: Yes
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- AC adapter input current: 1 A
- Compliance certificates: RoHS
- Rack capacity: 1U
- Material: Metal
- Weight: 15.5 lbs (7.05 kg)
- Width: 17.7" (450.3 mm)
- Height: 1.73" (44 mm)
- Depth: 17" (432.4 mm)
