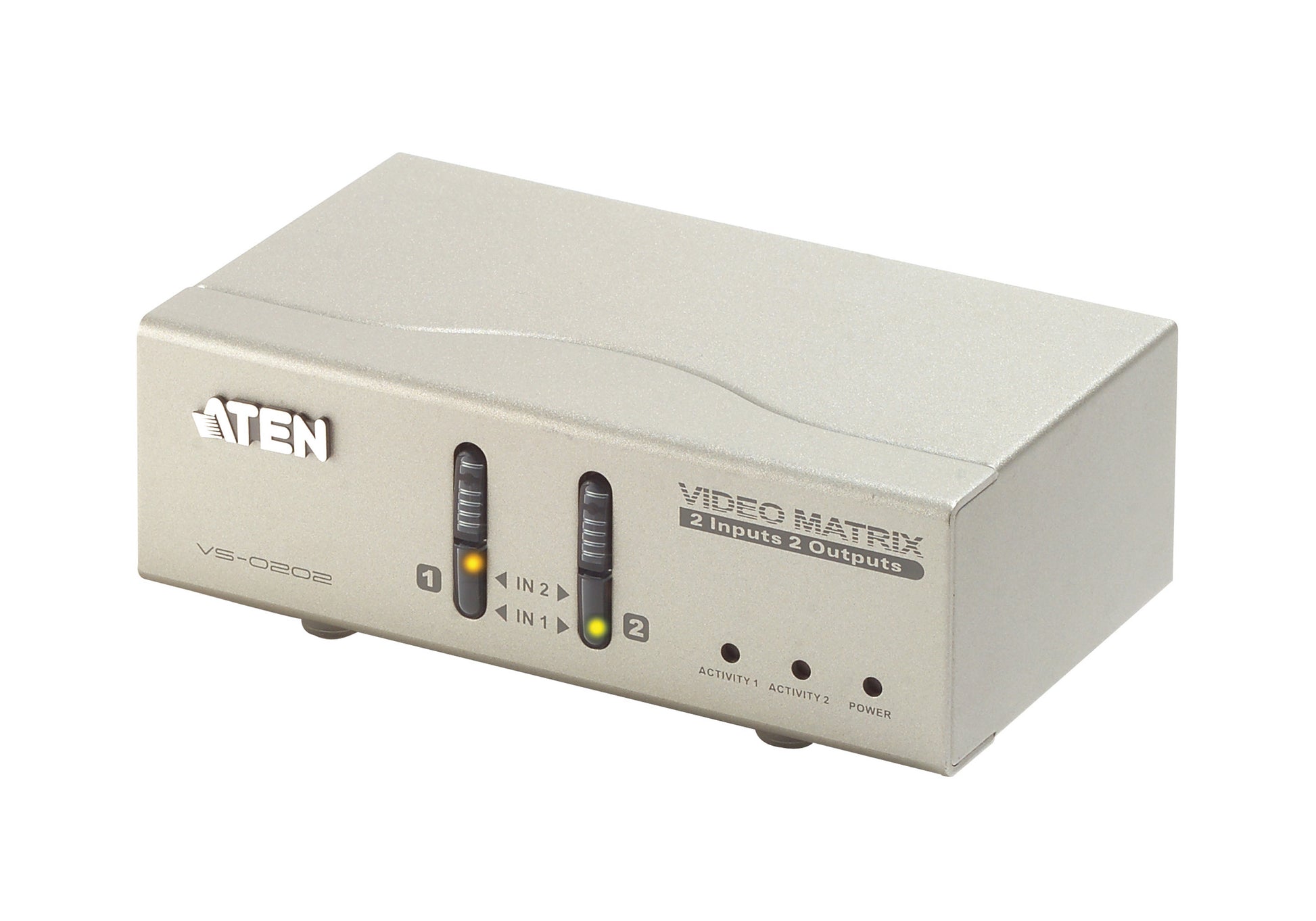

• ATEN VS0202 video switch VGA
1 3

ATEN VS0202 video switch VGA

ATEN VS0202 video switch VGA

VS0202

$65.56 USD
$65.56 USD
Sale Sold out

MSRP: $91.00

ATEN VS0202. Video port type: VGA, Video in: 2 x HDB-15 Male (Blue), Video out: 2 x HDB-15 Female (Blue). Material: Metal, Product color: Silver, Maximum operating distance: 1181.1" (30 m). Power consumption (typical): 2.39 W. Width: 5.12" (130 mm), Depth: 3" (76.1 mm), Height: 1.73" (44 mm). Cables included: VGA
View full details
    • Details: ATEN VS0202. Video port type: VGA, Video in: 2 x HDB-15 Male (Blue), Video out: 2 x HDB-15 Female (Blue). Material: Metal, Product color: Silver, Maximum operating distance: 1181.1" (30 m). Power consumption (typical): 2.39 W. Width: 5.12" (130 mm), Depth: 3" (76.1 mm), Height: 1.73" (44 mm). Cables included: VGA
    • PDF: http://objects.icecat.biz/objects/mmo_29406567_1510140942_6215_7738.pdf

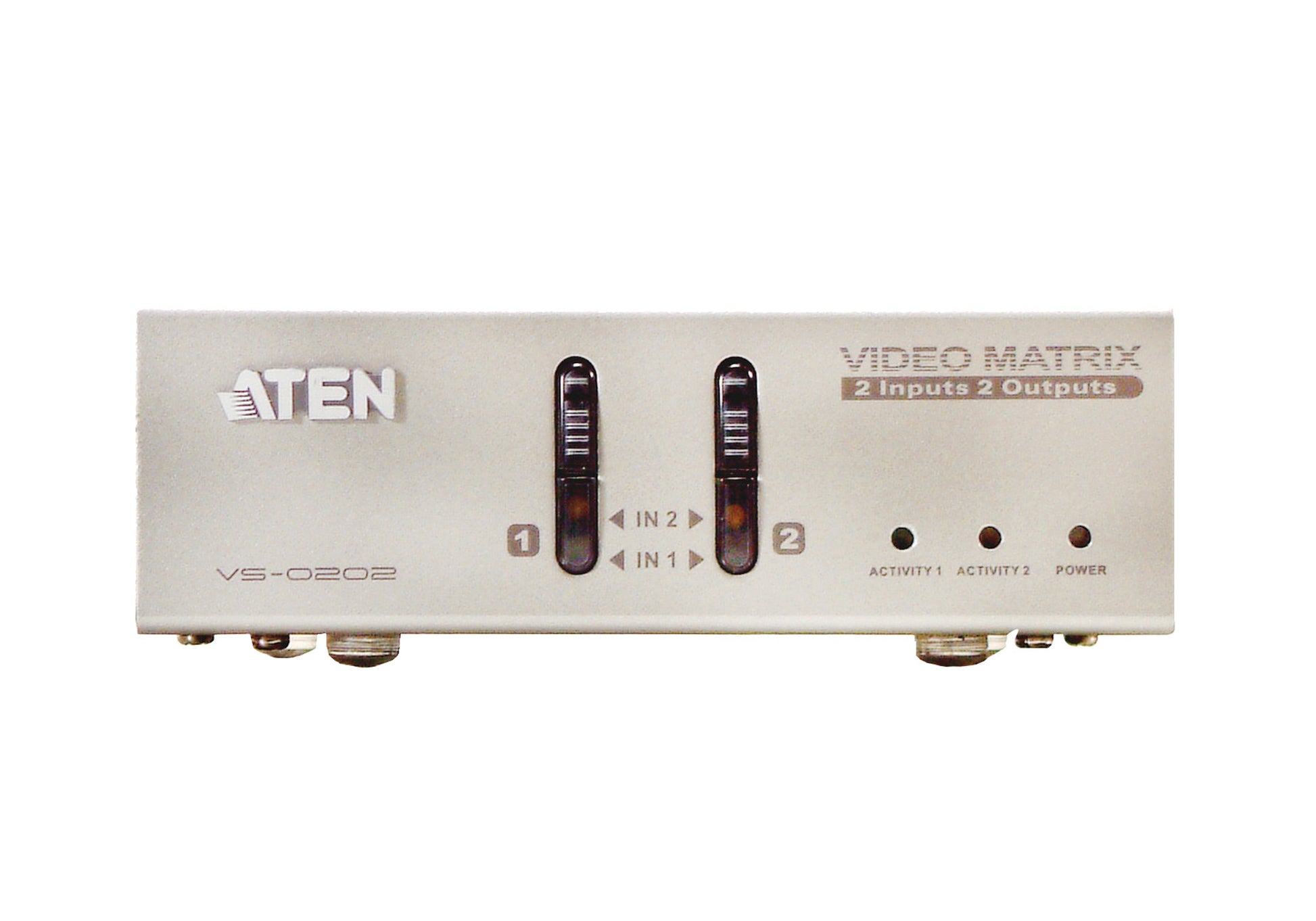

    • Info: Each of the 2 video outs can toggle between Source 1 and Source 2 using front panel pushbuttons.|Audio enabled|Duplicate and enhance video signals to up to 30 m (max.) *|Expandable: Cascade to ATEN's video splitters to support hundreds of video displays|With up to 200 MHz Video Bandwidth|OS Support: Windows 2000, Windows XP, Linux, Mac and Sun|* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
    • Input impedance: 75 ?
    • Rack mounting: Yes
    • Product color: Silver
    • Bandwidth: 200 MHz
    • Maximum operating distance: 1181.1" (30 m)
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Output impedance: 75 ?
    • User guide: Yes
    • Cables included: VGA
    • AC adapter included: Yes
    • Video port type: VGA
    • Maximum resolution: 1920 x 1200 pixels

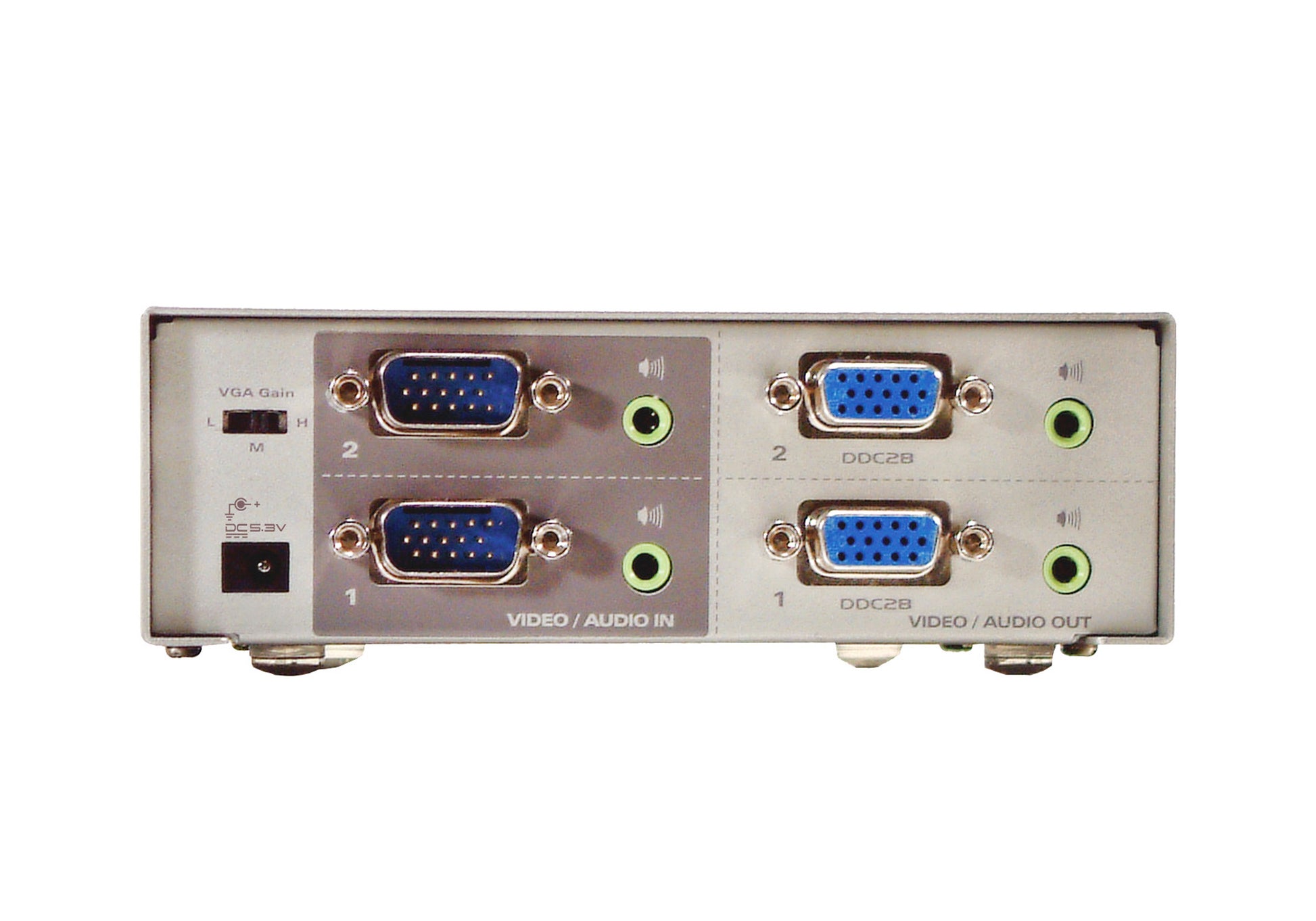

    • Video in: 2 x HDB-15 Male (Blue)
    • Video out: 2 x HDB-15 Female (Blue)
    • Power consumption (typical): 2.39 W
    • Compliance certificates: RoHS
    • Rack capacity: 1U
    • Material: Metal
    • Weight: 16.6 oz (470 g)
    • Width: 5.12" (130 mm)
    • Height: 1.73" (44 mm)
    • Depth: 3" (76.1 mm)
