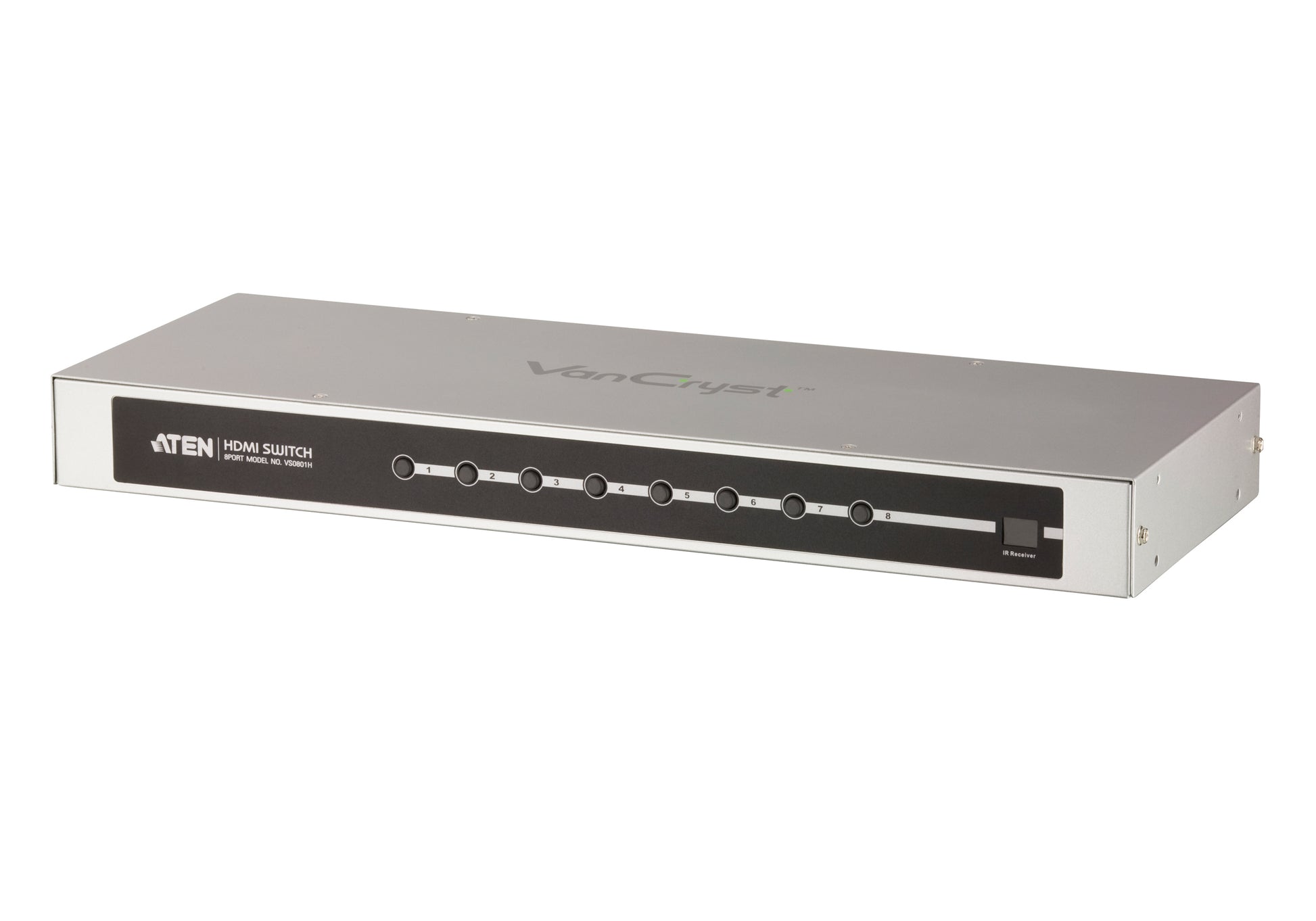

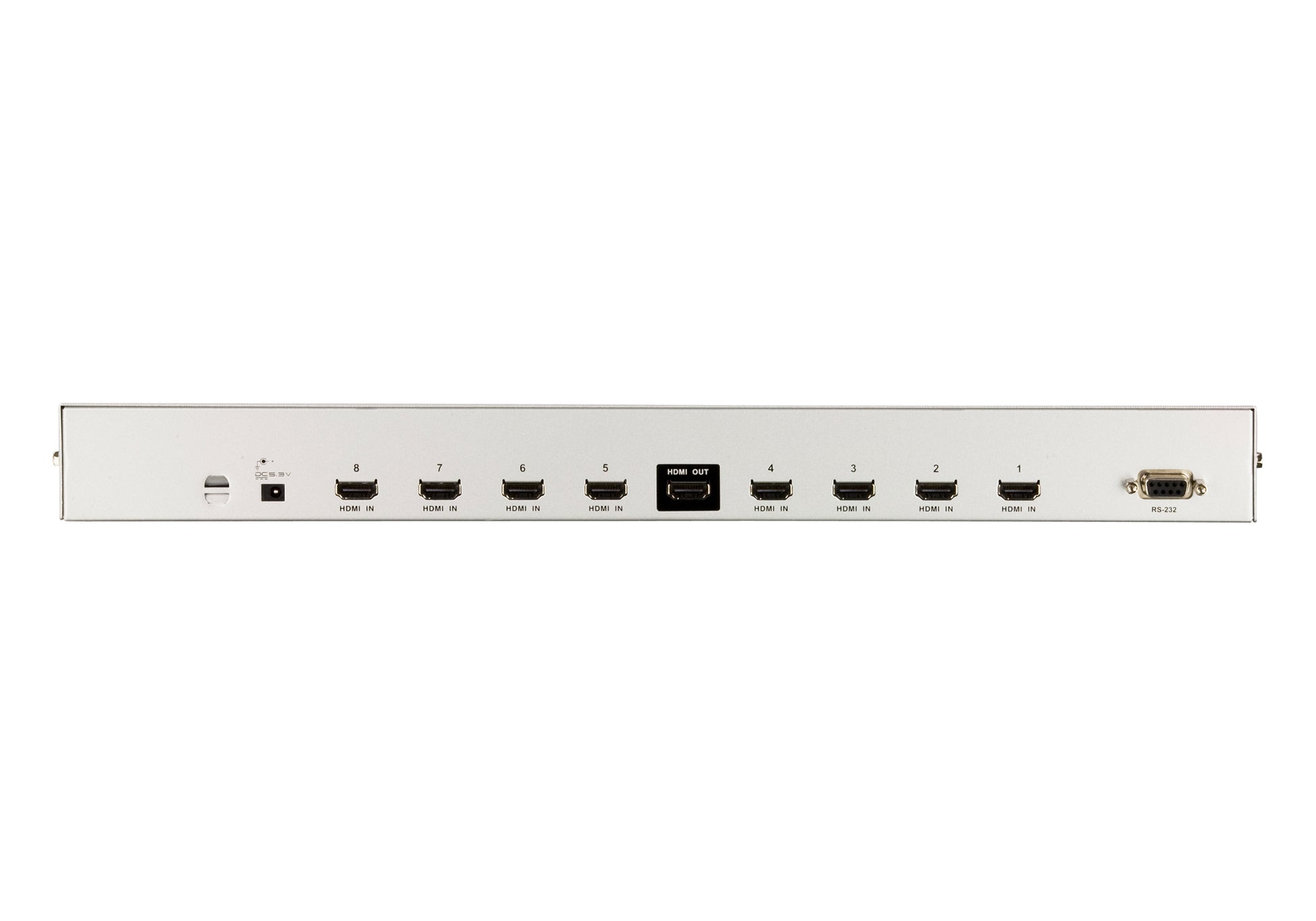

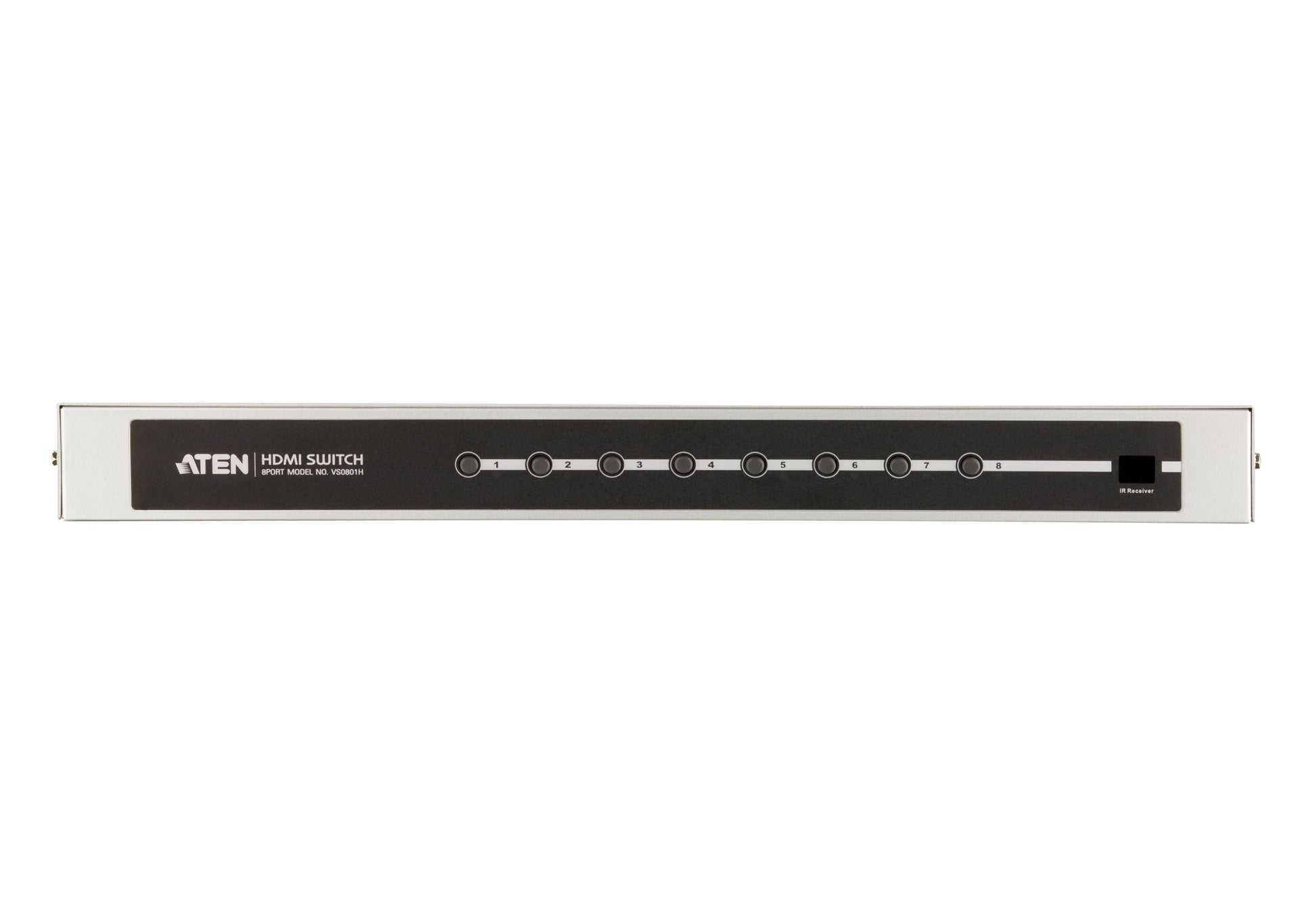

ATEN VS0801H video switch HDMI
ATEN VS0801H video switch HDMI
SKU: VS0801H
Regular price
$189.73 USD
Regular price
Sale price
$189.73 USD
MSRP: $283.00
ATEN VS0801H. Video port type: HDMI, Video in: 8 x HDMI Type A Female (Black), Video out: 1 x HDMI Type A Female (Black). Material: Metal, Product color: Black, Silver, Maximum refresh rate: 60 Hz. Power consumption (typical): 3.71 W. Width: 17.2" (437 mm), Depth: 6.29" (159.8 mm), Height: 1.73" (44 mm)
Quantity
Couldn't load pickup availability
- Details: ATEN VS0801H. Video port type: HDMI, Video in: 8 x HDMI Type A Female (Black), Video out: 1 x HDMI Type A Female (Black). Material: Metal, Product color: Black, Silver, Maximum refresh rate: 60 Hz. Power consumption (typical): 3.71 W. Width: 17.2" (437 mm), Depth: 6.29" (159.8 mm), Height: 1.73" (44 mm)
- PDF: http://objects.icecat.biz/objects/mmo_29406583_1509366155_8253_27539.pdf|http://objects.icecat.biz/objects/mmo_29406583_1509366179_9207_24291.pdf|http://objects.icecat.biz/objects/mmo_29406583_1509366229_6705_26922.pdf
- Info: Allows up to eight HDMI sources to be connected to one HDMI display|Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control|Built-in bi-directional RS-232 serial port for high-end system control *|Supports Dolby True HD and DTS HD Master Audio|Up to 60 Hz refresh rate|Long-distance transmission - up to 15 m (24 AWG)|Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)|HDMI (3D, Deep Color)|Plug-and-play - no software installation required|DDC compatible|HDCP 1.4 compatible|Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control|Signaling rates up to 2.25 Gbps in support of 1080p display|All-metal casing|Power On Detection - if one of the HDMI source devices is powered off, the VS0801H will automatically switch to the next powered on device|Easy and affordable way to add eight HDMI inputs to your home theater system|Rack Mountable|Note: The VS0801H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
- Input impedance: 100 ?
- Rack mounting: Yes
- HD type: Full HD
- Maximum refresh rate: 60 Hz
- Supported graphics resolutions: 640 x 480 (VGA), 800 x 480 (WVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
- 3D: Yes
- Supported video modes: 480p, 720p, 1080i, 1080p
- Product color: Black, Silver
- Plug and Play: Yes
- Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
- Bandwidth: 225 MHz
- Harmonized System (HS) code: 85176990
- Maximum operating distance: 590.6" (15 m)
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width (imperial): 17.2"
- Depth (imperial): 6.29"
- Height (imperial): 1.73"
- Output impedance: 100 ?
- User guide: Yes
- AC adapter included: Yes
- Handheld remote control: Yes
- Video port type: HDMI
- Maximum resolution: 1920 x 1080 pixels
- DC-in jack: Yes
- HDMI ports quantity: 9
- HDMI version: 1.4
- HDCP: Yes
- RS-232 ports: 1
- Number of HDMI outputs: 1
- Video in: 8 x HDMI Type A Female (Black)
- Video out: 1 x HDMI Type A Female (Black)
- HDMI in: 8
- Power consumption (typical): 3.71 W
- Compliance certificates: RoHS
- Material: Metal
- Weight: 3.86 lbs (1.75 kg)
- Width: 17.2" (437 mm)
- Height: 1.73" (44 mm)
- Depth: 6.29" (159.8 mm)
