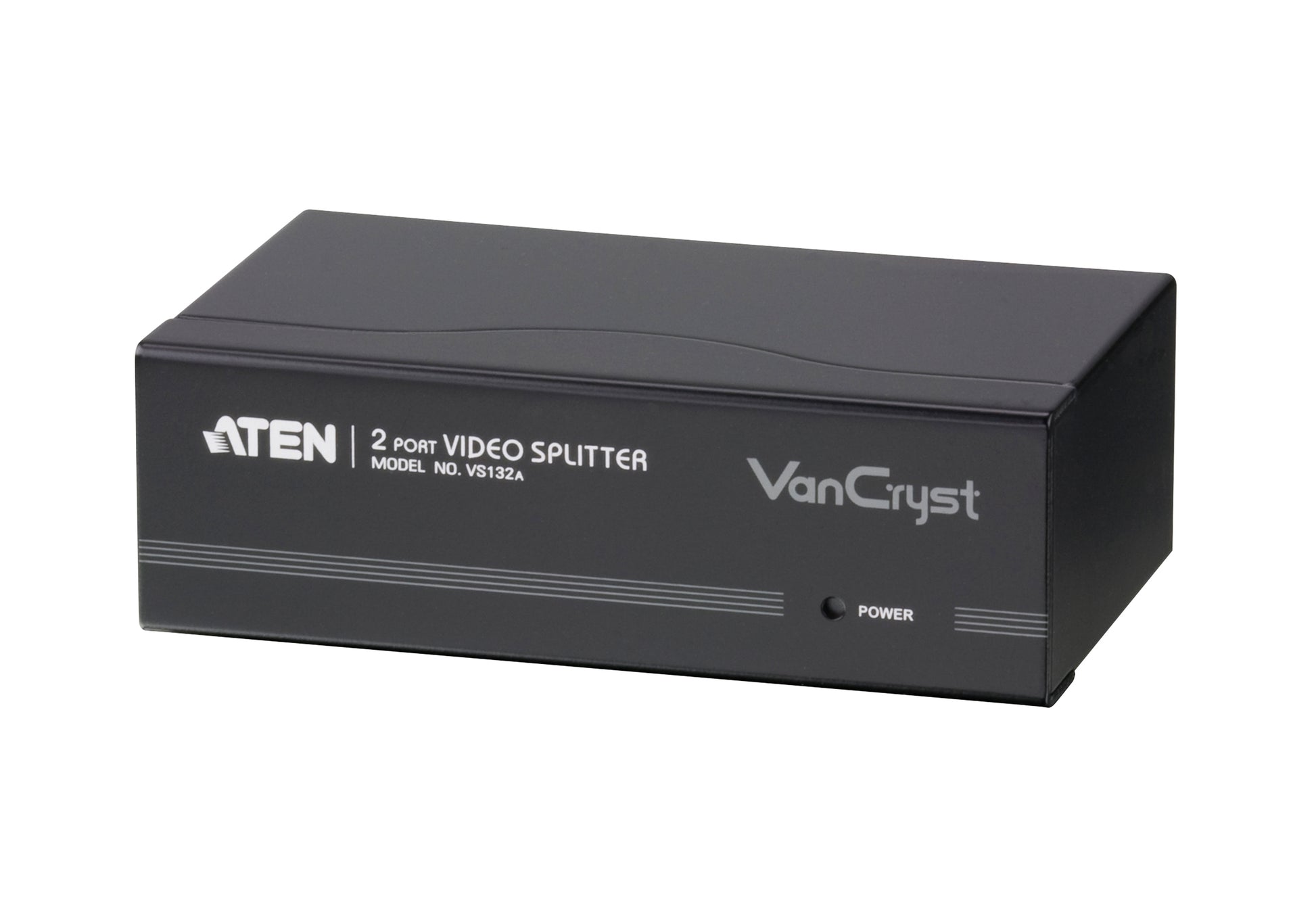

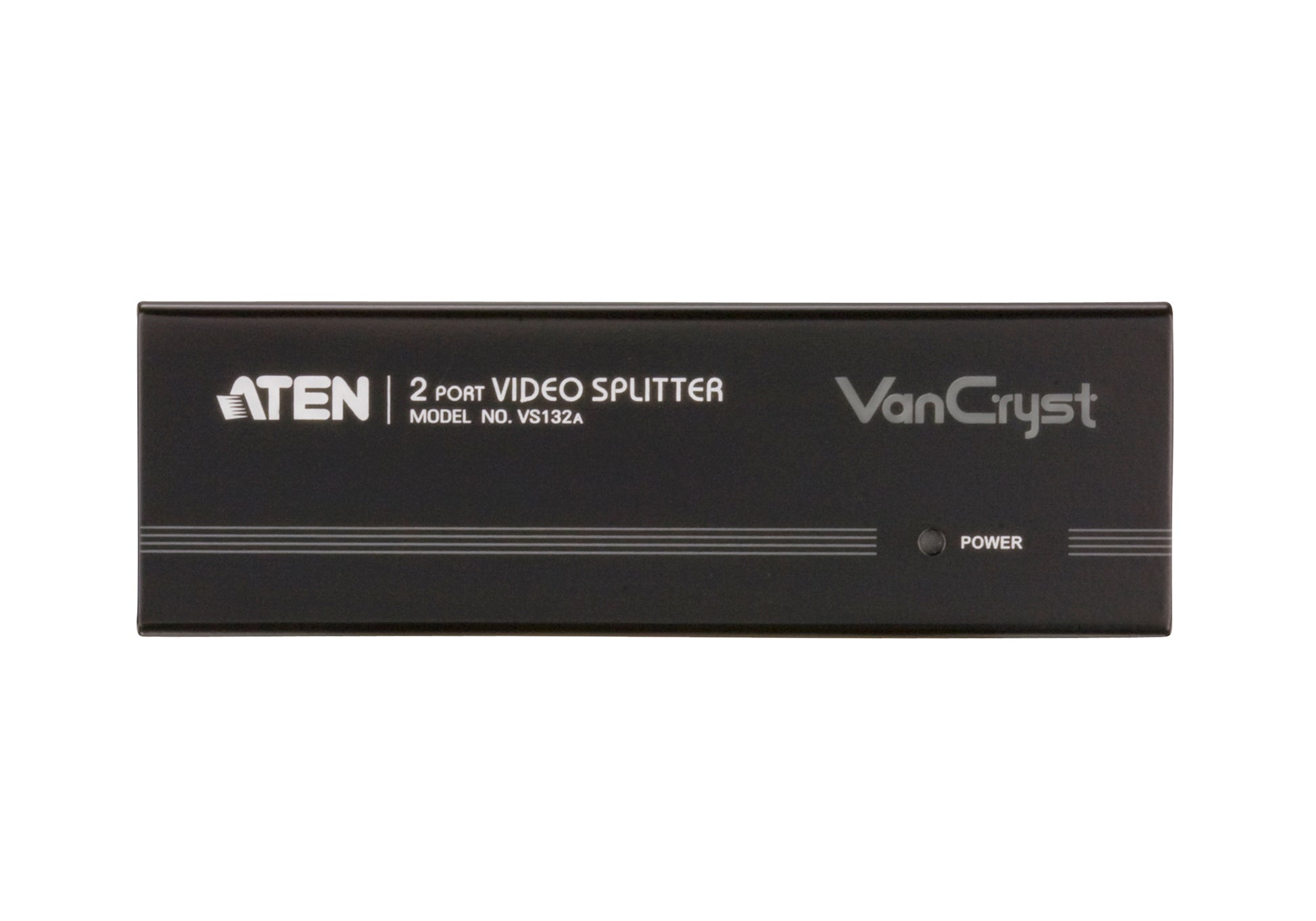

- Details: ATEN VS132A. Video port type: VGA, Video out: 2x VGA, Video in: 1 x HDB-15 Male (Blue). Maximum resolution: 2048 x 1536 pixels, Product color: Black, Maximum operating distance: 1181.1" (30 m). AC input voltage: 5 V, Power consumption (typical): 0.78 W. Dimensions (WxDxH): 5.12 x 2.96 x 1.73" (130 x 75.1 x 44 mm), Weight: 14.8 oz (420 g). Packaging content: 1x VS132A Video Splitter 1x Power Adapter 1x User Guide
- PDF: http://objects.icecat.biz/objects/mmo_29406491_1509026134_9071_18965.pdf
- Info: One video input to 2 video outputs|Supports up to 450 MHz bandwidth|Cascadable to 3 levels - provides up to 8 video signals|Long distance transmission - up to 30m *|Superior video quality - up to 2048 x 1536|Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors|Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity|All-metal casing|* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
- Supported graphics resolutions: 2048 x 1536 (QXGA)
- Product color: Black
- Bandwidth: 450 MHz
- Harmonized System (HS) code: 85176990
- Maximum operating distance: 1181.1" (30 m)
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Dimensions (WxDxH): 5.12 x 2.96 x 1.73" (130 x 75.1 x 44 mm)
- Packaging content: 1x VS132A Video Splitter
- 1x Power Adapter
- 1x User Guide
- Video port type: VGA
- Maximum resolution: 2048 x 1536 pixels

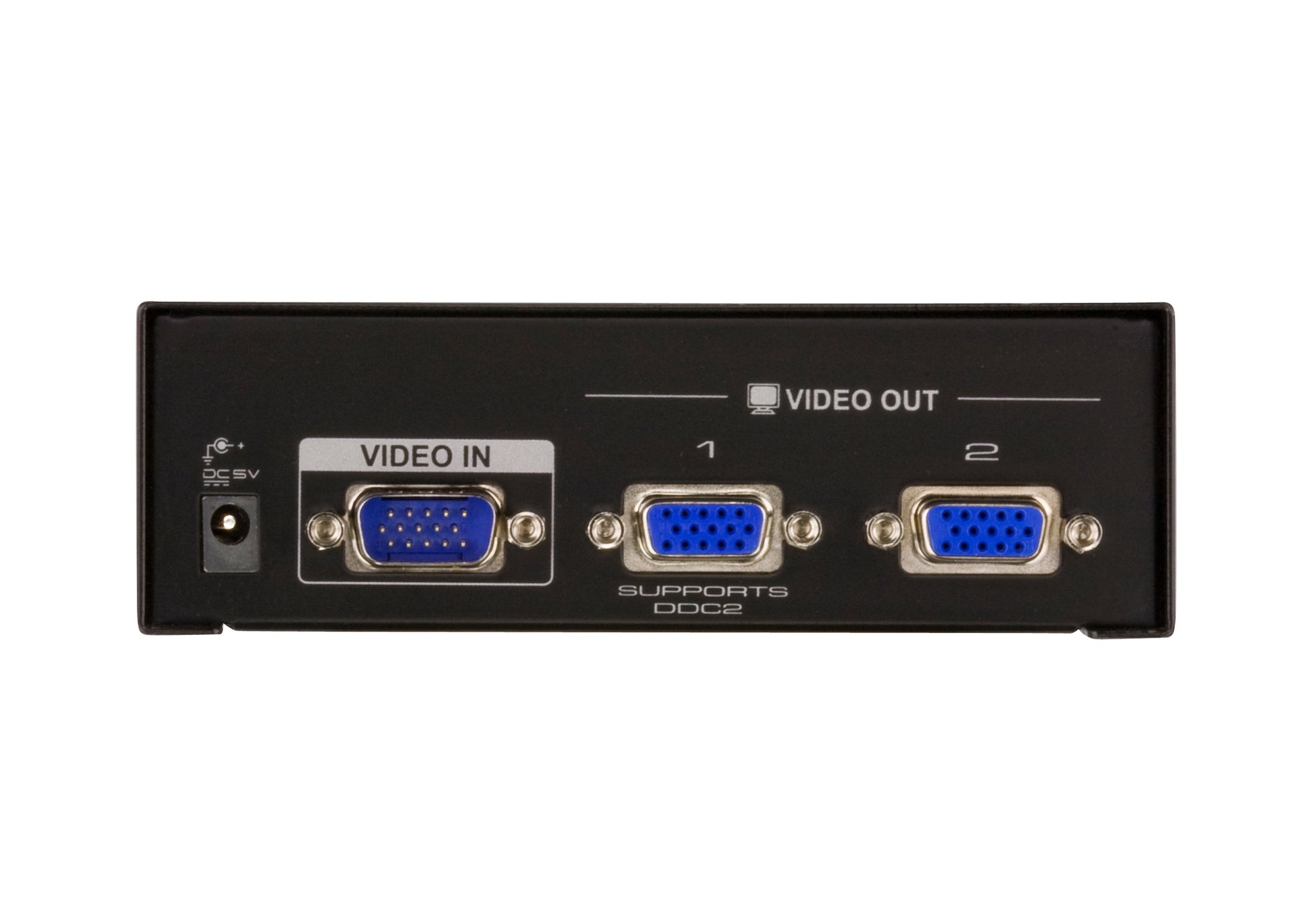

- Video in: 1 x HDB-15 Male (Blue)
- Video out: 2x VGA
- Video ports quantity: 3
- Power consumption (typical): 0.78 W
- AC input voltage: 5 V
- Weight: 14.8 oz (420 g)
