• ATEN VS134A video splitter VGA 4x VGA
1 3

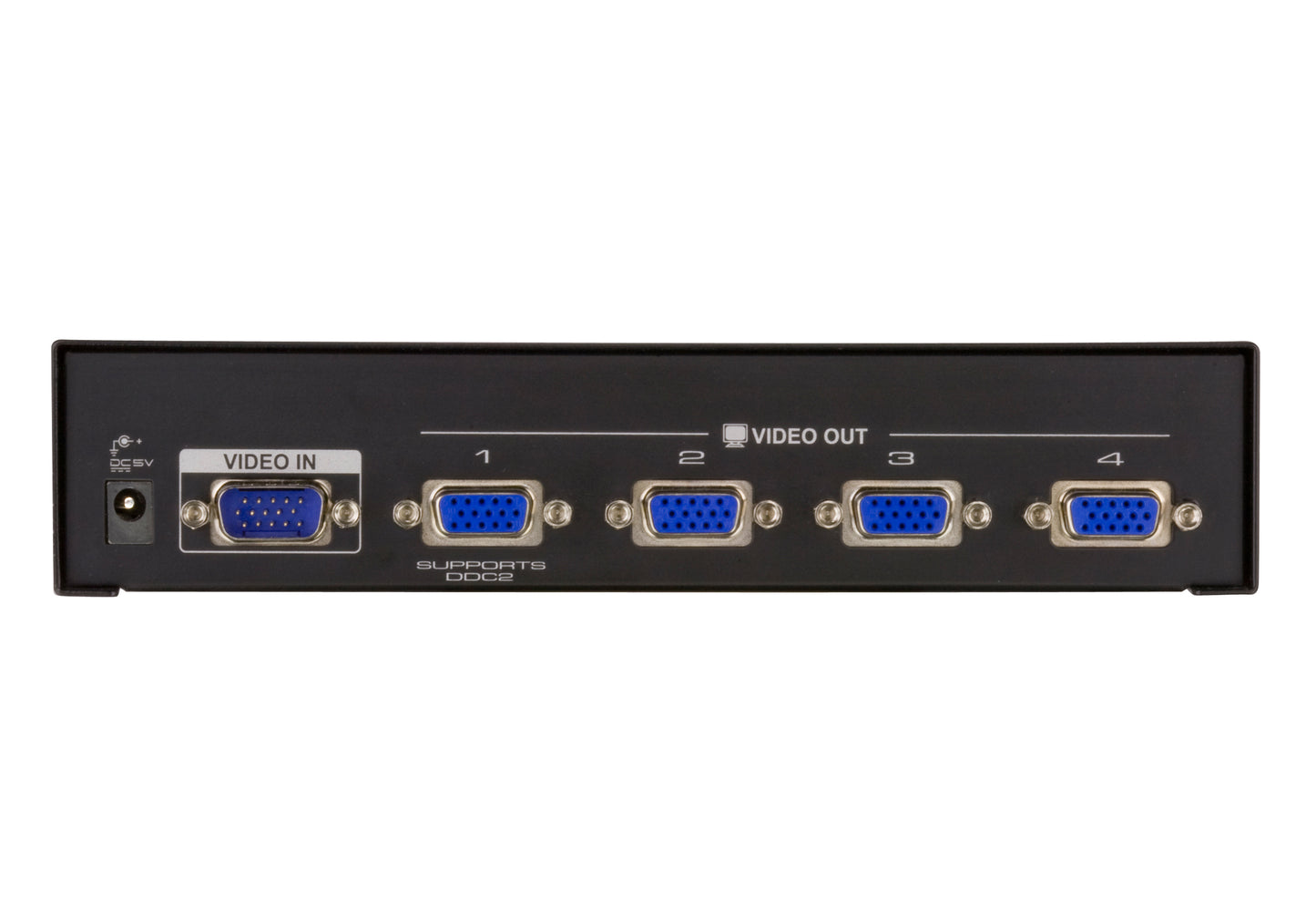

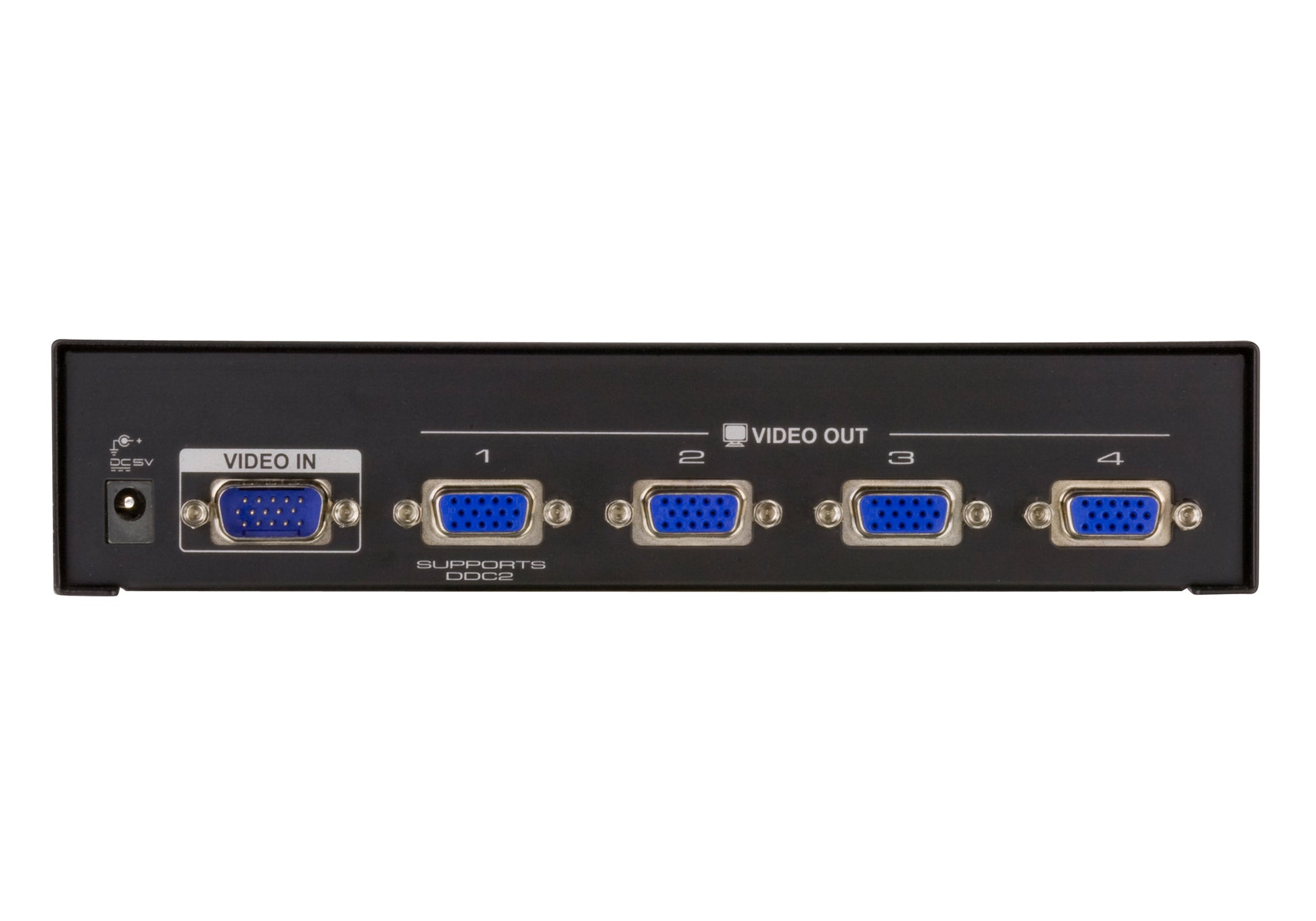

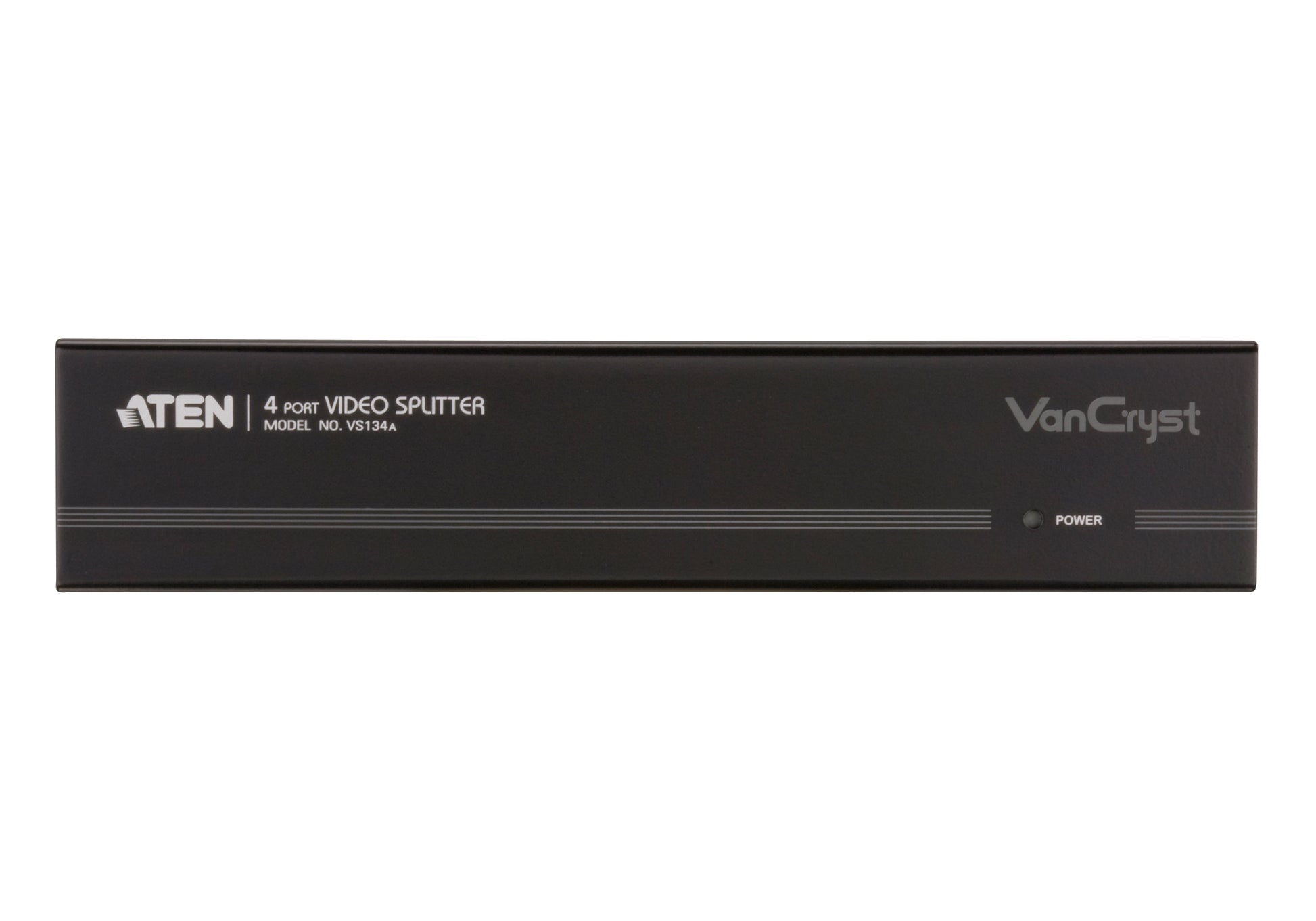

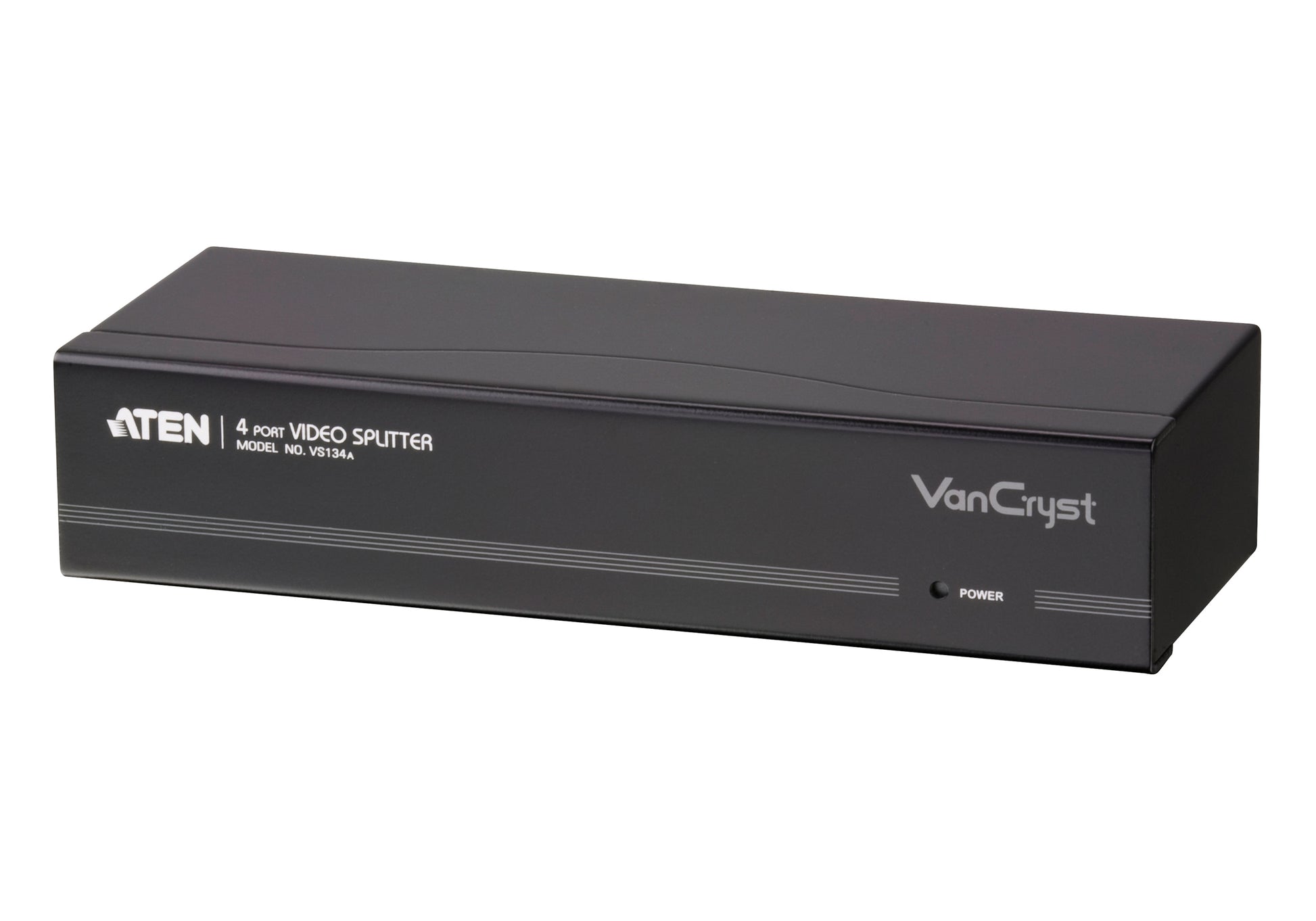

ATEN VS134A video splitter VGA 4x VGA

ATEN VS134A video splitter VGA 4x VGA

VS134A

$75.32 USD
$75.32 USD
Sale Sold out

MSRP: $98.00

ATEN VS134A. Video port type: VGA, Video out: 4x VGA. Maximum resolution: 2048 x 1536 pixels, Product color: Black, Maximum operating distance: 2559.1" (65 m). Power consumption (typical): 0.95 W. Dimensions (WxDxH): 7.87 x 2.95 x 1.77" (200 x 75 x 45 mm), Weight: 21.5 oz (610 g)
View full details
    • Details: ATEN VS134A. Video port type: VGA, Video out: 4x VGA. Maximum resolution: 2048 x 1536 pixels, Product color: Black, Maximum operating distance: 2559.1" (65 m). Power consumption (typical): 0.95 W. Dimensions (WxDxH): 7.87 x 2.95 x 1.77" (200 x 75 x 45 mm), Weight: 21.5 oz (610 g)
    • PDF: http://objects.icecat.biz/objects/3443722_9753.pdf
    • Info: One video input to 4 video outputs|Supports up to 450 MHz bandwidth|Cascadable to 3 levels - provides up to 64 video signals|Long distance transmission - up to 30m *|Superior video quality - up to 2048 x 1536|Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors|Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity|All-metal casing|* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
    • Supported graphics resolutions: 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
    • 3D: No
    • Product color: Black
    • Bandwidth: 450 MHz
    • Harmonized System (HS) code: 85176990
    • Ethernet LAN: No
    • Maximum operating distance: 2559.1" (65 m)
    • Operating temperature (T-T): 0 - 50 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • Dimensions (WxDxH): 7.87 x 2.95 x 1.77" (200 x 75 x 45 mm)
    • Power LED: Yes
    • Manual: Yes
    • Handheld remote control: No
    • Video port type: VGA
    • Maximum resolution: 2048 x 1536 pixels
    • DC-in jack: Yes
    • HDCP: No
    • Video out: 4x VGA
    • Video ports quantity: 4
    • Power consumption (typical): 0.95 W
    • USB powered: No
    • Weight: 21.5 oz (610 g)
