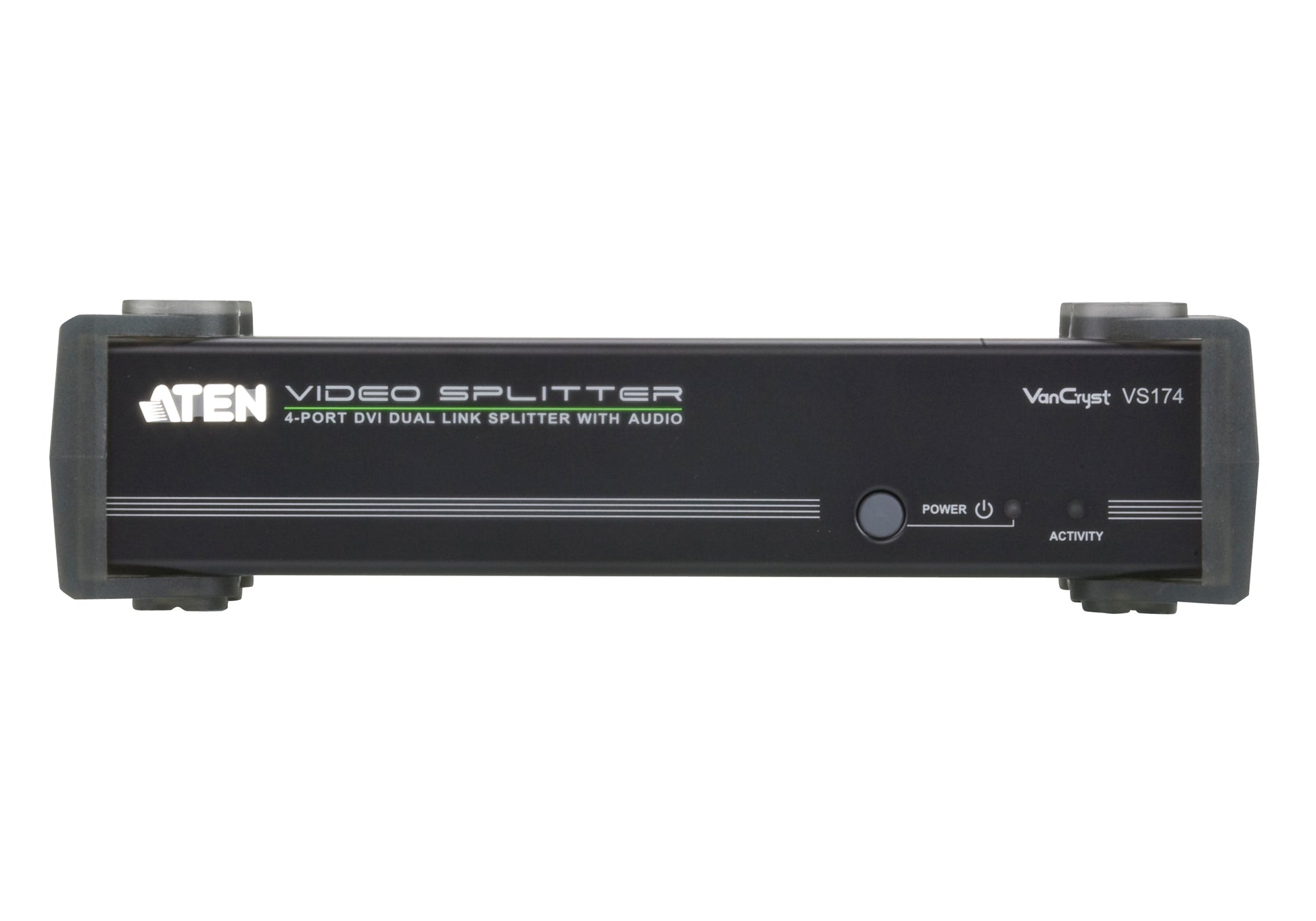

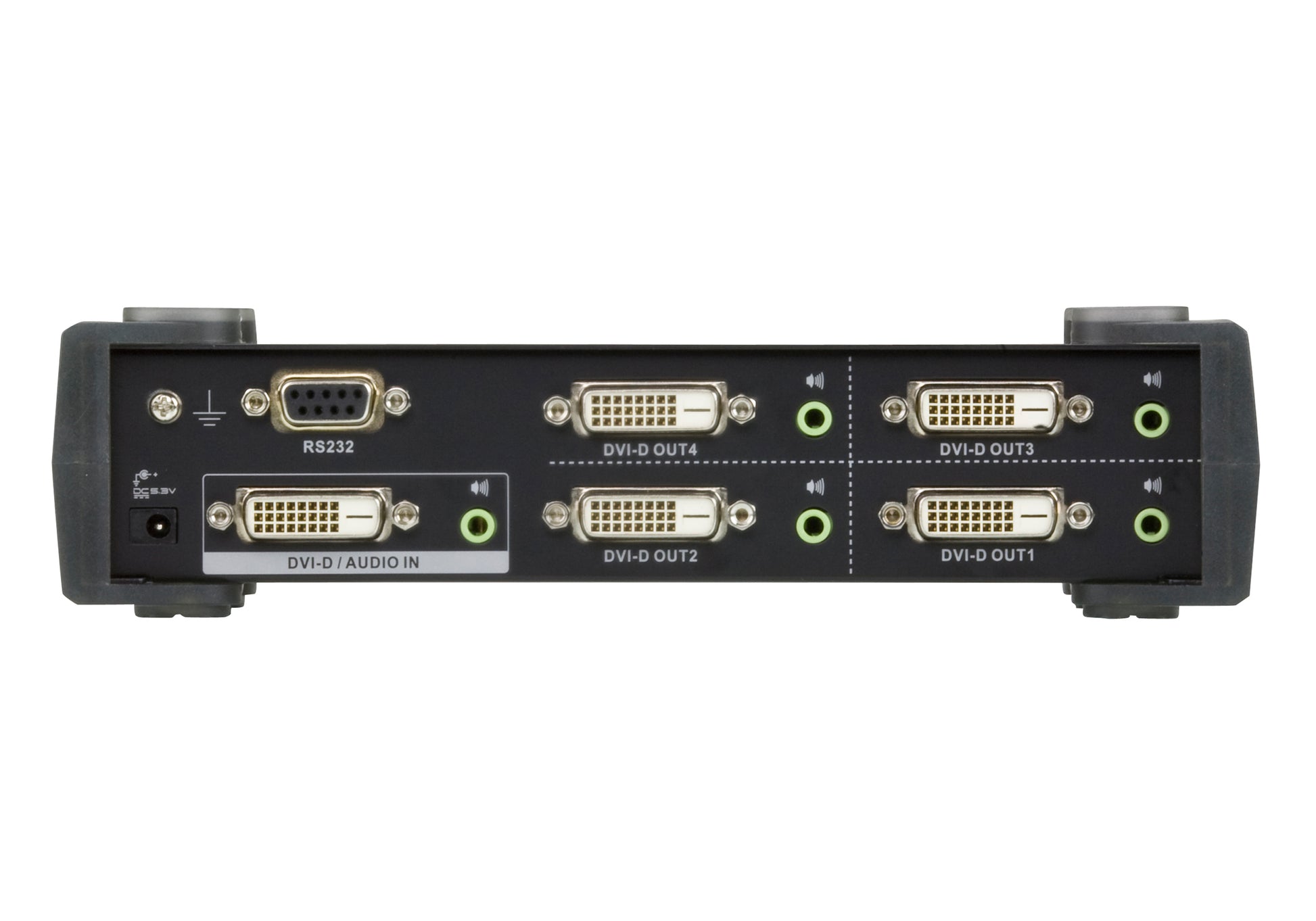

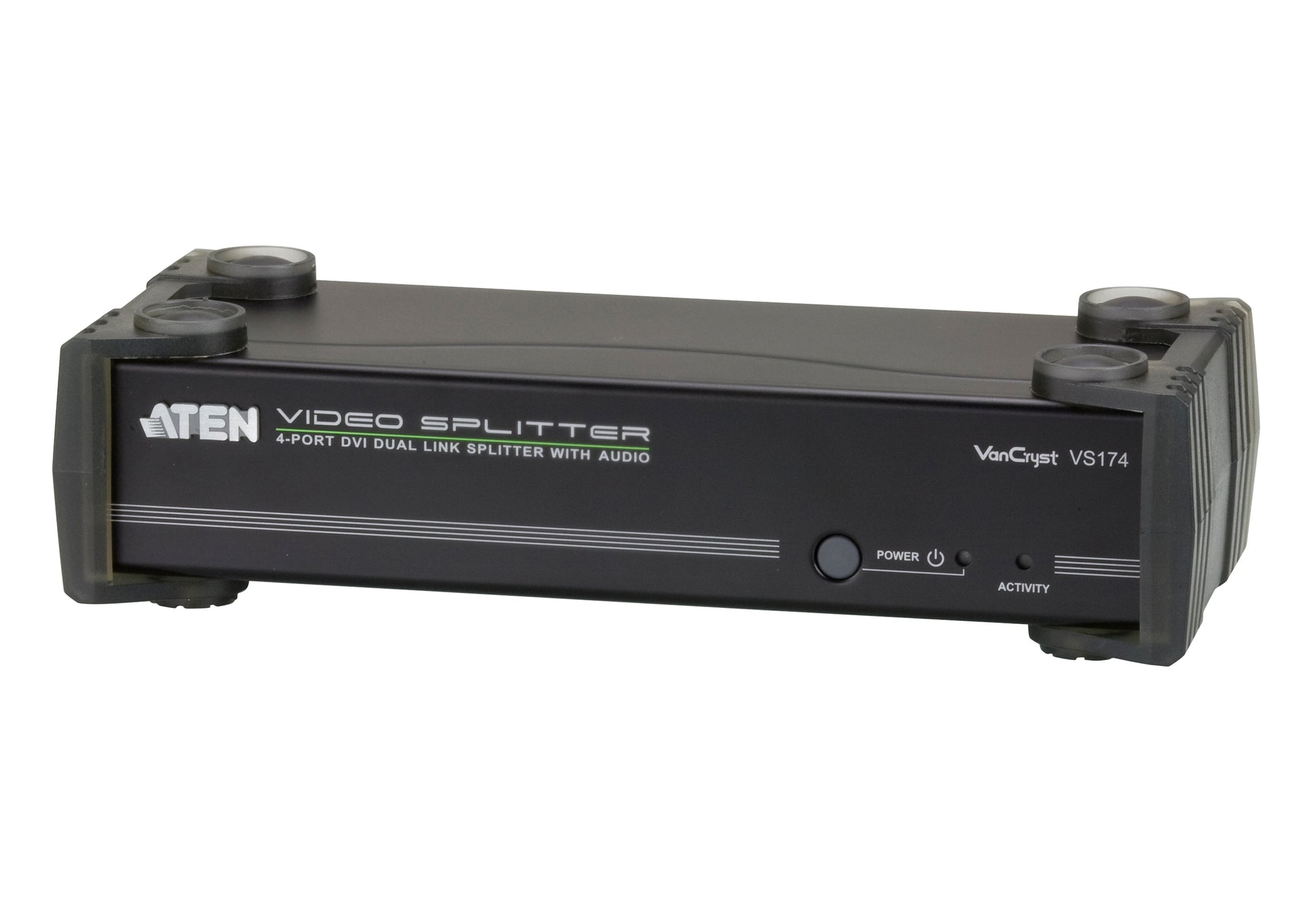

ATEN VS174 video splitter DVI 4x DVI-D
ATEN VS174 video splitter DVI 4x DVI-D
SKU: VS174
Regular price
$284.06 USD
Regular price
Sale price
$284.06 USD
MSRP: $393.00
ATEN VS174. Video port type: DVI, Video out: 4x DVI-D, Video in: DVI-D DL. Maximum resolution: 2560 x 1600 pixels, Product color: Black, Housing material: Metal. AC input voltage: 5.3 V, Power consumption (typical): 5.6 W. Dimensions (WxDxH): 3.46 x 8.27 x 2.19" (88 x 210 x 55.5 mm), Weight: 25.7 oz (730 g)
Quantity
Couldn't load pickup availability
- Details: ATEN VS174. Video port type: DVI, Video out: 4x DVI-D, Video in: DVI-D DL. Maximum resolution: 2560 x 1600 pixels, Product color: Black, Housing material: Metal. AC input voltage: 5.3 V, Power consumption (typical): 5.6 W. Dimensions (WxDxH): 3.46 x 8.27 x 2.19" (88 x 210 x 55.5 mm), Weight: 25.7 oz (730 g)
- Info: Displays DVI audio/video to multiple DVI-compatible monitors or projectors|Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)|Cascadable to 3 levels – provides up to 64 video signals|Audio enabled|Features RS-232 serial port for command controls|RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable|EDID Expert – selects the optimum EDID settings via RS-232|Note:|* The VS174 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)|** HDCP is not supported
- Certification: RoHS
- Product color: Black
- Housing material: Metal
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Dimensions (WxDxH): 3.46 x 8.27 x 2.19" (88 x 210 x 55.5 mm)
- Power LED: Yes
- Video port type: DVI
- Maximum resolution: 2560 x 1600 pixels
- DC-in jack: Yes
- Serial ports quantity: 1
- Audio input: 3.5mm
- Audio output: 3.5mm
- Video in: DVI-D DL
- Video out: 4x DVI-D
- Video ports quantity: 5
- Audio ports quantity: 5
- Power consumption (typical): 5.6 W
- AC input voltage: 5.3 V
- Weight: 25.7 oz (730 g)
