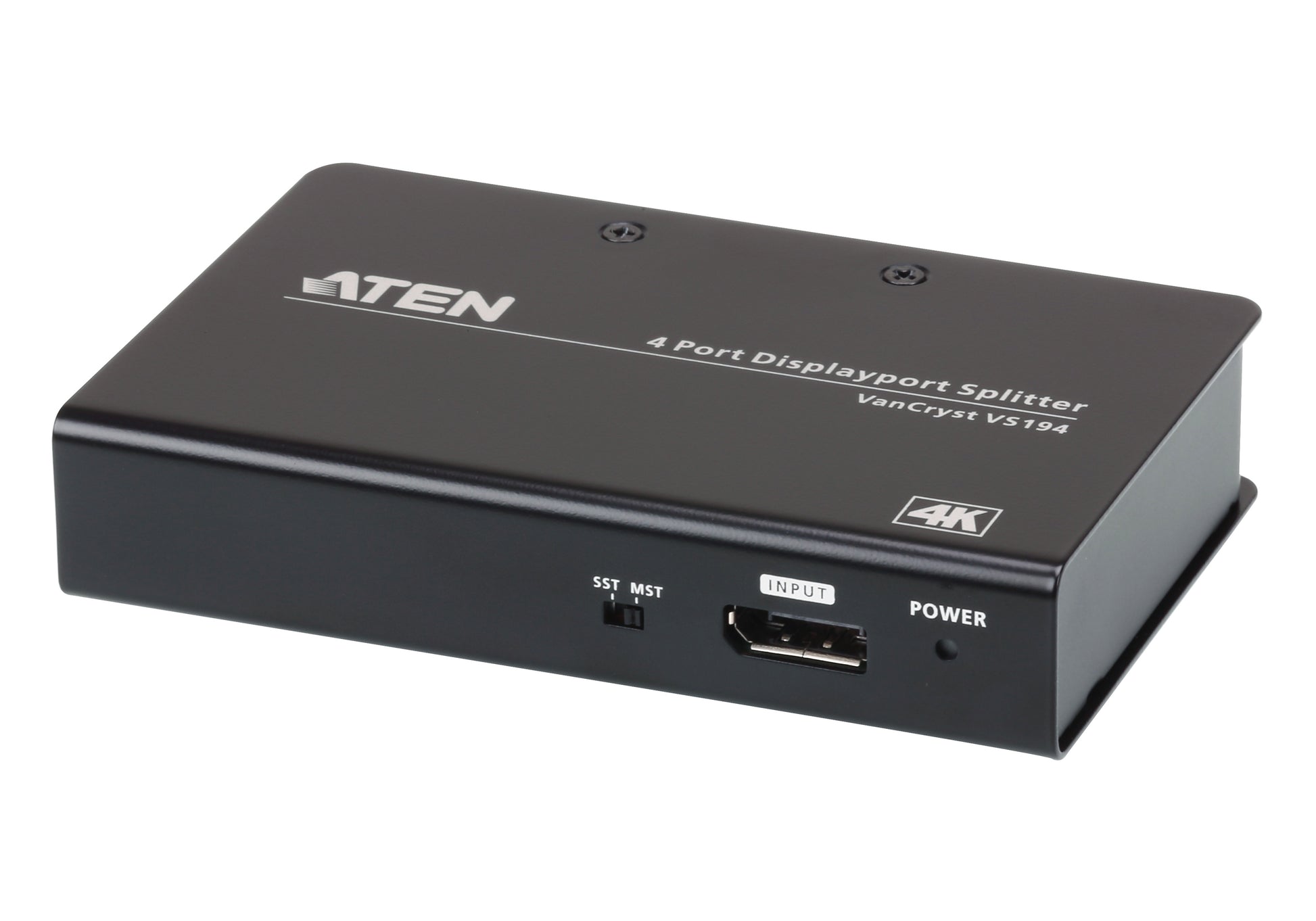

ATEN VS194 video splitter DisplayPort 4x DisplayPort
ATEN VS194 video splitter DisplayPort 4x DisplayPort
SKU: VS194
Regular price
$249.31 USD
Regular price
Sale price
$249.31 USD
MSRP: $271.00
ATEN VS194. Video port type: DisplayPort, Video out: 4x DisplayPort. Maximum resolution: 4096 x 2160 pixels, Product color: Black, Housing material: Metal. Dimensions (WxDxH): 4.92 x 3.15 x 9.84" (125 x 80 x 250 mm), Weight: 10.6 oz (300 g)
Quantity
Couldn't load pickup availability
- Details: ATEN VS194. Video port type: DisplayPort, Video out: 4x DisplayPort. Maximum resolution: 4096 x 2160 pixels, Product color: Black, Housing material: Metal. Dimensions (WxDxH): 4.92 x 3.15 x 9.84" (125 x 80 x 250 mm), Weight: 10.6 oz (300 g)
- PDF: http://objects.icecat.biz/objects/mmo_36572445_1493039409_5375_2993.pdf
- Info: Connects 1 DisplayPort source to 2 DisplayPort monitors|Supports DisplayPort 1.2a; HDCP 1.3|Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz|Supports MST/ Extend Mode and SST/ Split Mode*|MST/ Extend Mode:|Extend a video source across 4 displays with a maximum resolution of 4K.|SST/ Split Mode:|Duplicate a single video source to 4 displays with a maximum resolution of 4K on each monitor|Supports Linkrate: HBR2 (High Bit Rate 2)|Note:|* The VS194 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Product color: Black
- Housing material: Metal
- HD-Ready: Yes
- Harmonized System (HS) code: 85176990
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 0 - 80%
- Dimensions (WxDxH): 4.92 x 3.15 x 9.84" (125 x 80 x 250 mm)
- Color: Yes
- User guide: Yes
- Manual: Yes
- Video port type: DisplayPort
- Maximum resolution: 4096 x 2160 pixels
- DC-in jack: Yes
- HDCP: Yes
- Video out: 4x DisplayPort
- Video ports quantity: 4
- Full HD: Yes
- Weight: 10.6 oz (300 g)
