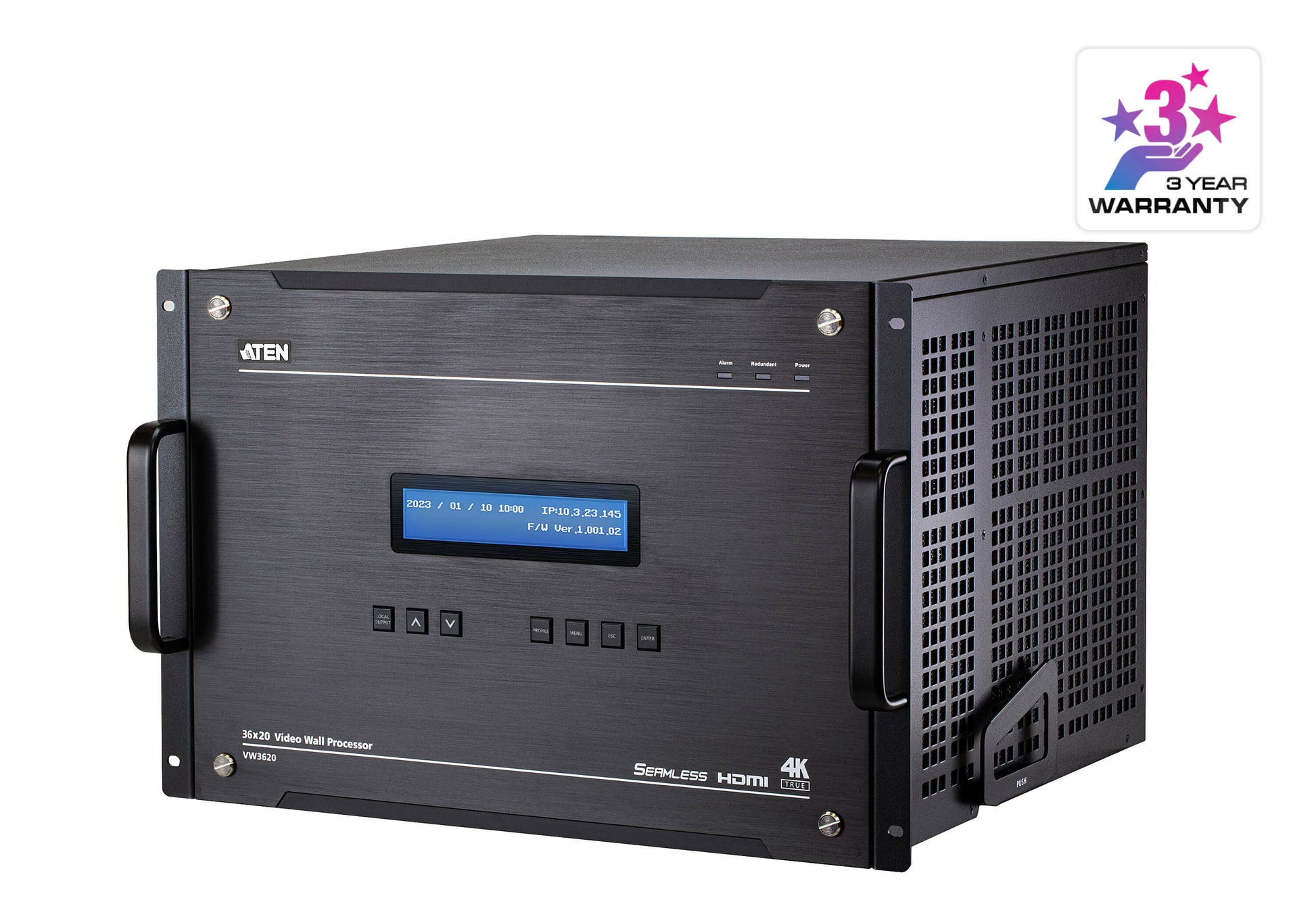

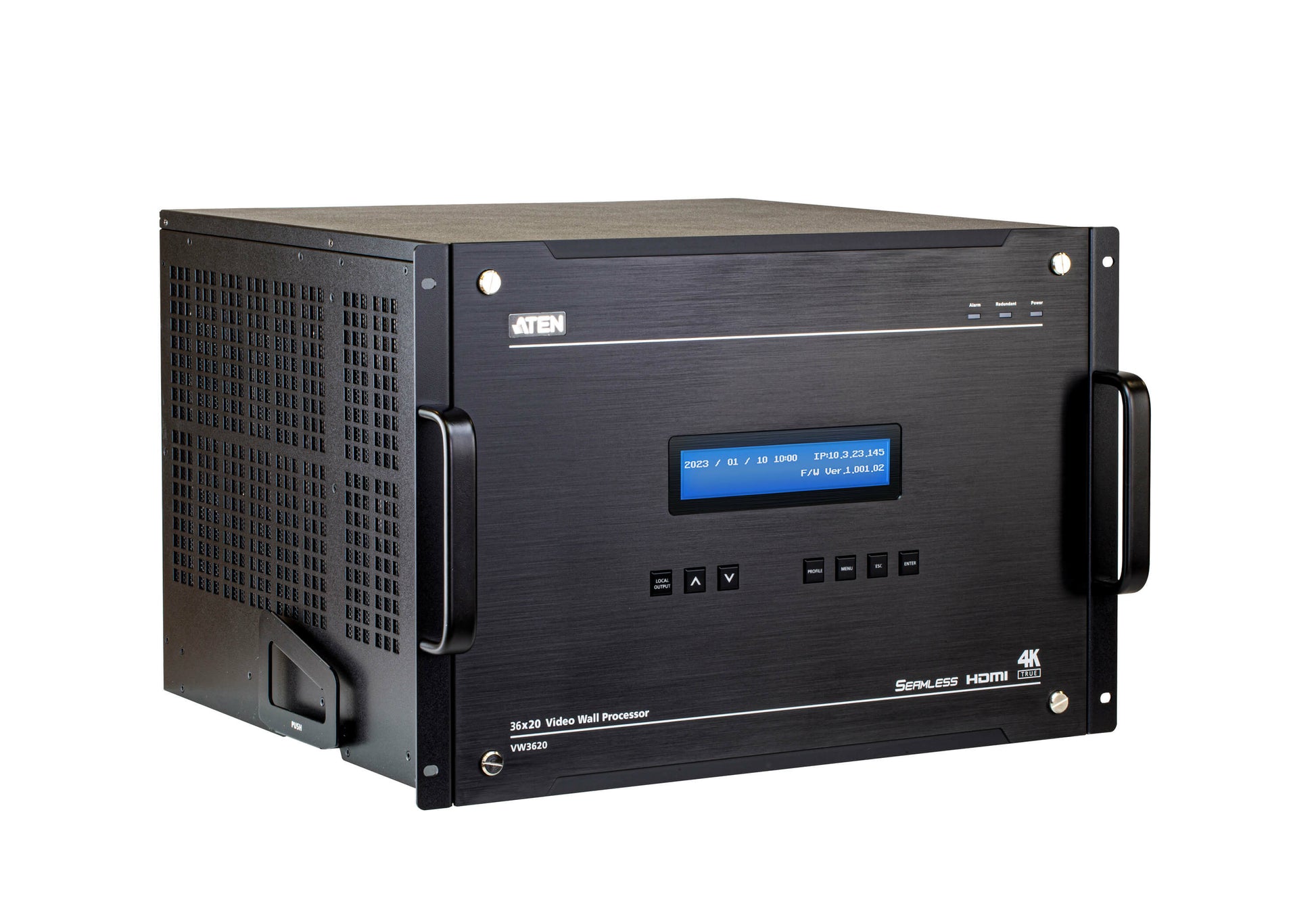

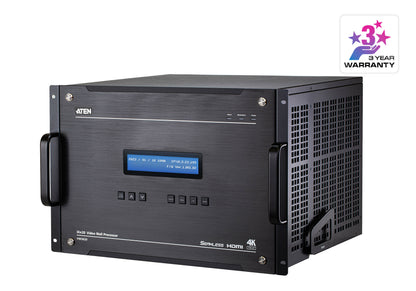

ATEN VW3620 video wall processor Black 573.4 W

ATEN VW3620 video wall processor Black 573.4 W

VW3620

$21,010.42 USD
$21,010.42 USD
Sale Sold out

MSRP: $30,212.00

ATEN VW3620. Product color: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (max): 573.4 W, Input voltage: 100 - 240 V, Input frequency: 50/60 Hz. Country of origin: Taiwan, Master (outer) case weight: 47.6 lbs (21.6 kg), Master (outer) case length: 22.8" (579 mm). Width: 18" (458 mm), Depth: 19" (482 mm), Height: 12.2" (309.8 mm)
View full details
    • Details: ATEN VW3620. Product color: Black, Housing material: Metal, Rack capacity: 1U. Power consumption (max): 573.4 W, Input voltage: 100 - 240 V, Input frequency: 50/60 Hz. Country of origin: Taiwan, Master (outer) case weight: 47.6 lbs (21.6 kg), Master (outer) case length: 22.8" (579 mm). Width: 18" (458 mm), Depth: 19" (482 mm), Height: 12.2" (309.8 mm)
    • Video/mp4: https://www.youtube.com/watch?v=gC-Q2pFk5po
    • PDF: http://objects.icecat.biz/objects/mmo_120894285_1732270519_6899_1213456.pdf|http://objects.icecat.biz/objects/mmo_120894285_1732270520_0621_1213456.pdf

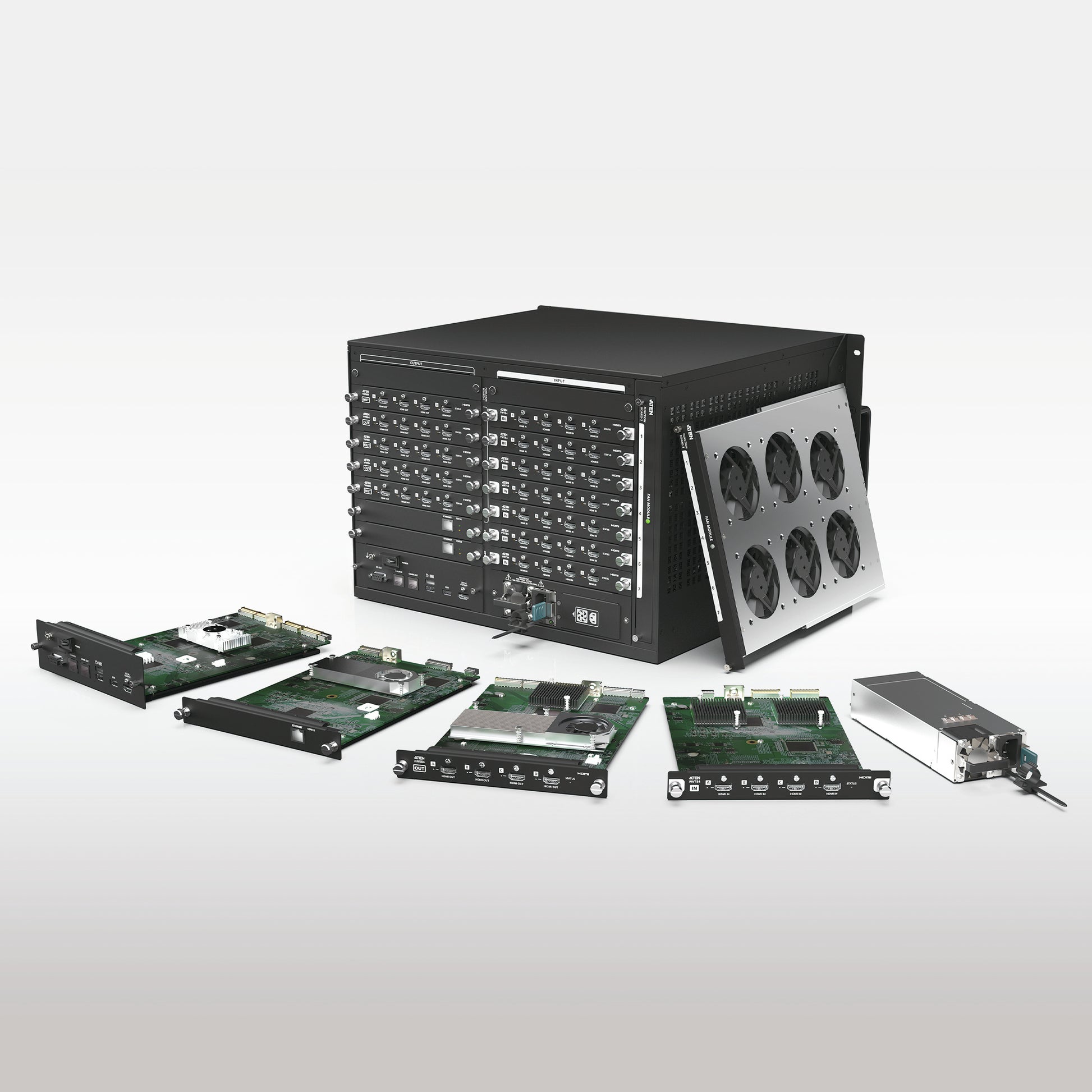

    • Info: Processes up to 36 input sources and manages up to 20 displays in any sizes at varying resolutions from a single 7U chassis|FPGA hardware architecture|– handles 4K input sources, supports near-zero-second seamless source switching, and transmits high quality video streams without delay|True 4K@60 scalability with 4:4:4 signal processing – supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens|Reliable 24/7 operation with hot-swappable, redundant CPU control board and dual power modules, and hot swappable input / output cards and cooling fan module|Powerful windowing technology for nearly restriction-free content placement – outputs signals in real-time in customizable layouts, such as PiP, PbP, source cropping, overlapping, and spreading across multiple screens, and in any sizes based on the correct aspect ratio
    • Rack mounting: Yes
    • Product color: Black
    • Housing material: Metal
    • Input frequency: 50/60 Hz
    • Country of origin: Taiwan
    • Master (outer) case weight: 47.6 lbs (21.6 kg)
    • Master (outer) case width: 20.4" (518 mm)
    • Master (outer) case length: 22.8" (579 mm)
    • Master (outer) case height: 17.2" (436 mm)
    • Ethernet LAN: Yes
    • Operating temperature (T-T): 0 - 40 °C
    • Storage temperature (T-T): -20 - 60 °C
    • Operating relative humidity (H-H): 0 - 80%
    • RJ-45 ports quantity: 1
    • Package width: 20.4" (518 mm)
    • Package height: 17.2" (436 mm)
    • Package depth: 22.8" (579 mm)
    • Package weight: 47.6 lbs (21.6 kg)
    • Built-in display: Yes
    • HDMI output ports quantity: 1
    • RS-232/422 connector: Yes
    • Power consumption (max): 573.4 W
    • Input voltage: 100 - 240 V
    • Rack capacity: 1U
    • Weight: 35.7 lbs (16.2 kg)
    • Width: 18" (458 mm)
    • Height: 12.2" (309.8 mm)
    • Depth: 19" (482 mm)
