AudioCodes RXV200-B360 video conferencing system 18 person(s) 5 MP Ethernet LAN Group video conferencing system
AudioCodes RXV200-B360 video conferencing system 18 person(s) 5 MP Ethernet LAN Group video conferencing system
SKU: RXV200-B360
Regular price
$2,852.85 USD
Regular price
Sale price
$2,852.85 USD
MSRP: $3,575.00
AudioCodes RXV200-B360. Product type: Group video conferencing system, Number of persons: 18 person(s). HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Field of view (FOV) angle: 360°. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 8", Display resolution: 1280 x 800 pixels. Operating system installed: Android. Product color: Black
Quantity
Couldn't load pickup availability
- Details: AudioCodes RXV200-B360. Product type: Group video conferencing system, Number of persons: 18 person(s). HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Field of view (FOV) angle: 360°. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 8", Display resolution: 1280 x 800 pixels. Operating system installed: Android. Product color: Black
- PDF: http://objects.icecat.biz/objects/mmo_122594302_1736246688_699_1710506.pdf|http://objects.icecat.biz/objects/mmo_122594302_1736246688_7192_1710506.pdf|http://objects.icecat.biz/objects/mmo_122594302_1736246688_7418_1710506.pdf|http://objects.icecat.biz/objects/mmo_122594302_1736246688_7764_1710506.pdf|http://objects.icecat.biz/objects/mmo_122594302_1736246688_7964_1710506.pdf
- Number of microphones: 4
- Frequency range: 100 - 20000 Hz
- Microphone pick-up range: 118.1" (3 m)
- Automatic gain control: Yes
- Field of view (FOV) angle: 360°
- Camera type: Quad camera
- Image sensor size: 1/2.7"
- Effective sensor resolution: 5 MP
- Computer system type: Mini PC
- Display diagonal: 8"
- Display resolution: 1280 x 800 pixels
- Touchscreen: Yes
- HD type: 4K Ultra HD
- Supported graphics resolutions: 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
- Aspect ratio: 16:9
- Product color: Black
- Product type: Group video conferencing system
- Output voltage Total Harmonic Distortion (THD): 5%
- Focal length range: 2.49 mm

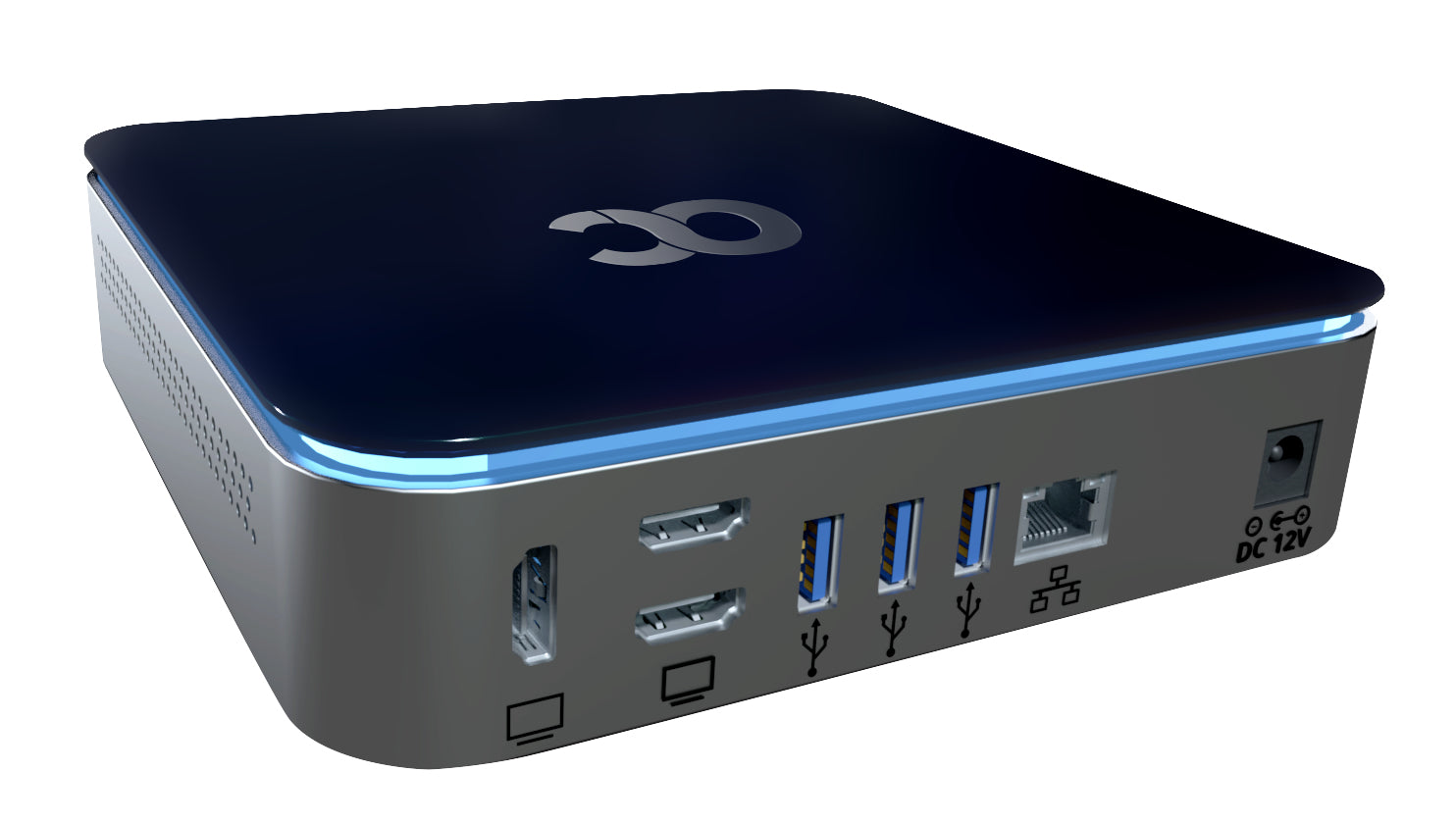

- Interface module HDMI ports quantity: 3
- Interface module HDMI input ports quantity: 1
- Interface module HDMI output ports quantity: 2
- Interface module Ethernet LAN (RJ-45) ports: 1
- Zoom capability: Yes
- Microphone sensitivity: 38 dB
- Microphone frequency: 100 - 8000 Hz
- Microphone mute: Yes
- Microphone color: Black
- Sound pressure level (max): 75 dB
- Built-in speaker(s): Yes
- Number of speakers: 1
- RMS rated power: 8 W
- Megapixel: 5 MP
- Networking standards: IEEE 802.1Q, IEEE 802.1p
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Quality of Service (QoS) support: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Security algorithms: 256-bit AES
- VLAN support: Yes
- Supported network protocols: TCP/IP (IPv4)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.0
- Operating temperature (T-T): -10 - 50 °C
- Storage temperature (T-T): -10 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 20 - 90%

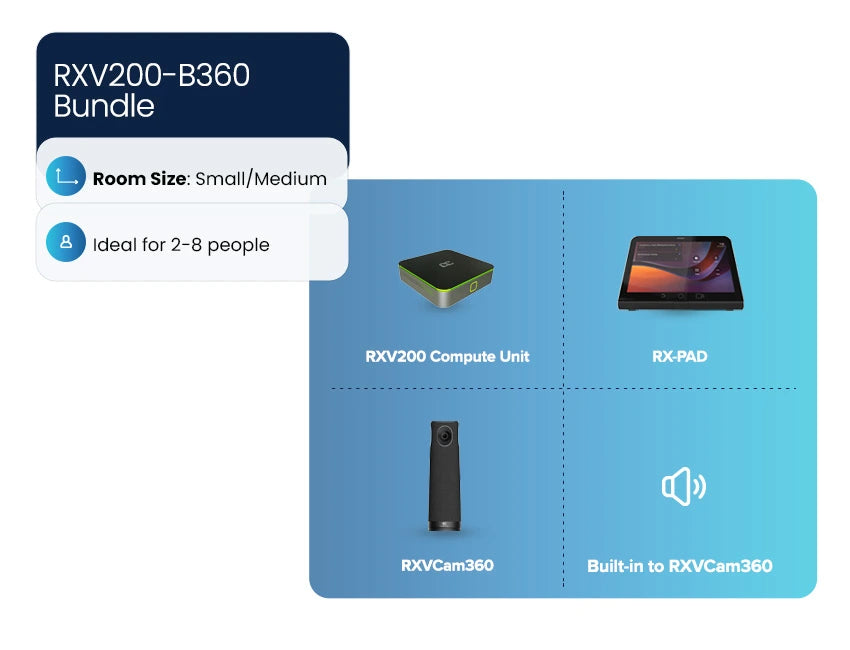

- Packaging content: ? RXV200
- ? RXVCam360

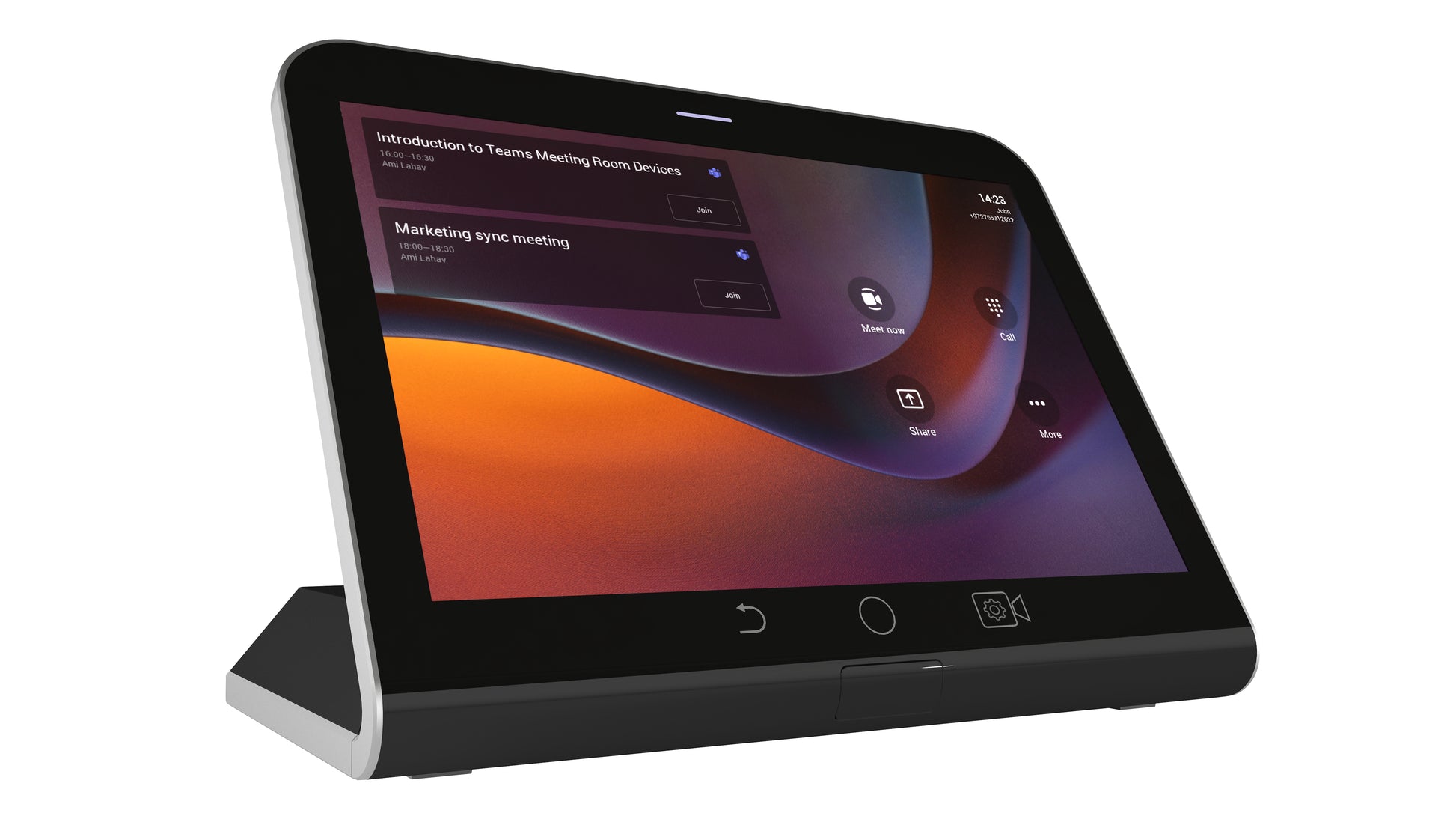

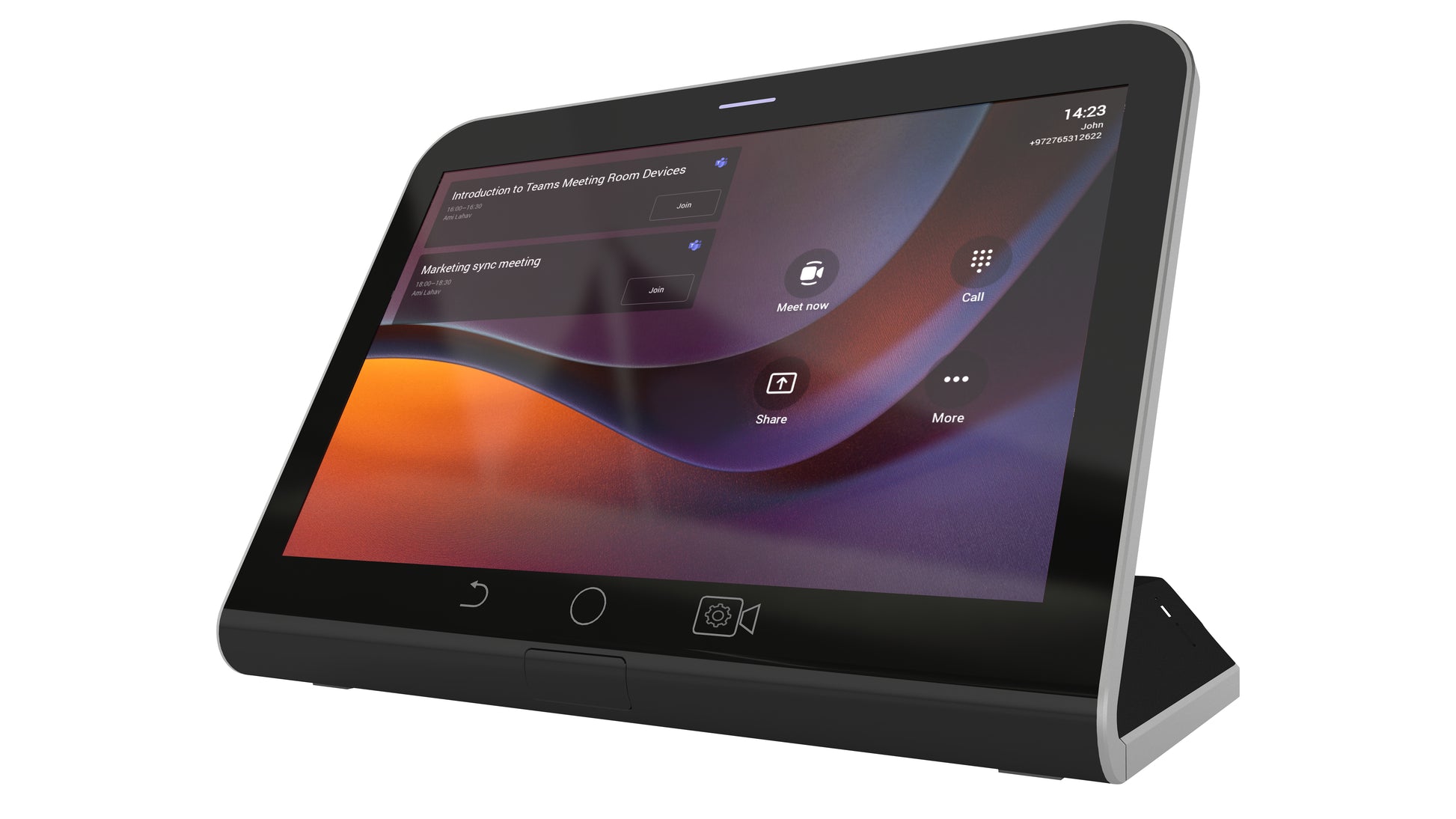

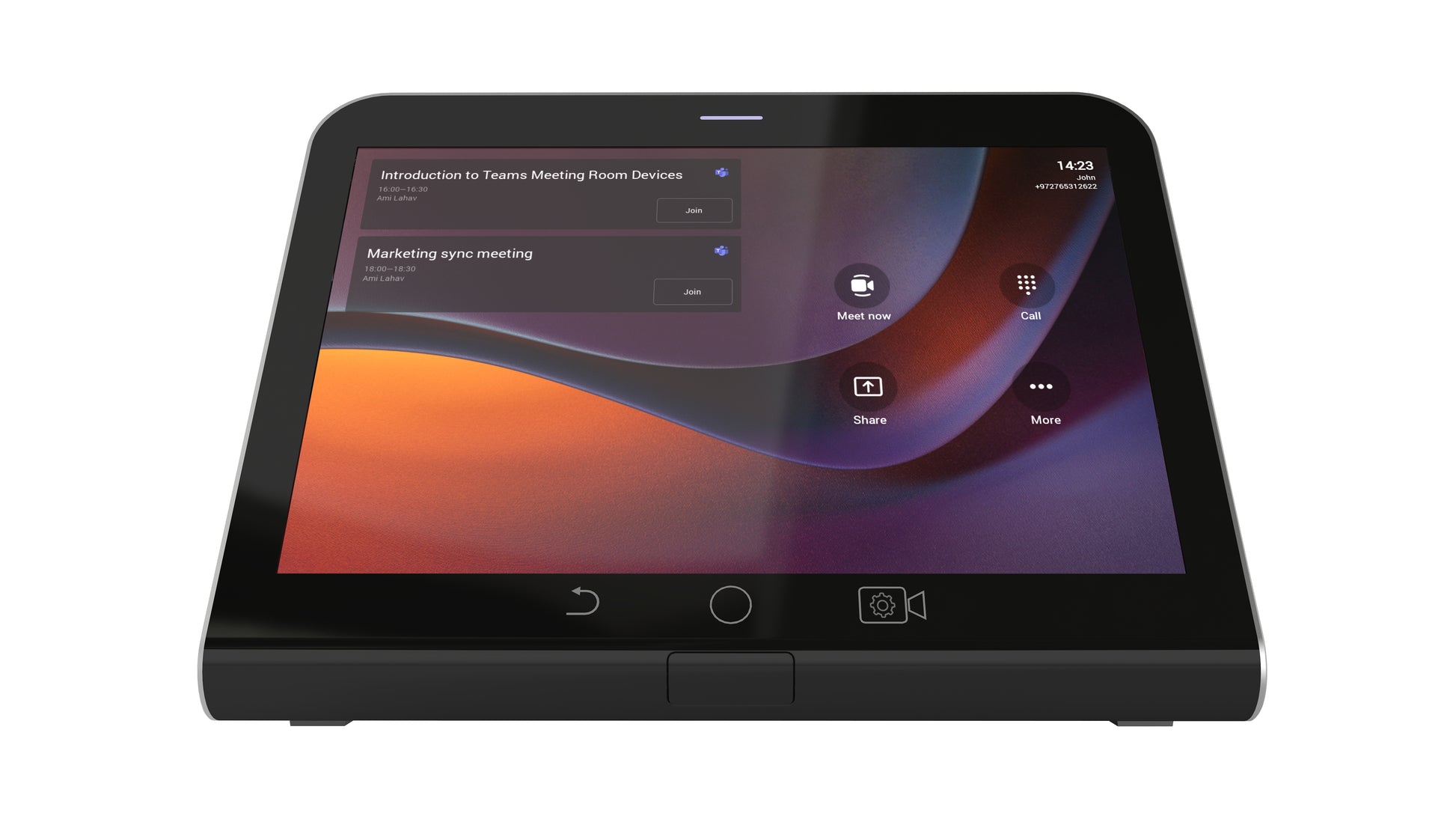

- ? RX-PAD
- ? 12V 3A Power Adapter (100-240V)
- ? USB Type C cable
- ? Ethernet cable
- Current: 3 A
- Cables included: LAN (RJ-45), USB Type-C
- AC adapter included: Yes
- Number of cameras: 1
- Built-in display: Yes
- USB connector type: USB Type-A, USB Type-C
- Maximum video resolution: 3840 x 2160 pixels
- Video formats supported: MJPG, NV12, YUV
- Maximum frame rate: 30 fps
- Number of persons: 18 person(s)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- DC input voltage: 12 V
- Power source type: DC
- Processor family: Qualcomm Snapdragon
- Processor model: QCS8250
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Operating system installed: Android
- Resolution at capture speed: 640x480@30fps, 1280x720@30fps, 1920x1080@30fps, 2560x1440@30fps, 3840x2160@30fps
- Camera dimensions (WxDxH): 3.33 x 3.33 x 10.8" (84.5 x 84.5 x 274.9 mm)
- Interface module dimensions (W x D x H): 6.69 x 6.69 x 1.63" (170 x 170 x 41.3 mm)
- Interface module weight: 26.5 oz (750 g)
- Camera weight: 28.2 oz (800 g)
