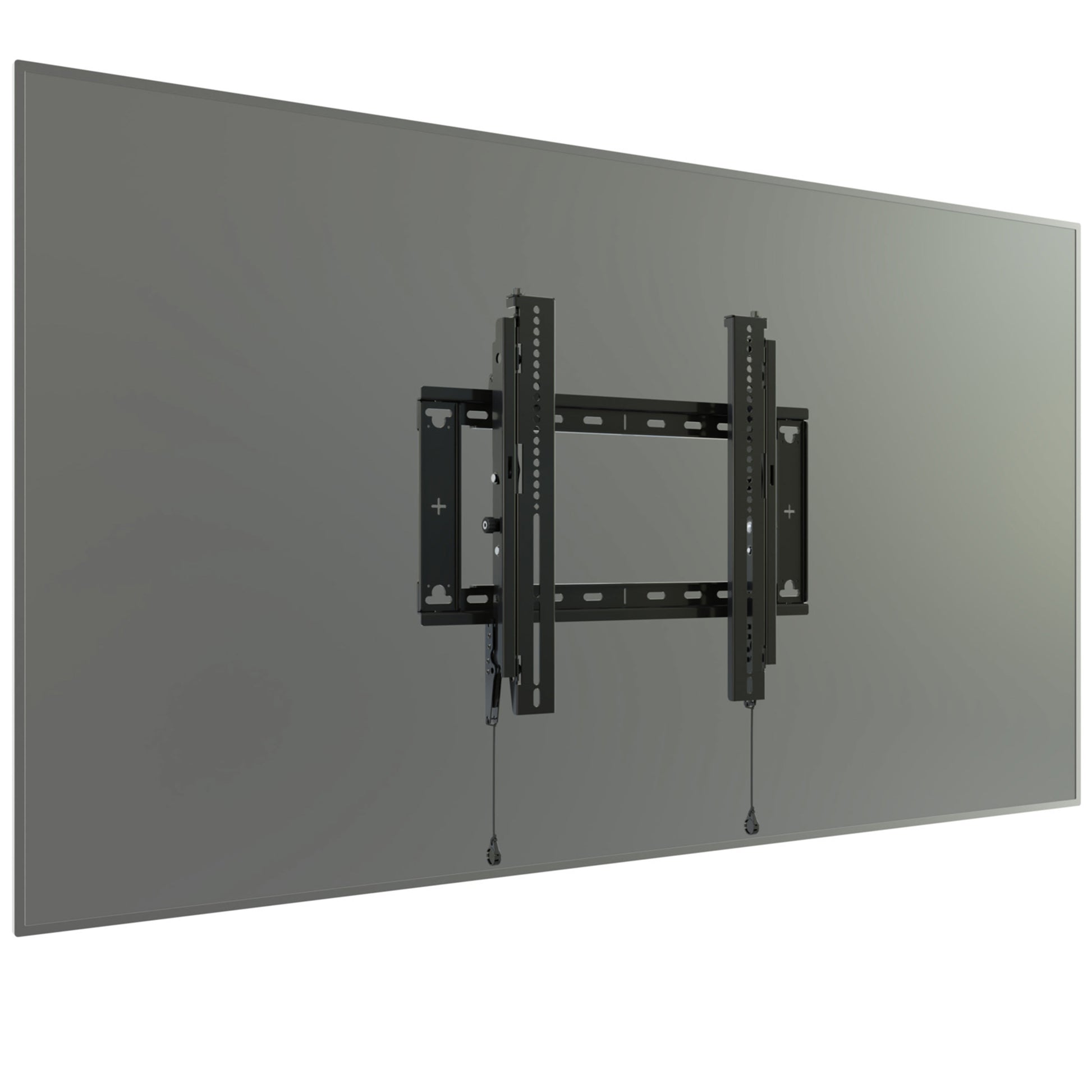

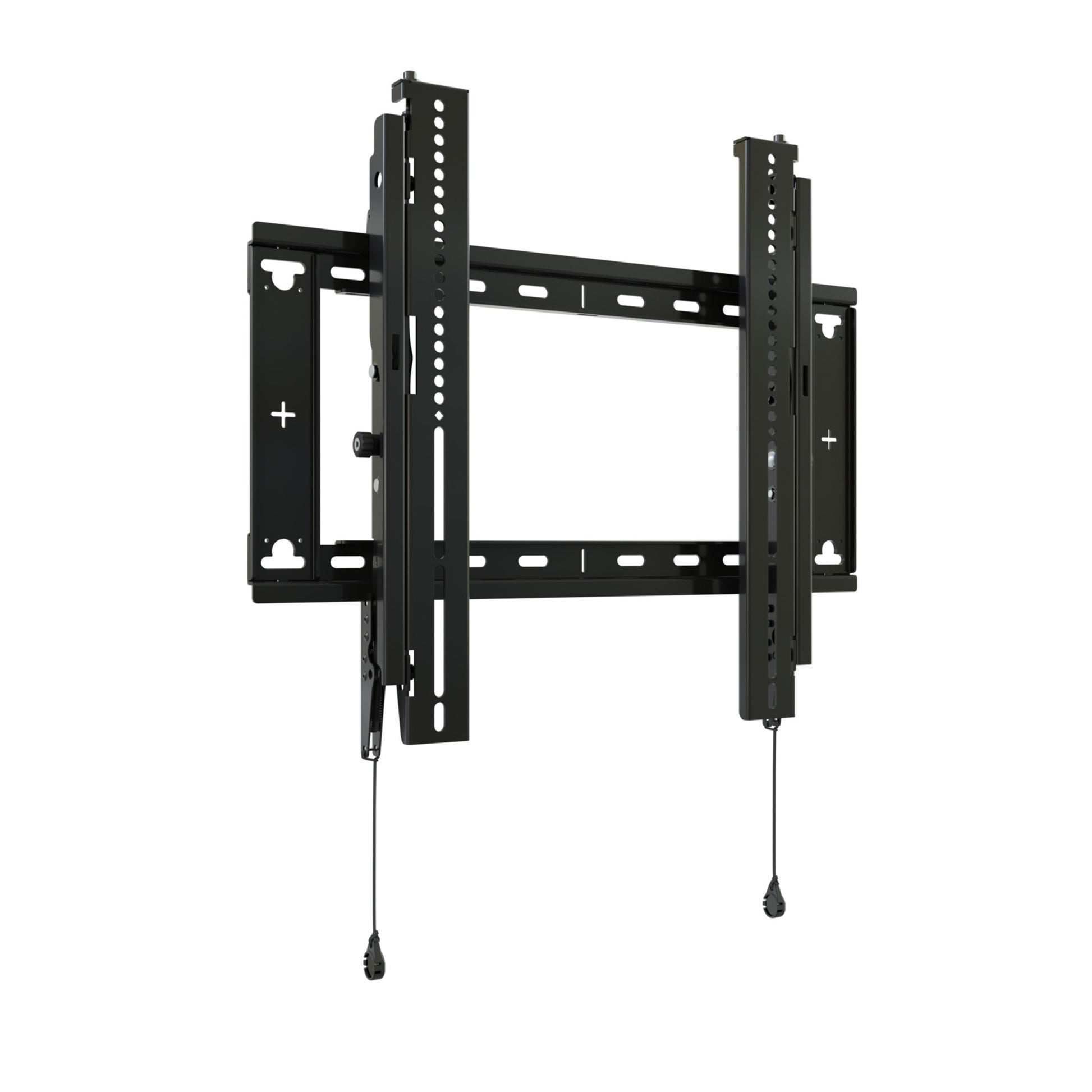

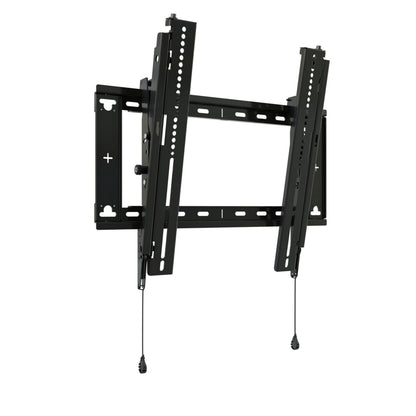

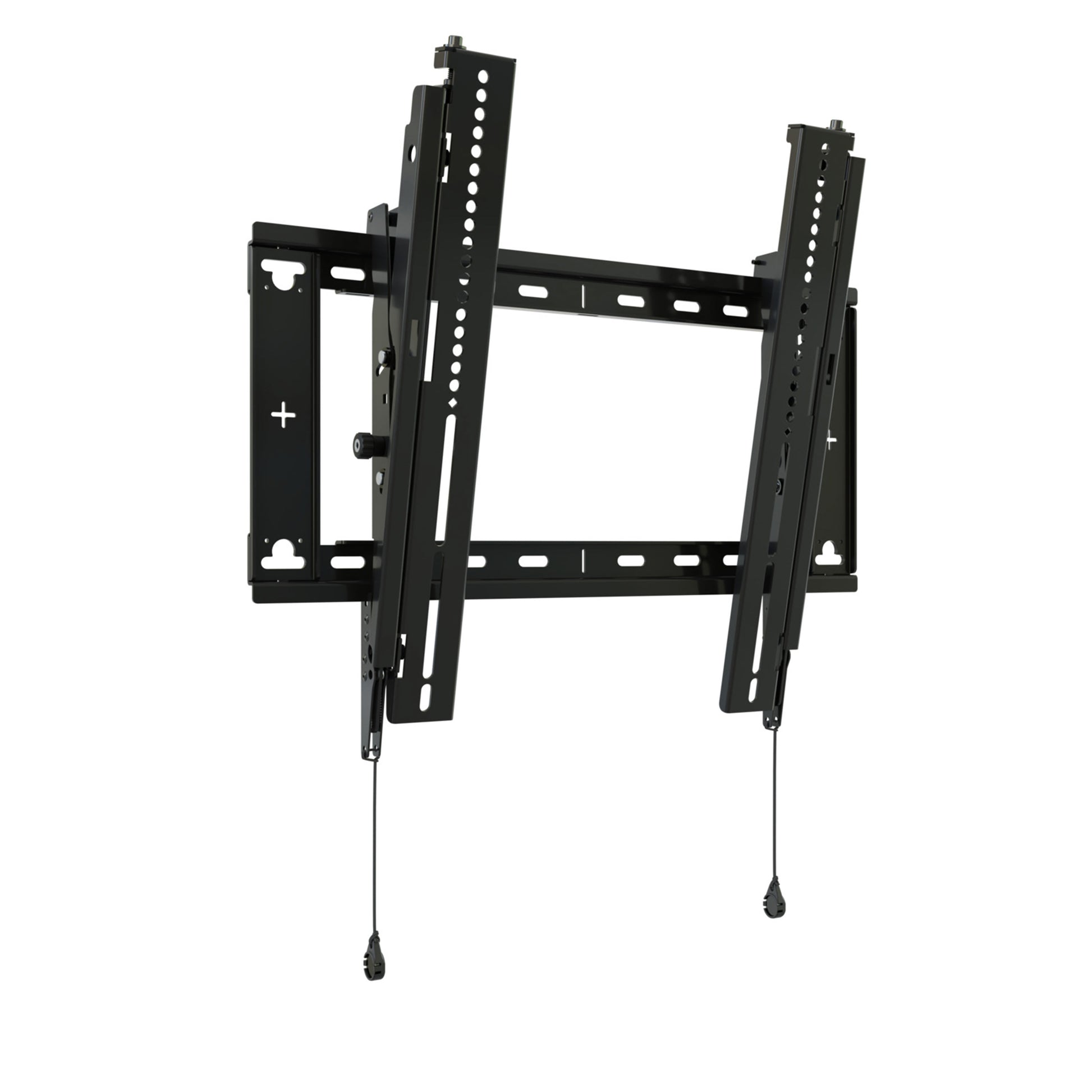

- Details: Chief RMT3. Maximum weight capacity: 125 lbs (56.7 kg), Minimum screen size: 32", Maximum screen size: 65", Maximum VESA mount: 20 x 17.7" (508 x 450 mm). Tilt angle range: -12 - 0°. Product color: Black
- PDF: http://objects.icecat.biz/objects/mmo_102157952_1677892152_9757_2322.pdf
- Info: Low-profile 2” (51 mm) depth facilitates ADA compliance for typical AV design requirements|Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included|Display can be tilted up to 12° to set the optimal viewing angle|Open wall plate allows for flexible positioning around power and data wall boxes|Supports display mounting patterns up to 508 x 450 mm|Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience|Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen|Easy access magnetic quick-store release pullcords|Kickstand for easy access to power and signal connections|Theft deterrent security options (not included)|UL and TUV safety standards approved
- Certification: TUV, UL Listed
- Tilt adjustment: Yes
- Tilt angle range: -12 - 0°
- Height adjustment: Yes
- Height adjustment type: Manual
- Product color: Black
- Maximum weight capacity: 125 lbs (56.7 kg)
- Maximum screen size: 65"
- Number of displays supported: 1
- Minimum screen size: 32"
- Maximum VESA mount: 20 x 17.7" (508 x 450 mm)
- Mounting type: Wall
- Quantity per pack: 1 pair(s)
- Package weight: 14.6 lbs (6.6 kg)
- Width: 22" (559 mm)
- Height: 19.2" (487 mm)
- Depth (max): 2.01" (5.1 cm)
- Depth (min): 2.01" (5.1 cm)
