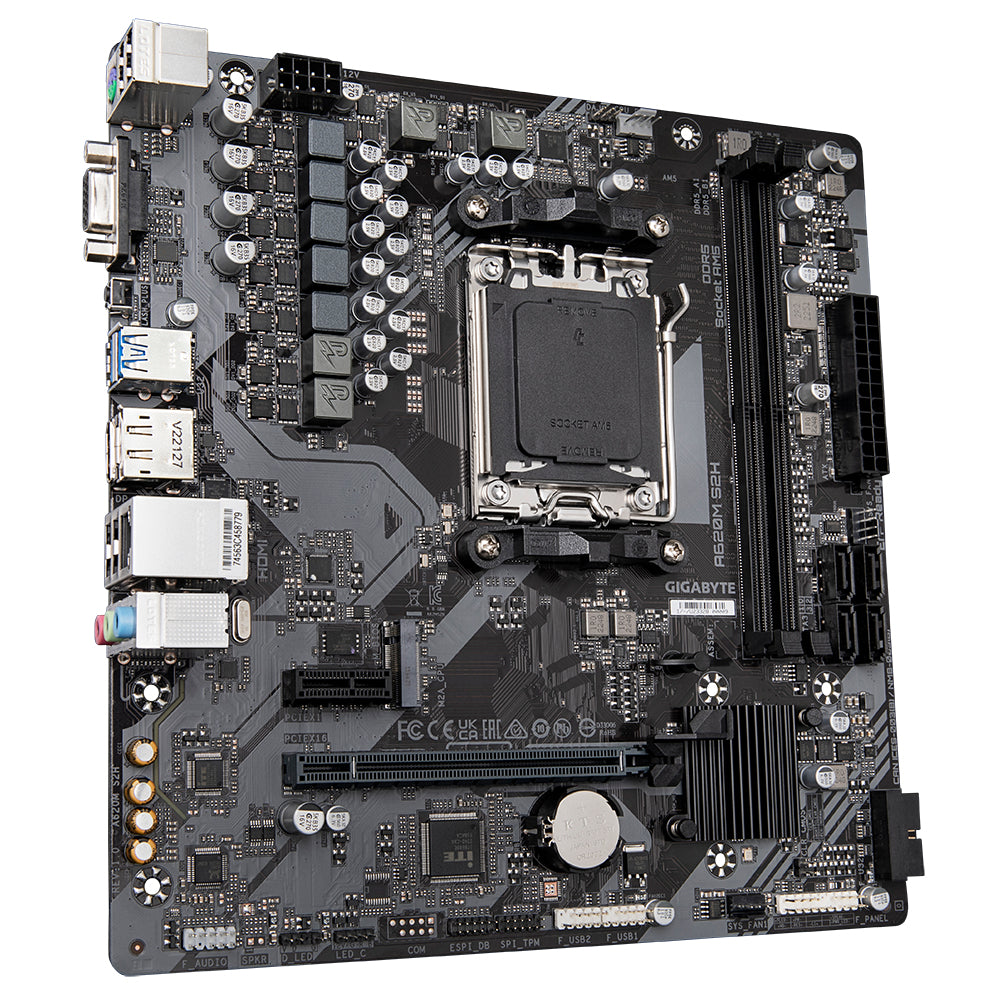

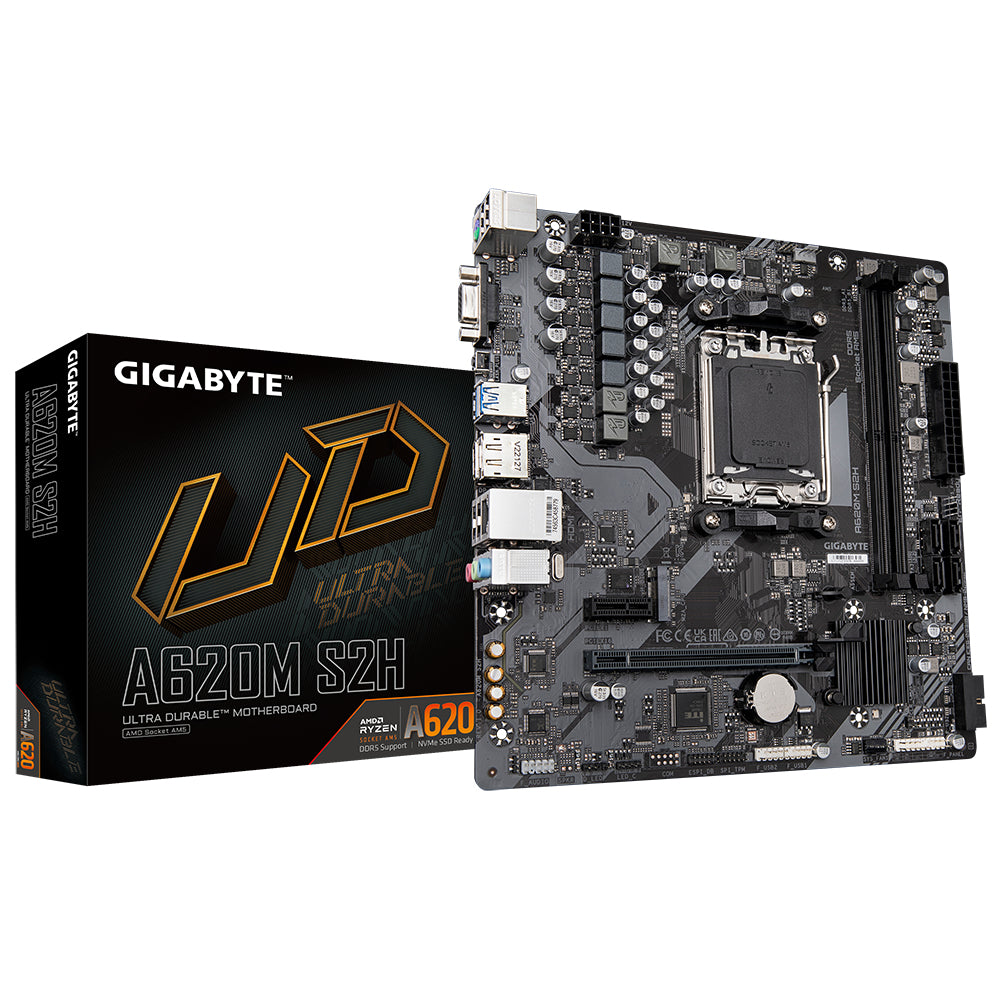

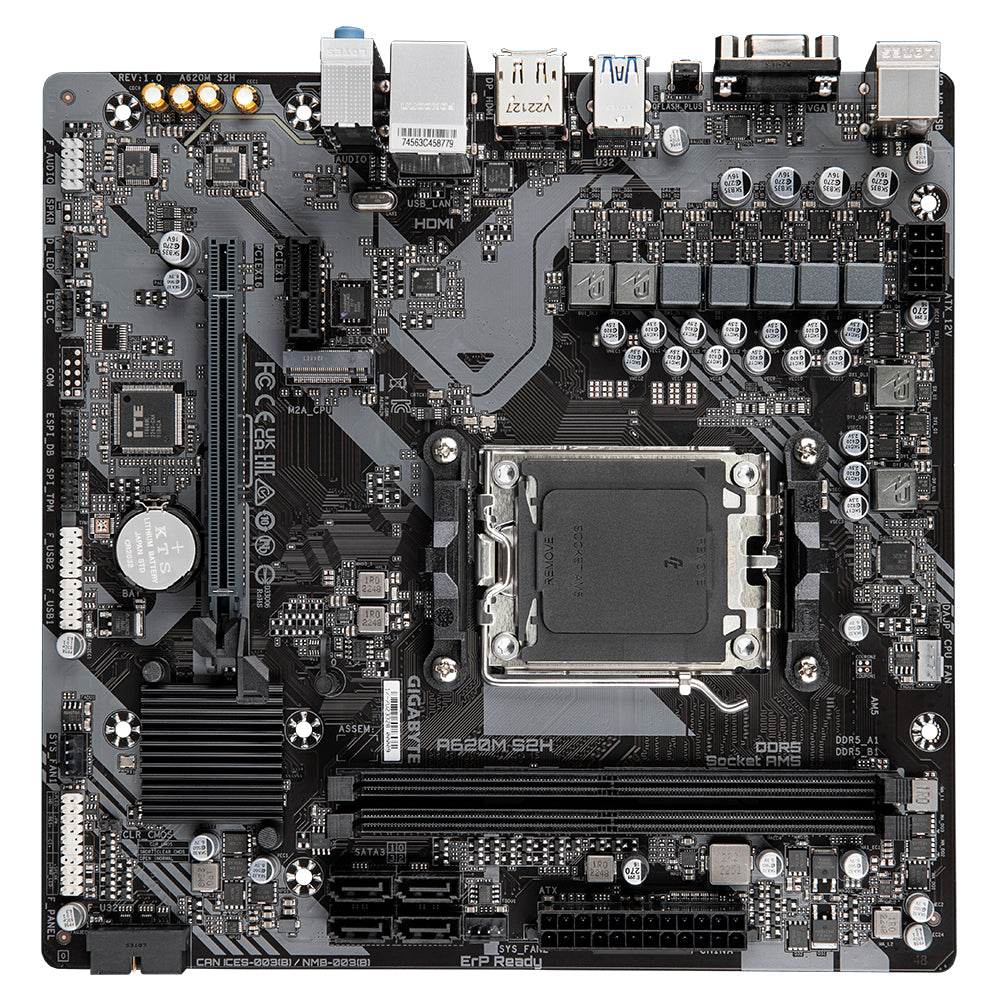

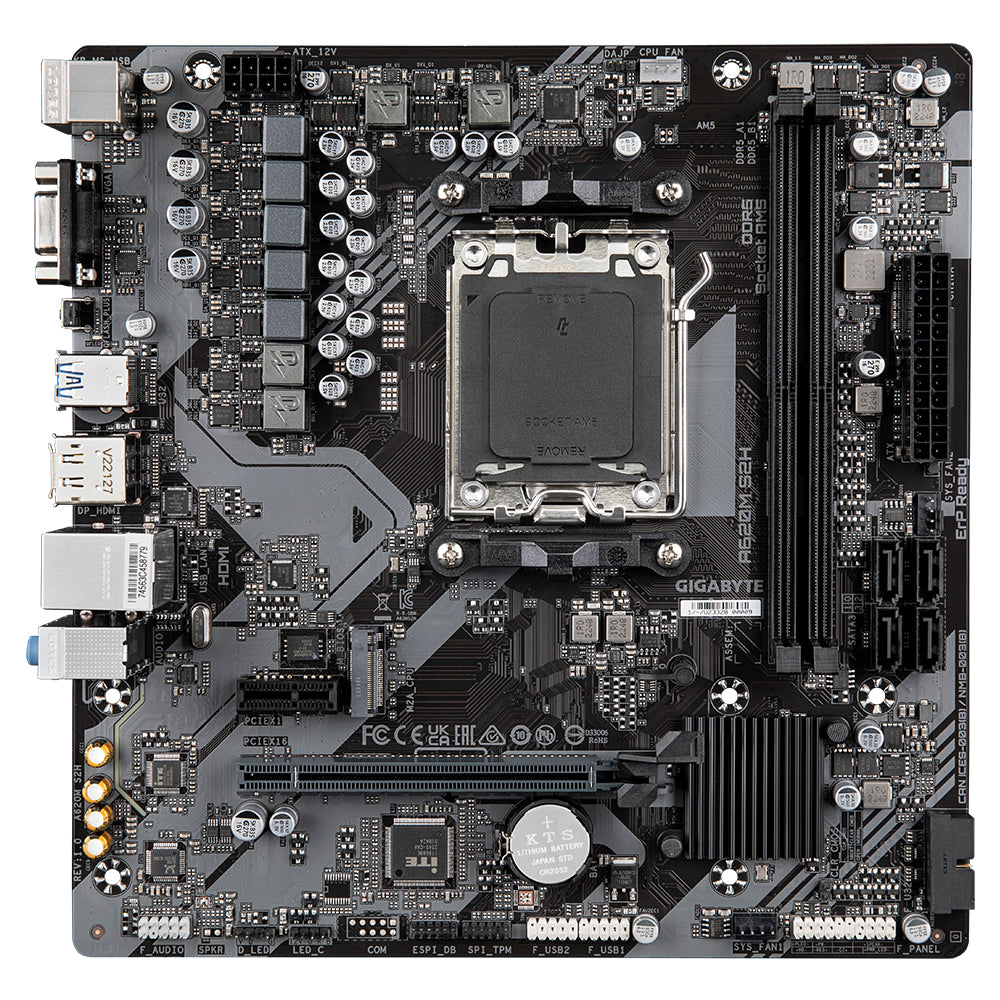

GIGABYTE A620M S2H motherboard AMD A620 Socket AM5 micro ATX
GIGABYTE A620M S2H motherboard AMD A620 Socket AM5 micro ATX
SKU: A620M S2H
Regular price
$99.99 USD
Regular price
Sale price
$99.99 USD
MSRP: $99.99
GIGABYTE A620M S2H. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Quantity
Couldn't load pickup availability
- Details: GIGABYTE A620M S2H. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

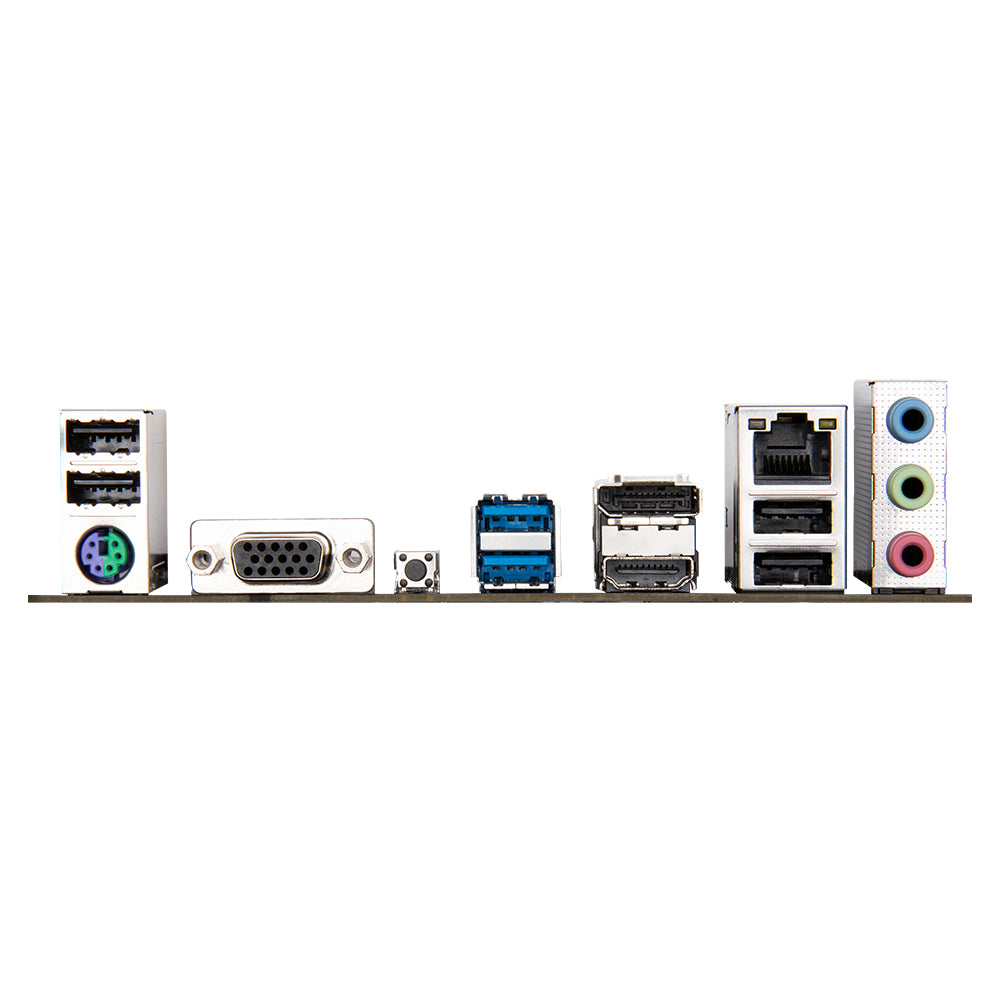

- Info: AMD Socket AM5?Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors|Unparalleled Performance?5+2+2 Phases Digital VRM Solution|Dual Channel DDR5?2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support|SuperSpeed Storage?PCIe 4.0 x4 M.2 Connector|EZ-Latch?PCIe x16 Slot with Quick Release Design|Fast Networks?GbE LAN|Extended Connectivity?DP, HDMI, D-Sub|Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP|Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- PCI Express x16 slots: 1
- PCI Express x1 slots: 1
- Number of M.2 (M) slots: 1
- Product color: Brown
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel connector: Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 96 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6800,7200 MHz
- Memory slots type: DIMM
- Number of memory slots: 2
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- Unbuffered memory: Yes
- Supported memory clock speed (max): 7200 MHz
- Ethernet LAN: Yes
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- ACPI version: 5.0
- Bundled software: Norton Internet Security
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Cables included: SATA
- Batteries included: Yes
- Package width: 10.4" (265 mm)
- Package height: 2.13" (54 mm)
- Package depth: 10.4" (265 mm)
- Package weight: 32 oz (907 g)
- USB connector type: USB Type-A, USB Type-C
- Maximum resolution: 4096 x 2160 pixels
- Motherboard chipset: AMD A620
- Compatible processor series: AMD Ryzen 7000 Series
- Supported processor sockets: Socket AM5
- DirectX version: 12.0
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 3
- DisplayPorts quantity: 1
- Microphone in: Yes
- HDCP: Yes
- DisplayPort version: 1.4
- PS/2 ports quantity: 1
- Total number of SATA connectors: 4
- Number of SATA III connectors: 4
- Battery type: CR2032
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Maximum internal memory supported by processor: 96 GB
- Number of storage drives supported: 5
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 4
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Width: 9.06" (230 mm)
- Height: 1.38" (35 mm)
- Depth: 8.86" (225 mm)
- Battery weight: 0.106 oz (3 g)
