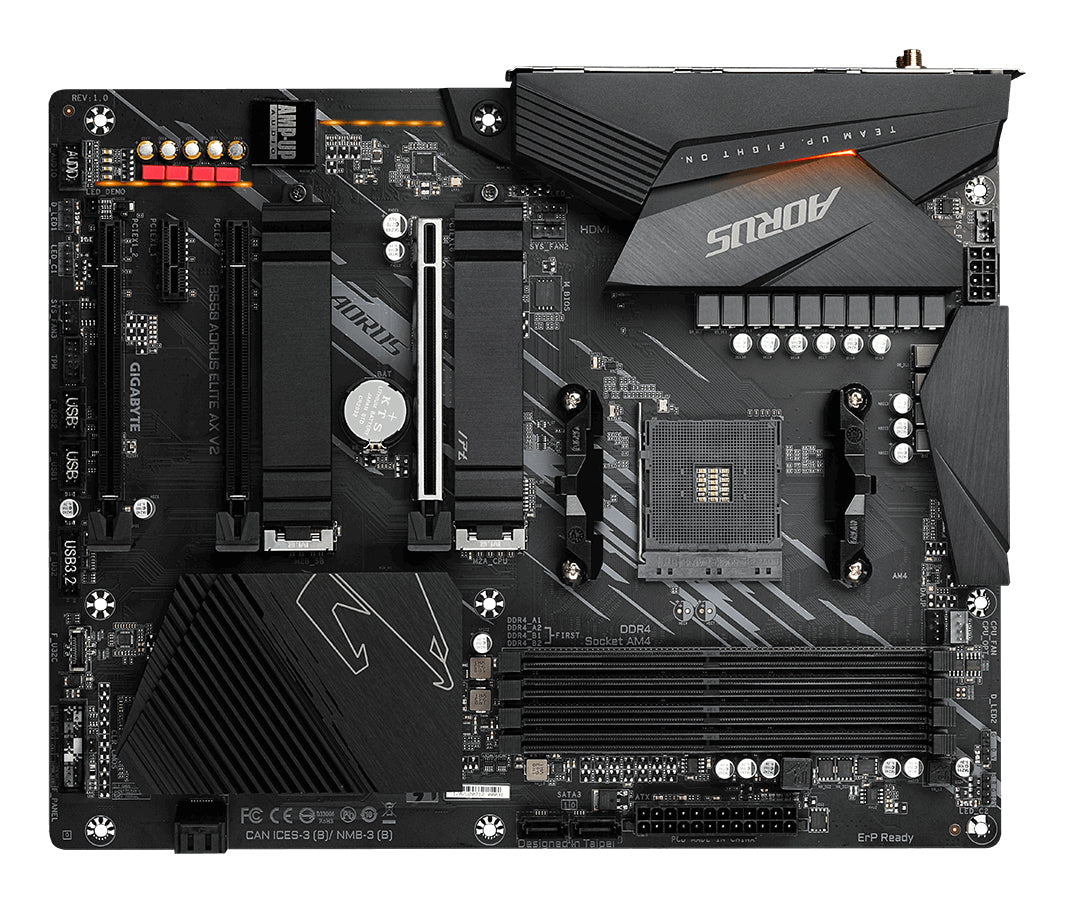

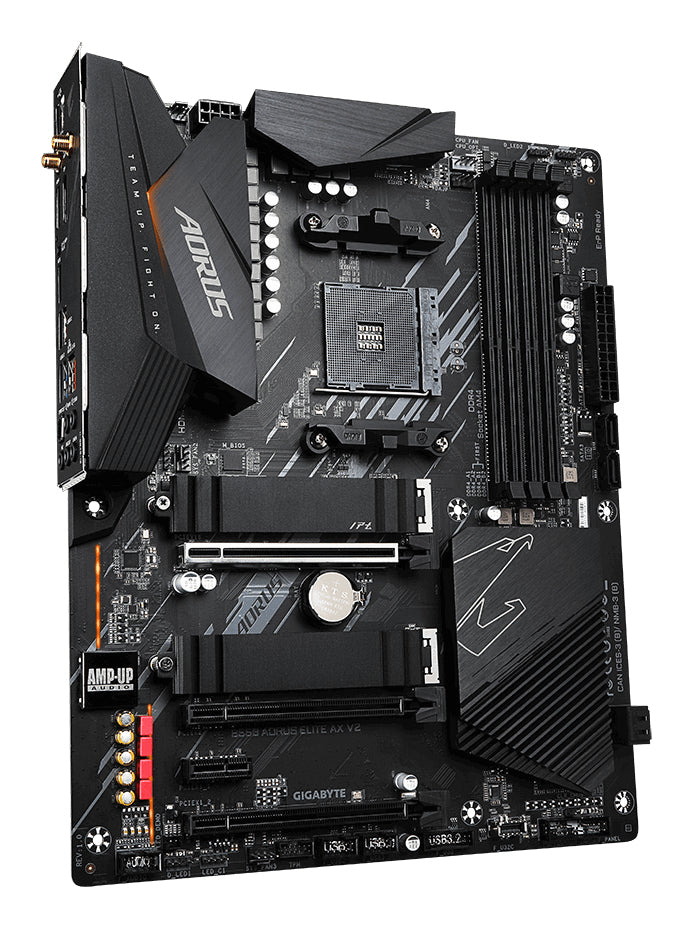

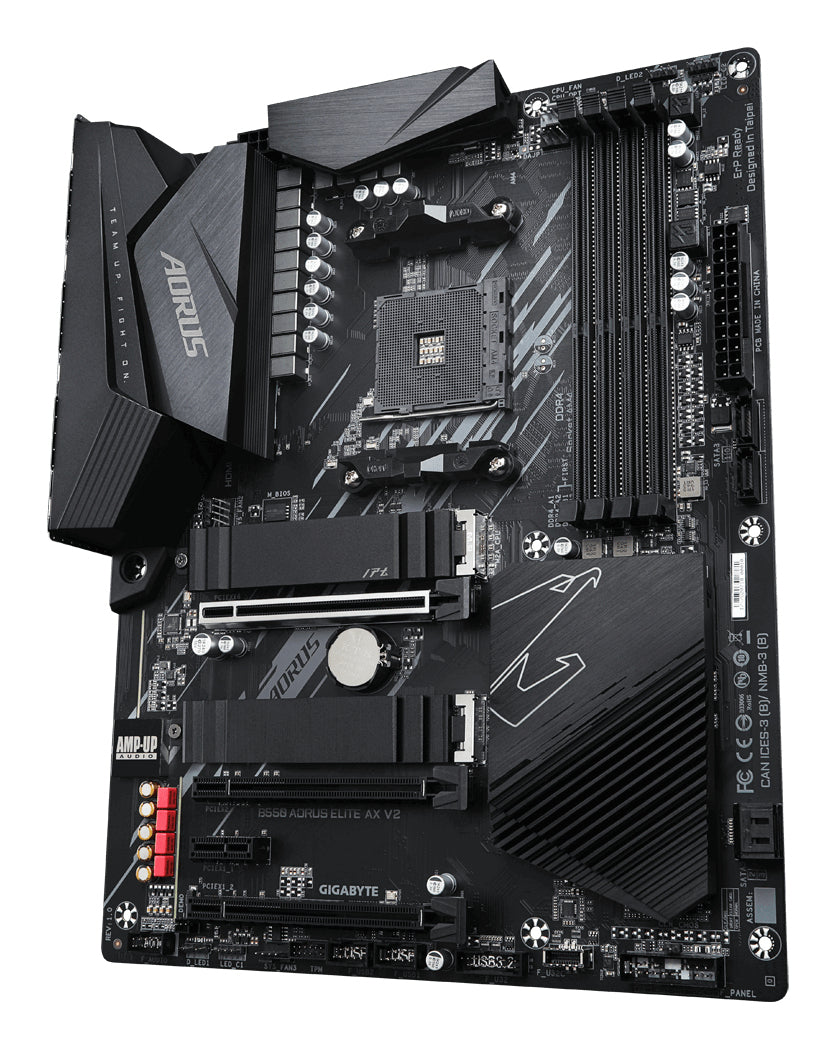

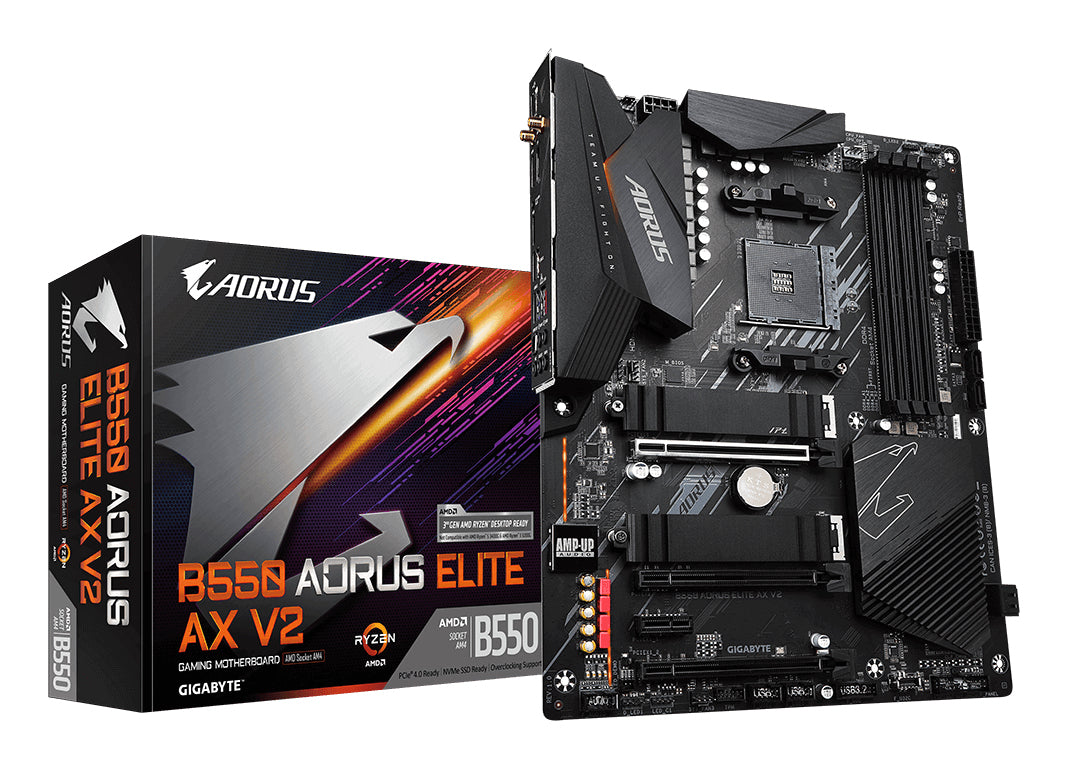

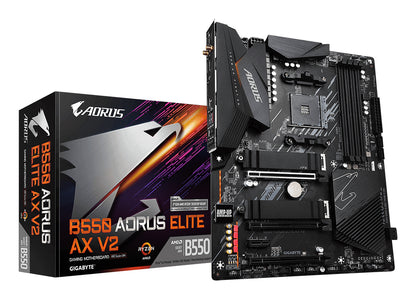

GIGABYTE B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX
GIGABYTE B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX
SKU: B550 AORUS ELITE AX V2
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
GIGABYTE B550 AORUS ELITE AX V2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Quantity
Couldn't load pickup availability
- Details: GIGABYTE B550 AORUS ELITE AX V2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Info: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors|Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs|12+2 Phases Digital Twin Power Design with 50A DrMOS|Advanced Thermal Design with Enlarged Surface Heatsinks|Ultra Durable™ PCIe 4.0 x16 Slot|Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards|Onboard WiFi 6E 802.11ax & BT 5.2|AMP-UP Audio with ALC1200 and WIMA Capacitors|Blazing Fast 2.5GbE LAN with Bandwidth Management|Front USB 3.2 Gen1 Type-C and DisplayPort & HDMI for Multiple Display|RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips|Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP|Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card|Pre-installed IO Shield for Easy and Quick Installation
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- Cooling type: Passive
- PCI Express x16 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 1st M.2 largest key size: 22110
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 3.0
- Product color: Black
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Audio chip: Realtek ALC897
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 3
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel connector: Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of CPU fan connectors: 1
- Number of water pump connectors: 4
- Number of RGB LED pin headers: 5
- Number of EPS power connectors (8-pin): 1
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR4-SDRAM
- ECC ?ompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory clock speed (max): 4733 MHz
- Maximum internal memory per slot: 32 GB
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX210
- Bluetooth: Yes
- Bluetooth version: 5.3
- LAN controller: Realtek RTL8125
- ACPI version: 5.0
- Bundled software: Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Batteries included: Yes
- Antenna included: Yes
- Package width: 13.2" (335 mm)
- Package height: 3.15" (80 mm)
- Package depth: 10.6" (270 mm)
- Package weight: 4.17 lbs (1.89 kg)
- Screws included: Yes
- Maximum resolution: 5120 x 2880 pixels
- Motherboard chipset: AMD B550
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
- Supported processor sockets: Socket AM4
- DirectX version: 12.0

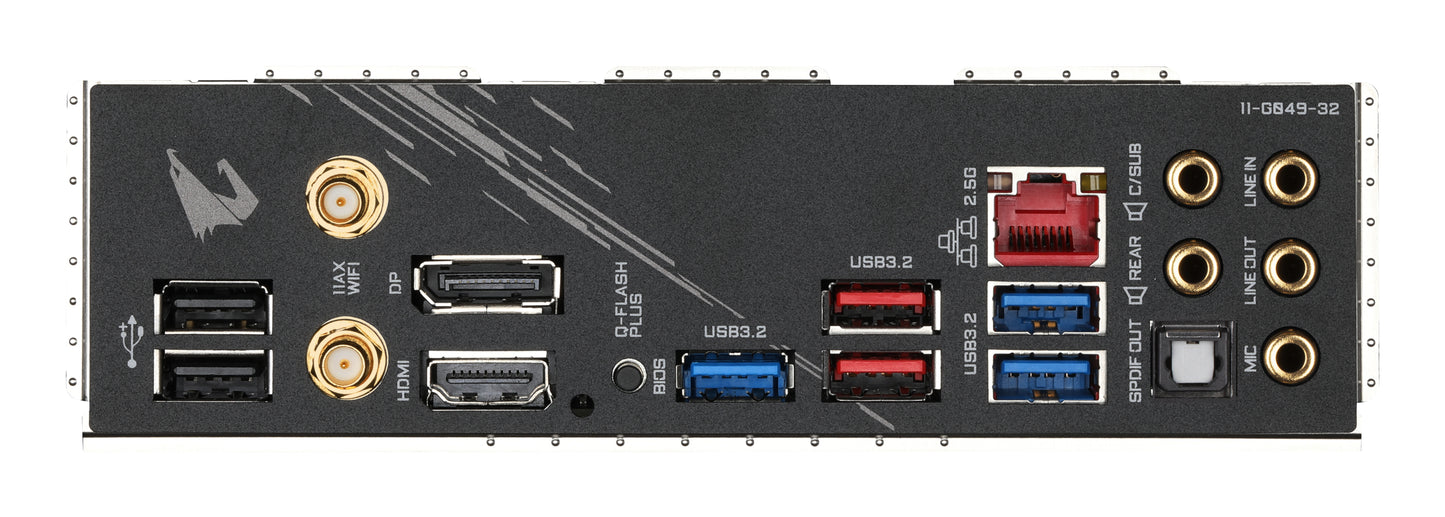

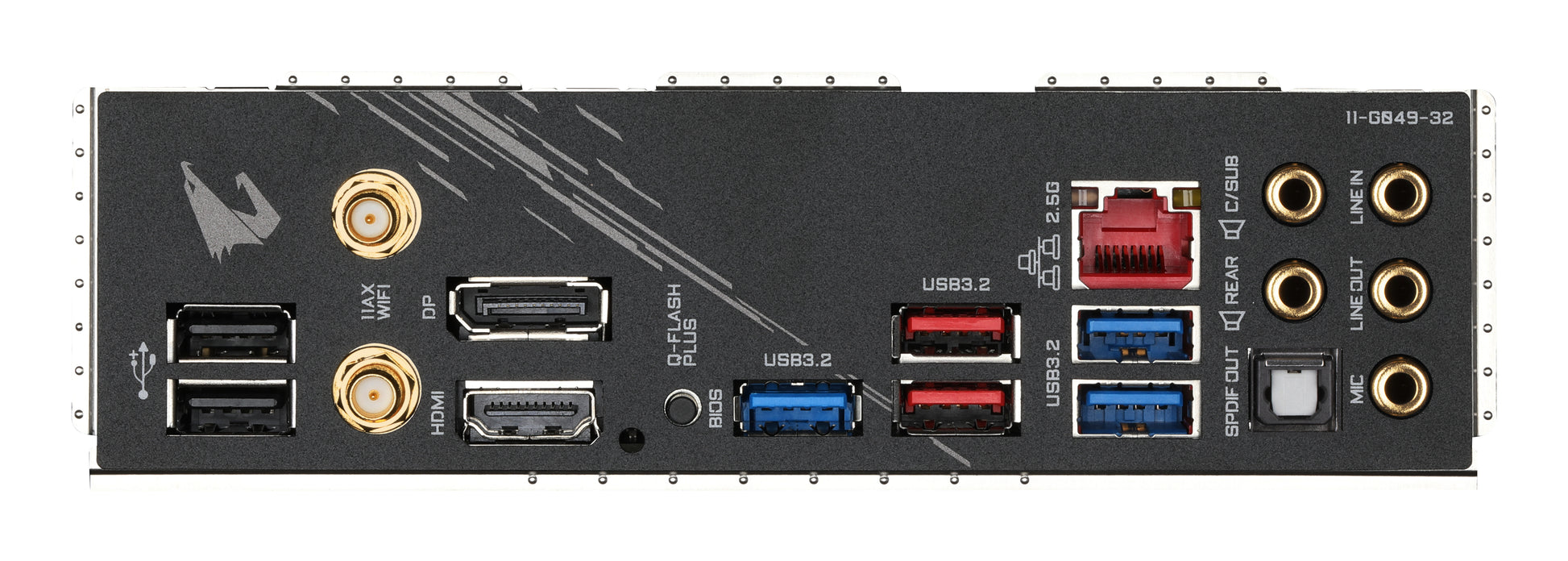

- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Headphone outputs: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- Line-in: Yes
- HDCP: Yes
- DisplayPort version: 1.4
- S/PDIF out port: Yes
- Number of SATA III connectors: 4
- Power source type: ATX
- Battery type: CR2032
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Maximum number of SMP processors: 1
- WiFi-AP antenna jack: 2
- Number of storage drives supported: 6
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 4
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Weight: 2.47 lbs (1.12 kg)
- Width: 12" (305 mm)
- Height: 1.38" (35 mm)
- Depth: 9.61" (244 mm)
- Battery weight: 0.106 oz (3 g)
