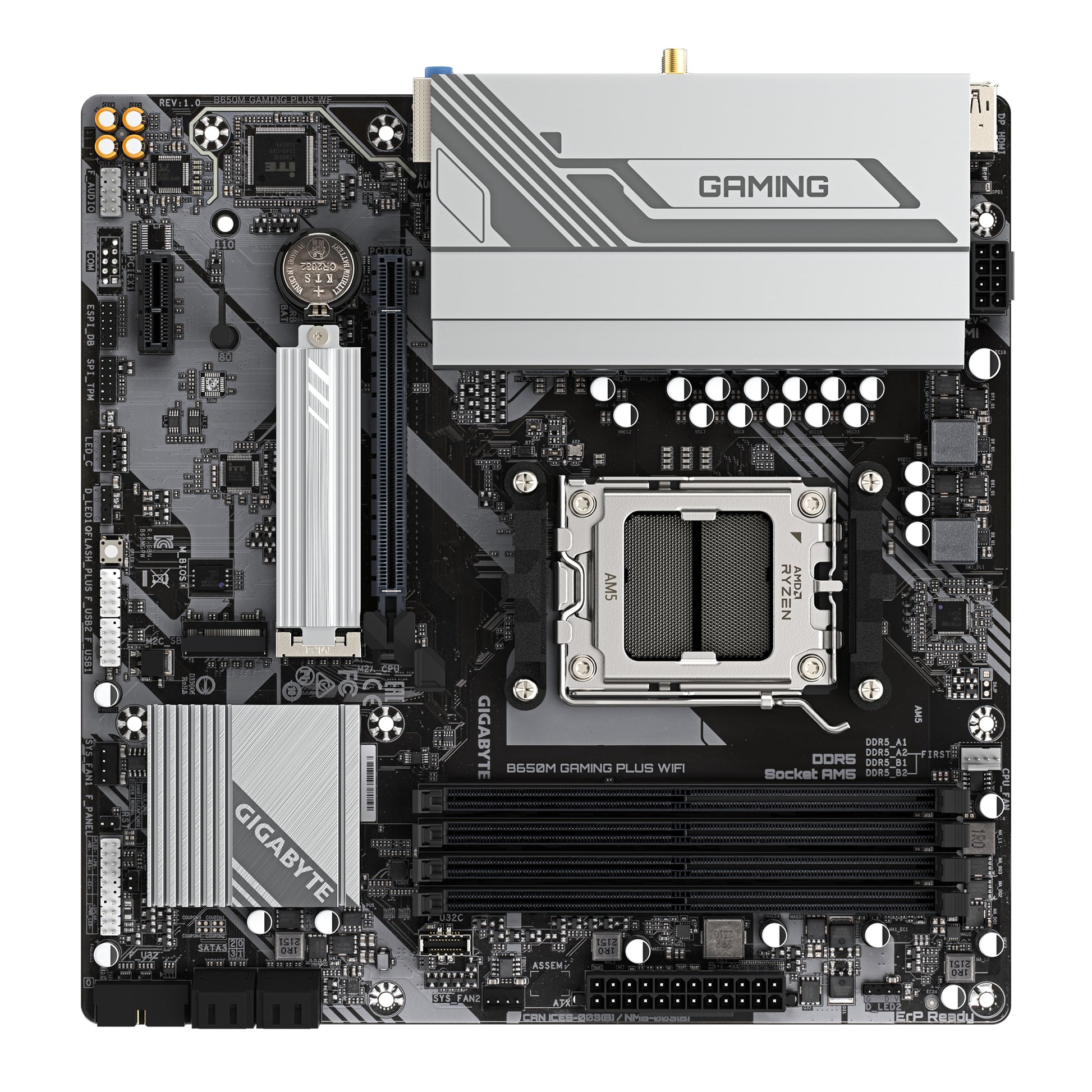

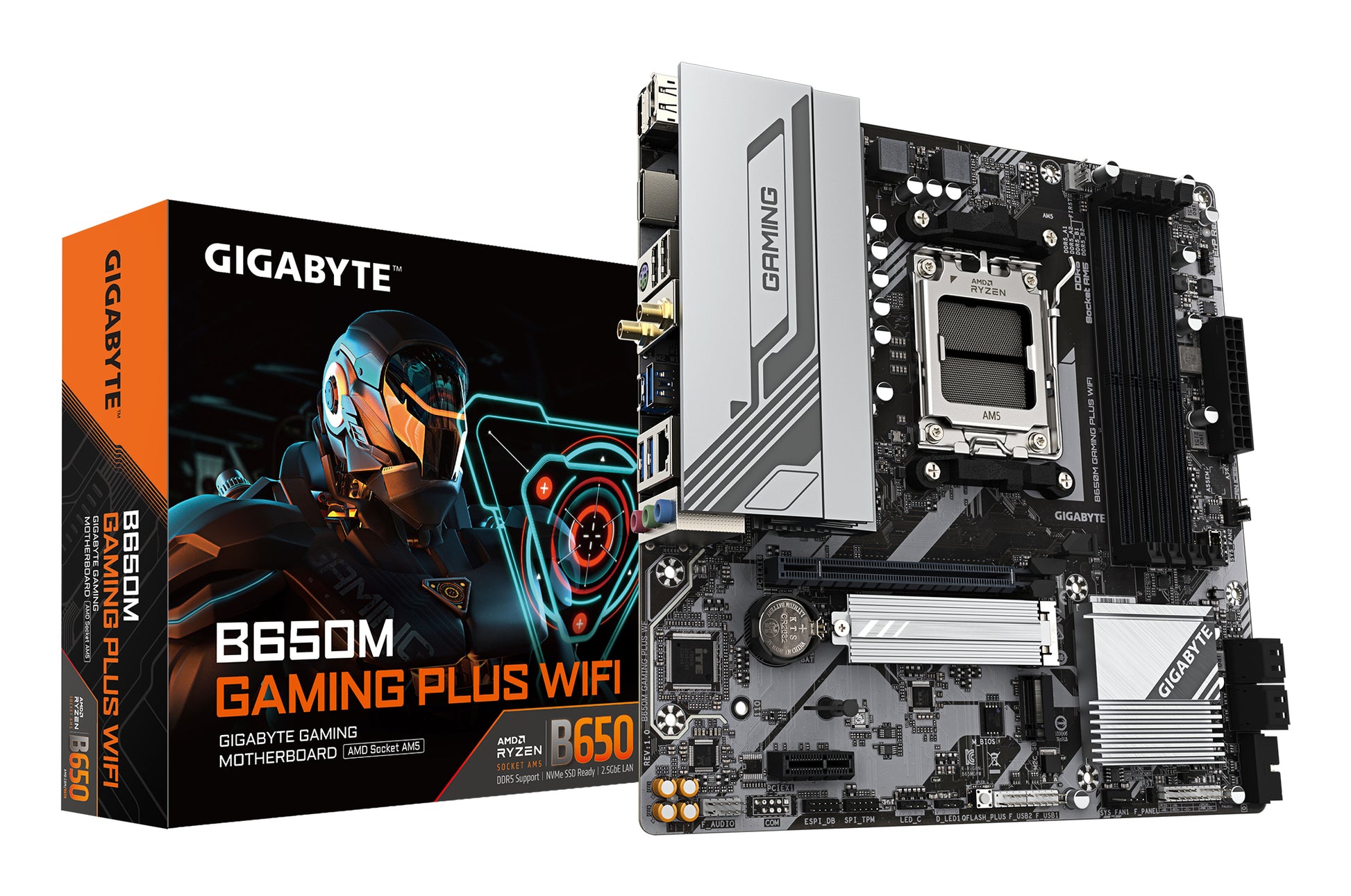

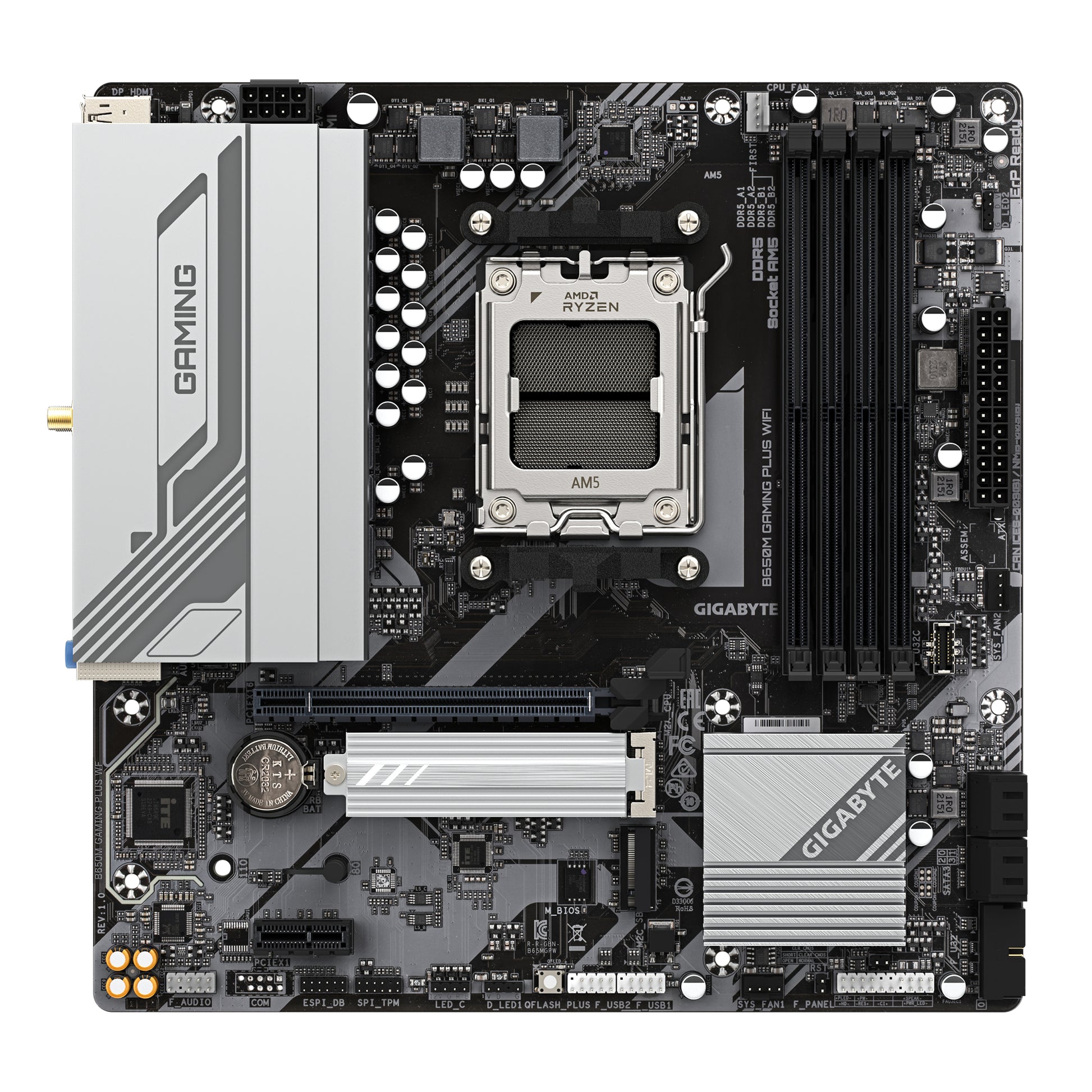

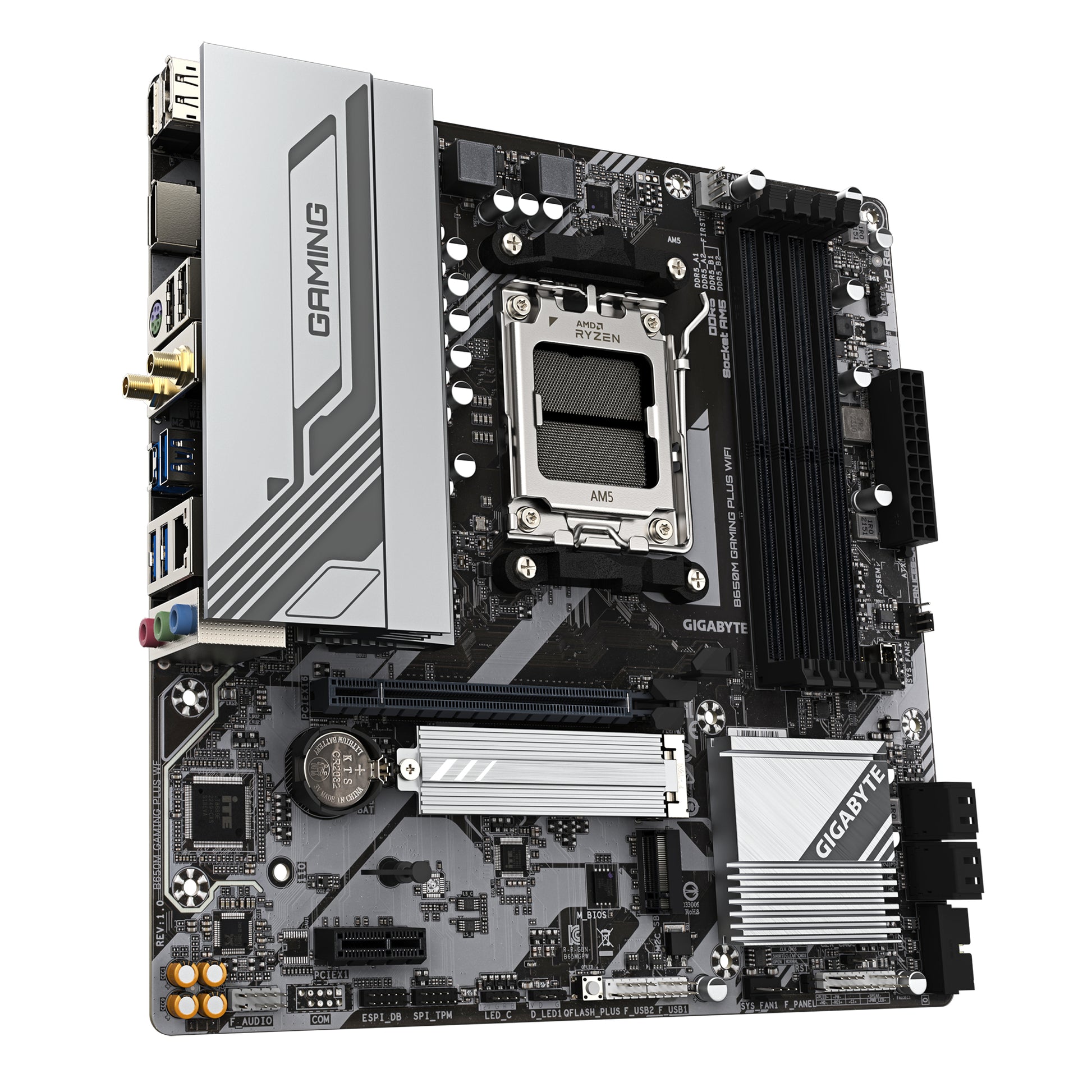

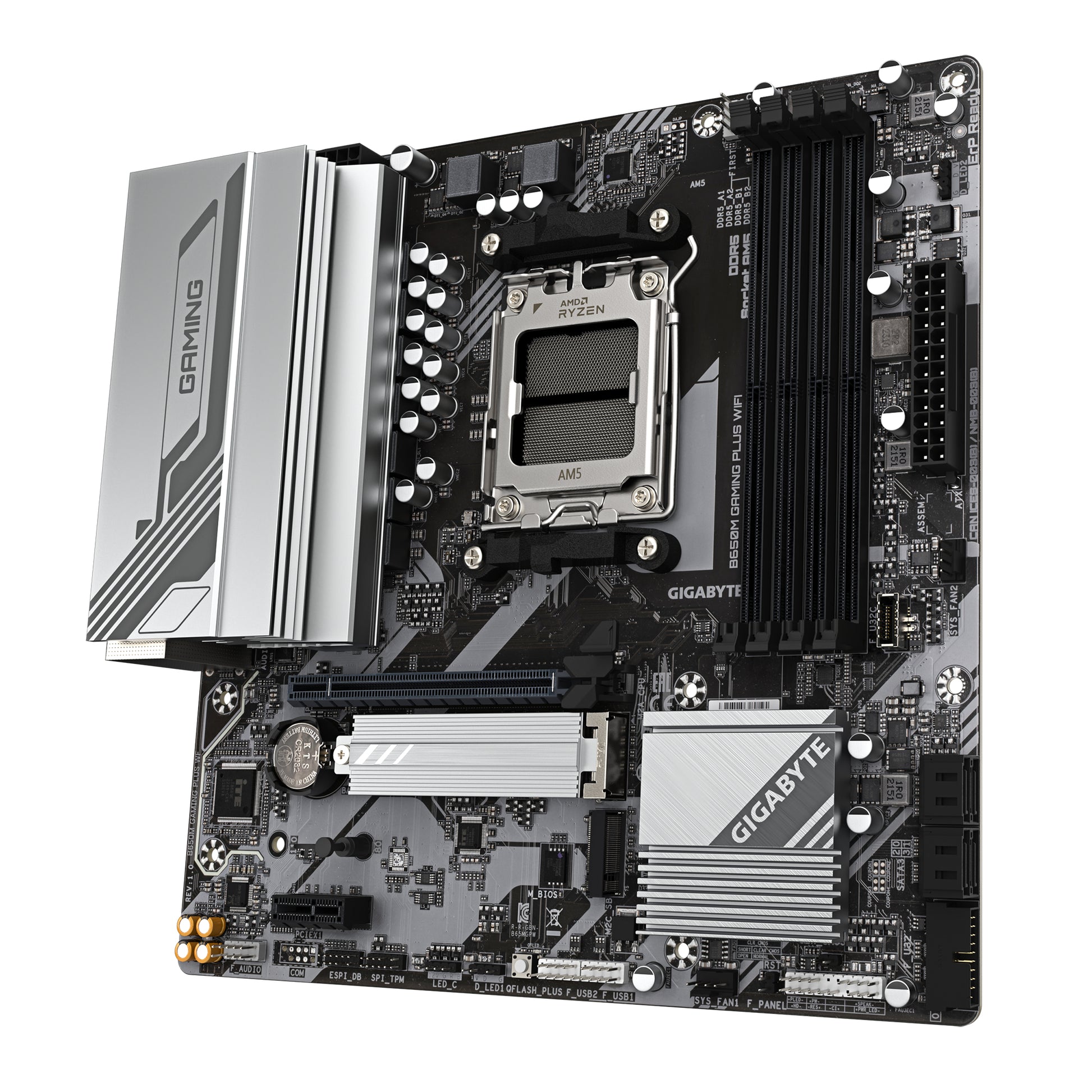

GIGABYTE B650M GAMING PLUS WIFI motherboard AMD B650 Socket AM5 micro ATX
GIGABYTE B650M GAMING PLUS WIFI motherboard AMD B650 Socket AM5 micro ATX
SKU: B650M GAMING PLUS WIFI
Regular price
$159.99 USD
Regular price
Sale price
$159.99 USD
MSRP: $159.99
GIGABYTE B650M GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Quantity
Couldn't load pickup availability
- Details: GIGABYTE B650M GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
- Video/mp4: https://www.youtube.com/embed/7JntP1beYjw
- Info: AMD Socket AM5: Supports AMD Ryzen™ 7000 Series/ Ryzen™ 8000 Series Processors|Unparalleled Performance: 5+2+2 Phases Digital VRM Solution|Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support|SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector|EZ-Latch: PCIe x16 Slot with Quick Release Design|Fast Networks: Wi-Fi 802.11ax & 2.5GbE LAN|Extended Connectivity: 2*DP, HDMI|Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP|Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Component for: PC
- PCI Express x16 slots: 1
- PCI Express x1 slots: 1
- Number of M.2 (M) slots: 2
- Product color: Black
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- PC health monitoring: Fan, Temperature, Voltage
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel connector: Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Maximum internal memory: 192 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory clock speed (max): 7600 MHz
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8852CE
- Bluetooth: Yes
- Bluetooth version: 5.3
- ACPI version: 5.0
- Bundled software: Norton Internet Security
- Audio output channels: 7.1 channels
- Cables included: SATA
- Antenna included: Yes
- USB connector type: USB Type-A, USB Type-C
- Maximum resolution: 4096 x 2160 pixels
- Motherboard chipset: AMD B650
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
- Supported processor sockets: Socket AM5
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

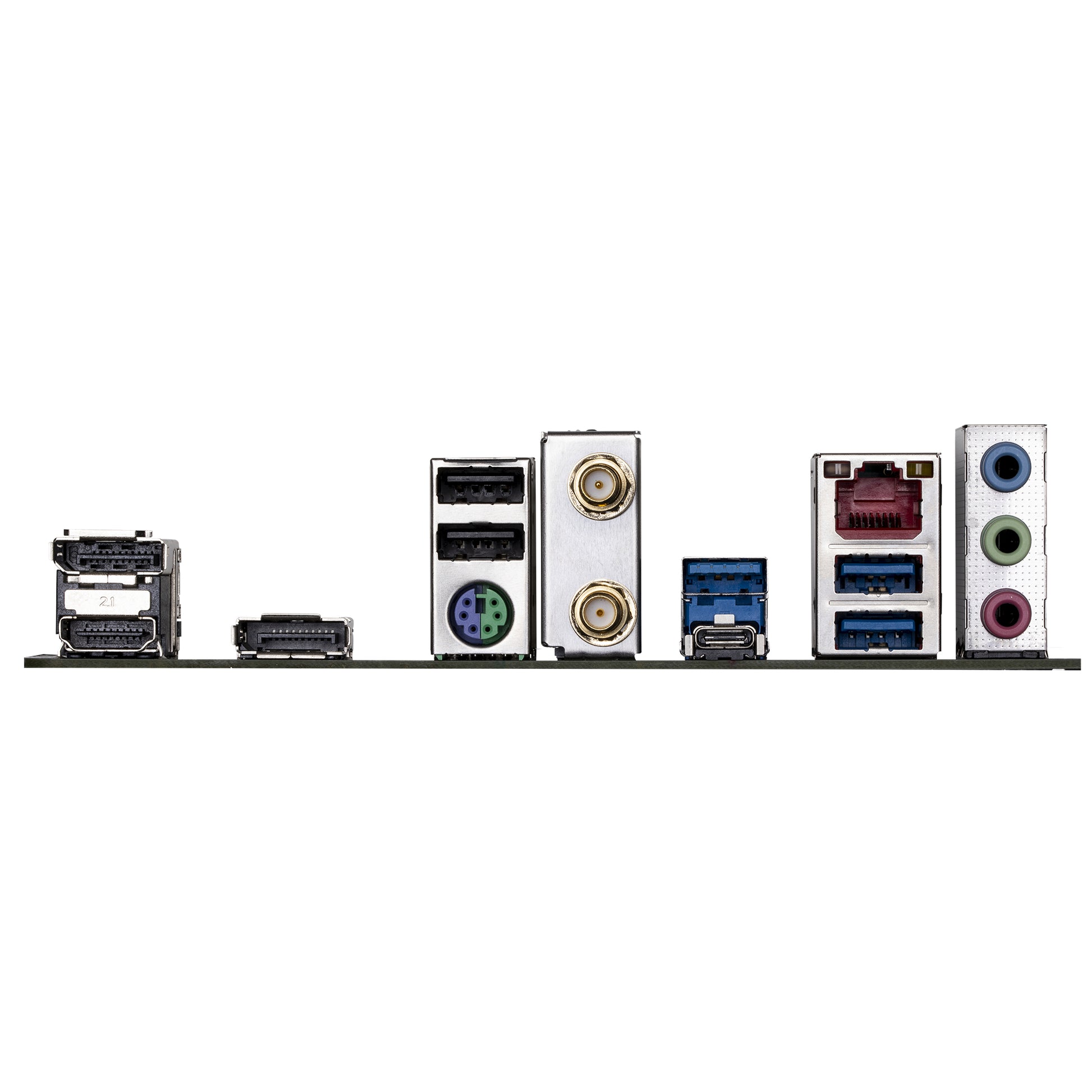

- HDMI ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 3
- DisplayPorts quantity: 2
- Microphone in: Yes
- HDCP: Yes
- DisplayPort version: 1.4
- PS/2 ports quantity: 1
- Number of SATA III connectors: 4
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- WiFi-AP antenna jack: 2
- Number of storage drives supported: 6
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
- RAID support: Yes
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Width: 9.61" (244 mm)
- Depth: 9.61" (244 mm)
