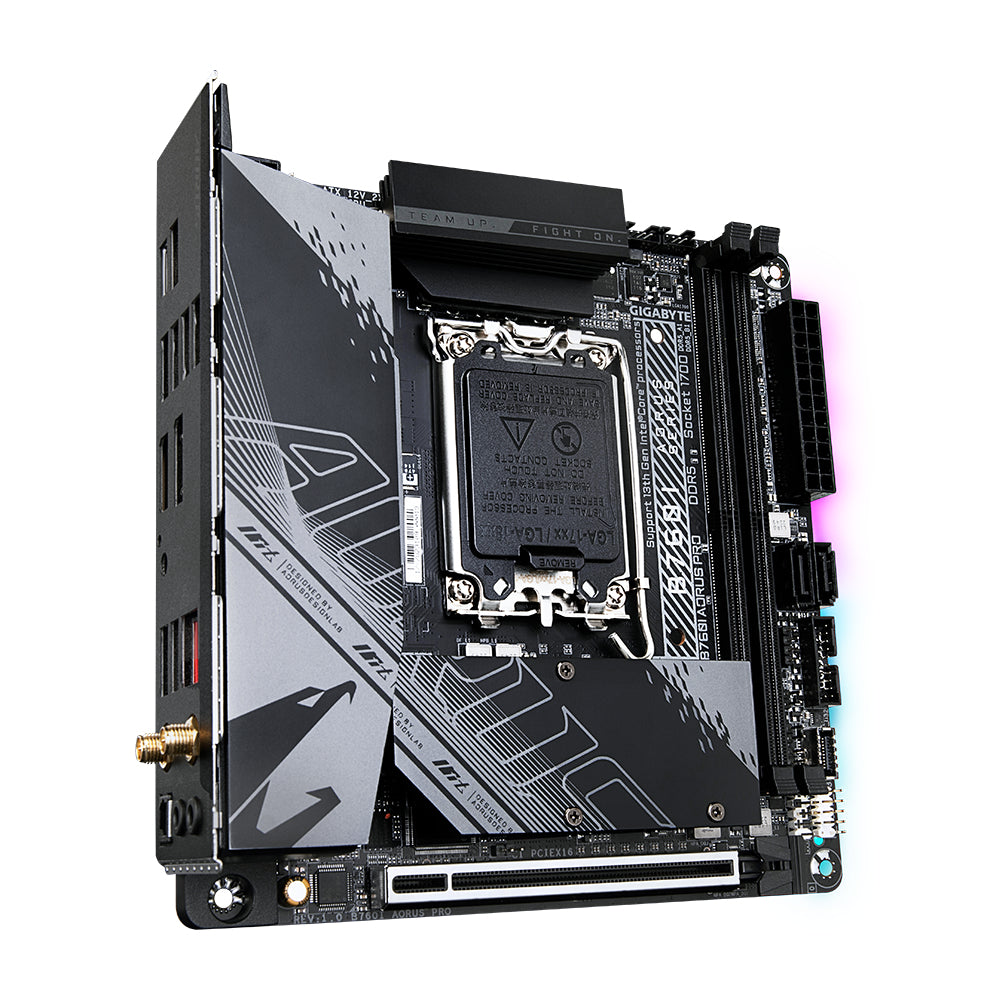

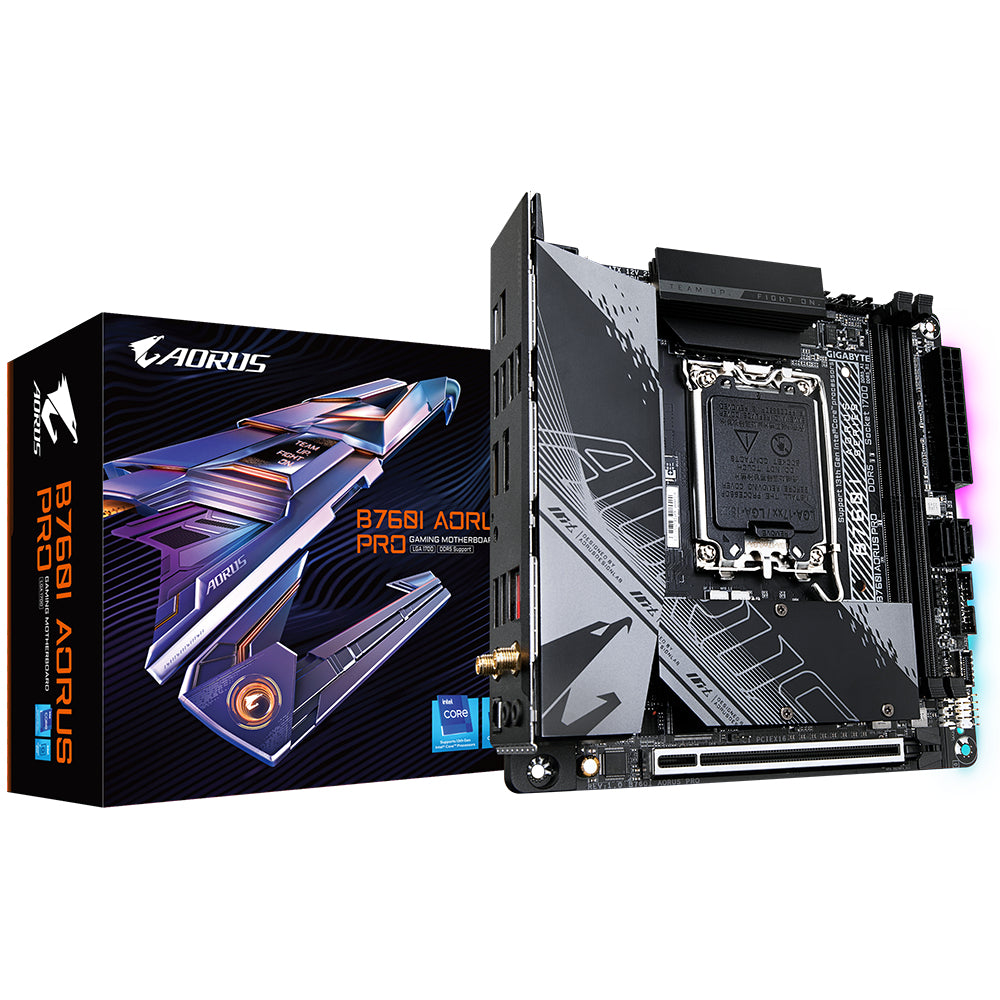

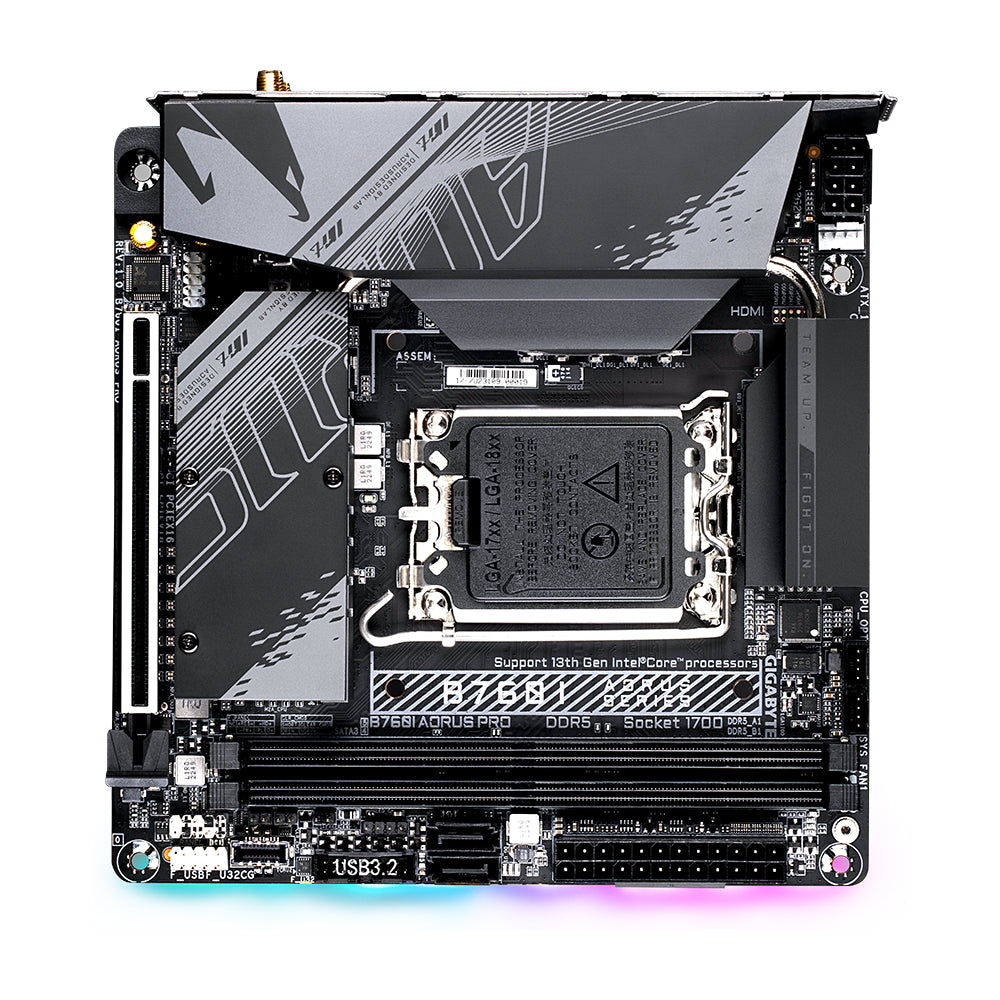

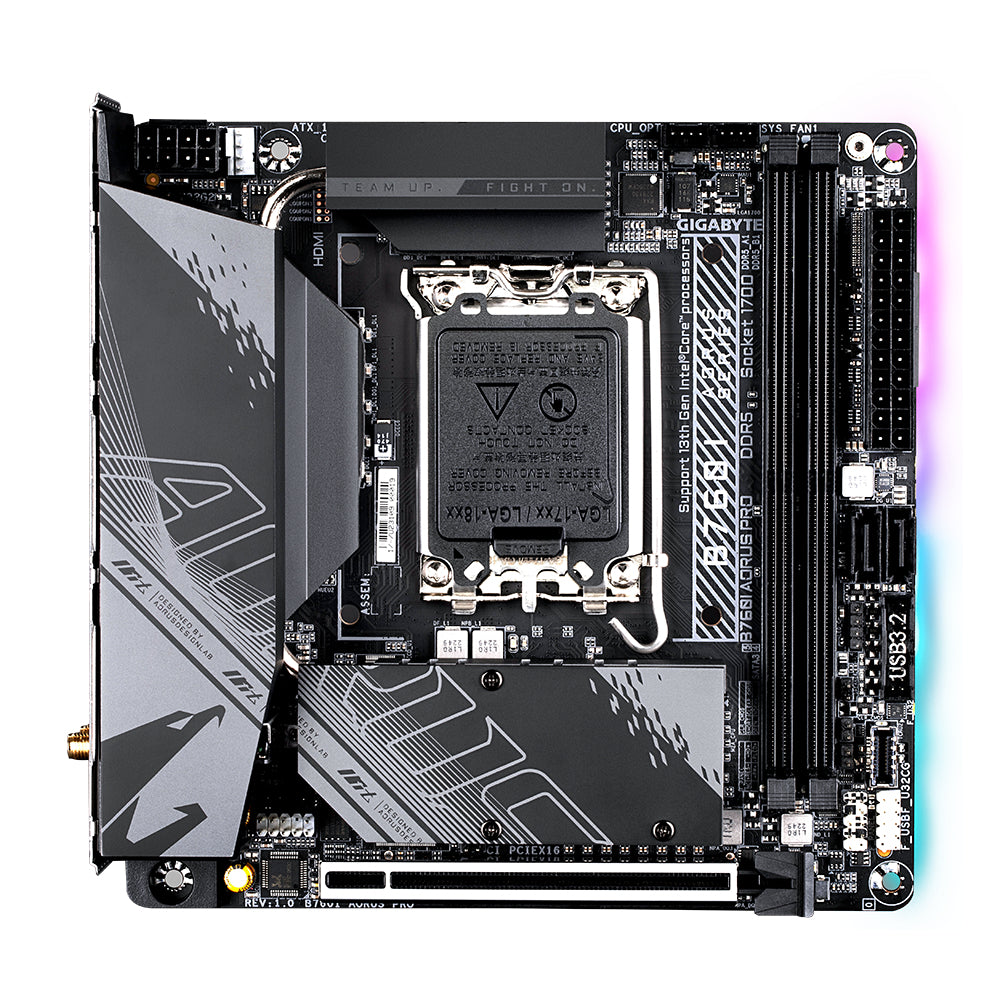

GIGABYTE B760I AORUS PRO motherboard Intel B760 Express LGA 1700 mini ITX
GIGABYTE B760I AORUS PRO motherboard Intel B760 Express LGA 1700 mini ITX
SKU: B760I AORUS PRO
Regular price
$219.99 USD
Regular price
Sale price
$219.99 USD
MSRP: $219.99
GIGABYTE B760I AORUS PRO. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
Quantity
Couldn't load pickup availability
- Details: GIGABYTE B760I AORUS PRO. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
- Info: Supports Intel Core 14th/ 13th /12th processors|Unparalleled Performance?Direct 8+1+1 Phases Digital VRM Solution|Dual Channel DDR5?2*DIMMs with XMP 3.0 Memory Module Support|Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors|Advanced Thermal Design?Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate|Fast Networks?Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax|Extended Connectivity?Front USB3.2 Gen 1 USB-C, Rear USB-C 10Gb/s, DP, HDMI|RGB FUSION?Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips|Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP|Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 2
- Product color: Black
- Motherboard form factor: mini ITX
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 1
- ATX Power connector (24-pin): Yes
- Chassis intrusion connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel connector: Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Audio connector: Yes
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 96 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz
- Memory slots type: DIMM
- Number of memory slots: 2
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- Unbuffered memory: Yes
- Supported memory clock speed (max): 8000 MHz
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
- ACPI version: 5.0
- Bundled software: Norton Internet Security
- Audio output channels: 7.1 channels
- Cables included: SATA
- Batteries included: Yes
- Package width: 9.25" (235 mm)
- Package height: 3.74" (95 mm)
- Package depth: 8.94" (227 mm)
- Package weight: 3.28 lbs (1.49 kg)
- USB connector type: USB Type-A, USB Type-C
- Maximum resolution: 4096 x 2304 pixels
- Motherboard chipset: Intel B760 Express
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
- DirectX version: 12.0
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- HDMI ports quantity: 1
- HDMI version: 2.0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Headphone outputs: 2
- DisplayPorts quantity: 1
- Microphone in: Yes
- HDCP: Yes
- DisplayPort version: 1.2
- S/PDIF out port: Yes
- Total number of SATA connectors: 2
- Number of SATA III connectors: 2
- Battery type: CR2032
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Maximum internal memory supported by processor: 96 GB
- WiFi-AP antenna jack: 2
- Number of storage drives supported: 4
- RAID levels: 0, 1
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 2
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Width: 6.69" (170 mm)
- Height: 1.38" (35 mm)
- Depth: 6.69" (170 mm)
- Battery weight: 0.106 oz (3 g)
