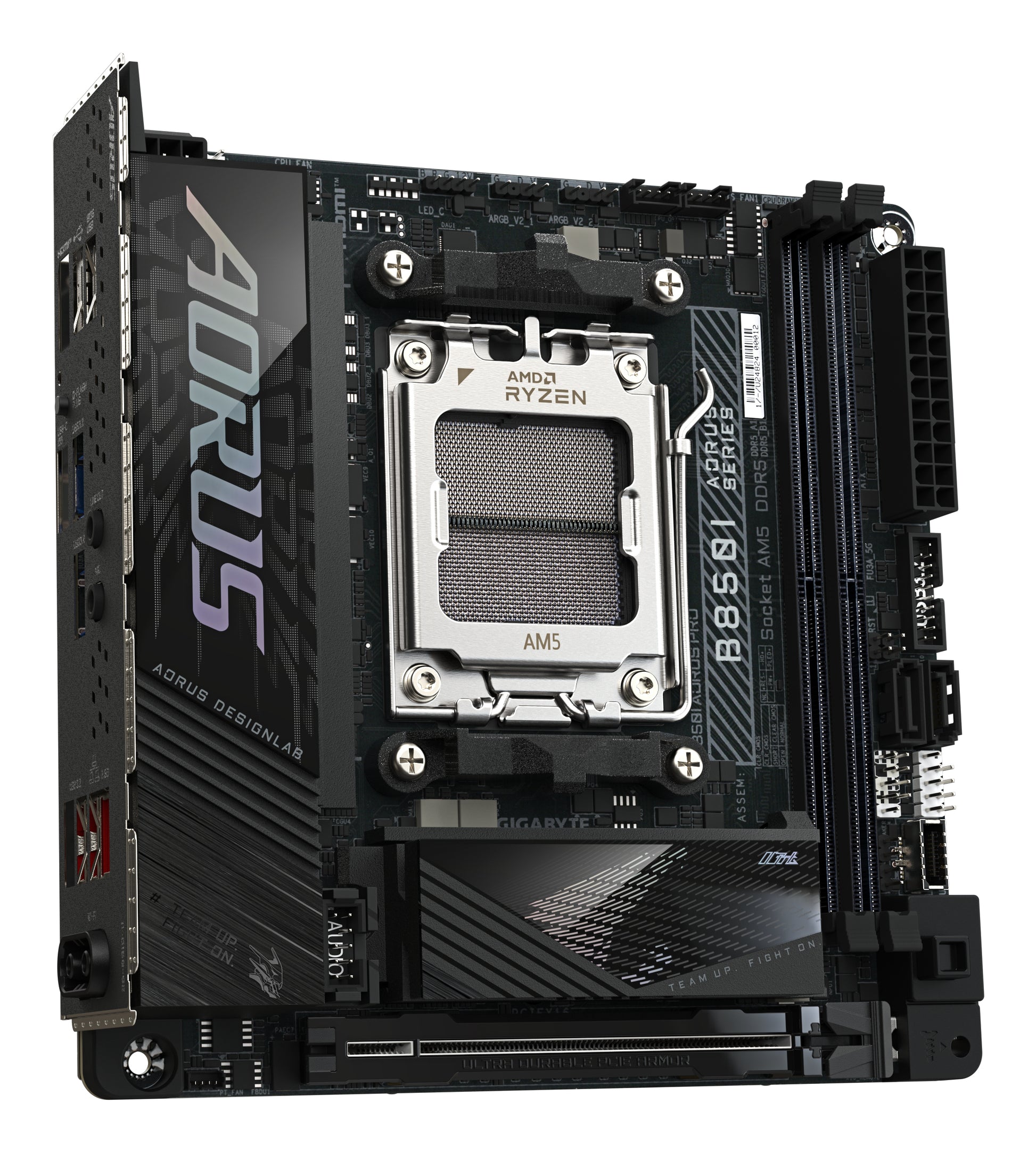

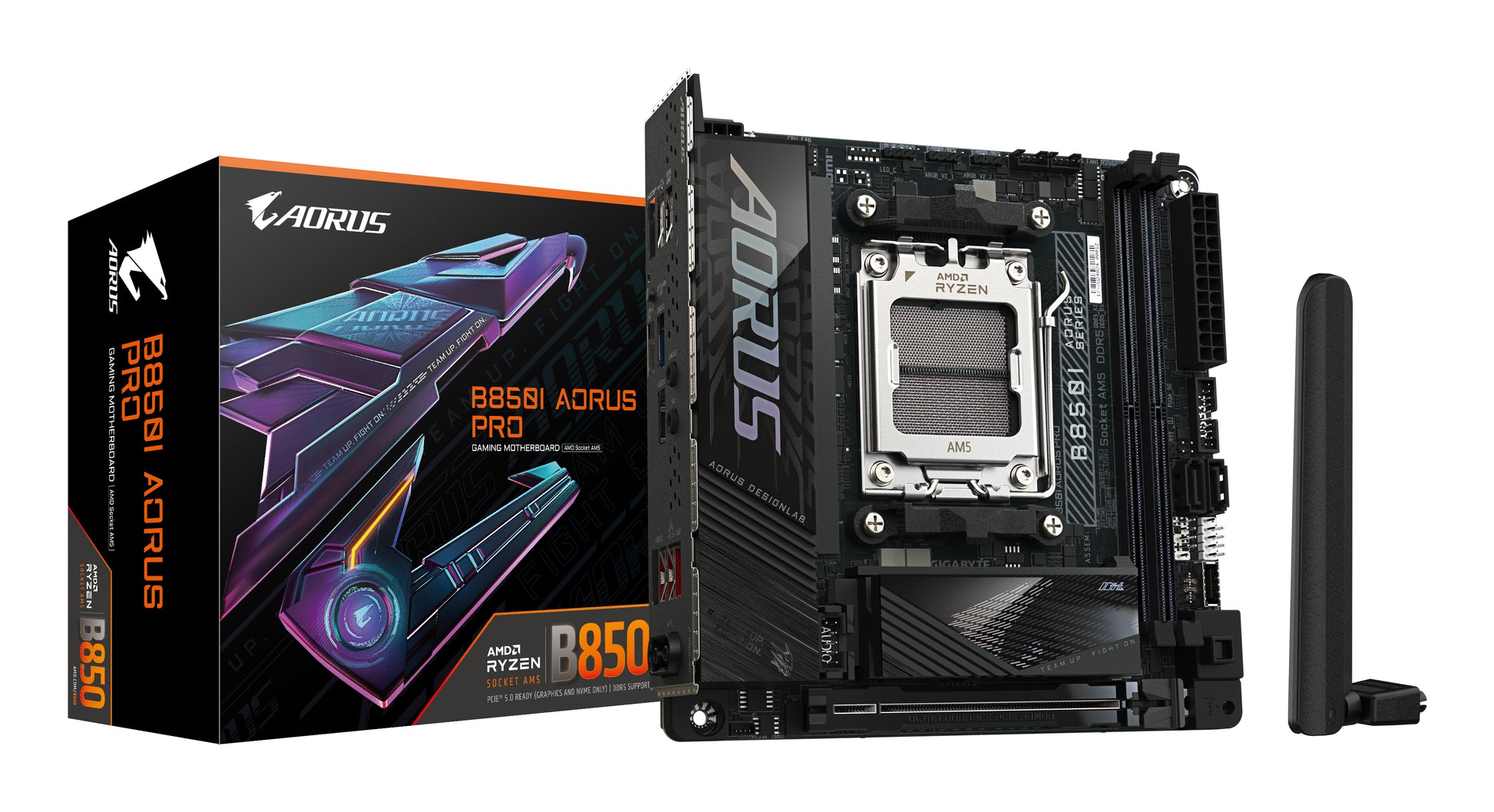

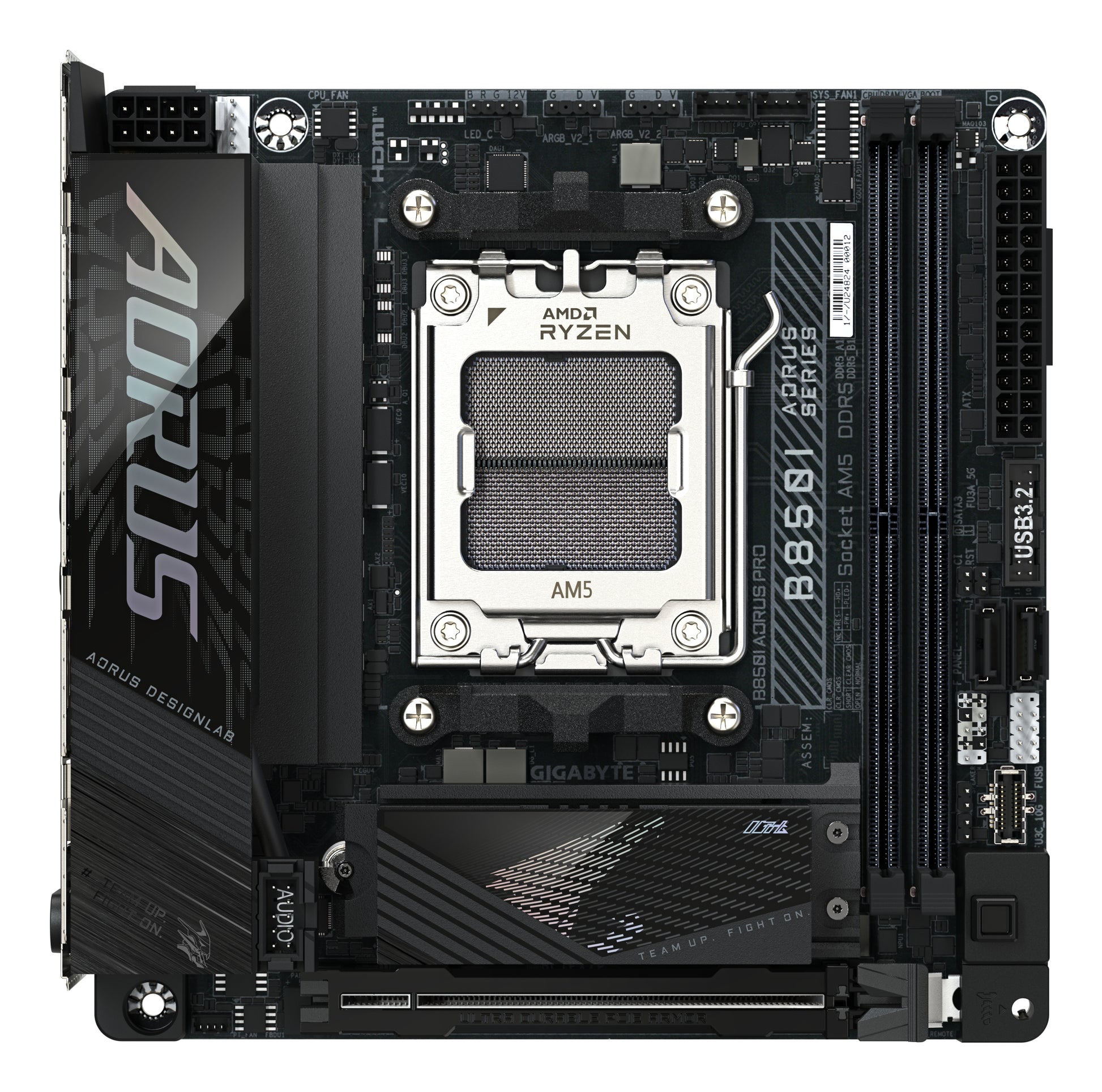

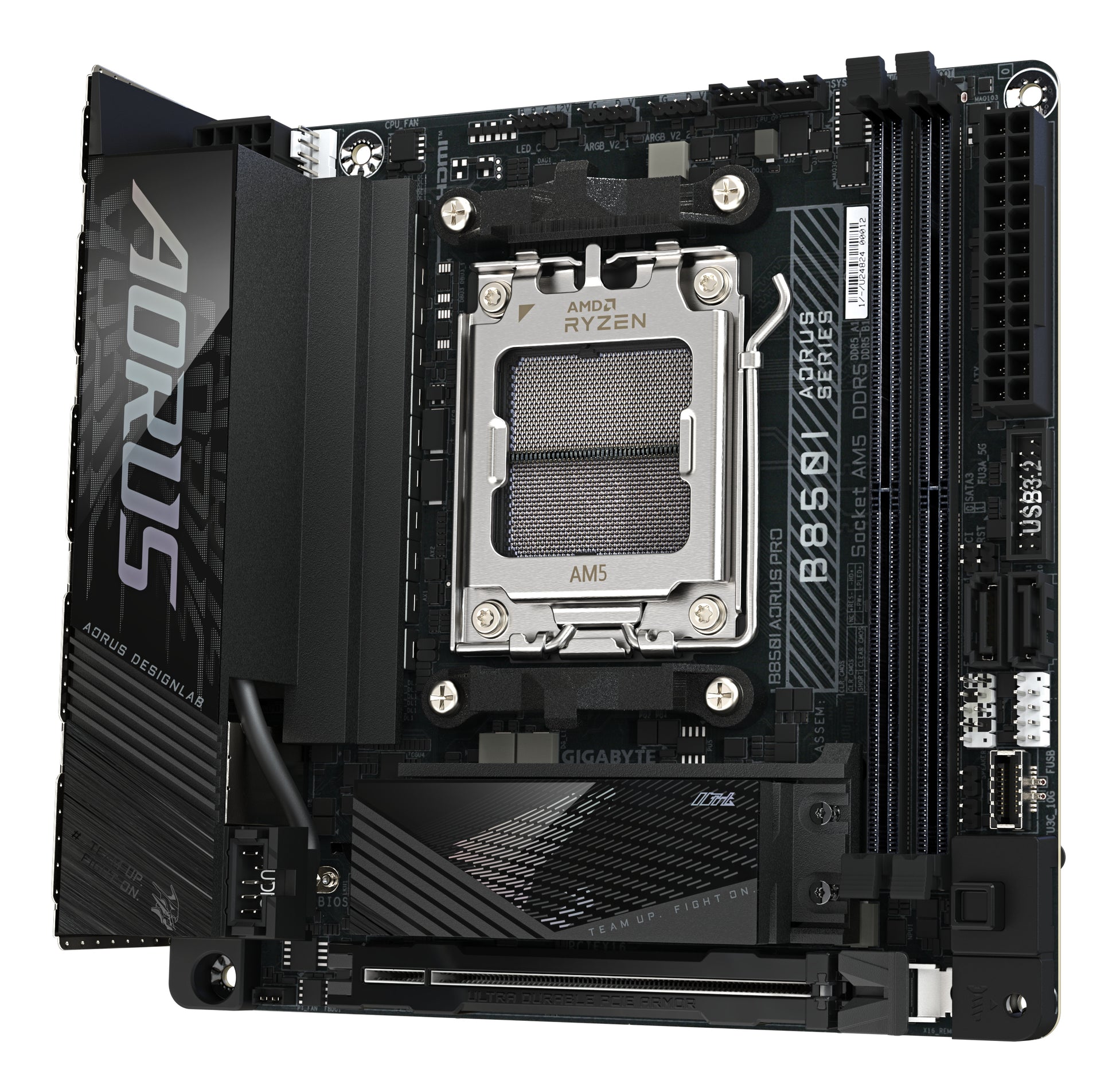

GIGABYTE B850I AORUS PRO motherboard AMD B850 Socket AM5 mini ITX
GIGABYTE B850I AORUS PRO motherboard AMD B850 Socket AM5 mini ITX
SKU: B850I AORUS PRO
Regular price
$309.99 USD
Regular price
Sale price
$309.99 USD
MSRP: $309.99
GIGABYTE B850I AORUS PRO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Quantity
Couldn't load pickup availability
- Details: GIGABYTE B850I AORUS PRO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
- Info: 8+2+1 Phases Digital VRM with 80A Smart Power Stage|Dual Channel DDR5?2*DIMMs|PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus|M.2 Gen5 with EZ-Latch Plus|Fully Covered MOSFET Heatsinks|Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna|2.5GbE LAN, Q-Flash Plus
- Clear CMOS button: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- Product color: Black, Brown
- Motherboard form factor: mini ITX
- Motherboard chipset family: AMD
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- On-board graphics card: No
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 1
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of CPU fan connectors: 2
- Number of water pump connectors: 1
- Number of RGB LED pin headers: 4
- Number of EPS power connectors (8-pin): 1
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400 MHz
- Memory slots type: DIMM
- Number of memory slots: 2
- Unbuffered memory: Yes
- Supported memory clock speed (max): 8400 MHz
- Maximum internal memory per slot: 64 GB
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Bluetooth: Yes
- Bluetooth version: 5.4
- ACPI version: 5.0
- Bundled software: Norton Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Batteries included: Yes

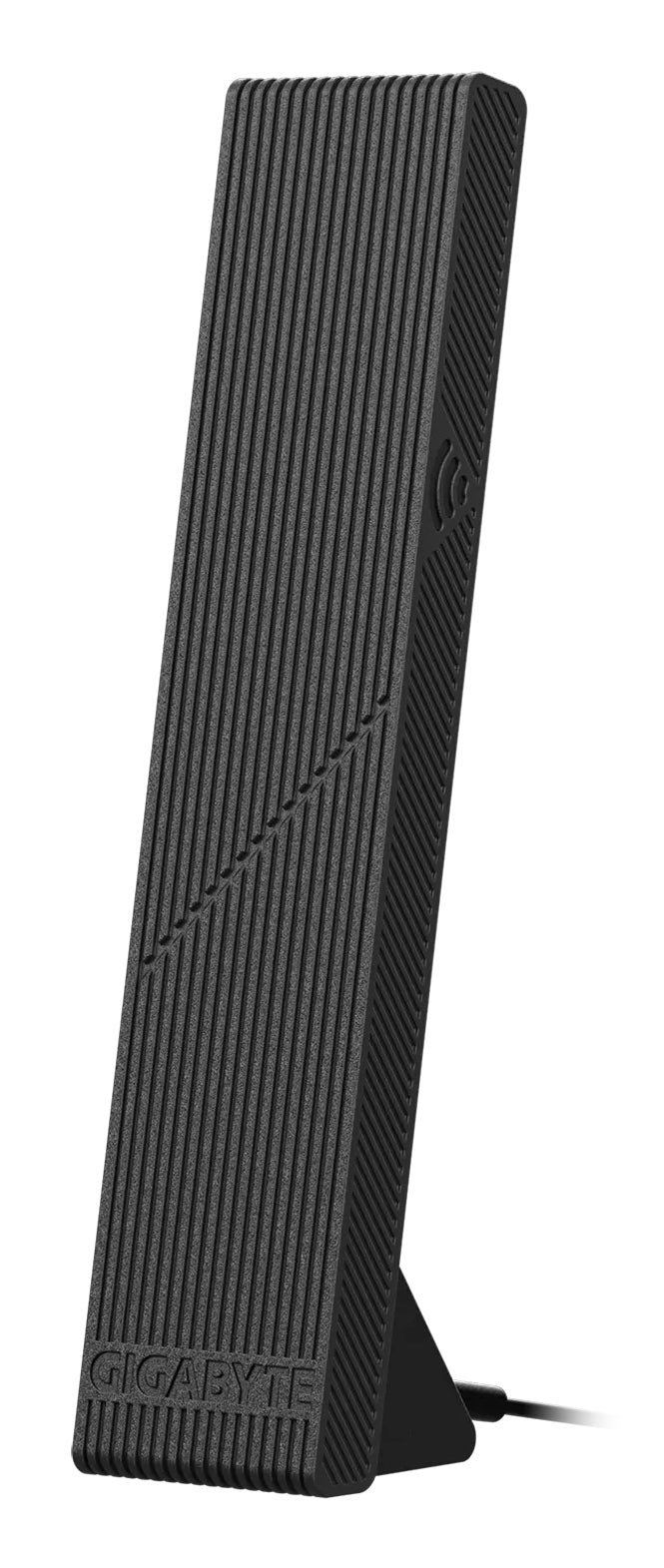

- Antenna included: Yes
- Screws included: Yes
- Maximum resolution: 4096 x 2160 pixels
- Motherboard chipset: AMD B850
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- DirectX version: 12.0

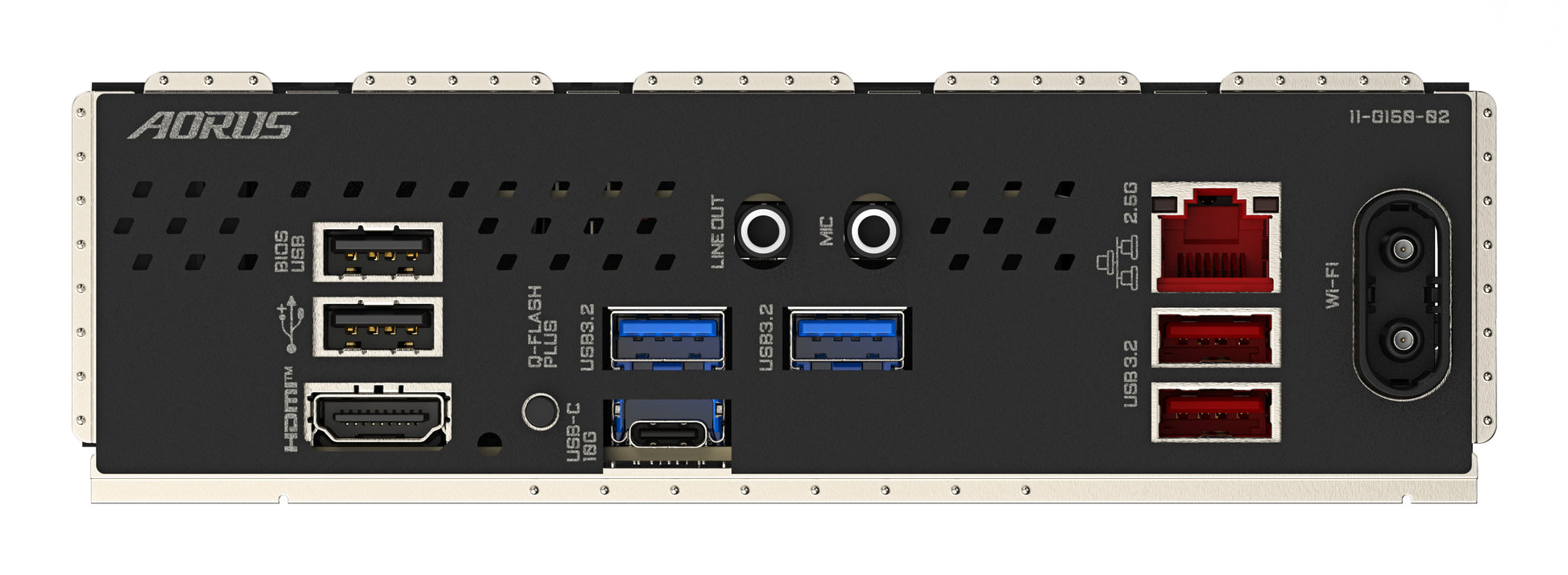

- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Headphone outputs: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- HDCP: Yes
- DisplayPort version: 2.1
- Total number of SATA connectors: 2
- Number of SATA III connectors: 2
- Battery type: CR2032
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- WiFi-AP antenna jack: 2
- Number of storage drives supported: 4
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 2
- Windows operating systems supported: Windows 11 x64
- Weight: 2.87 lbs (1.3 kg)
- Width: 6.69" (170 mm)
- Height: 1.38" (35 mm)
- Depth: 6.69" (170 mm)
- Battery weight: 0.106 oz (3 g)
