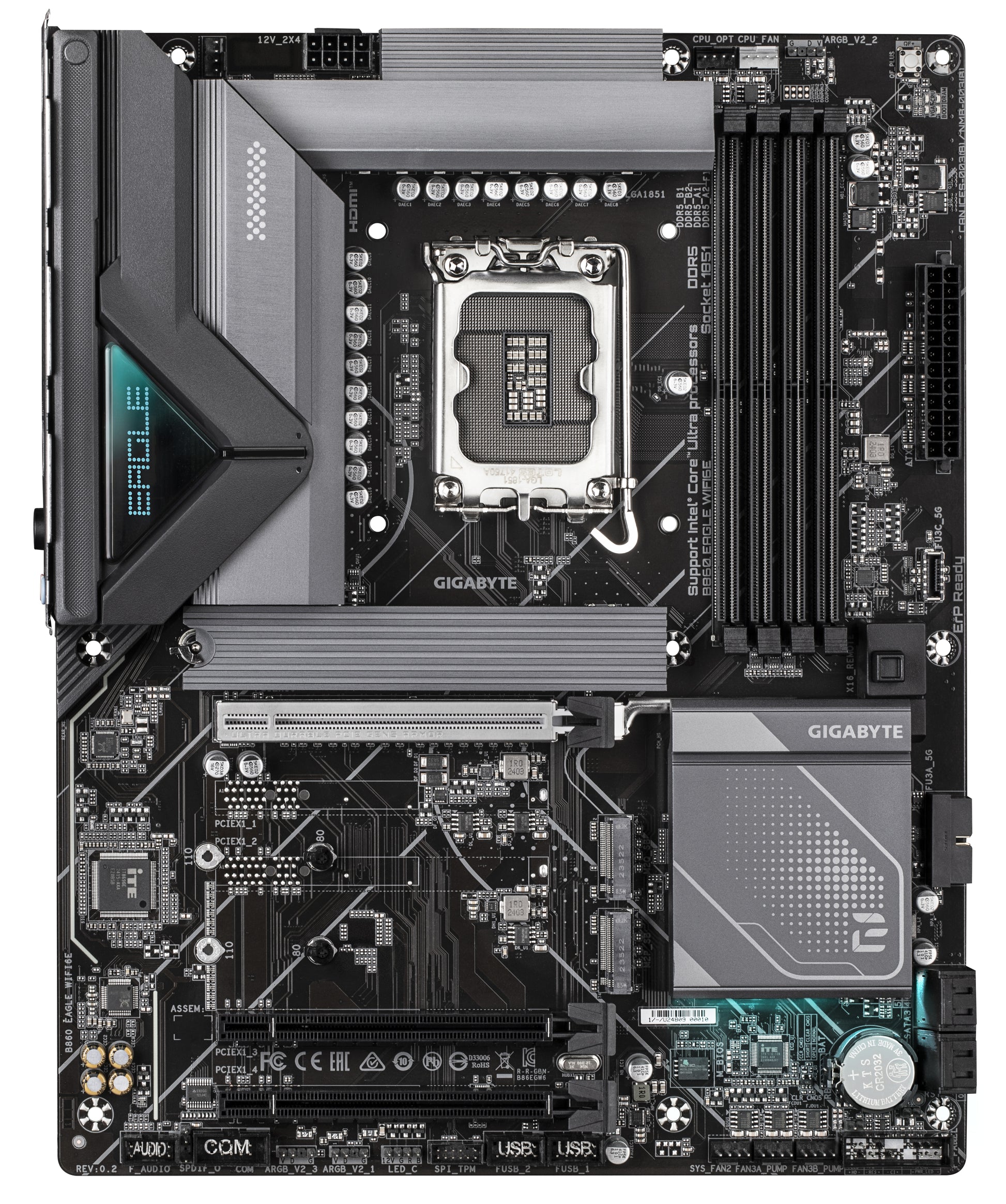

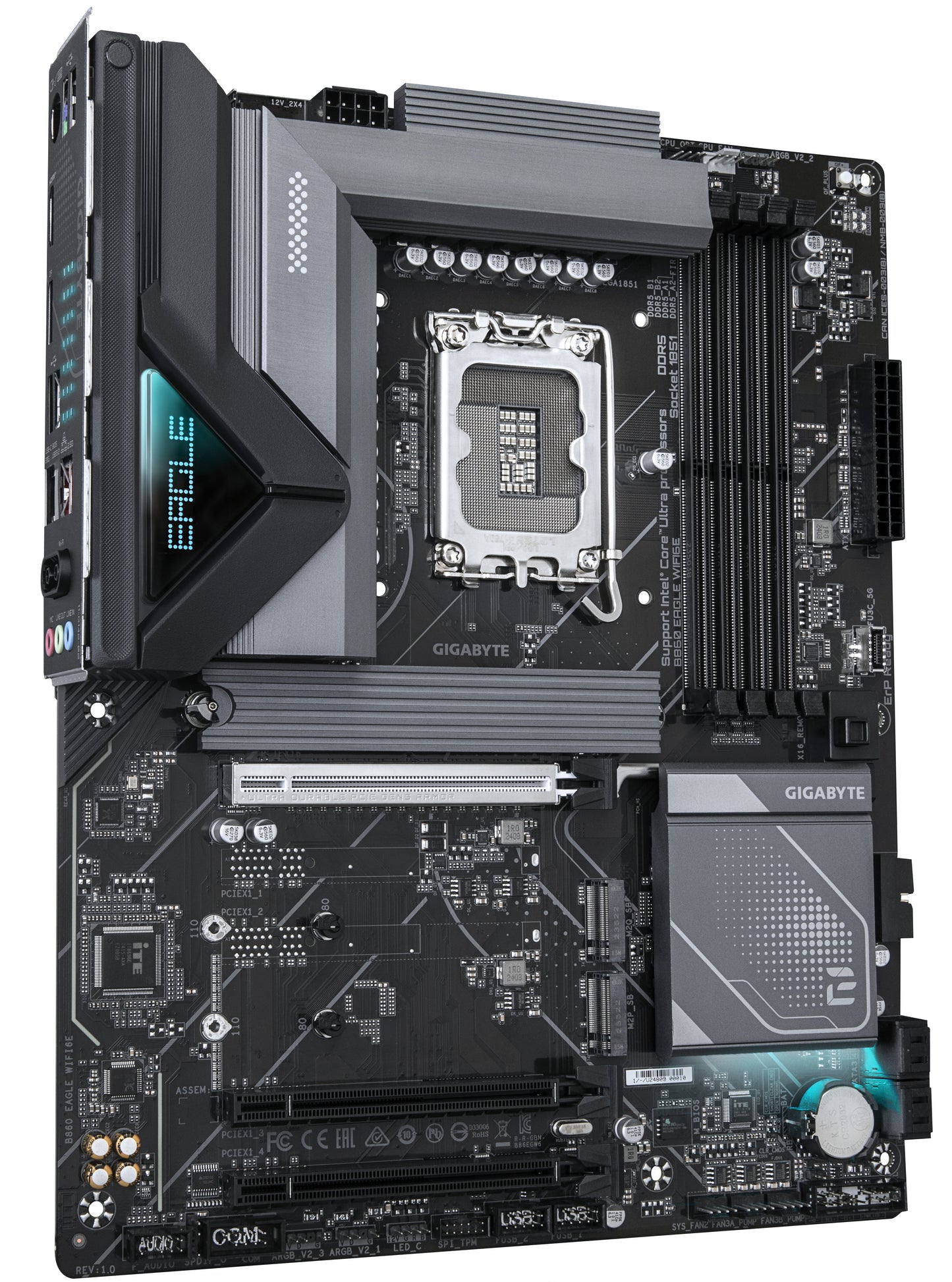

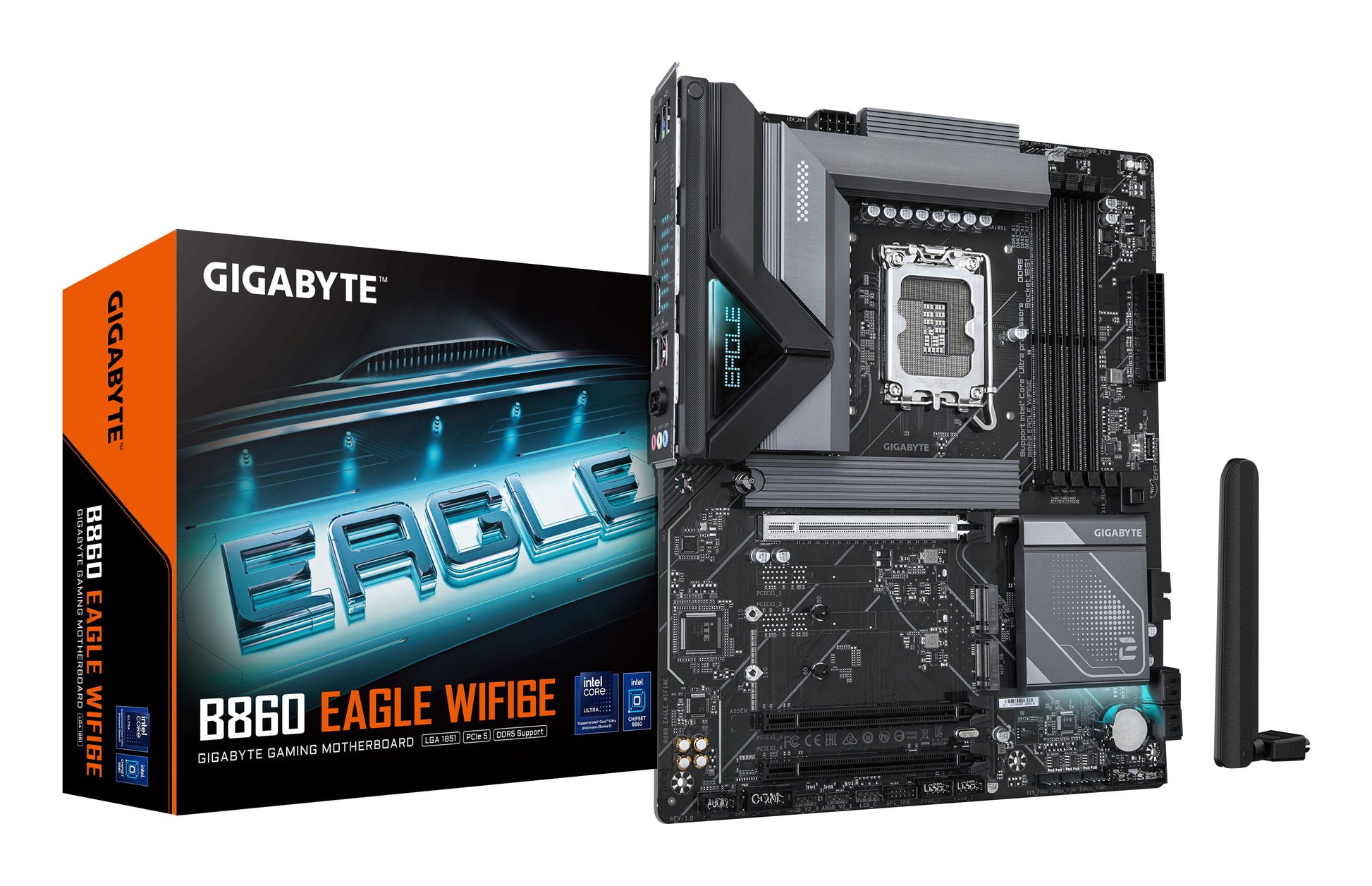

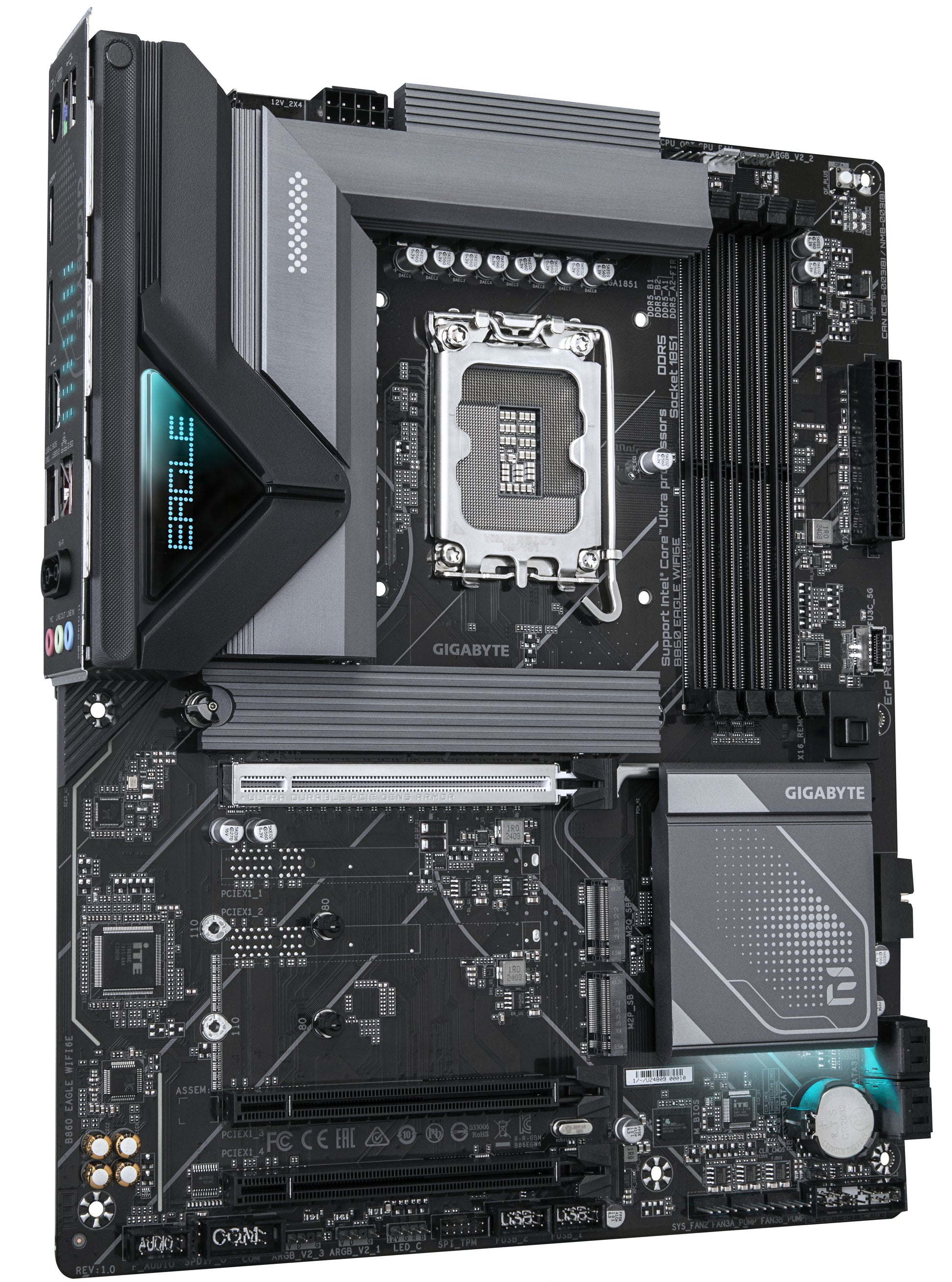

GIGABYTE B860 EAGLE WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) ATX
GIGABYTE B860 EAGLE WIFI6E motherboard Intel B860 LGA 1851 (Socket V1) ATX
SKU: B860 EAGLE WIFI6E
Regular price
$179.99 USD
Regular price
Sale price
$179.99 USD
MSRP: $179.99
GIGABYTE B860 EAGLE WIFI6E. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Quantity
Couldn't load pickup availability
- Details: GIGABYTE B860 EAGLE WIFI6E. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Info: Twin Hybrid 12+1+2+1 Phases 50A PPAK VRM|Dual Channel DDR5?4*DIMMs|PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus|M.2 Gen5 (Up to 25110) with EZ-Latch Plus|Advanced MOSFET Heatsinks/ M.2 Thermal Guard with EZ-Latch Click|Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug|2.5GbE LAN, USB 3.2 Gen2x2 Type-C|Q-Flash Plus
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- Cooling type: Passive
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 25110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 25110
- 3rd M.2 highest PCI Express generation: 4.0
- Product color: Dark brown
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Audio chip: Realtek ALC897
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 4
- TPM connector: Yes
- Serial port headers: 1
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel connector: Yes
- Front panel audio connector: Yes
- RGB LED pin header: Yes
- S/PDIF out connector: Yes
- Number of CPU fan connectors: 2
- Number of water pump connectors: 3
- Number of RGB LED pin headers: 4
- Number of EPS power connectors (8-pin): 1
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 256 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600,6400,9066 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory clock speed (max): 9066 MHz
- Maximum internal memory per slot: 64 GB
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX211
- Bluetooth: Yes
- Bluetooth version: 5.3
- LAN controller: Realtek RTL8125D
- ACPI version: 5.0
- Bundled software: Norton Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Batteries included: Yes
- Antenna included: Yes
- Package width: 13.2" (335 mm)
- Package height: 3.15" (80 mm)
- Package depth: 10.6" (270 mm)
- Package weight: 4.23 lbs (1.92 kg)
- Screws included: Yes
- Maximum resolution: 4096 x 2160 pixels
- Motherboard chipset: Intel B860
- Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- DirectX version: 12.0
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- Headphone outputs: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- Line-in: Yes
- HDCP: Yes
- DisplayPort version: 2.1
- PS/2 ports quantity: 1
- Number of SATA III connectors: 4
- Power source type: ATX
- Battery type: CR2032
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- WiFi-AP antenna jack: 2
- Number of storage drives supported: 7
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 4
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Weight: 3.79 lbs (1.72 kg)
- Width: 12" (305 mm)
- Height: 1.38" (35 mm)
- Depth: 9.61" (244 mm)
- Battery weight: 0.106 oz (3 g)
