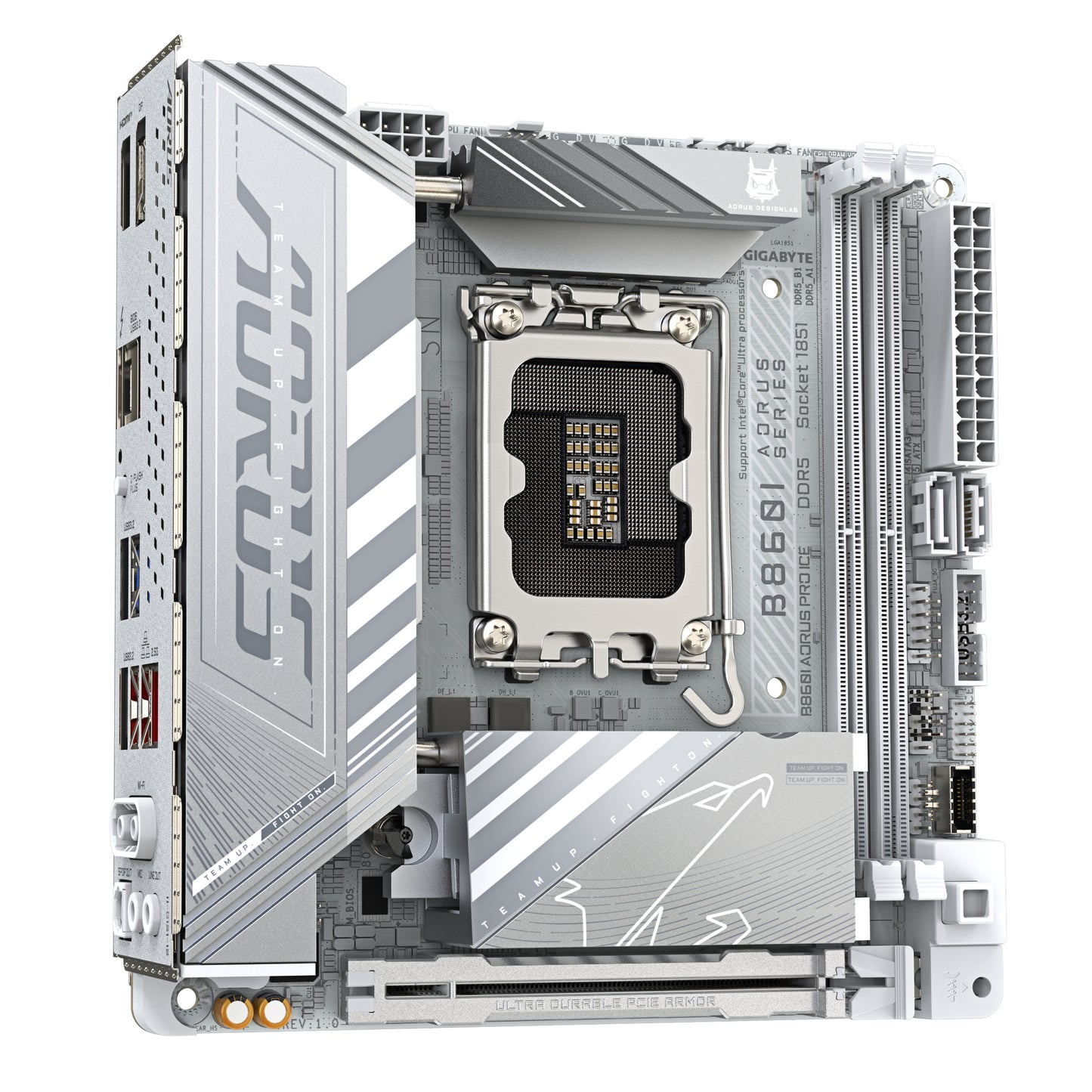

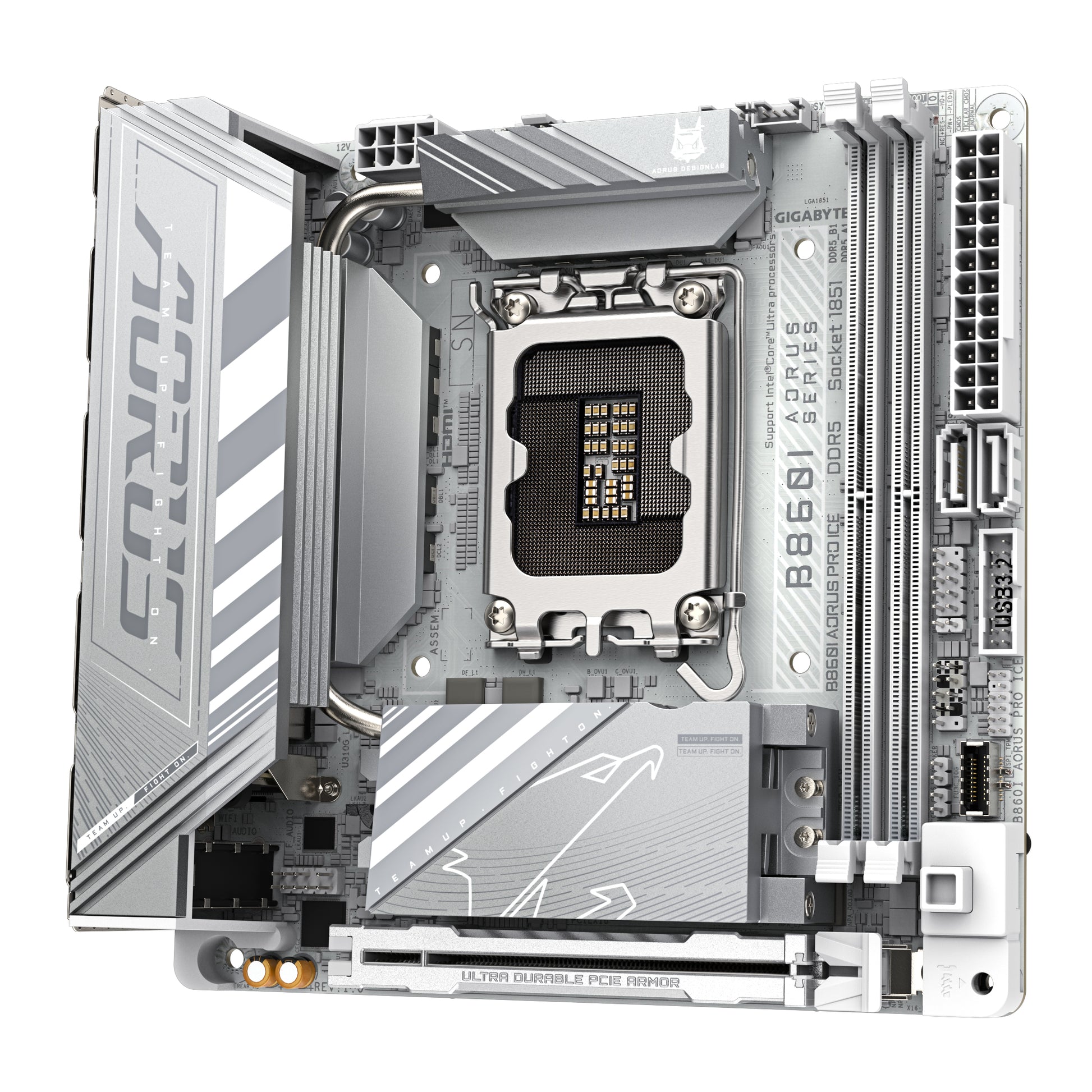

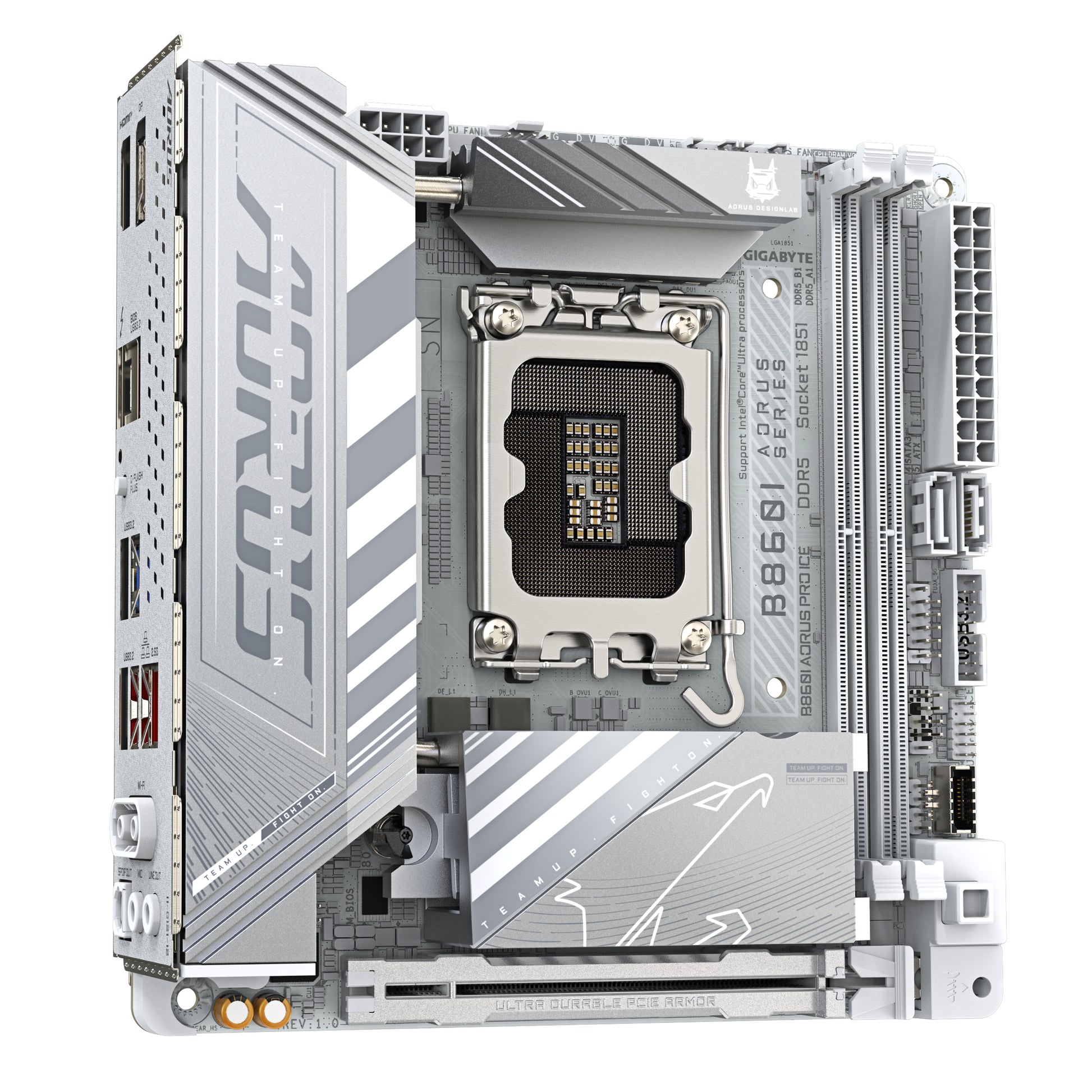

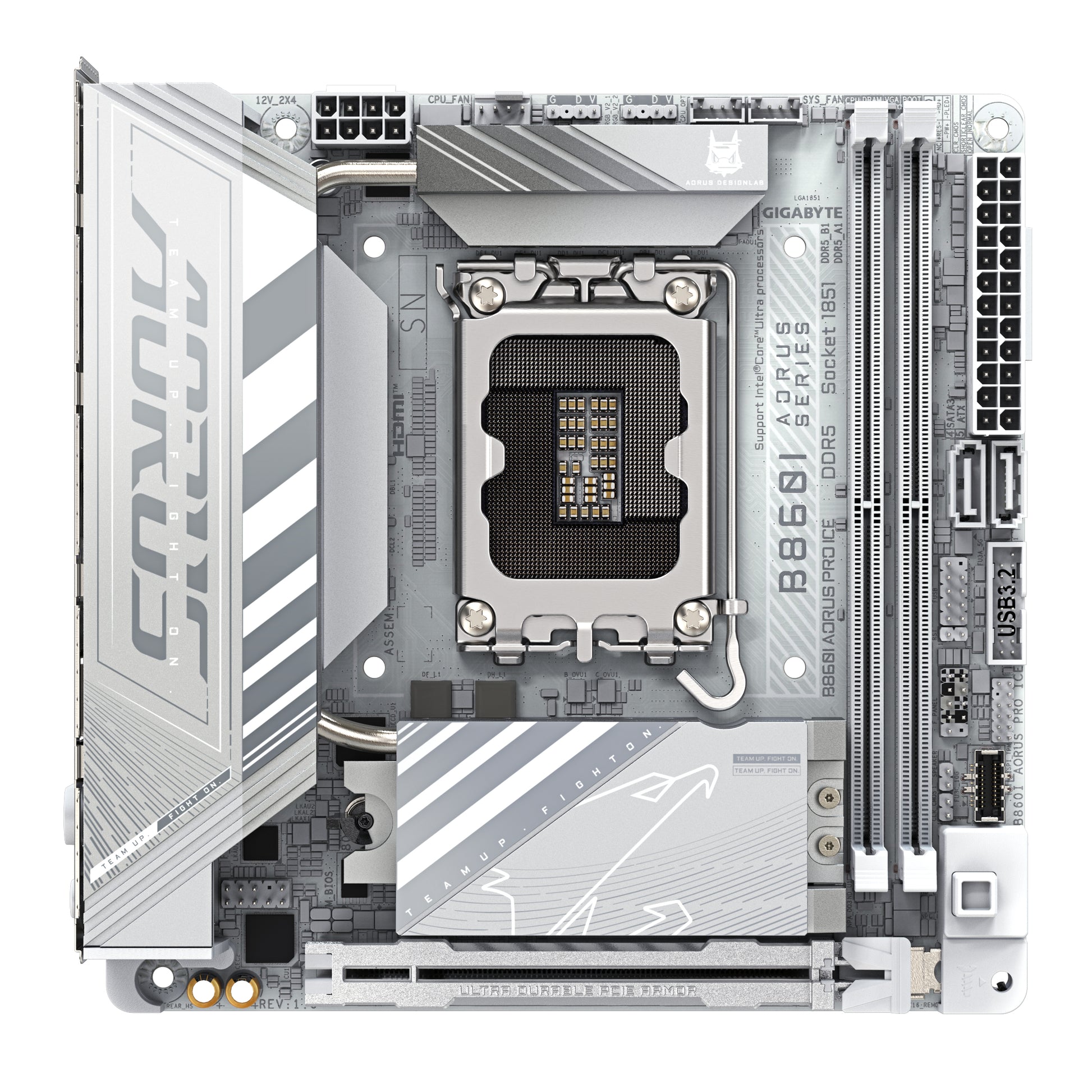

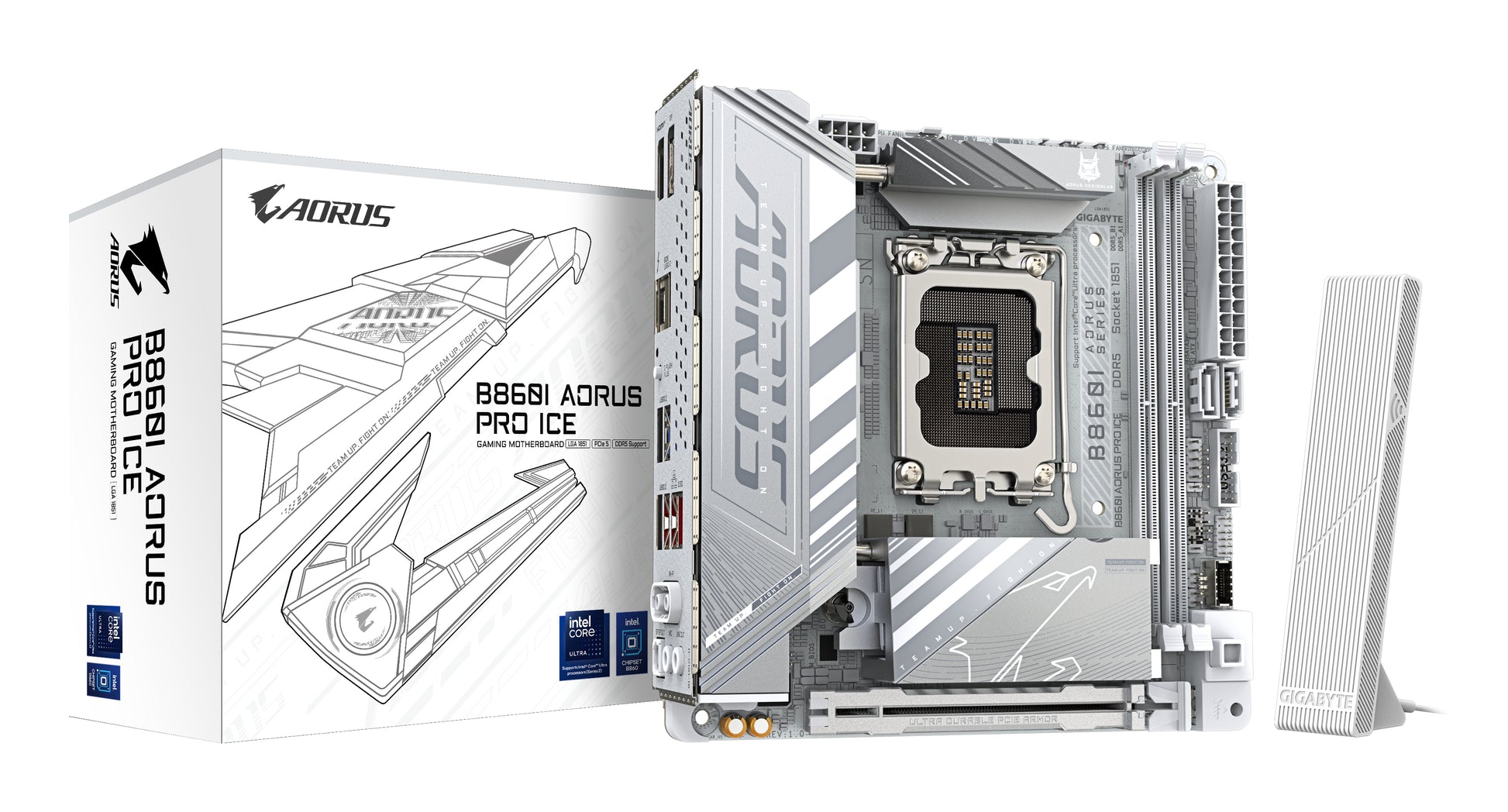

GIGABYTE B860I AORUS PRO ICE motherboard Intel B860 LGA 1851 (Socket V1) mini ITX
GIGABYTE B860I AORUS PRO ICE motherboard Intel B860 LGA 1851 (Socket V1) mini ITX
SKU: B860I AORUS PRO ICE
Regular price
$229.99 USD
Regular price
Sale price
$229.99 USD
MSRP: $229.99
GIGABYTE B860I AORUS PRO ICE. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Quantity
Couldn't load pickup availability
- Details: GIGABYTE B860I AORUS PRO ICE. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Info: Digital 8+1+2+1 Phases 80A SPS VRM|Dual Channel DDR5?2*DIMMs|PCIe 5.0 x16 with PCIE UD Slot X & EZ-Latch Plus|EZ-Latch Plus for M.2 SSDs installation|VRM Thermal Armor Advanced/M.2 Thermal Guard(Ext.) with EZ-Latch Click|Intel 2x2 Wi-Fi 7 160MHz with WIFI EZ-Plug|2.5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen 2 Type-C|Q-Flash Plus
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- Cooling type: Passive
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- Product color: White
- Number of displays supported: 3
- Motherboard form factor: mini ITX
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Audio chip: Realtek ALC897
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 1
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 1
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel connector: Yes
- Front panel audio connector: Yes
- RGB LED pin header: Yes
- Number of CPU fan connectors: 2
- Number of water pump connectors: 1
- Number of RGB LED pin headers: 2
- Number of EPS power connectors (8-pin): 1
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600,6400,9200 MHz
- Memory slots type: DIMM
- Number of memory slots: 2
- Unbuffered memory: Yes
- Supported memory clock speed (max): 9200 MHz
- Maximum internal memory per slot: 64 GB
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: MediaTek MT7925
- Bluetooth: Yes
- Bluetooth version: 5.4
- LAN controller: Realtek RTL8125
- ACPI version: 5.0
- Bundled software: Norton Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Batteries included: Yes
- Antenna included: Yes
- Package width: 9.25" (235 mm)
- Package height: 3.74" (95 mm)
- Package depth: 8.94" (227 mm)
- Screws included: Yes
- Maximum resolution: 5120 x 2880 pixels
- Motherboard chipset: Intel B860
- Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- DirectX version: 12.0

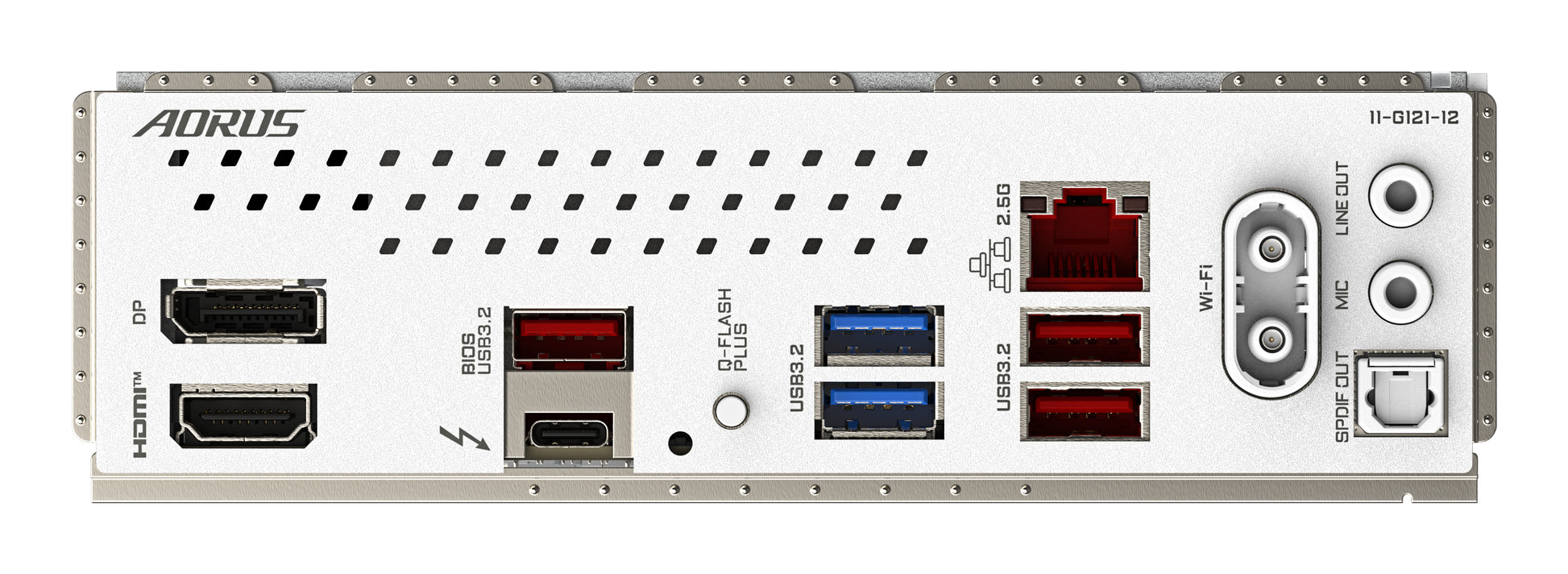

- Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- Headphone outputs: 1
- DisplayPorts quantity: 1
- Line-in: Yes
- HDCP: Yes
- DisplayPort version: 2.1
- S/PDIF out port: Yes
- Number of SATA III connectors: 2
- Thunderbolt ports quantity: 1
- Power source type: ATX
- Battery type: CR2032
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- WiFi-AP antenna jack: 2
- Digital audio optical out: 1
- Number of storage drives supported: 4
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 2
- Windows operating systems supported: Windows 11 x64
- Weight: 2.87 lbs (1.3 kg)
- Width: 6.69" (170 mm)
- Height: 1.38" (35 mm)
- Depth: 6.69" (170 mm)
- Battery weight: 0.106 oz (3 g)
