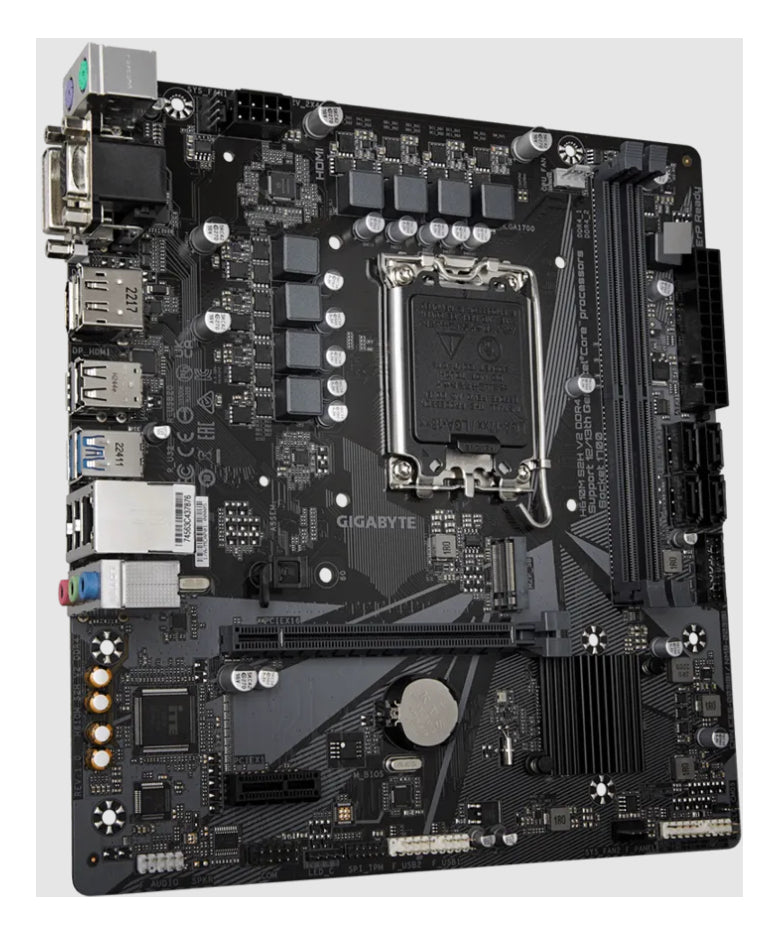

GIGABYTE H610M S2H V2 DDR4 motherboard Intel H610 Express LGA 1700 micro ATX
GIGABYTE H610M S2H V2 DDR4 motherboard Intel H610 Express LGA 1700 micro ATX
SKU: H610M S2H V2 DDR4
Regular price
$99.99 USD
Regular price
Sale price
$99.99 USD
MSRP: $99.99
GIGABYTE H610M S2H V2 DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, On-board graphics card model: Intel® HD Graphics. Ethernet interface type: Gigabit Ethernet
Quantity
Couldn't load pickup availability
- Details: GIGABYTE H610M S2H V2 DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, On-board graphics card model: Intel® HD Graphics. Ethernet interface type: Gigabit Ethernet
- Info: Supports Intel Core 14th/ 13th /12th processors|Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs|6+1+1 Hybrid Digital VRM Design|GbE LAN with Bandwidth Management|NVMe PCIe 3.0 x4 M.2|DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display|High Quality Audio Capacitors and Audio Noise Guard|Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP|GIGABYTE APP Center, Simple and Easy Use|Anti-Sulfur Resistors Design
- Clear CMOS button: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- Cooling type: Active
- PCI Express x16 slots: 1
- PCI Express x1 slots: 1
- Number of M.2 (M) slots: 1
- Product color: Brown
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- PC health monitoring: Fan, LED, Temperature, Voltage, Water cooling
- On-board graphics card: Yes
- On-board graphics card model: Intel® HD Graphics
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1
- TPM connector: Yes
- Serial port headers: 1
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel connector: Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 64 GB
- Memory channels: Dual-channel
- Supported memory types: DDR4-SDRAM
- ECC ?ompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
- Supported DIMM module capacities: 8GB, 16GB
- Memory slots type: DIMM
- Number of memory slots: 2
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
- Unbuffered memory: Yes
- Supported memory clock speed (max): 3200 MHz
- Ethernet LAN: Yes
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- ACPI version: 5.0
- Bundled software: Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Graphics card: HD Graphics
- Graphics card family: Intel
- Batteries included: Yes
- Package width: 10.4" (265 mm)
- Package height: 2.13" (54 mm)
- Package depth: 10.4" (265 mm)
- Package weight: 30.2 oz (857 g)
- Motherboard chipset: Intel H610 Express
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
- DirectX version: 12.0
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- Headphone outputs: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- HDCP: Yes
- PS/2 ports quantity: 2
- Total number of SATA connectors: 4
- Number of SATA III connectors: 4
- Power source type: ATX
- Battery type: CR2032
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Maximum internal memory supported by processor: 64 GB
- Maximum number of SMP processors: 1
- DVI-D ports quantity: 1
- Number of storage drives supported: 5
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA
- Number of HDDs supported: 4
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Width: 9.06" (230 mm)
- Height: 1.38" (35 mm)
- Depth: 8.46" (215 mm)
- Battery weight: 0.106 oz (3 g)
