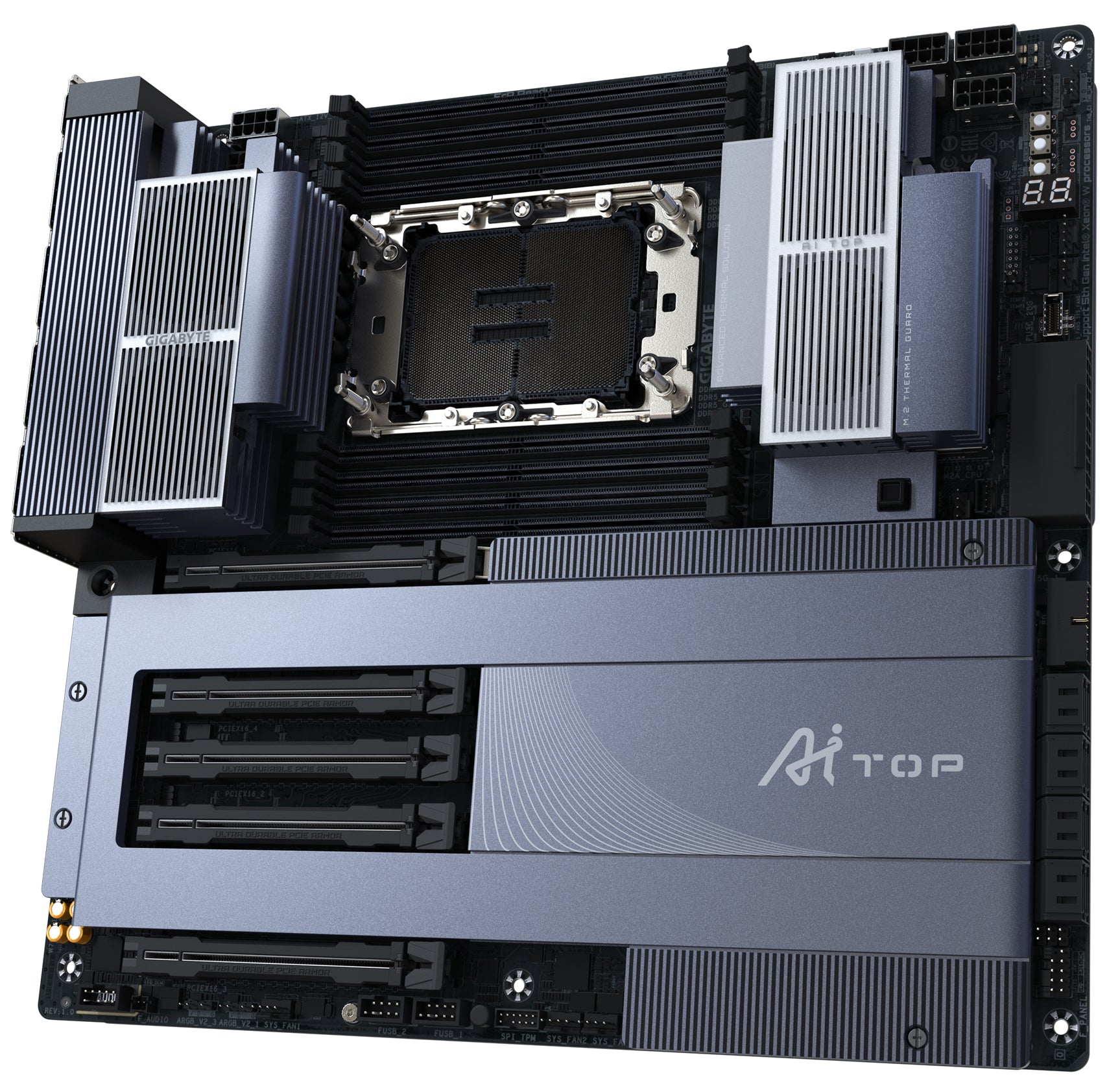

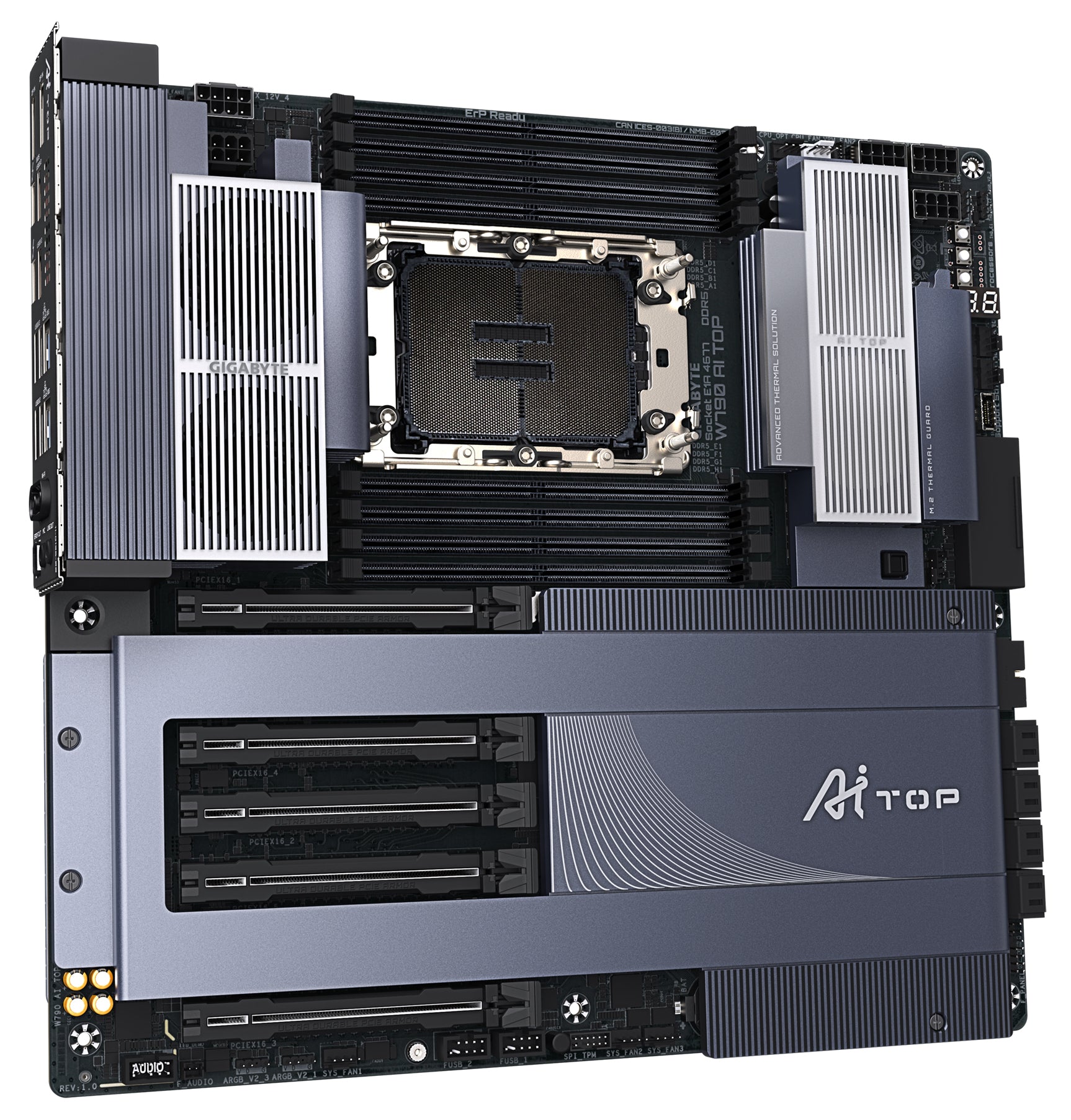

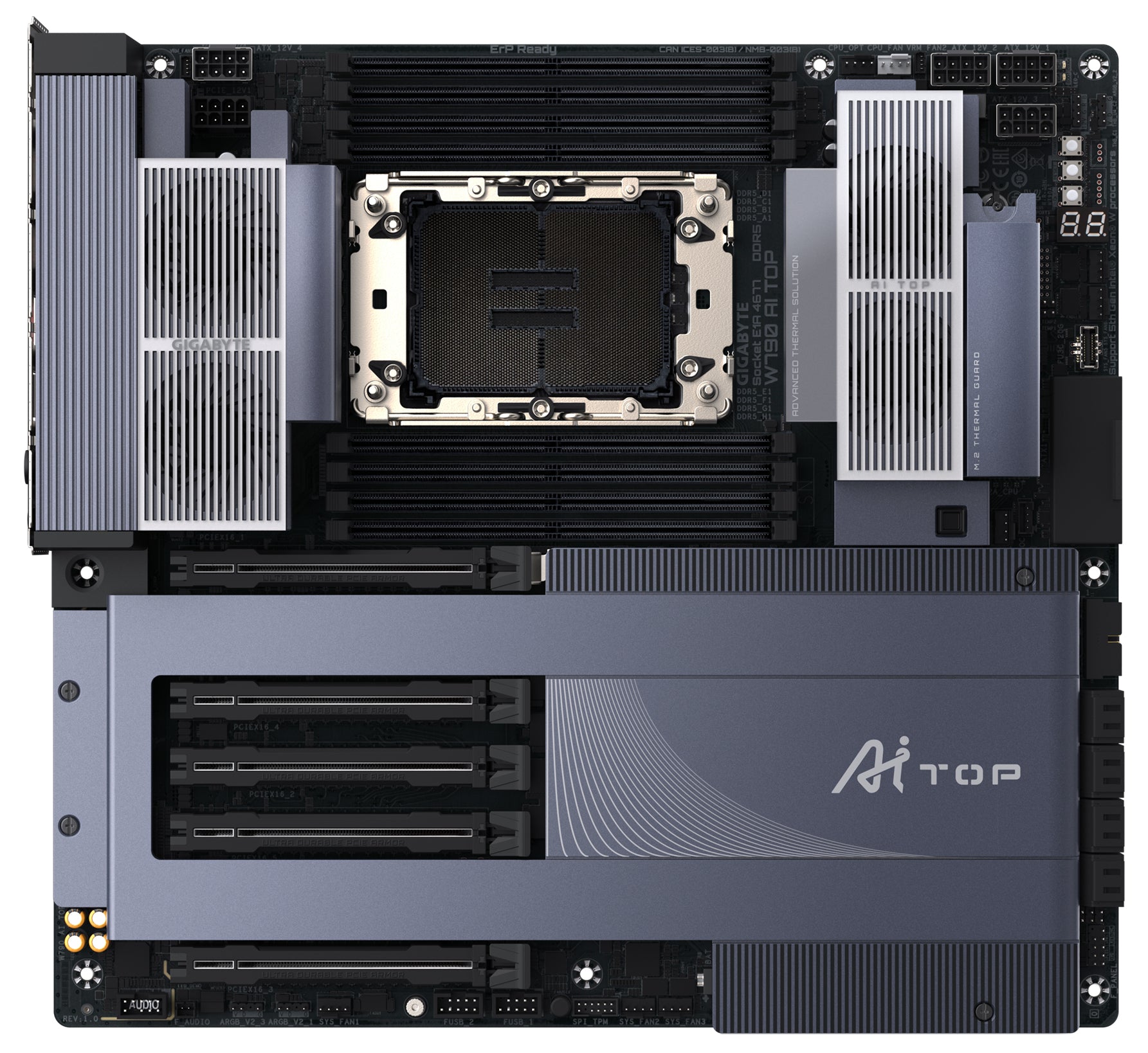

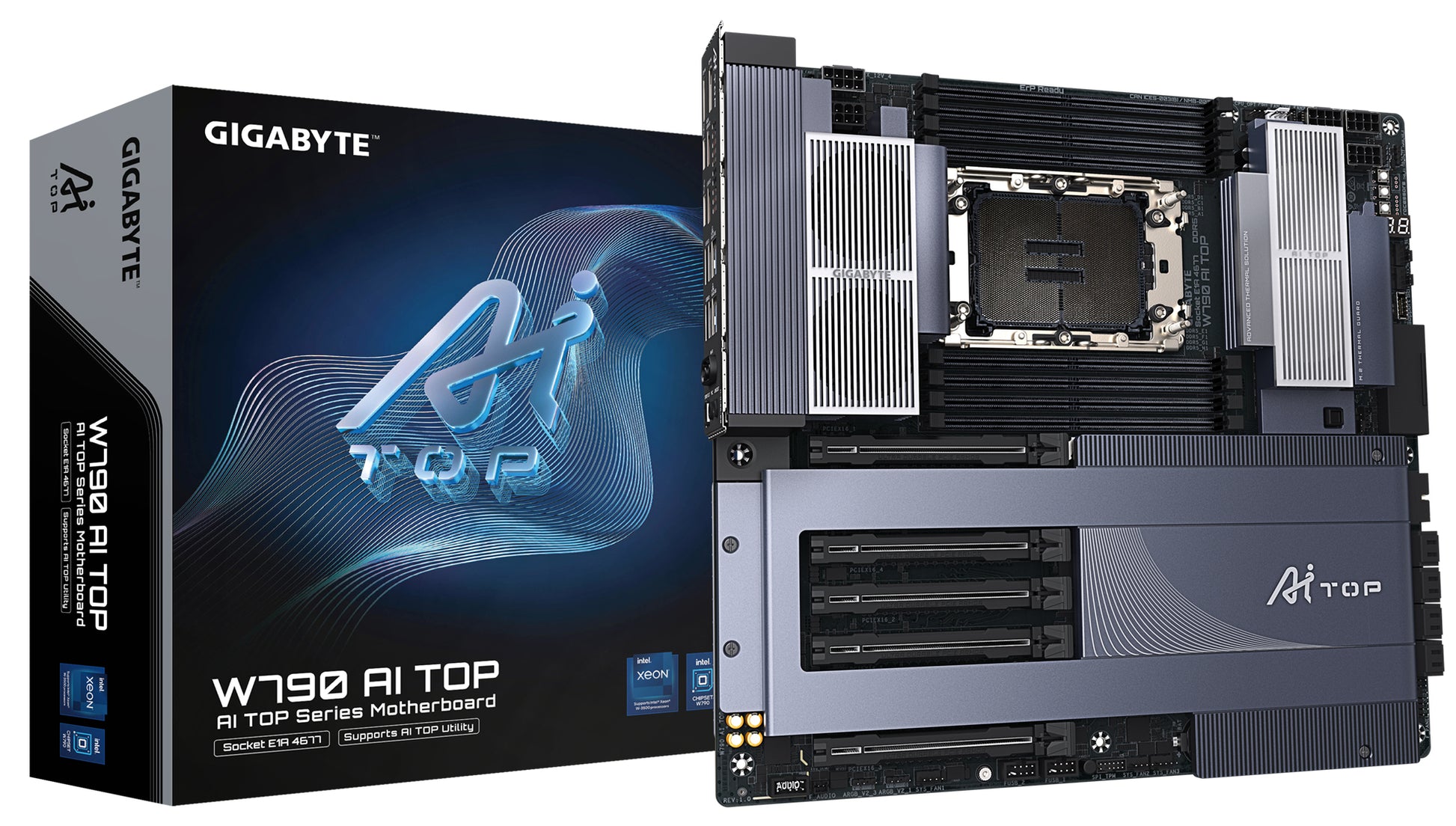

GIGABYTE W790 AI TOP motherboard Intel W790 LGA 4677 (Socket E) Extended ATX
GIGABYTE W790 AI TOP motherboard Intel W790 LGA 4677 (Socket E) Extended ATX
SKU: W790 AI TOP
Regular price
$1,099.99 USD
Regular price
Sale price
$1,099.99 USD
MSRP: $1,099.99
GIGABYTE W790 AI TOP. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel X710-AT2, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: Server, Motherboard form factor: Extended ATX, Motherboard chipset family: Intel
Quantity
Couldn't load pickup availability
- Details: GIGABYTE W790 AI TOP. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel® Xeon®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel X710-AT2, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: Server, Motherboard form factor: Extended ATX, Motherboard chipset family: Intel
- Info: Training your own AI on your desk|Support 5th Gen Intel Xeon W processors|Digital twin 16+2+2 phases VRM solution|Ultimate Scalibility : 5 * PCIe 5.0 x16 slots for Multi-GPU and 6*PCIe 5.0/4.0 M.2 slots|Next-gen Connectivity : Dual Thunderbolt 4 Type-C with DP-Alt|Blazing Fast Networks : Dual Sever-grade 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna|8 Channel DDR5 : 8*SMD ECC R-DIMMs with Maxmium 2TB capacity|Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.|WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation|PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design|Friendly UI : AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW|New Power Monitor in HWinfo for real-time monitoring on CPU power phases|PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
- BIOS type: UEFI AMI
- BIOS memory size: 512 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: Server
- Number of M.2 (M) slots: 6
- PCI Express x16 (Gen 5.x) slots: 5
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 5.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 5.0
- 4th M.2 largest key size: 2280
- 4th M.2 highest PCI Express generation: 5.0
- 5th M.2 largest key size: 2280
- 5th M.2 highest PCI Express generation: 4.0
- 6th M.2 largest key size: 2280
- 6th M.2 highest PCI Express generation: 4.0
- Product color: Black
- Motherboard form factor: Extended ATX
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Audio chip: Realtek ALC897
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 6
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel audio connector: Yes
- RGB LED pin header: Yes
- USB 3.2 Gen 2x2 connectors: 1
- Audio connector: Yes
- Number of CPU fan connectors: 2
- Number of water pump connectors: 1
- Number of RGB LED pin headers: 4
- Number of EPS power connectors (8-pin): 4
- Number of temperature sensor headers: 2
- Country of origin: Taiwan
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 2 TB
- Memory channels: Octa-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: ECC
- Supported memory clock speeds: 4800,5600 MHz
- Maximum RDIMM memory: 256 GB
- Memory slots type: DIMM
- Number of memory slots: 8
- Supported memory clock speed (max): 5600 MHz
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: Intel Wi-Fi 7 BE200
- Bluetooth: Yes
- Bluetooth version: 5.4
- LAN controller: Intel X710-AT2
- ACPI version: 5.0
- Bundled software: Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Batteries included: Yes
- Antenna included: Yes
- Package width: 14.3" (363 mm)
- Package height: 3.66" (93 mm)
- Package depth: 15.1" (383 mm)
- Package weight: 12.6 lbs (5.7 kg)
- Screws included: Yes
- Motherboard chipset: Intel W790
- Compatible processor series: Intel® Xeon®

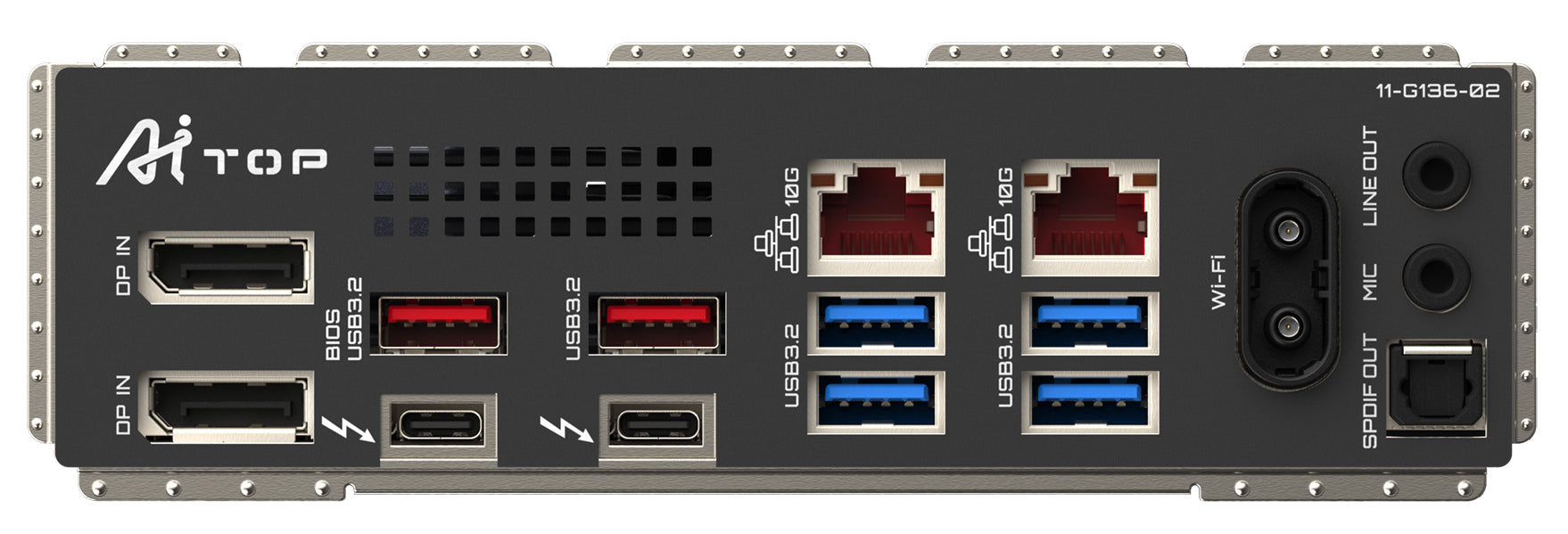

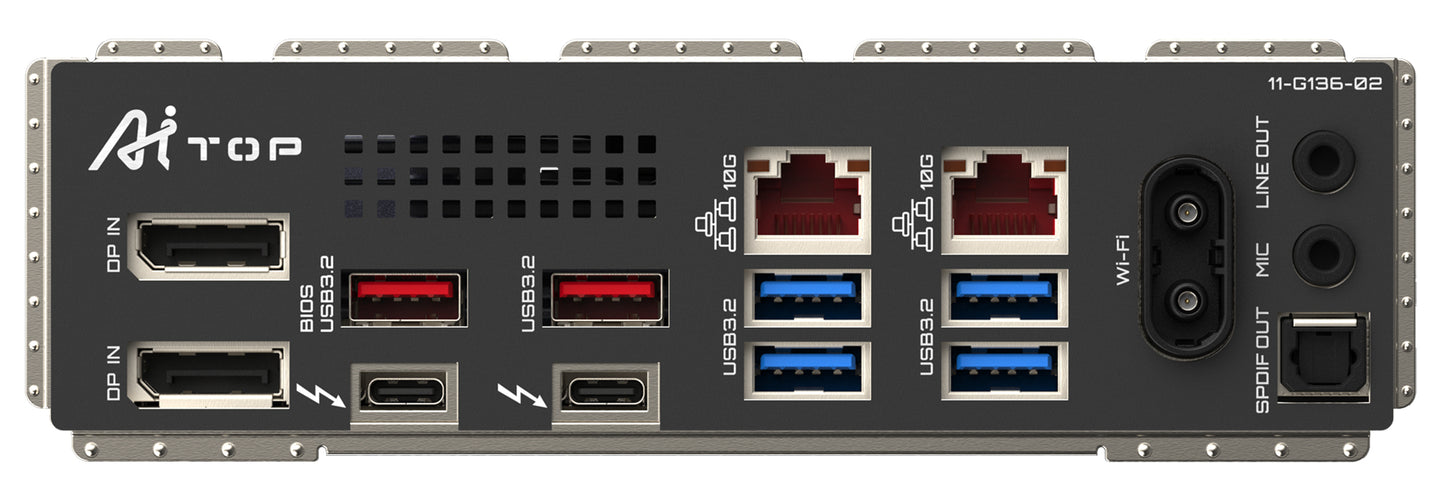

- Ethernet LAN (RJ-45) ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Headphone outputs: 1
- DisplayPorts quantity: 2
- Line-in: Yes
- S/PDIF out port: Yes
- Number of SATA III connectors: 8
- Thunderbolt ports quantity: 2
- Power source type: ATX
- Battery type: CR2032
- Processor manufacturer: Intel
- Processor socket: LGA 4677 (Socket E)
- Intel Xeon series: W-2400, W-3400, W3500, W-2500
- WiFi-AP antenna jack: 2
- Digital audio optical out: 1
- Trusted Platform Module (TPM): Yes
- Number of storage drives supported: 14
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 8
- Windows operating systems supported: Windows 11 x64
- Weight: 10.7 lbs (4.87 kg)
- Width: 12" (305 mm)
- Height: 1.38" (35 mm)
- Depth: 13" (330 mm)
- Battery weight: 0.106 oz (3 g)
