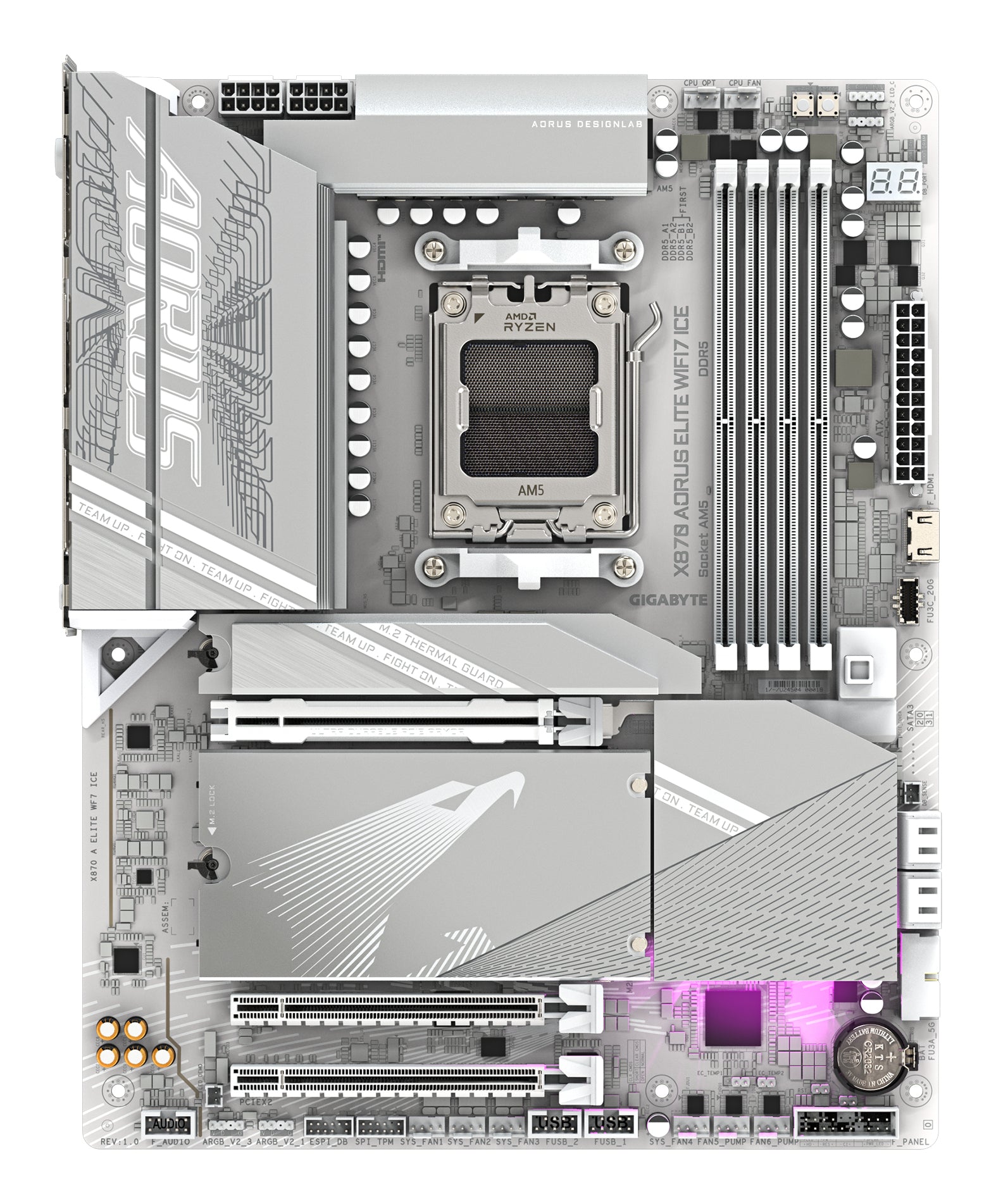

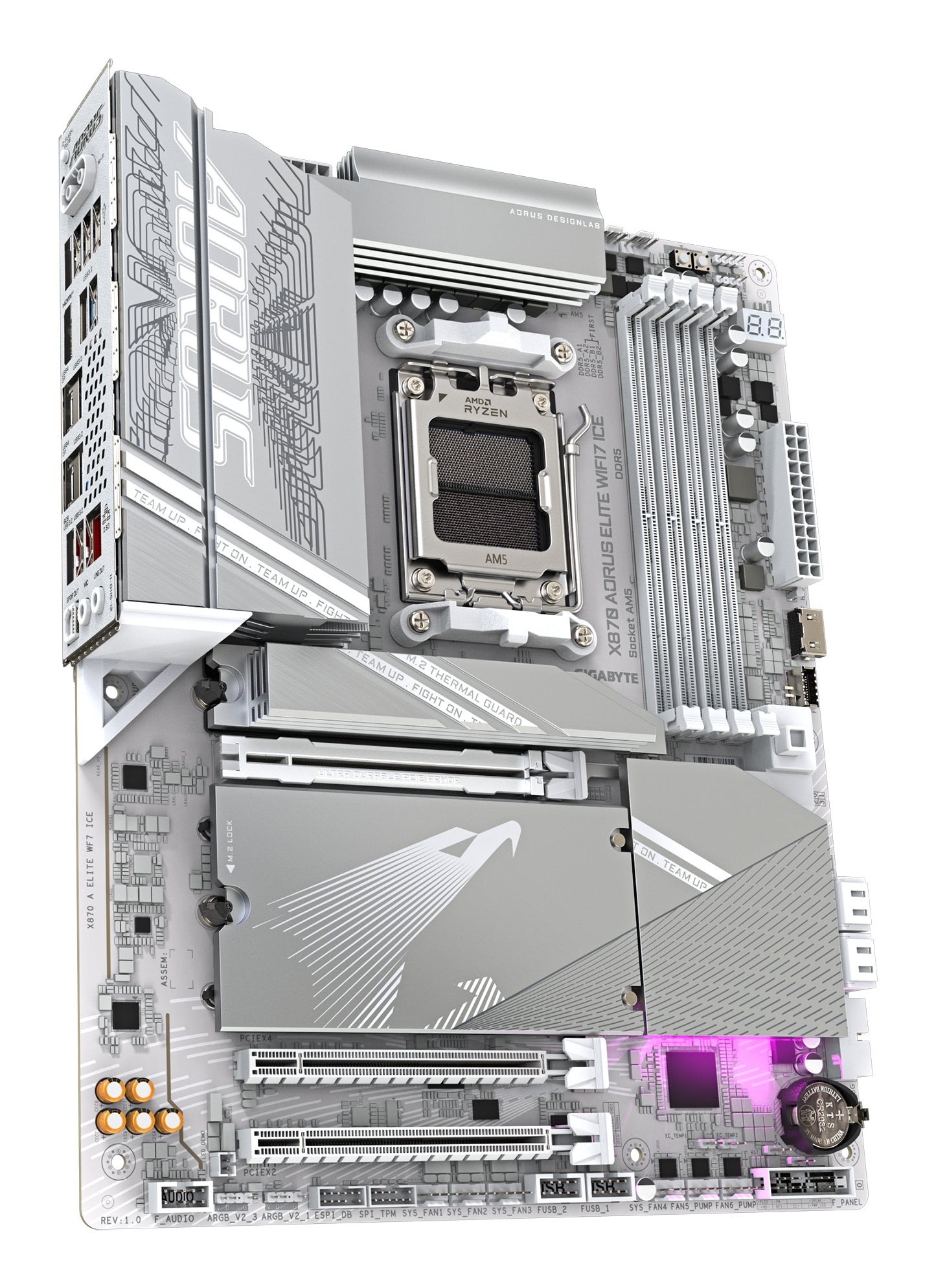

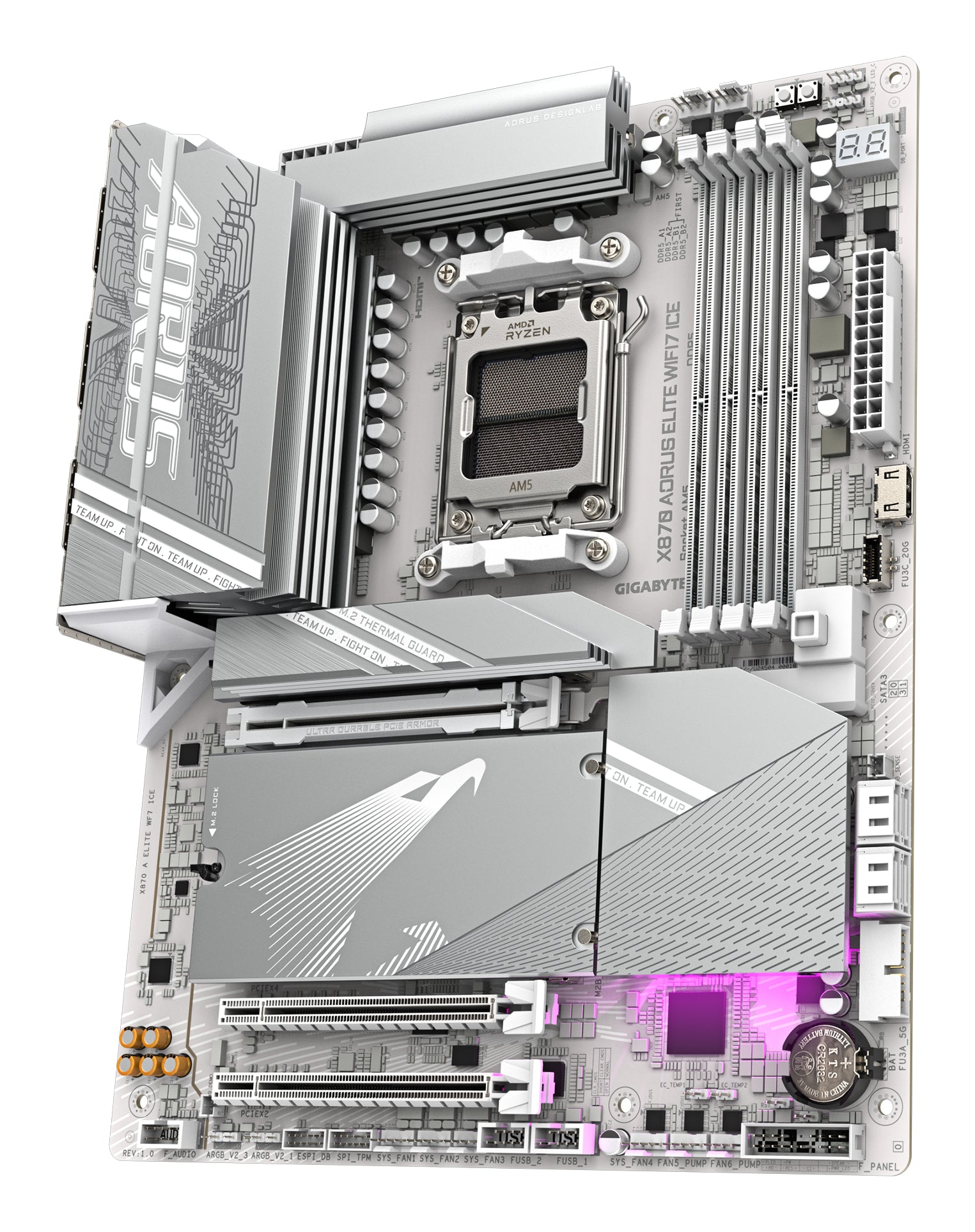

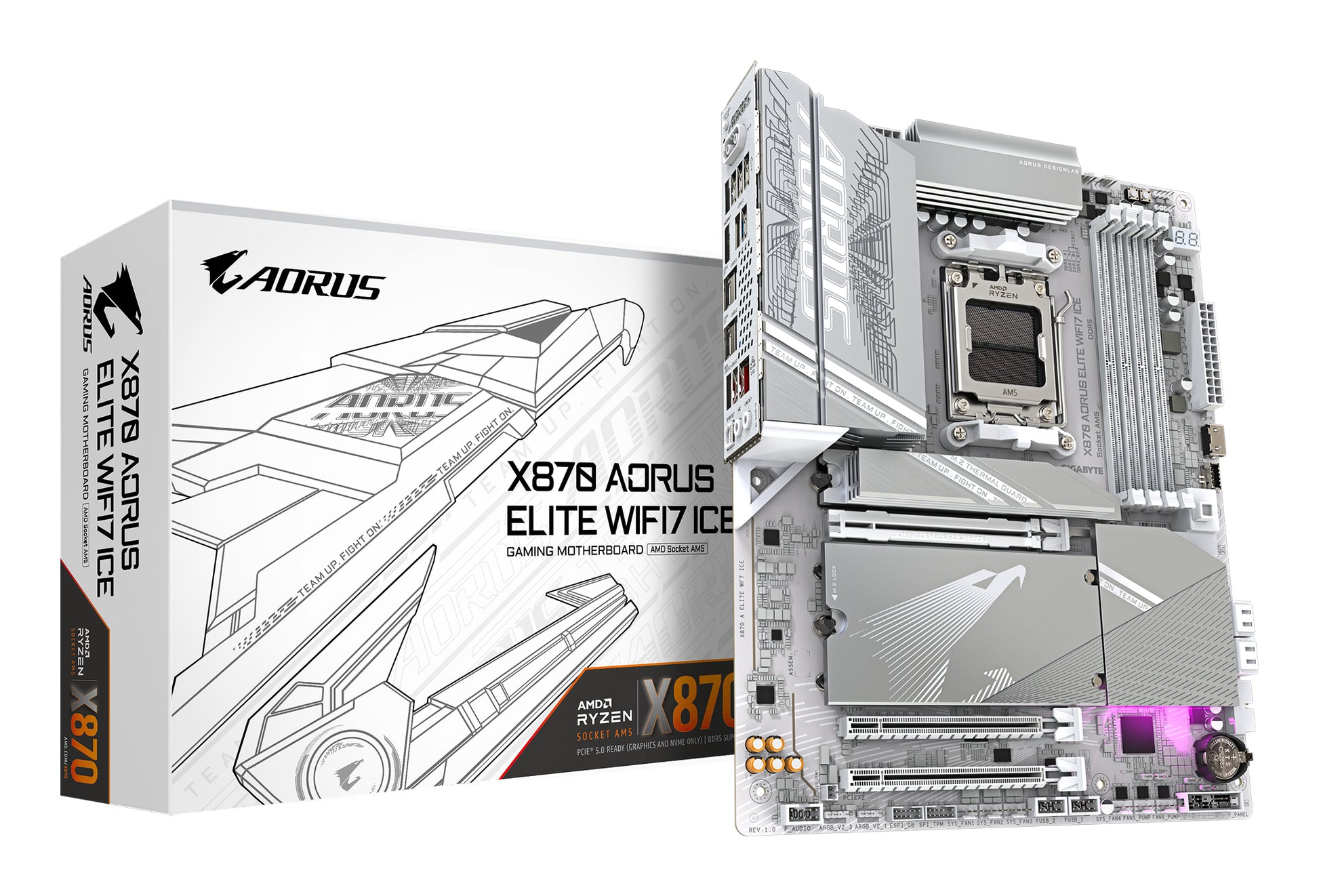

GIGABYTE X870 AORUS ELITE WIFI7 ICE AMD X870 Socket AM5 ATX
GIGABYTE X870 AORUS ELITE WIFI7 ICE AMD X870 Socket AM5 ATX
SKU: X870 A ELITE WF7 ICE
Regular price
$319.99 USD
Regular price
Sale price
$319.99 USD
MSRP: $319.99
GIGABYTE X870 AORUS ELITE WIFI7 ICE. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels, On-board graphics card model: AMD Radeon Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Quantity
Couldn't load pickup availability
- Details: GIGABYTE X870 AORUS ELITE WIFI7 ICE. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels, On-board graphics card model: AMD Radeon Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Info: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors|Twin 16+2+2 Phases Digital VRM with DrMOS|Dual Channel DDR5?4*DIMMs with AMD EXPO™ Memory Module Support|PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus|Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4|Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L|Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI|Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Clear CMOS button: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 5.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 5.0
- 4th M.2 largest key size: 22110
- 4th M.2 highest PCI Express generation: 4.0
- Product color: White
- Number of displays supported: 4
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- PC health monitoring: Fan, Noise, Temperature, Voltage, Water cooling
- Audio chip: Realtek ALC1220
- On-board graphics card: Yes
- On-board graphics card model: AMD Radeon Graphics
- Parallel processing technology support: Not supported
- Discrete graphics support: Yes
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 6
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel connector: Yes
- Front panel audio connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- USB 3.2 Gen 2x2 connectors: 1
- Number of CPU fan connectors: 2
- Number of water pump connectors: 3
- Number of RGB LED pin headers: 4
- Number of EPS power connectors (8-pin): 2
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 256 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory per slot: 64 GB
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: MediaTek MT7925
- Bluetooth: Yes
- Bluetooth version: 5.4
- LAN controller: Realtek RTL8125
- ACPI version: 5.0
- Bundled software: Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Batteries included: Yes
- Antenna included: Yes
- Package width: 13.2" (335 mm)
- Package height: 3.15" (80 mm)
- Package depth: 10.6" (270 mm)
- Package weight: 6.04 lbs (2.74 kg)
- Screws included: Yes
- Maximum resolution: 4096 x 2160 pixels
- Motherboard chipset: AMD X870
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- DirectX version: 12.0
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB4 Gen 3×2 ports quantity: 2
- Headphone outputs: 1
- Microphone in: Yes
- HDCP: Yes
- DisplayPort version: 1.4
- S/PDIF out port: Yes
- Total number of SATA connectors: 4
- Number of SATA III connectors: 4
- Battery type: CR2032
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Maximum internal memory supported by processor: 256 GB
- WiFi-AP antenna jack: 2
- Number of storage drives supported: 8
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2
- RAID support: Yes
- Number of HDDs supported: 4
- Windows operating systems supported: Windows 11 x64
- Weight: 5.29 lbs (2.4 kg)
- Width: 12" (305 mm)
- Height: 1.38" (35 mm)
- Depth: 9.61" (244 mm)
- Battery weight: 0.106 oz (3 g)
