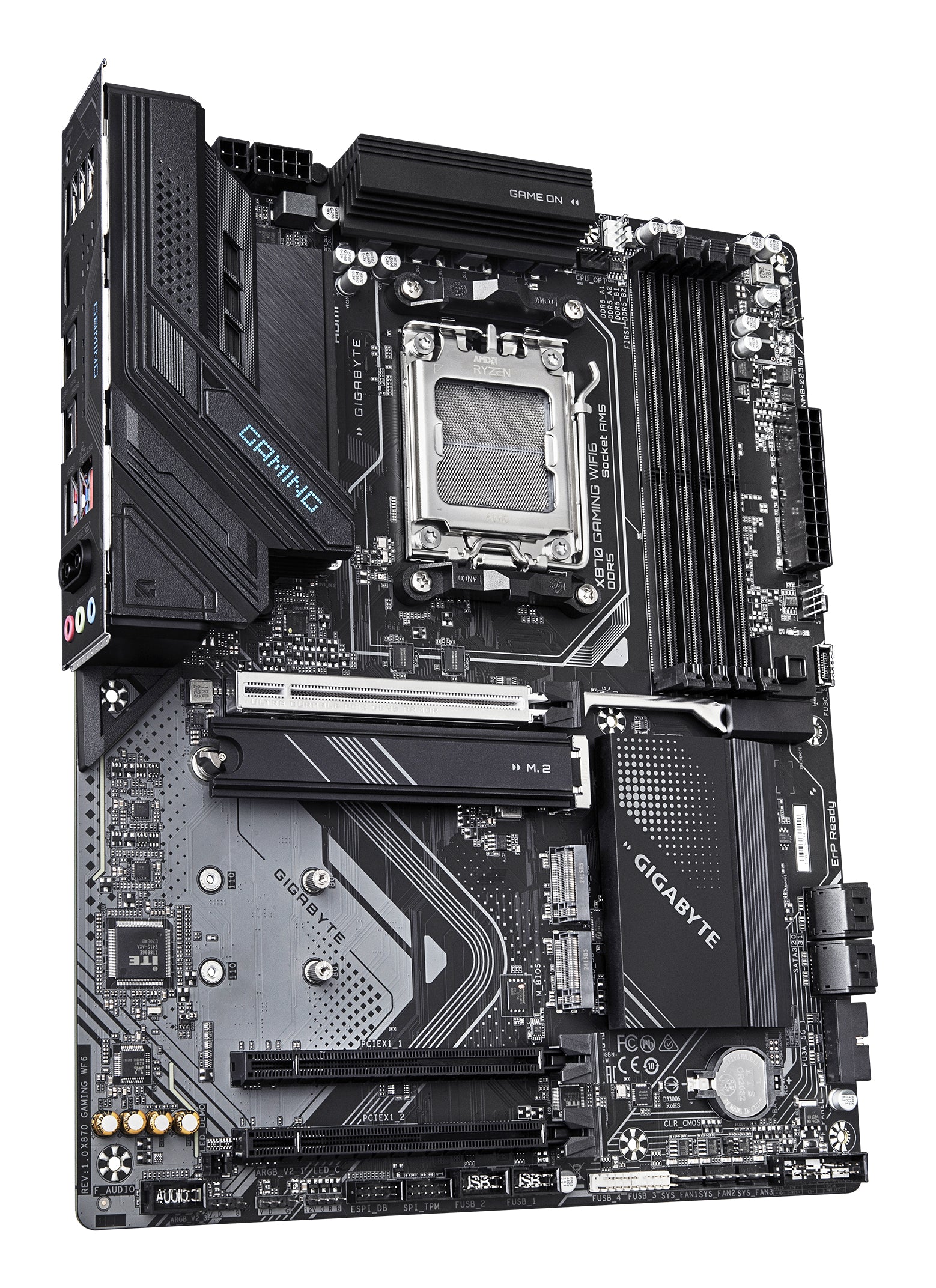

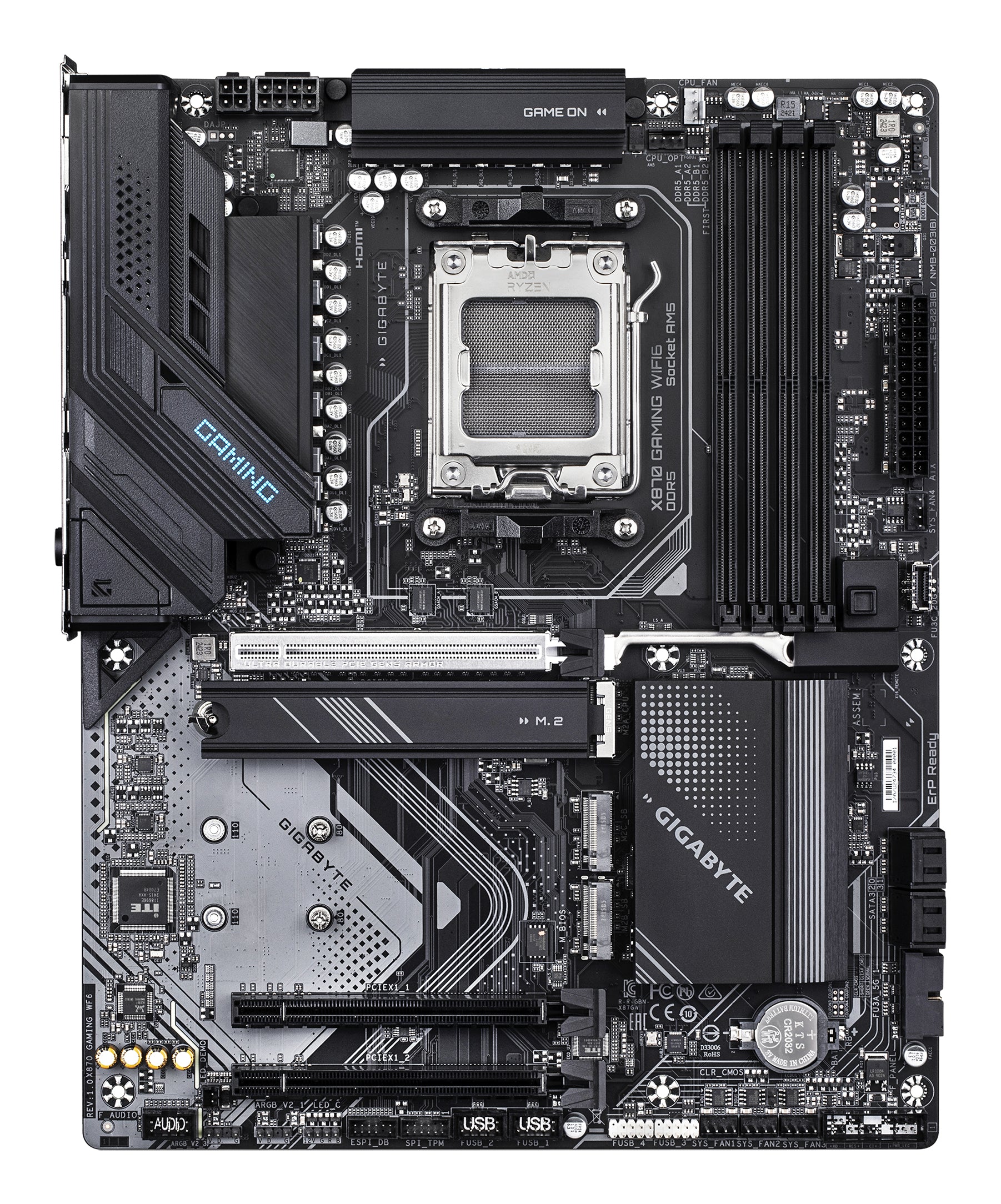

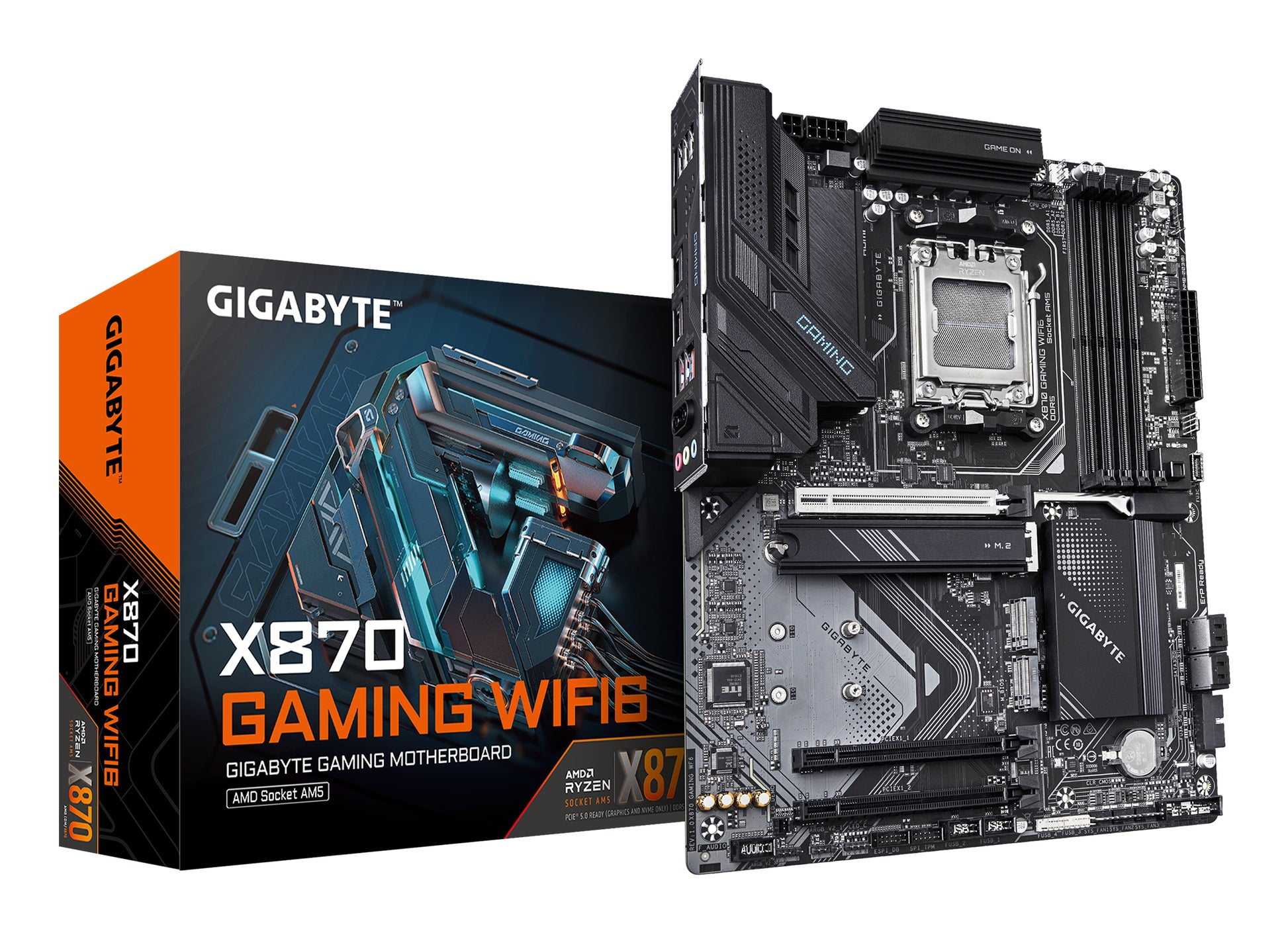

GIGABYTE X870 GAMING WIFI6 AMD X870 Socket AM5 ATX
GIGABYTE X870 GAMING WIFI6 AMD X870 Socket AM5 ATX
SKU: X870 GAMING WF6
Regular price
$199.99 USD
Regular price
Sale price
$199.99 USD
MSRP: $199.99
GIGABYTE X870 GAMING WIFI6. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Quantity
Couldn't load pickup availability
- Details: GIGABYTE X870 GAMING WIFI6. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- Info: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors|Digital twin 8+2+2 phases VRM solution|Dual Channel DDR5?4DIMMs with AMD EXPO Memory Module Support|Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4|Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard|Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI|Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
- Clear CMOS button: Yes
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- PCI Express x4 slots: 2
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- Product color: Black
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- PC health monitoring: Fan, Temperature, Voltage
- USB 2.0 connectors: 4
- ATX Power connector (24-pin): Yes
- TPM connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- USB 3.2 Gen 2x2 connectors: 1
- Country of origin: China
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 256 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
- Supported memory clock speed (max): 8000 MHz
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8851BE
- Bluetooth: Yes
- Bluetooth version: 5.3
- ACPI version: 5.0
- Bundled software: Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 7.1 channels
- Batteries included: Yes
- Package width: 13.2" (335 mm)
- Package height: 3.15" (80 mm)
- Package depth: 10.6" (270 mm)
- Package weight: 5.58 lbs (2.53 kg)
- Motherboard chipset: AMD X870
- Compatible processor series: AMD Ryzen™ 7
- Supported processor sockets: Socket AM5
- DirectX version: 12.0
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- HDMI ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- DisplayPorts quantity: 2
- Microphone in: Yes
- S/PDIF out port: Yes
- Total number of SATA connectors: 4
- Number of SATA III connectors: 4
- Battery type: CR2032
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Maximum internal memory supported by processor: 256 GB
- USB4 Gen 2×2 ports quantity: 2
- Number of storage drives supported: 4
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 7
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Weight: 4.92 lbs (2.23 kg)
- Width: 12" (305 mm)
- Height: 1.38" (35 mm)
- Depth: 9.61" (244 mm)
- Battery weight: 0.106 oz (3 g)
